Ground Distribution Schematics

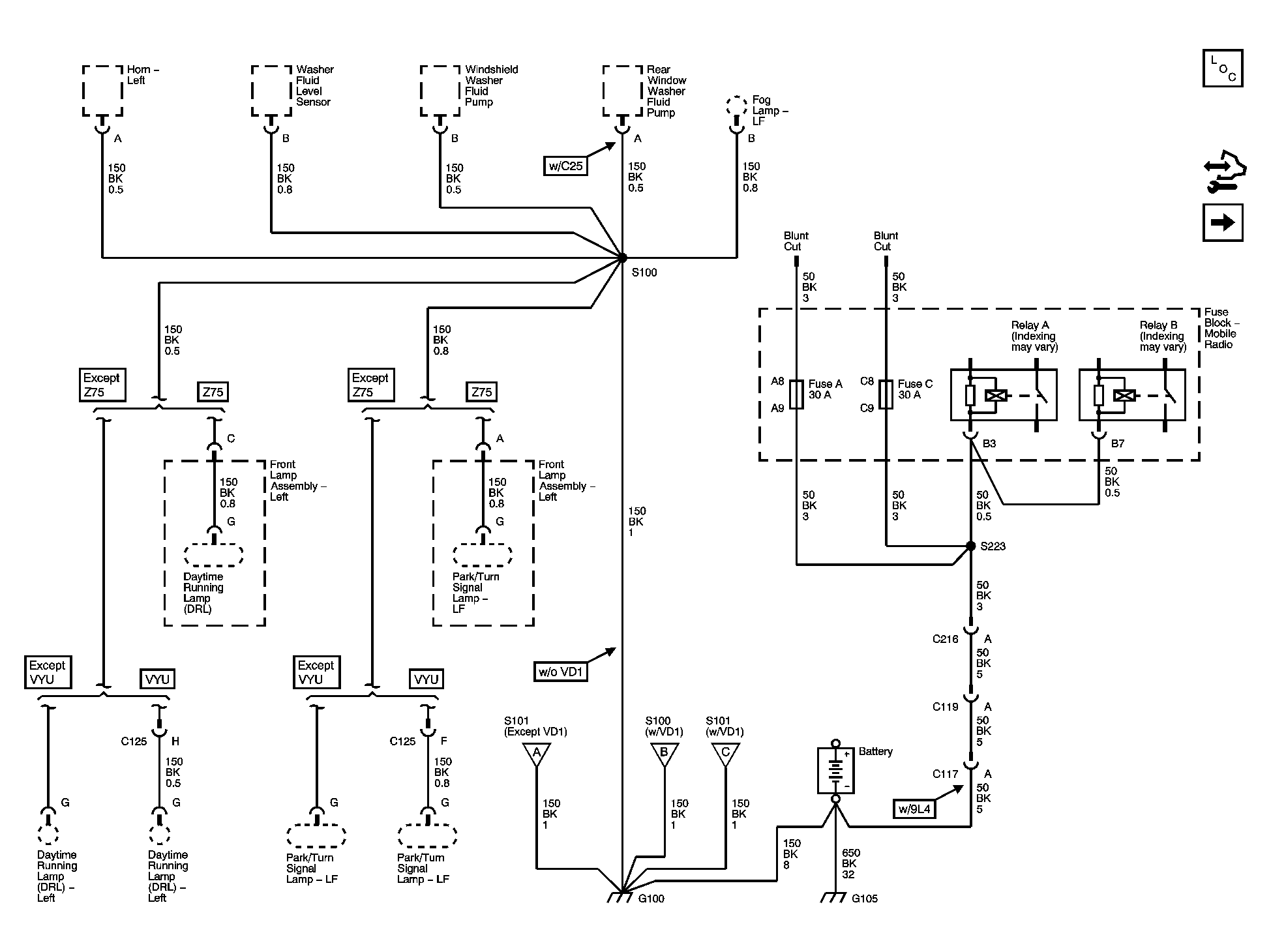

Fig 1: G100 and G105 1 of 4

GM1608564

Courtesy of GENERAL MOTORS CORP.

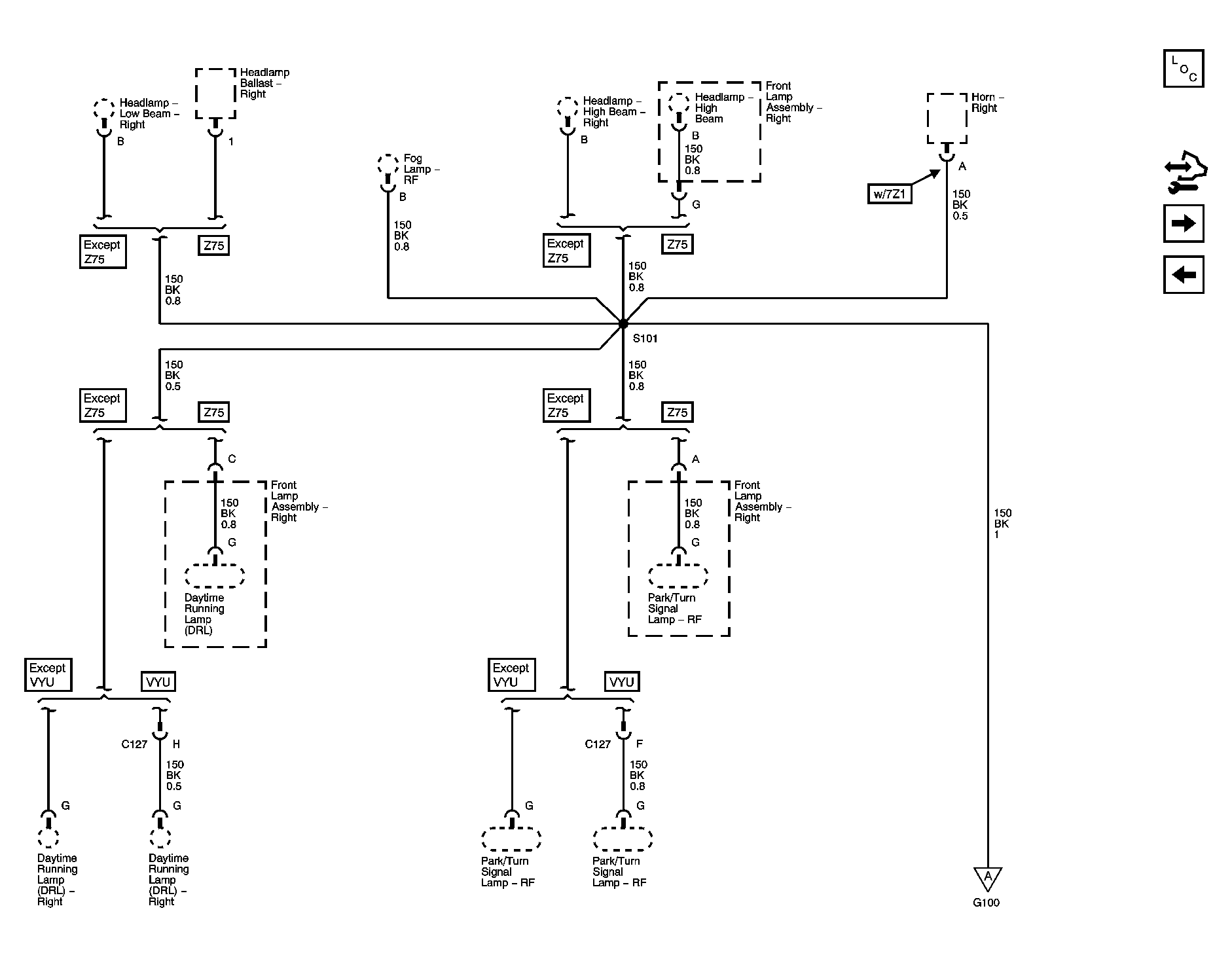

Fig 2: G100 and G105 2 of 4 S101 Except VD1

GM1608565

Courtesy of GENERAL MOTORS CORP.

Fig 3: G100 and G105 3 of 4 S100 w/VD1

GM1608566

Courtesy of GENERAL MOTORS CORP.

Fig 4: G100 and G105 4 of 4 S101 w/VD1

GM1608567

Courtesy of GENERAL MOTORS CORP.

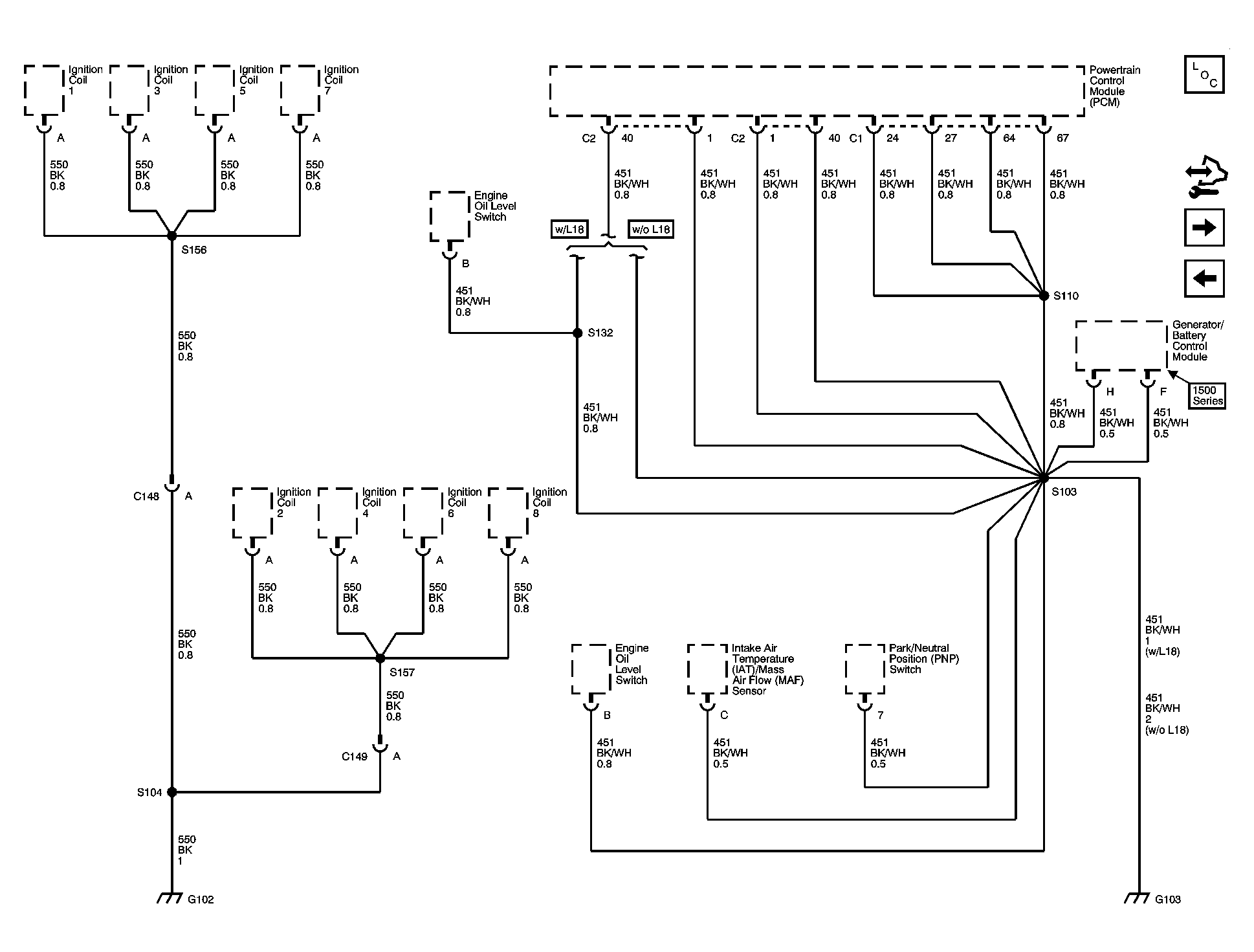

Fig 5: G102 and G103

GM1608572

Courtesy of GENERAL MOTORS CORP.

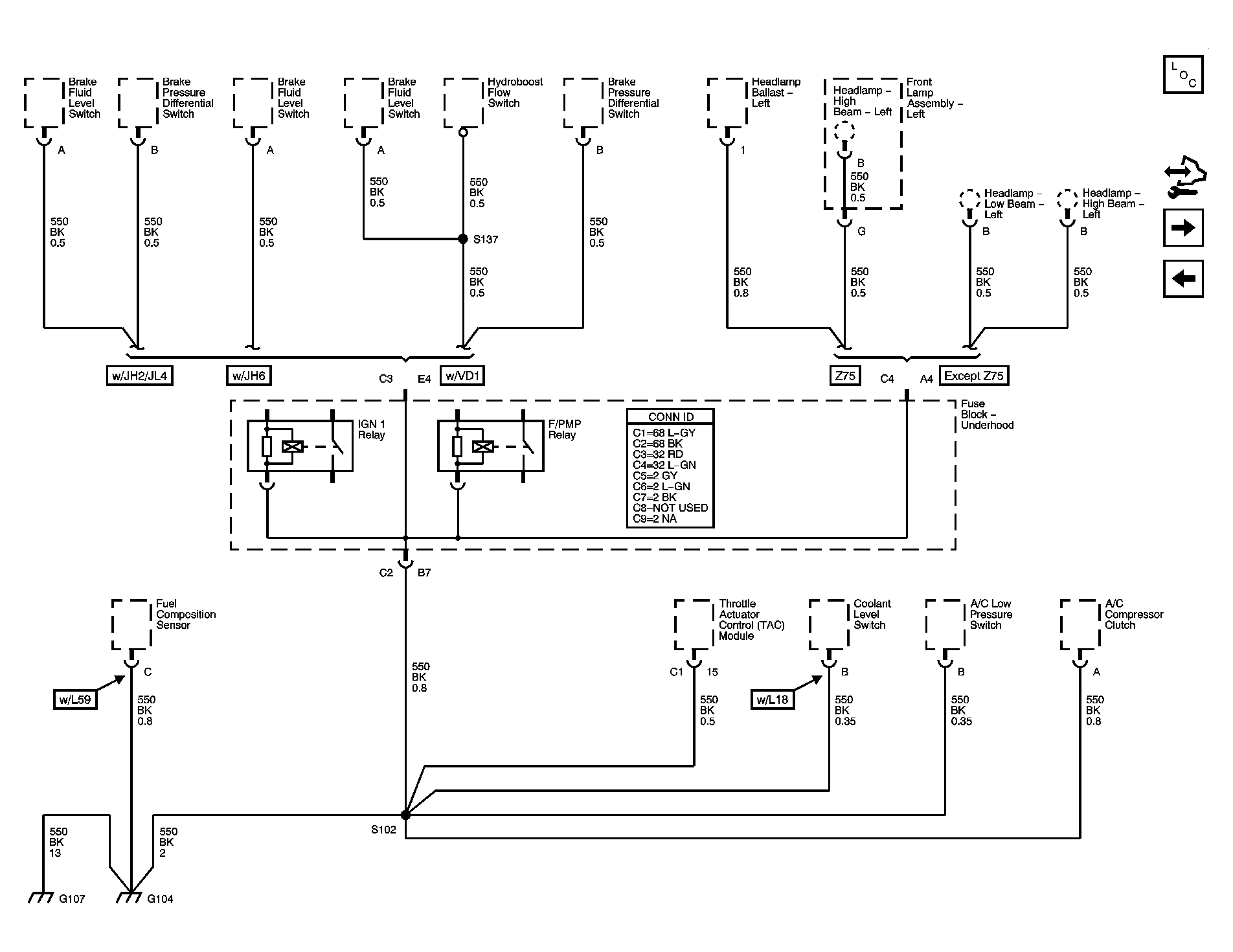

Fig 6: G104 and G107

GM1608574

Courtesy of GENERAL MOTORS CORP.

Fig 7: G101 and G110

GM1608581

Courtesy of GENERAL MOTORS CORP.

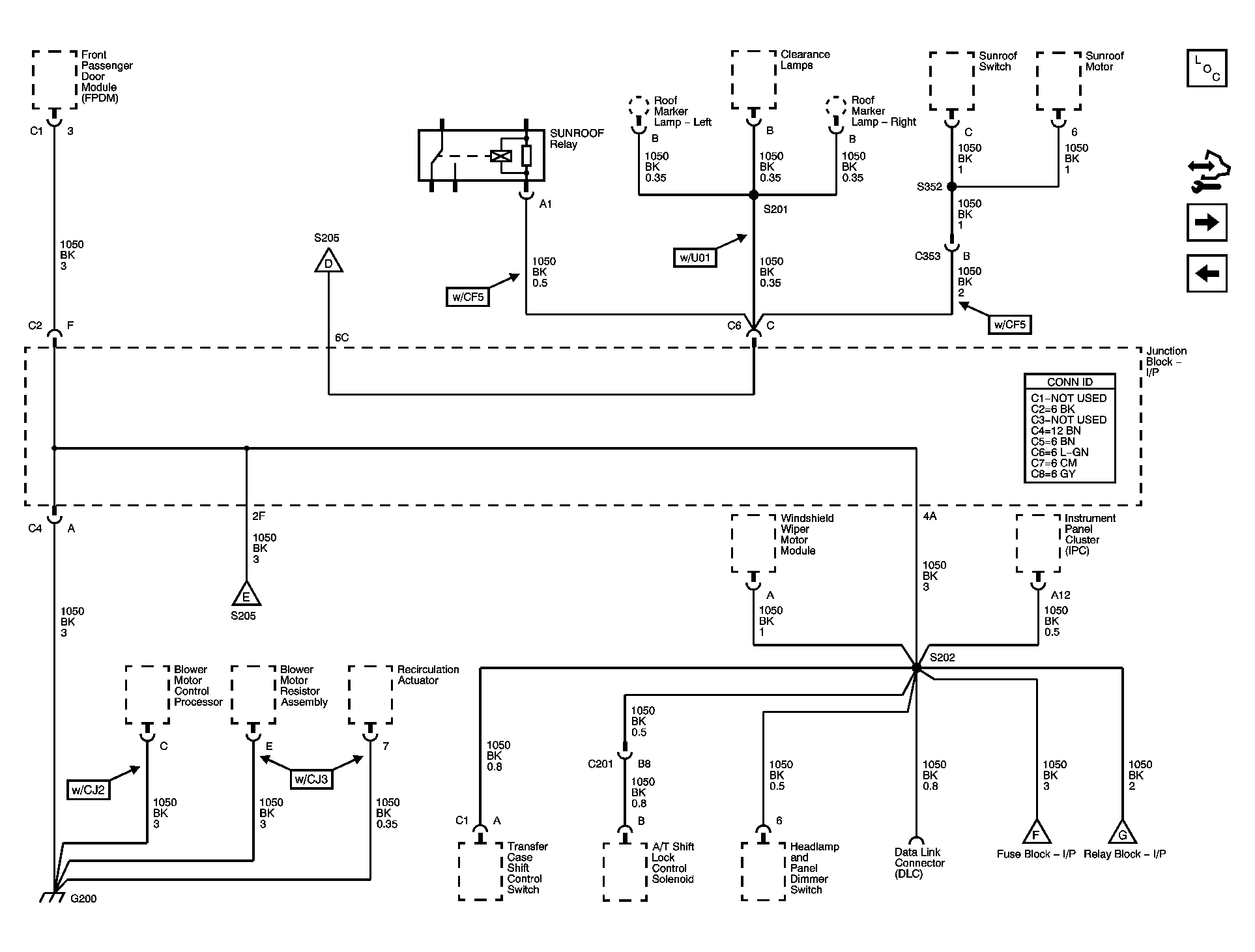

Fig 8: G200 1 of 3

GM1608593

Courtesy of GENERAL MOTORS CORP.

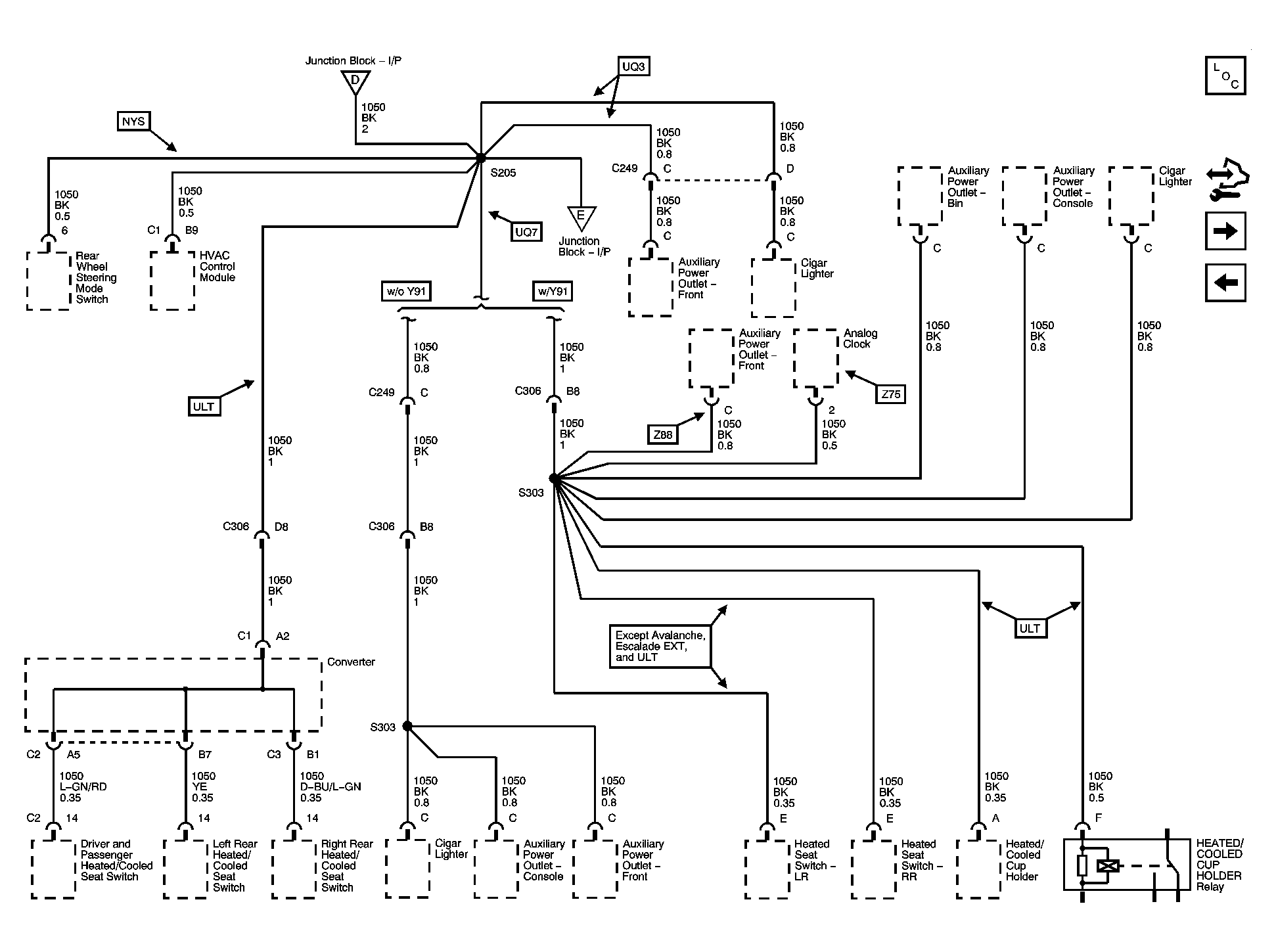

Fig 9: G200 2 of 3

GM1608594

Courtesy of GENERAL MOTORS CORP.

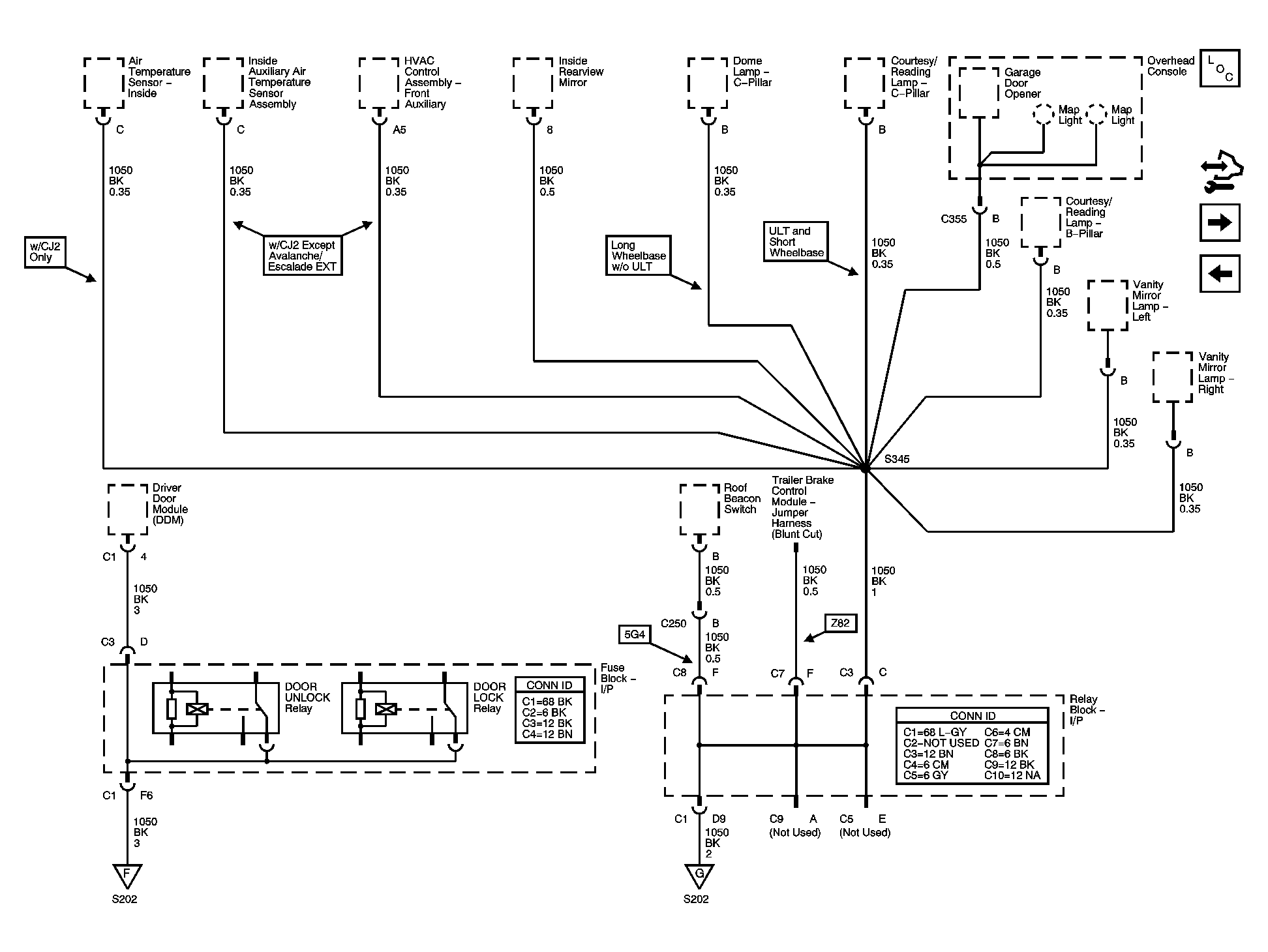

Fig 10: G200 3 of 3

GM1608595

Courtesy of GENERAL MOTORS CORP.

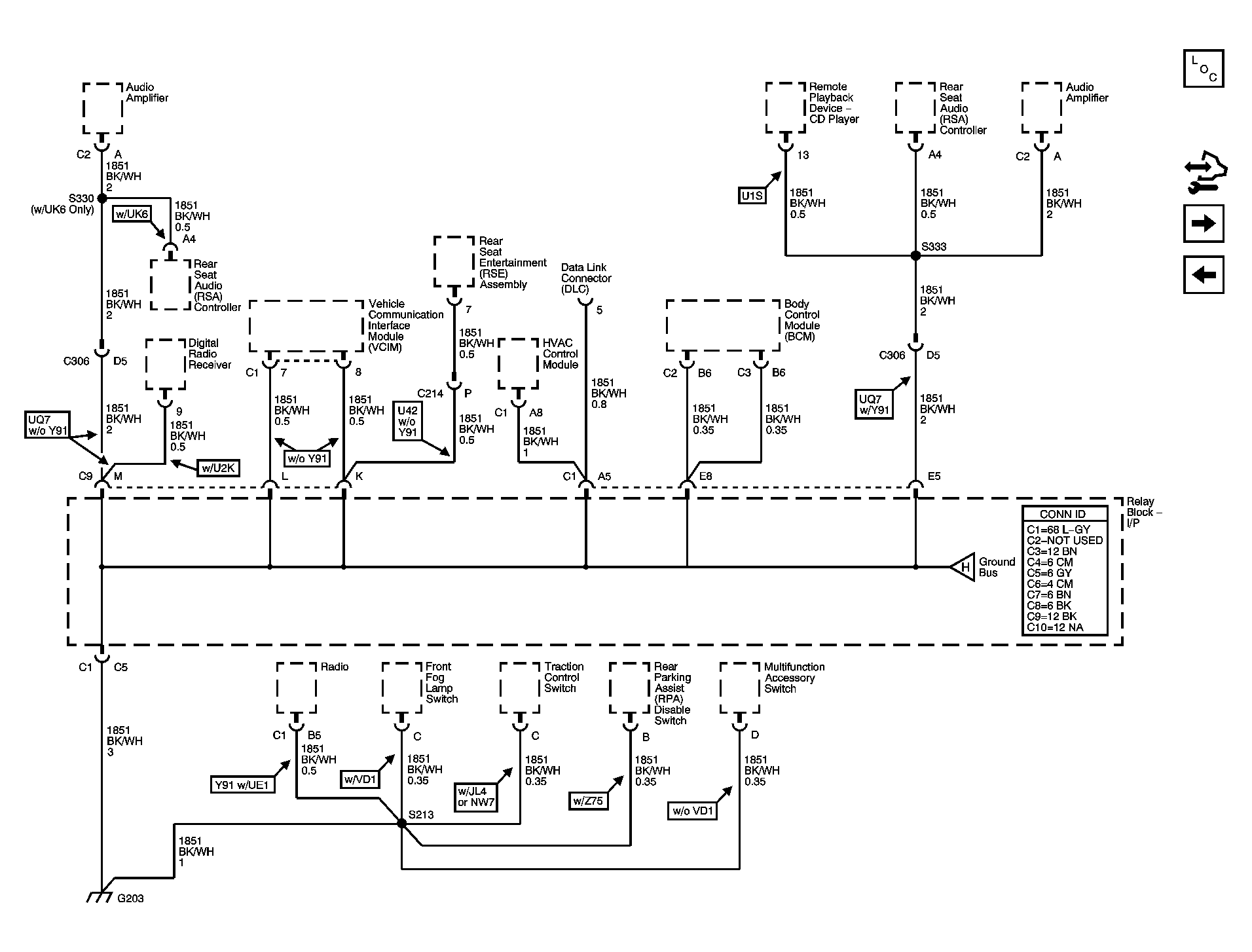

Fig 11: G203 1 of 3

GM1608641

Courtesy of GENERAL MOTORS CORP.

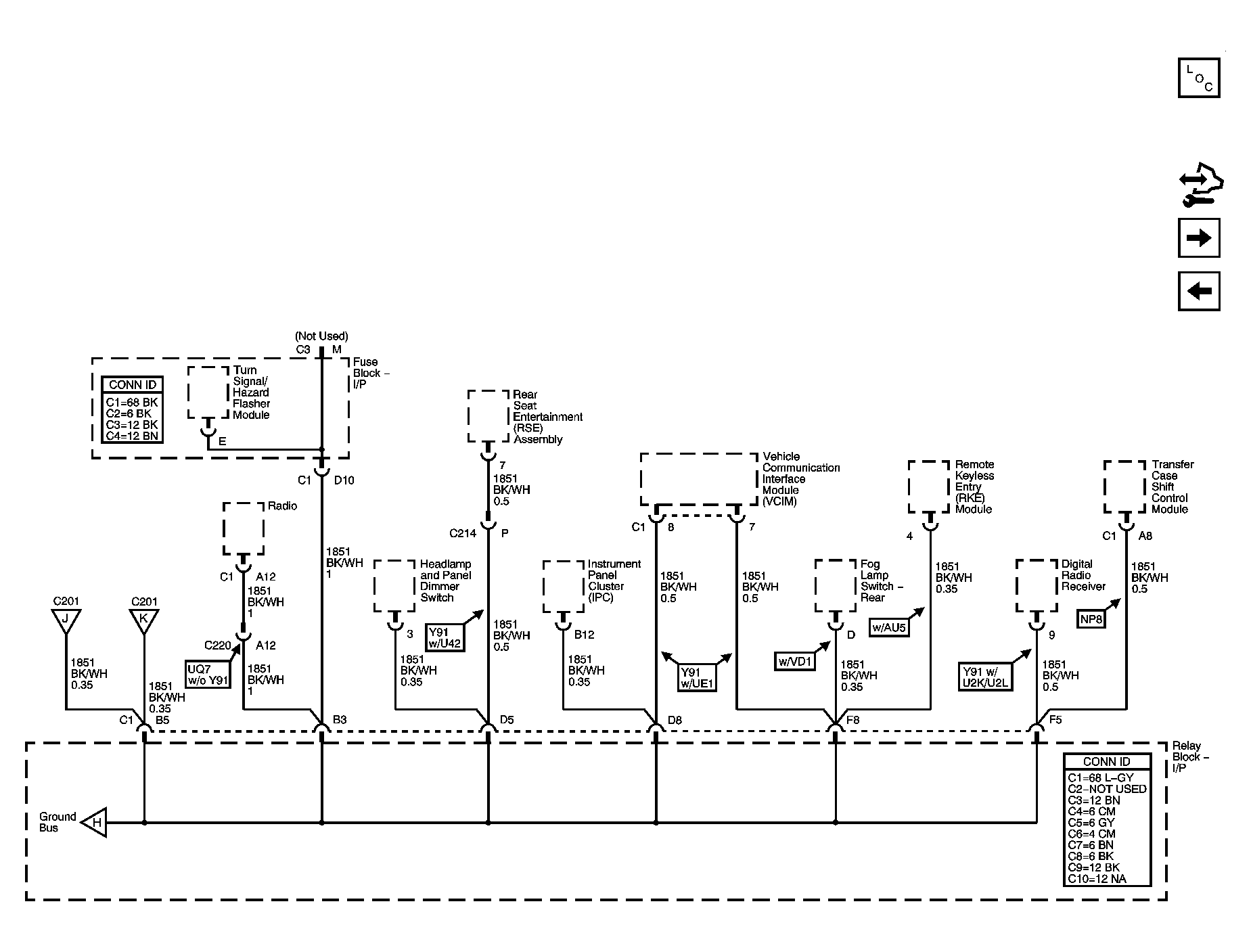

Fig 12: G203 2 of 3

GM1608644

Courtesy of GENERAL MOTORS CORP.

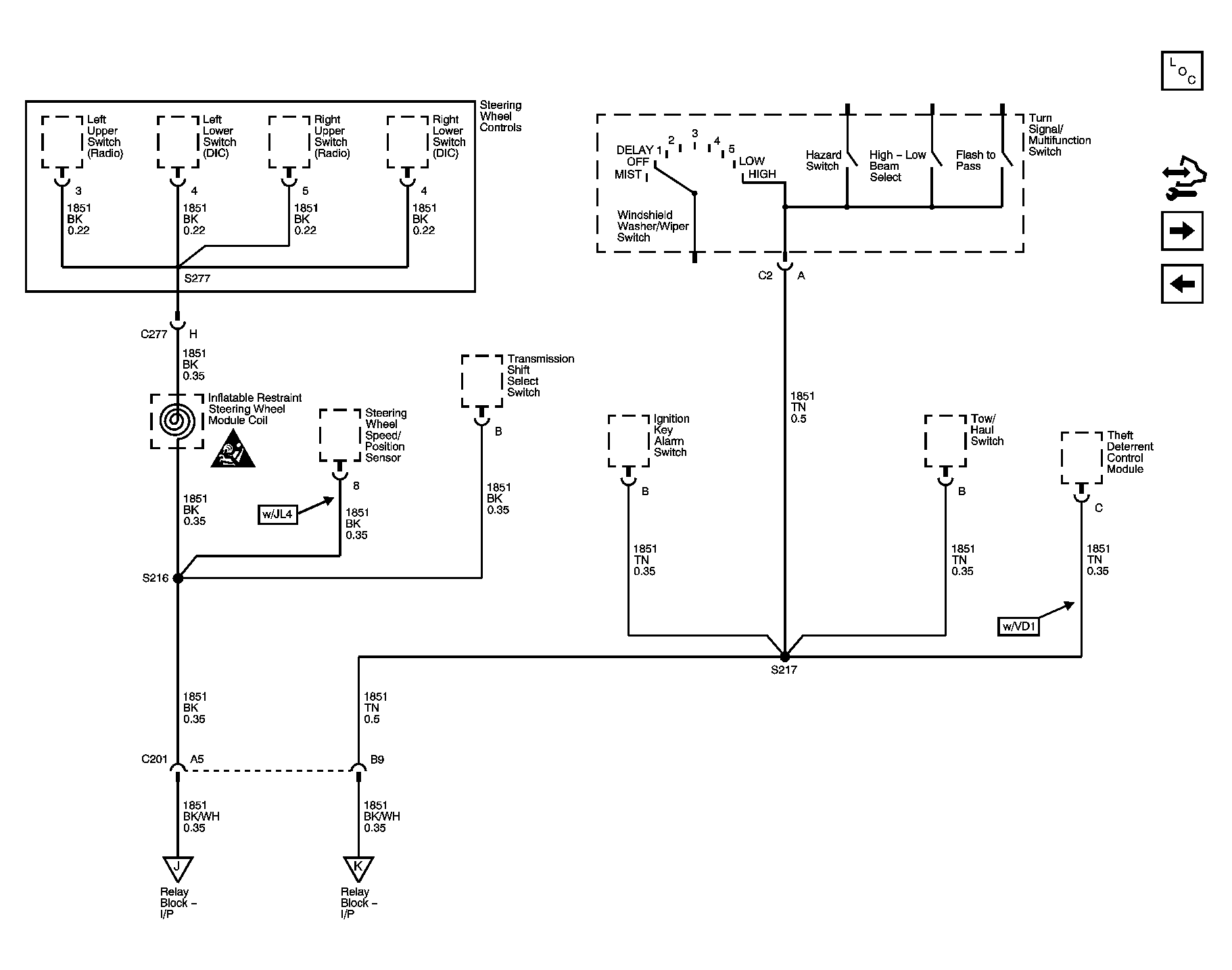

Fig 13: G203 3 of 3

GM1608646

Courtesy of GENERAL MOTORS CORP.

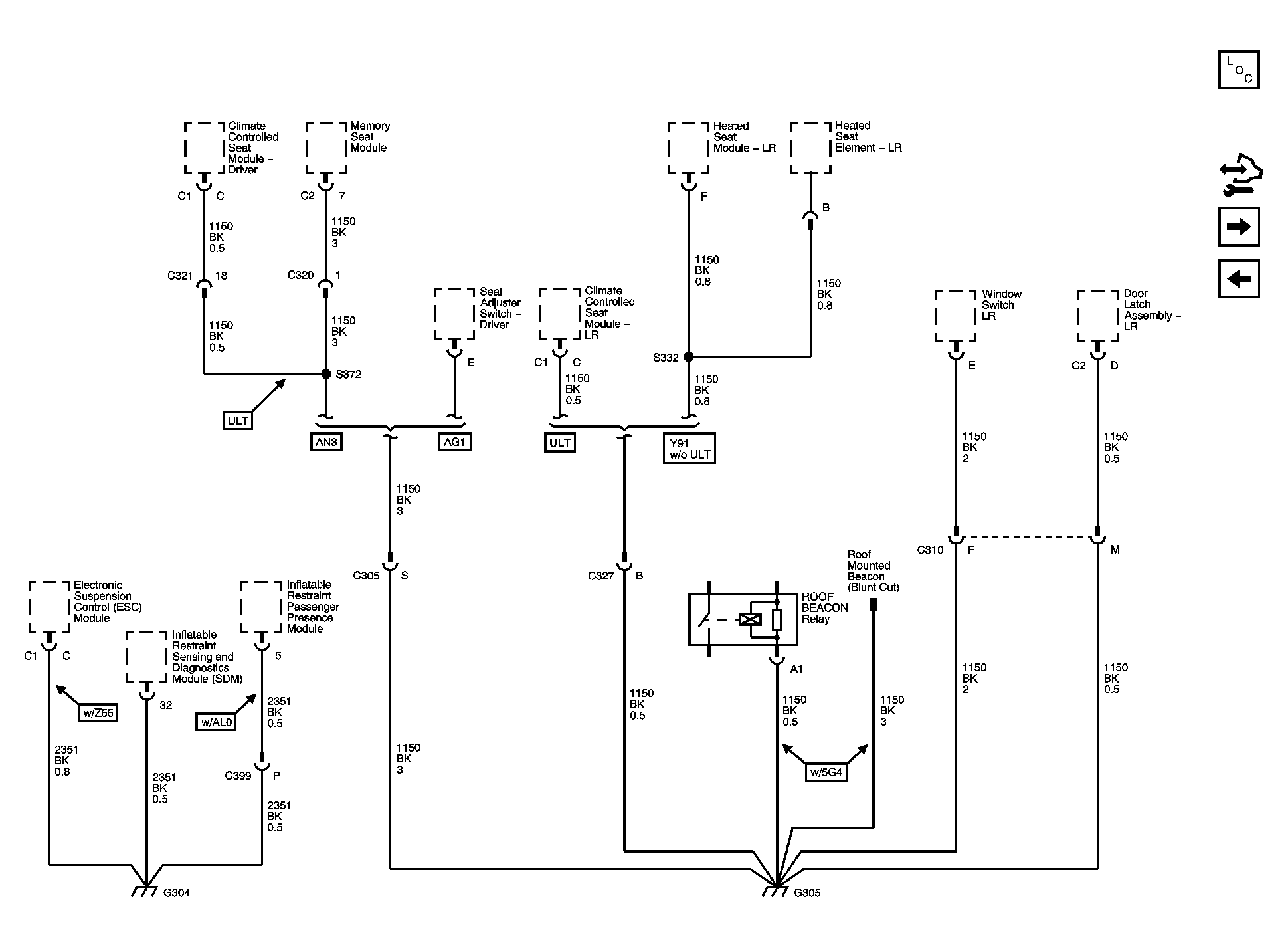

Fig 14: G303 and G305

GM1608648

Courtesy of GENERAL MOTORS CORP.

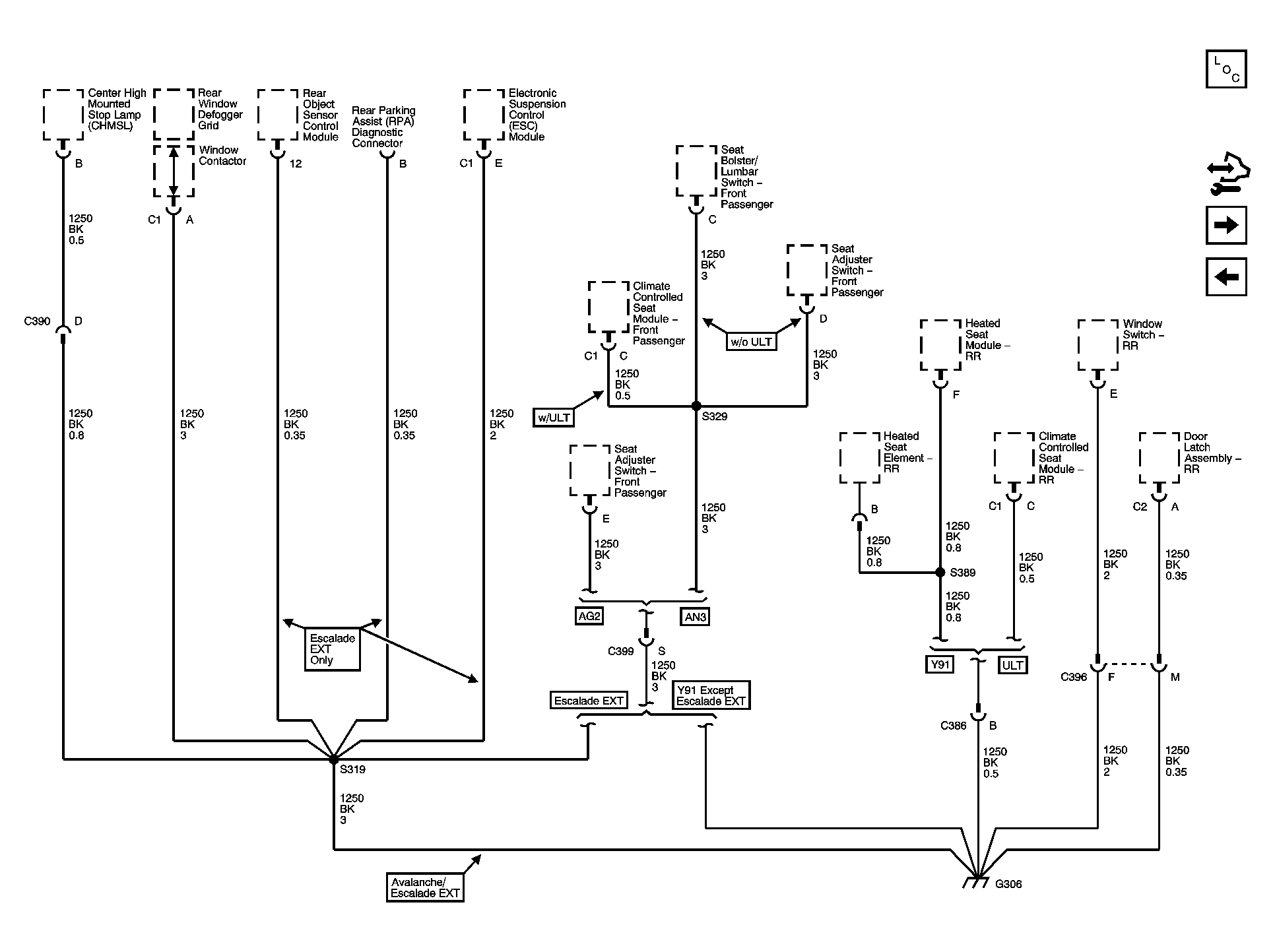

Fig 15: G306

GM1608651

Courtesy of GENERAL MOTORS CORP.

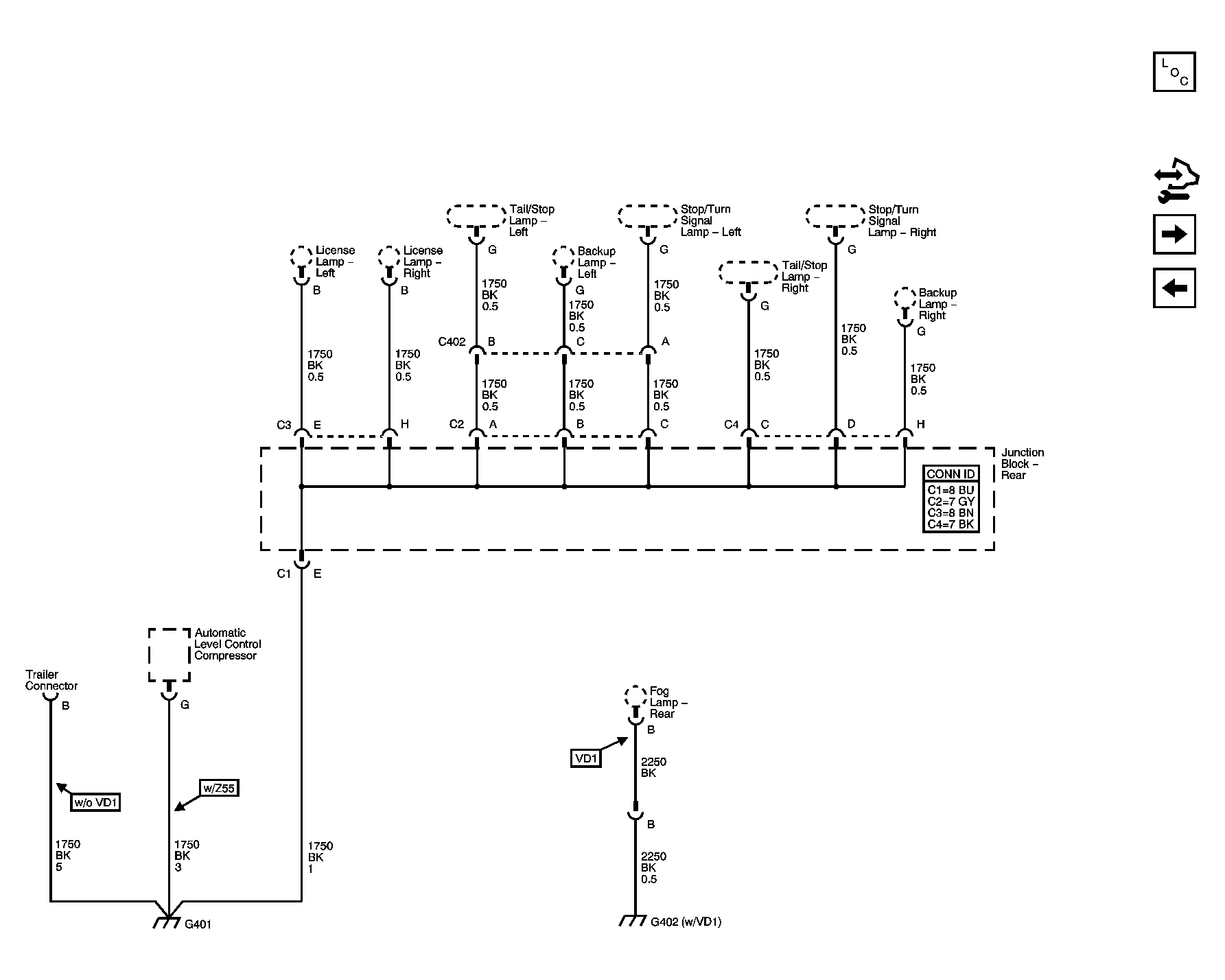

Fig 16: G401 and G402

GM1608653

Courtesy of GENERAL MOTORS CORP.

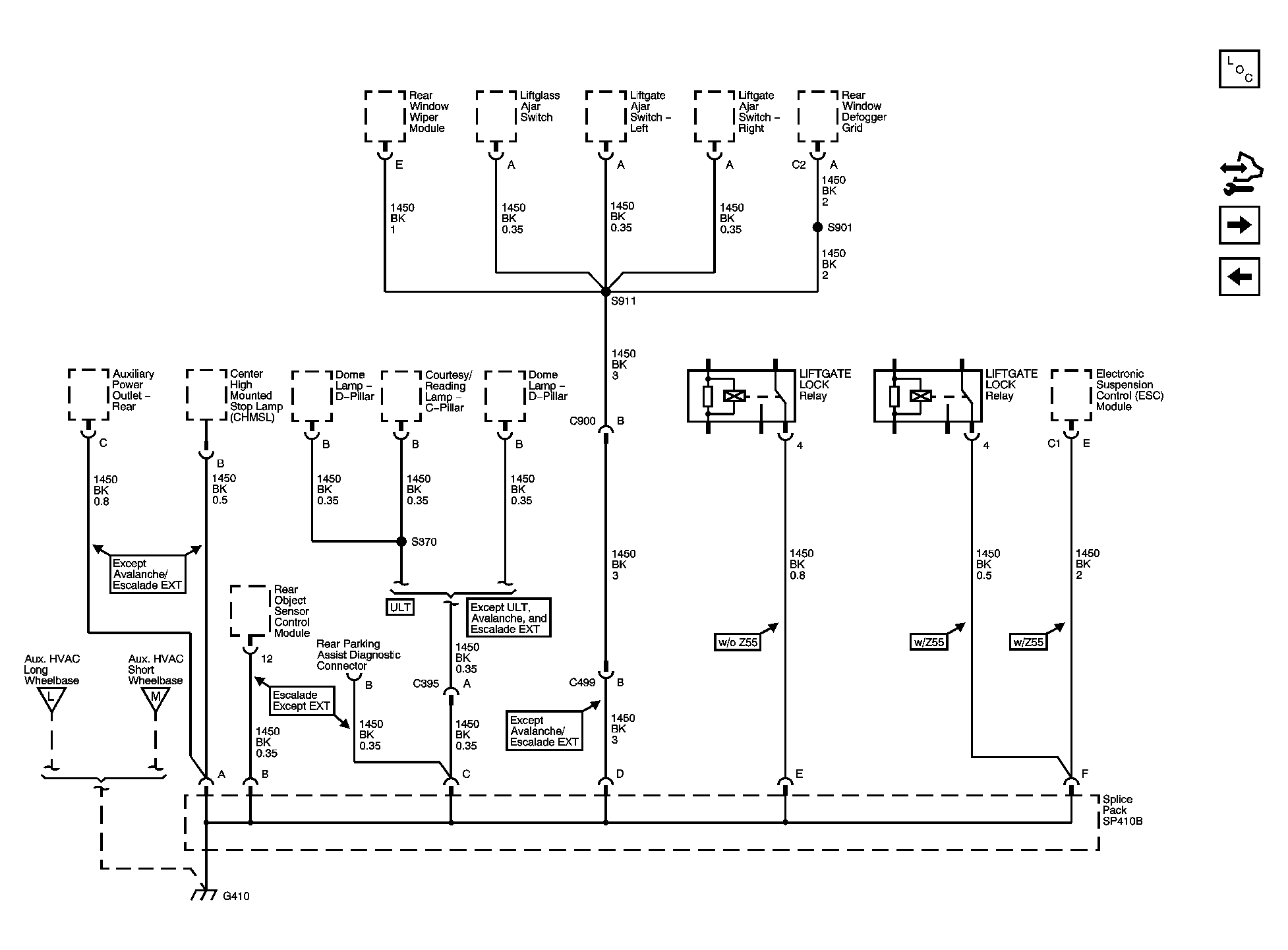

Fig 17: G410 1 of 3

GM1608655

Courtesy of GENERAL MOTORS CORP.

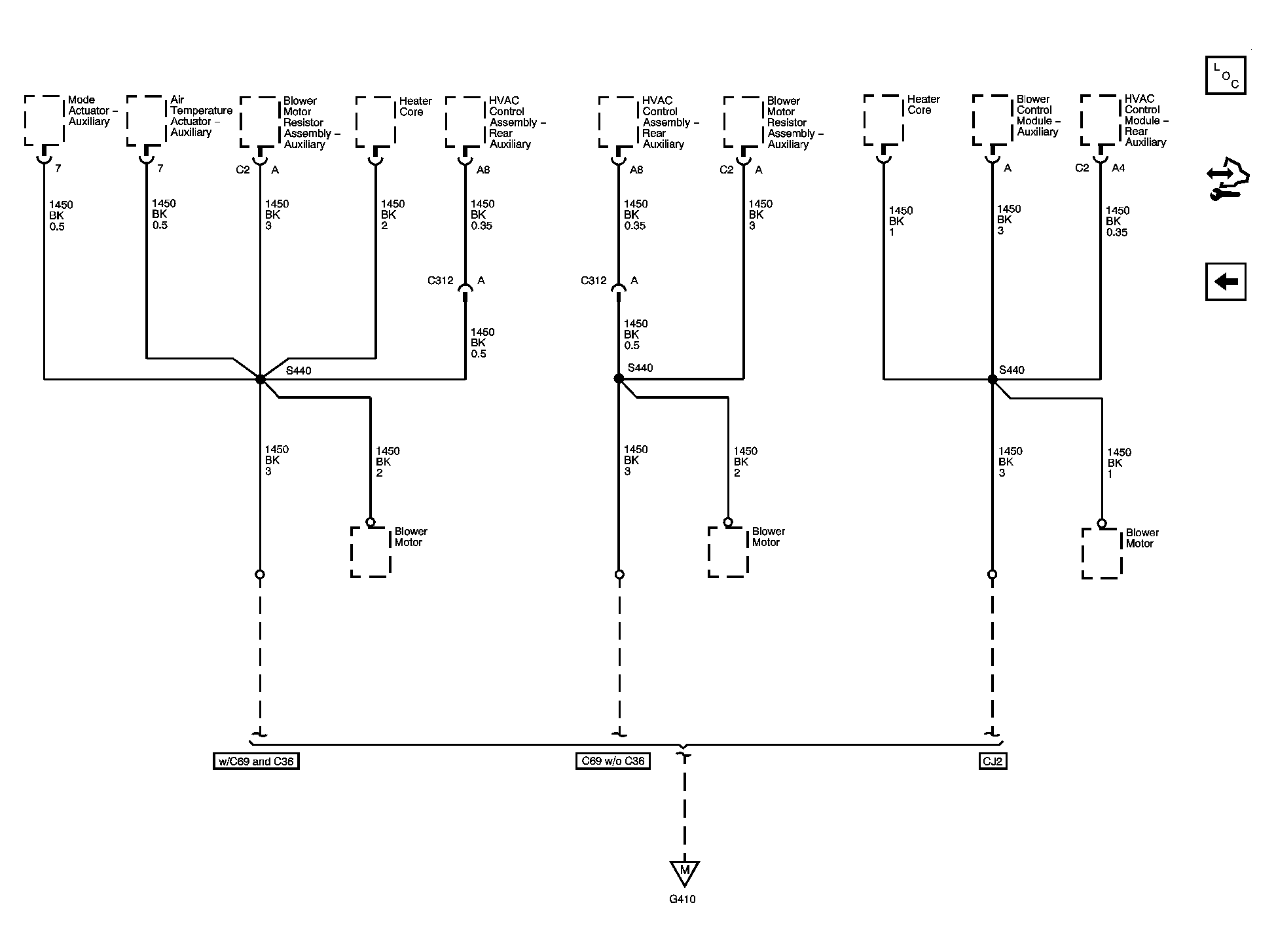

Fig 18: G410 3 of 3, Auxiliary HVAC Short Wheelbase

GM1608658

Courtesy of GENERAL MOTORS CORP.
