Instrument Cluster Schematics

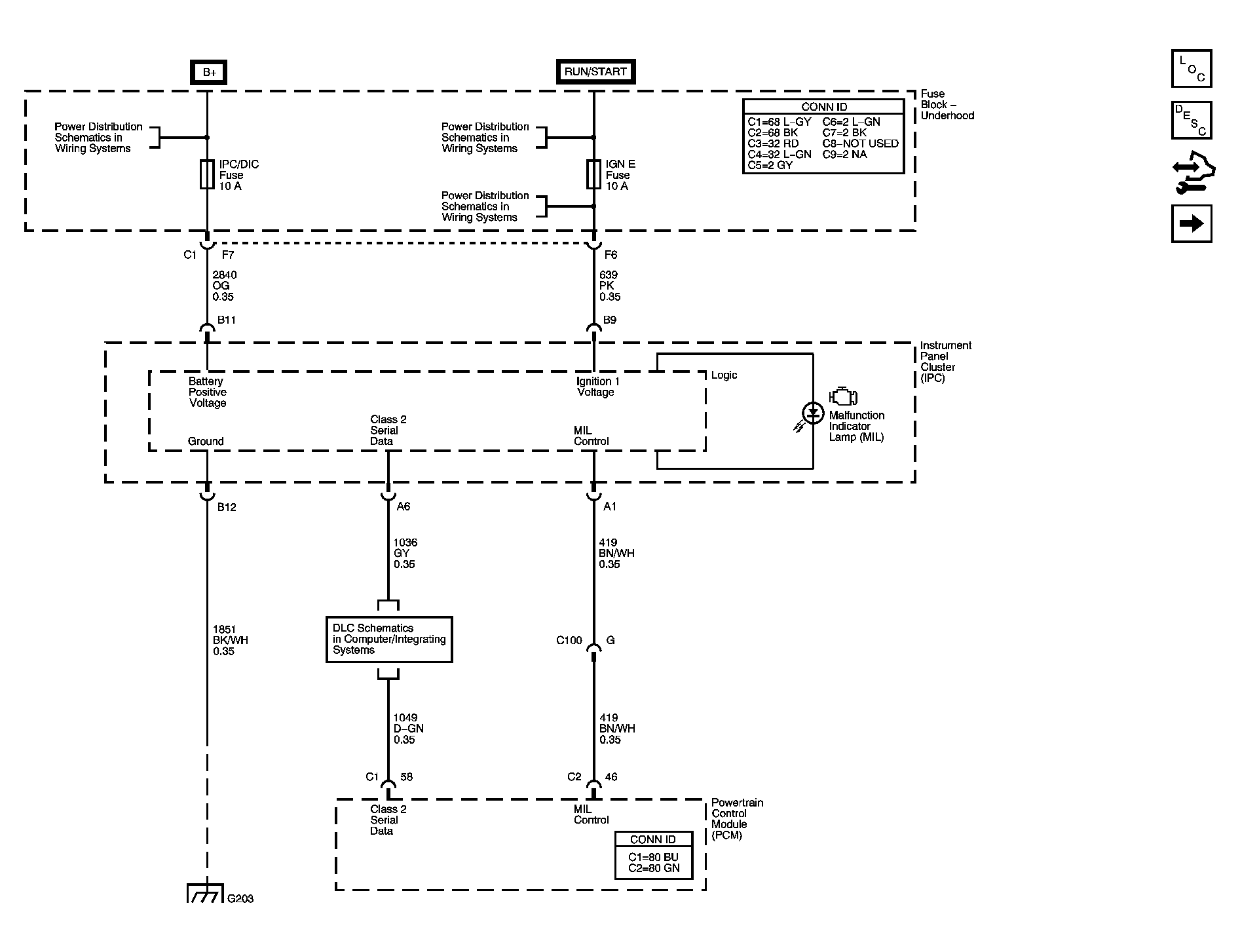

Fig 1: Power, Ground, Serial Data, and MIL Control
GM1608124Courtesy of GENERAL MOTORS CORP.

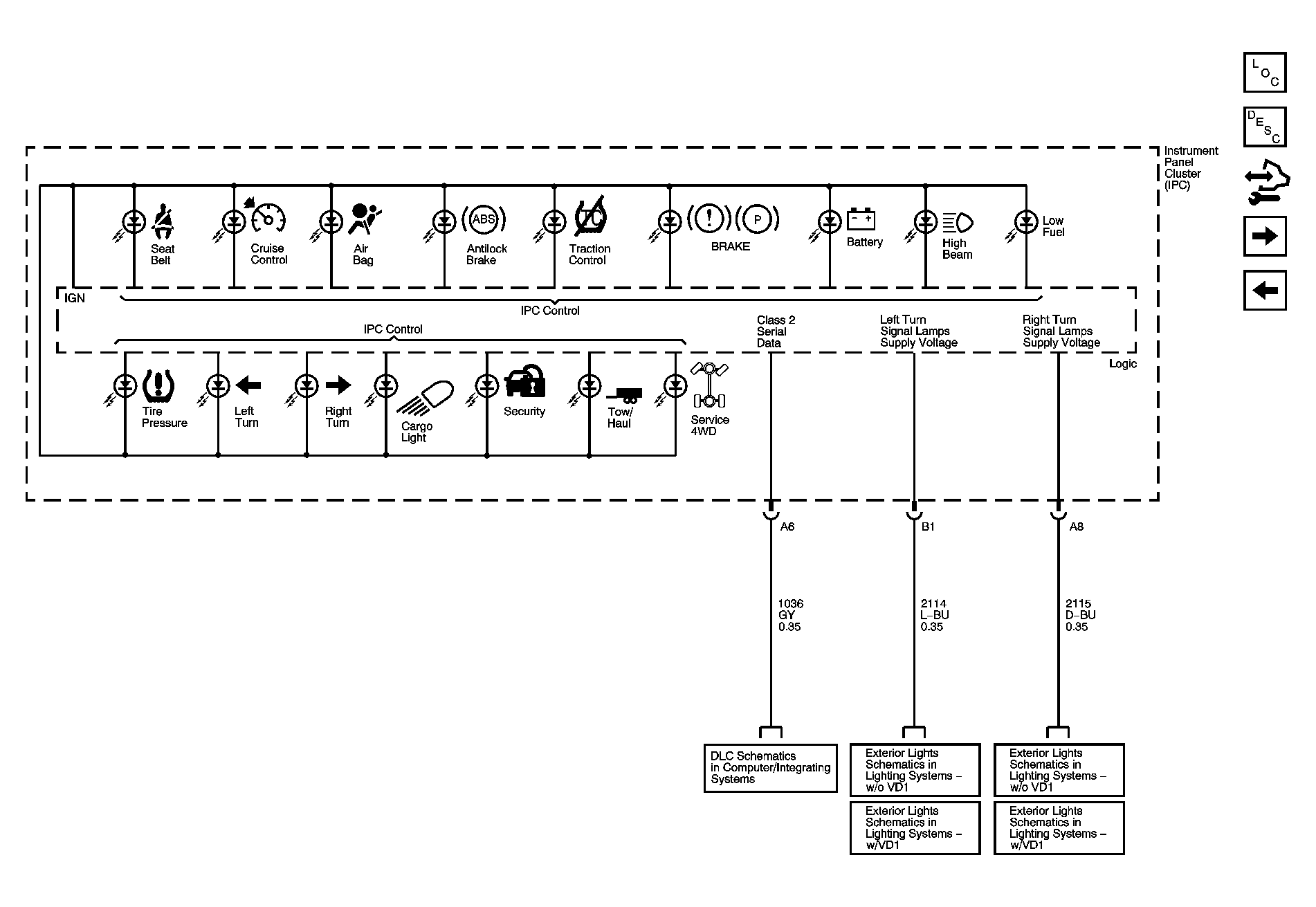

Fig 2: Indicators
GM1608125Courtesy of GENERAL MOTORS CORP.

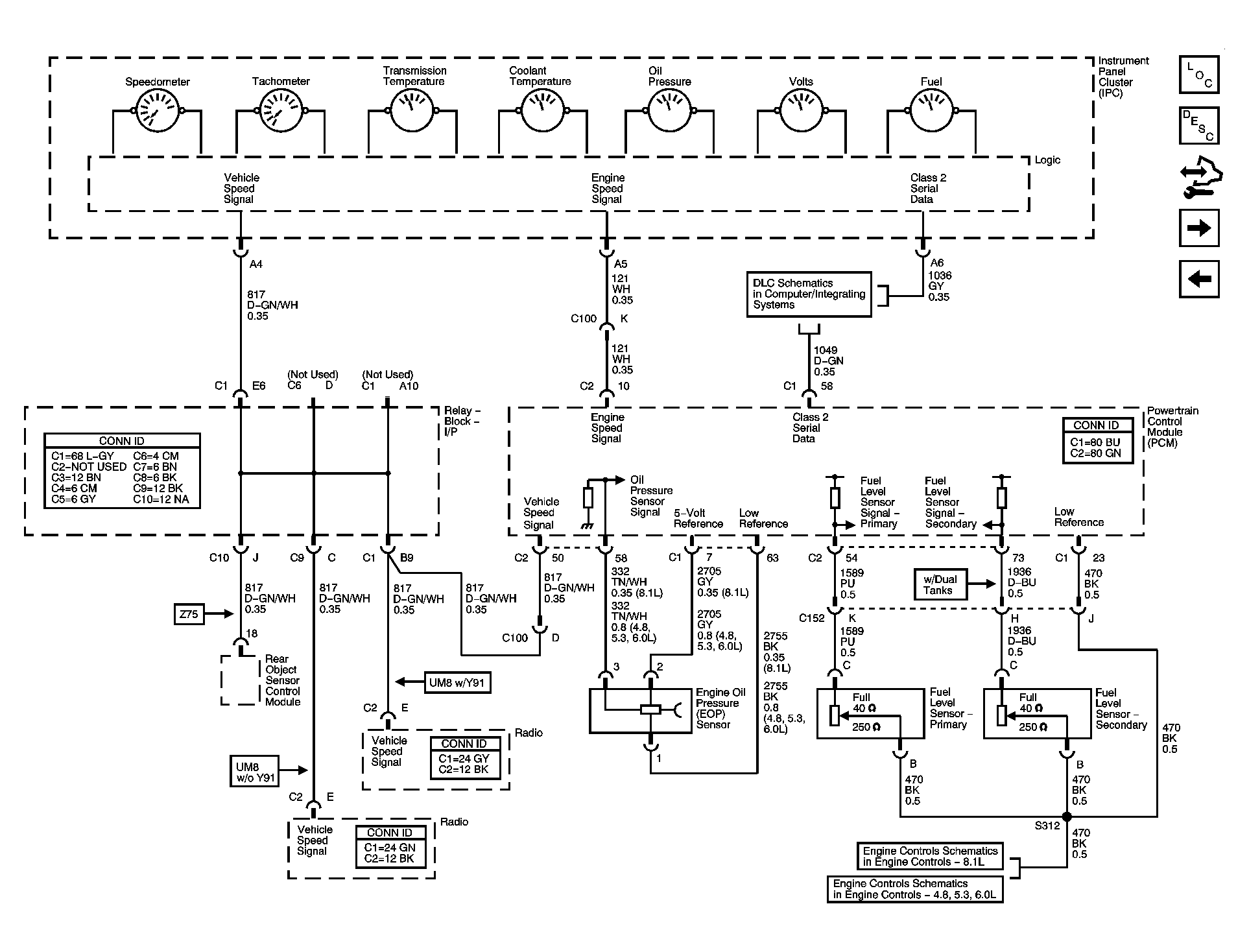

Fig 3: Gages
GM1608126Courtesy of GENERAL MOTORS CORP.

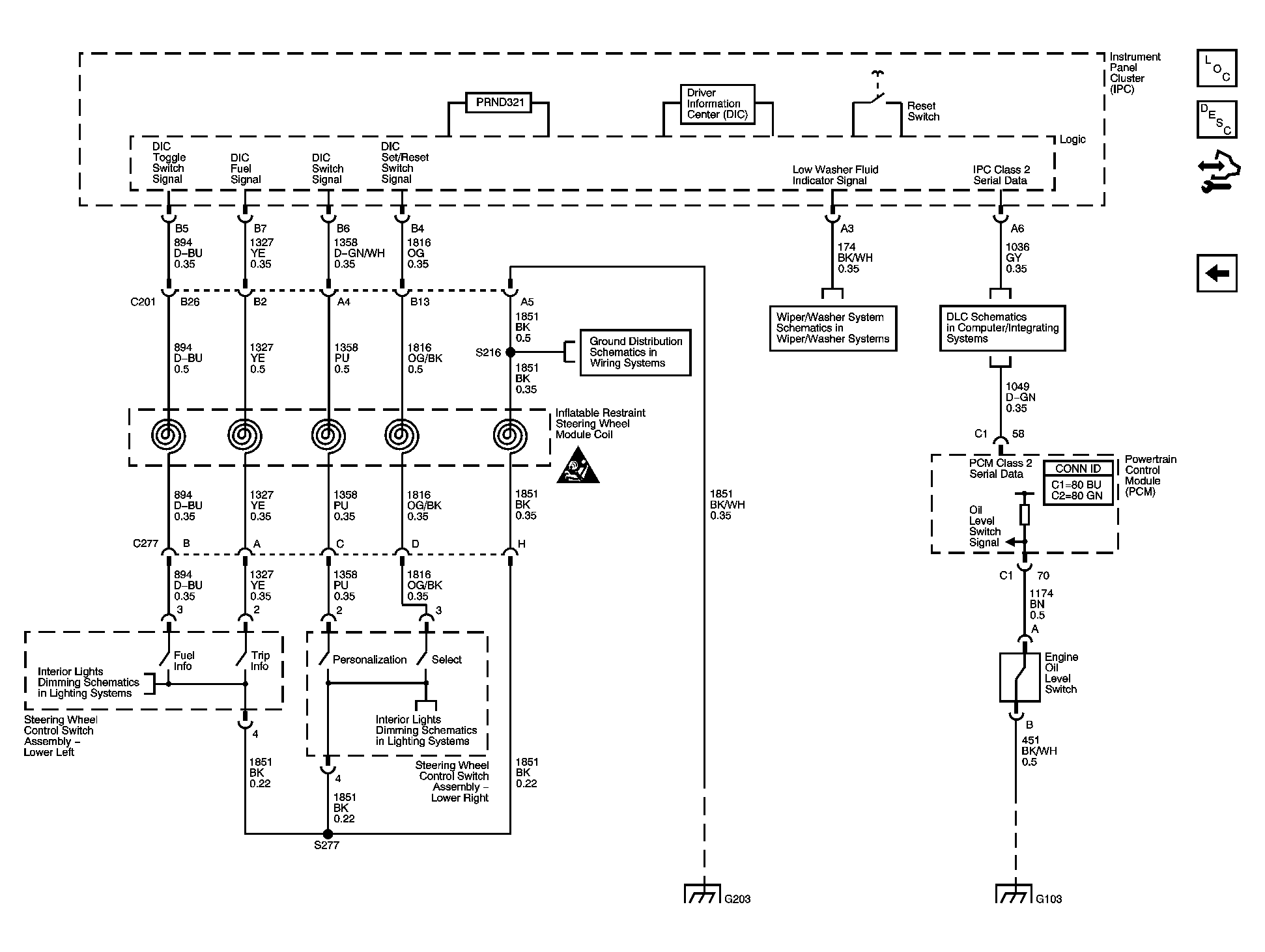

Fig 4: Driver Information Center
GM1608127Courtesy of GENERAL MOTORS CORP.
