Audible Warnings Schematics

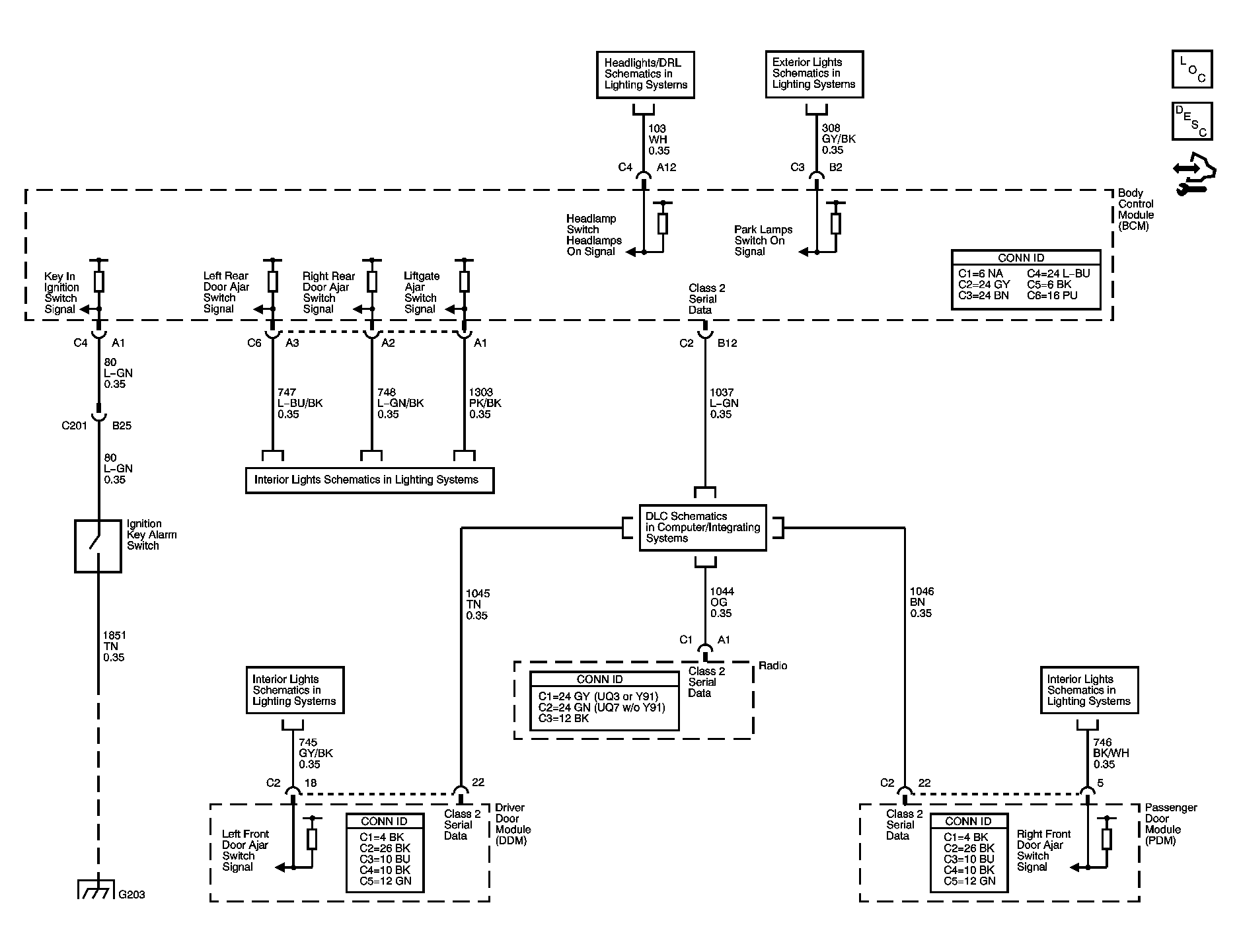

Fig 1: Audible Warnings Schematics

GM1608130

Courtesy of GENERAL MOTORS CORP.
