Inside Rearview Mirror Schematics
Inside Rearview Mirror Schematics

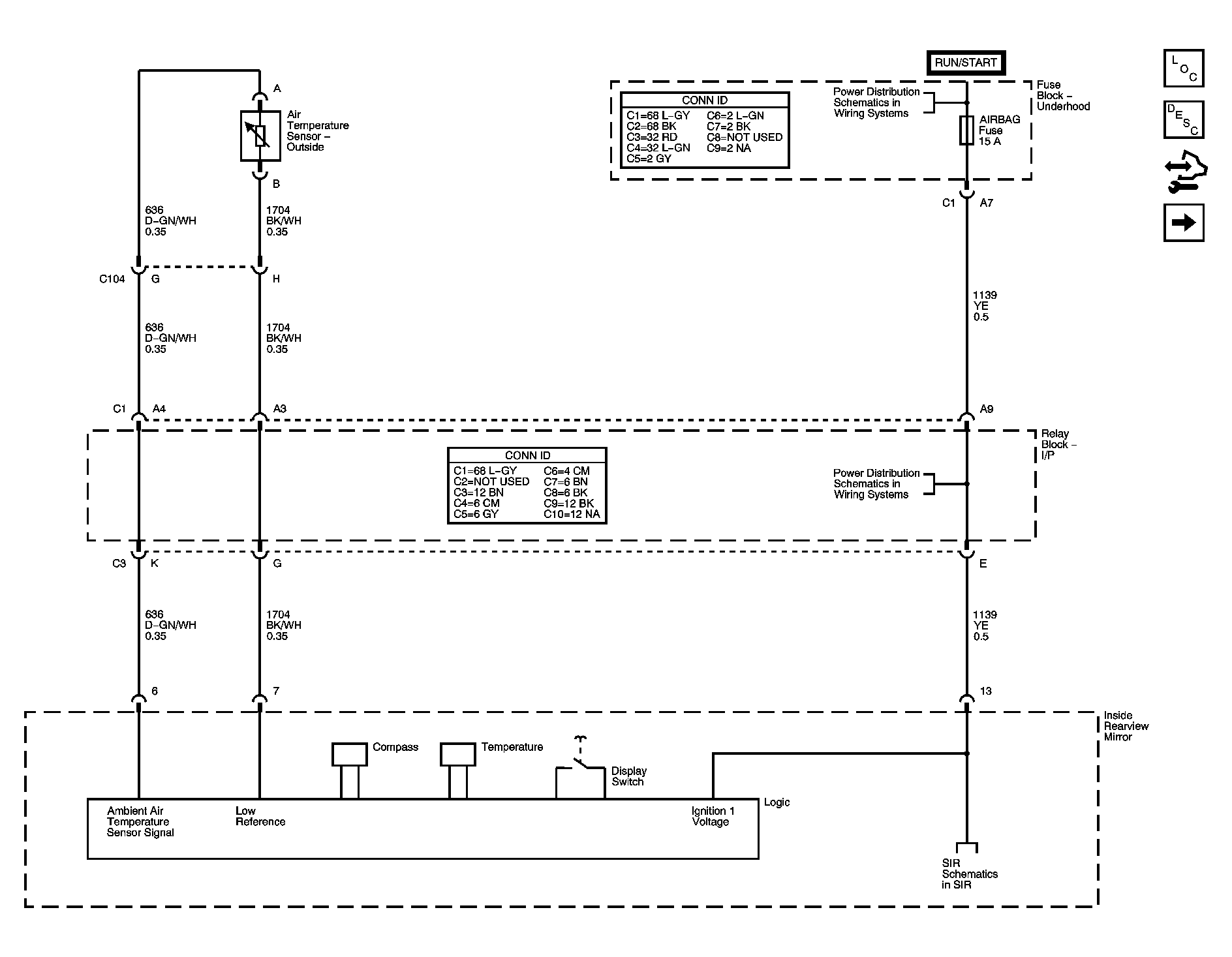

Fig 1: Power, Outside Air Temperature, and Light Sensors
Courtesy of GENERAL MOTORS CORP.

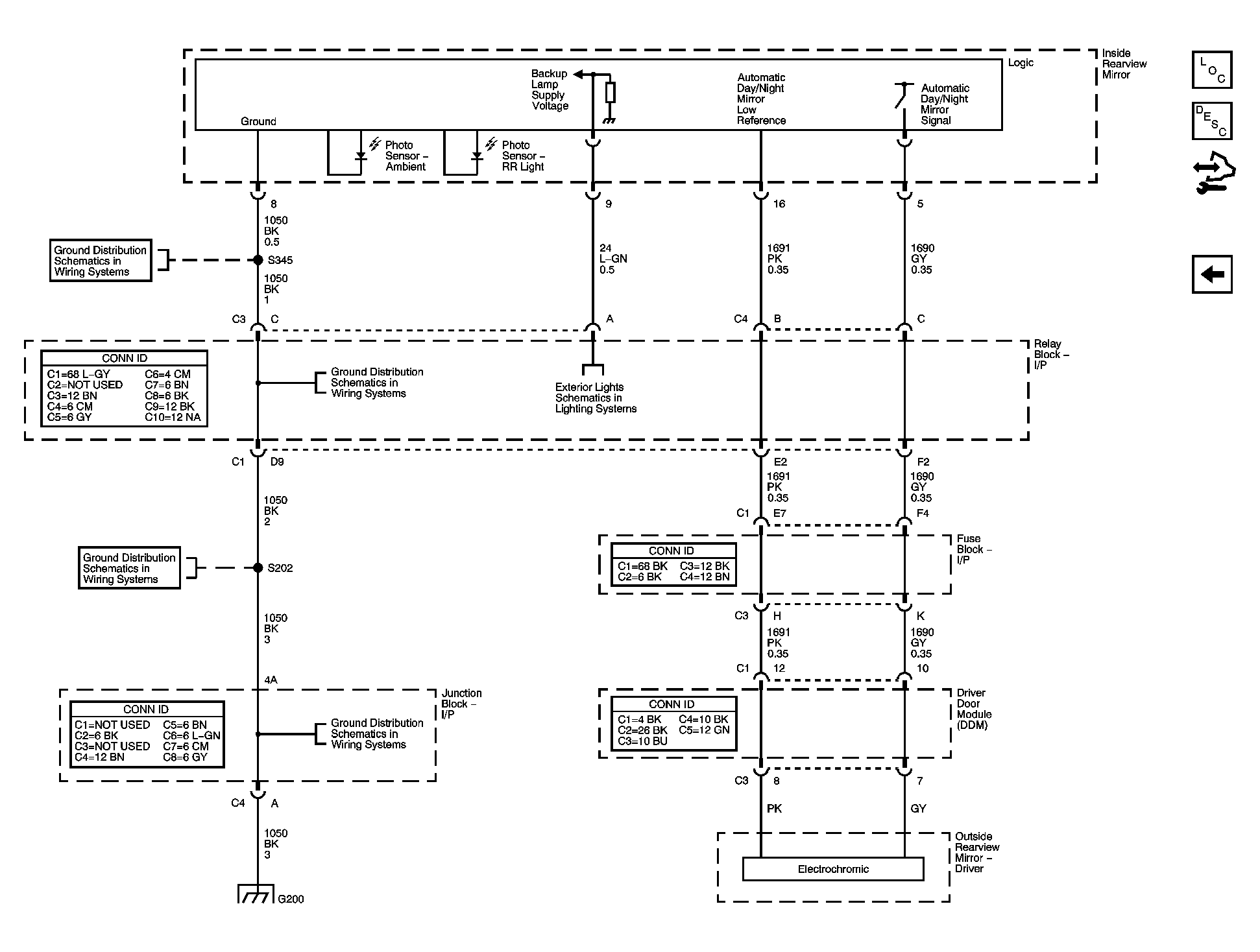

Fig 2: Ground and Electrochromic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
