Rear Seat Schematics

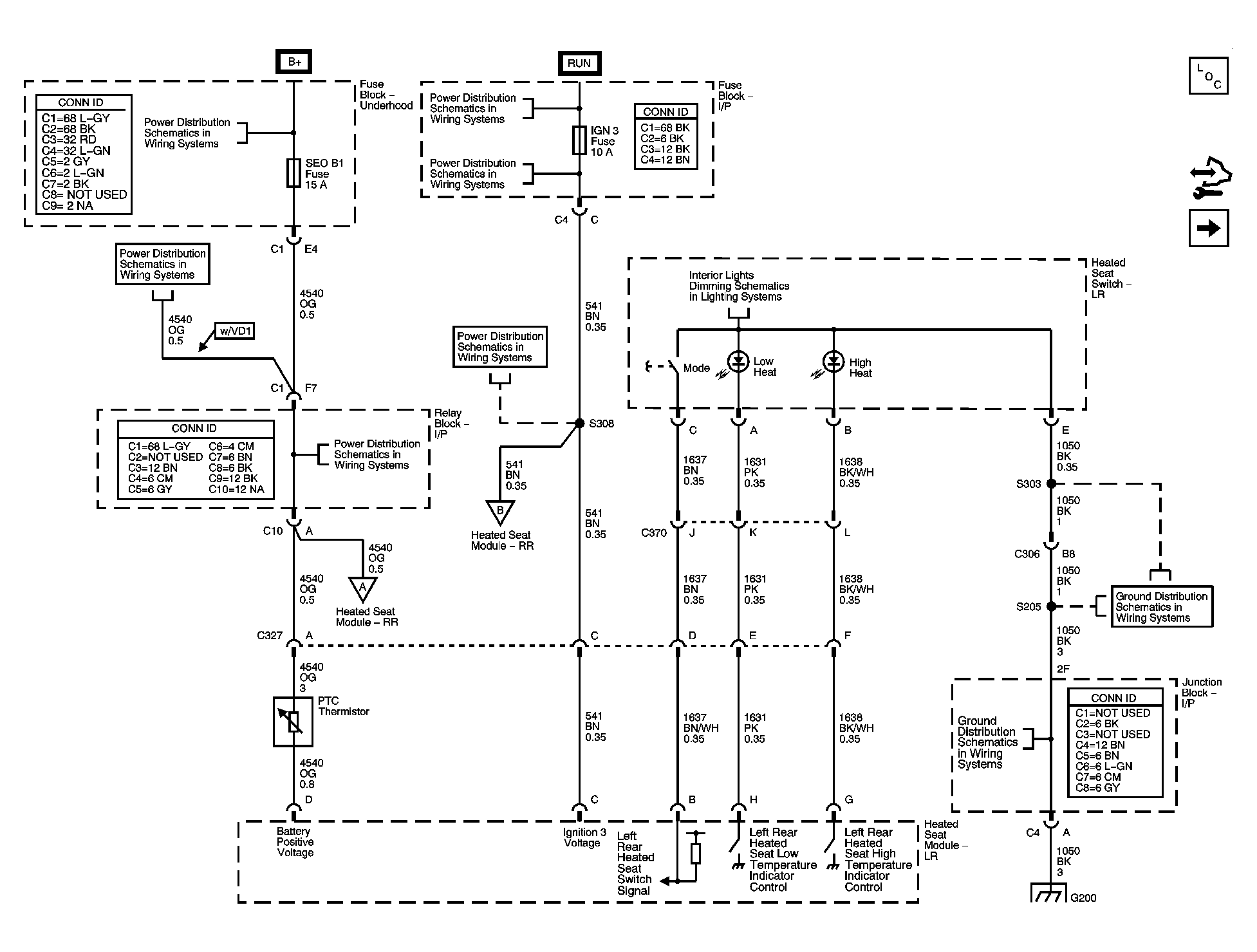

Fig 1: Rear Heated Seats - Except ULT (1 of 3)

GM1608429

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Heated Seats (2 of 3)

GM1608431

Courtesy of GENERAL MOTORS CORP.

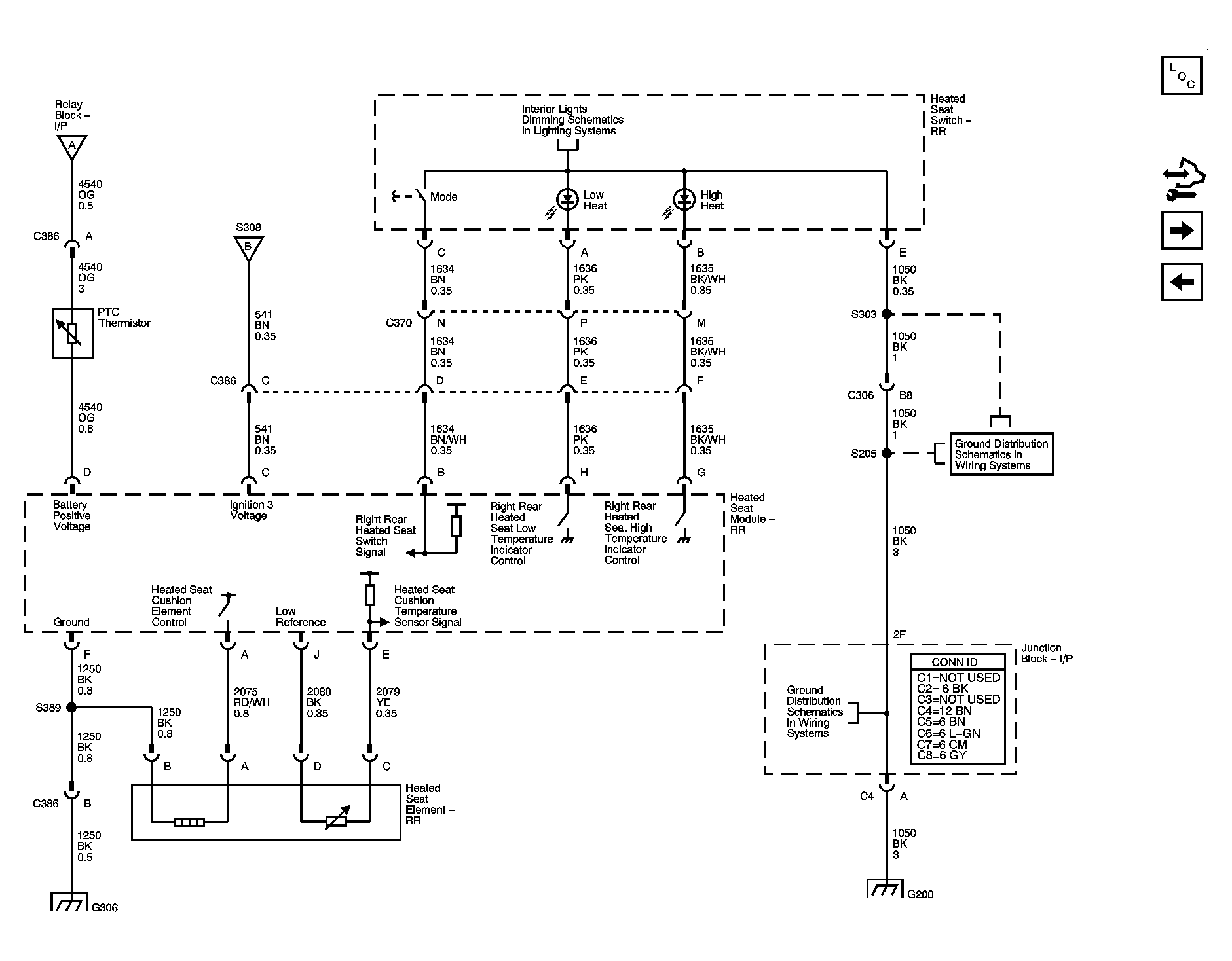

Fig 3: Rear Heated Seats (3 of 3)

GM1608432

Courtesy of GENERAL MOTORS CORP.

Fig 4: Left Rear w/ULT (1 of 4)

GM1608434

Courtesy of GENERAL MOTORS CORP.

Fig 5: Left Rear w/ULT (2 of 4)

GM1608436

Courtesy of GENERAL MOTORS CORP.

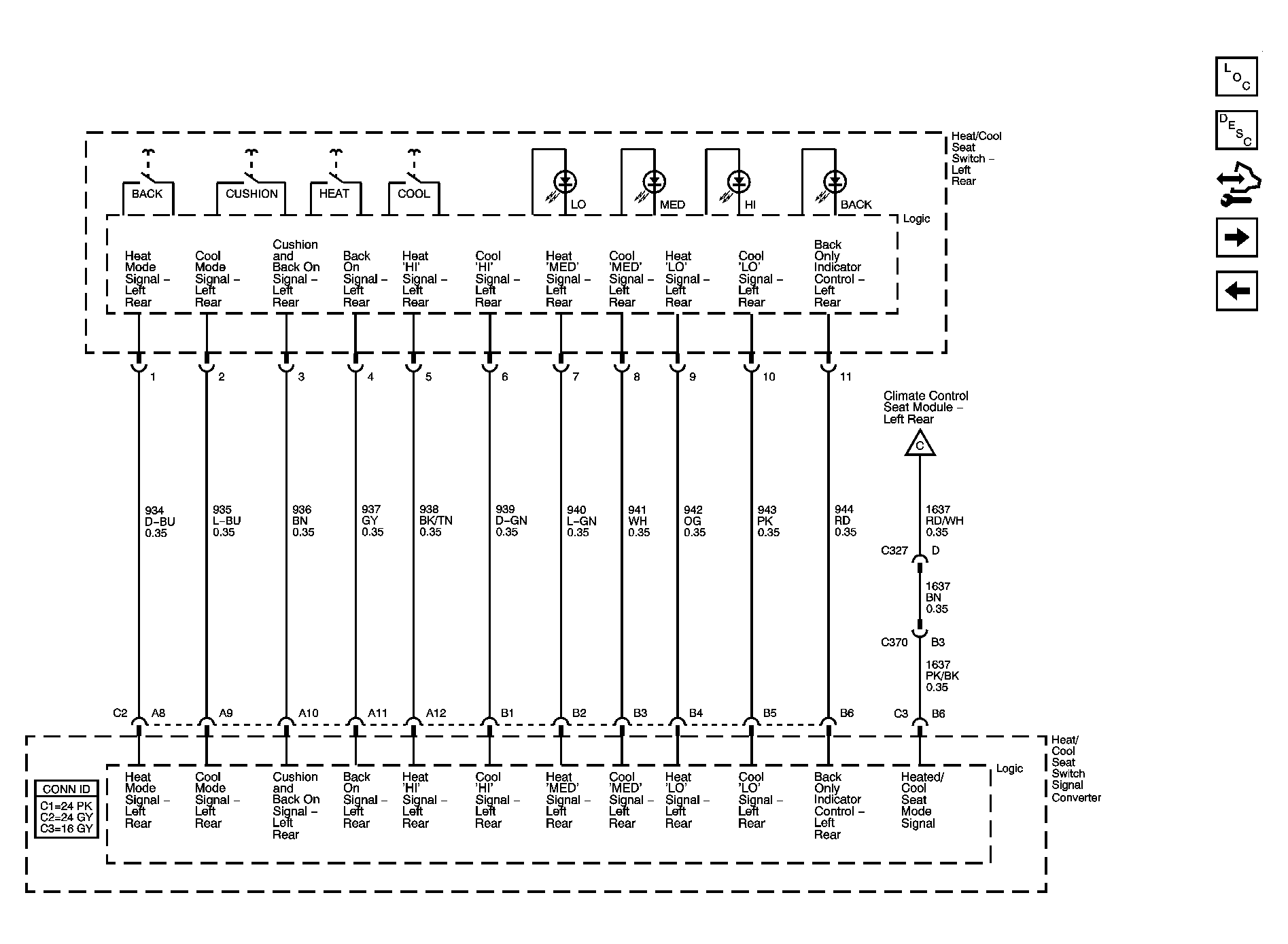

Fig 6: Left Rear w/ULT (3 of 4)

GM1608437

Courtesy of GENERAL MOTORS CORP.

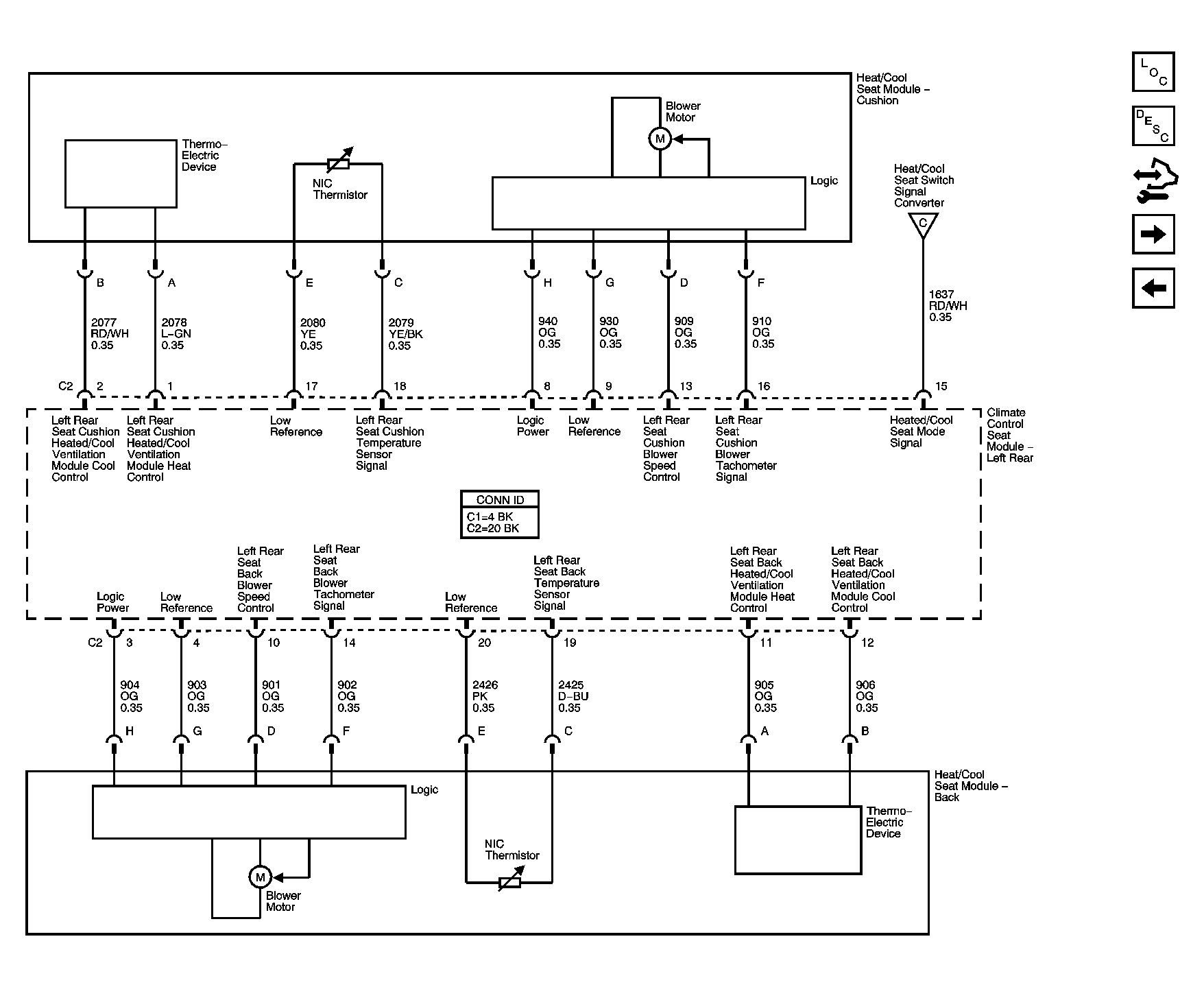

Fig 7: Left Rear w/ULT (4 of 4)

GM1608438

Courtesy of GENERAL MOTORS CORP.

Fig 8: Right Rear w/ULT (1 of 4)

GM1608439

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Rear w/ULT (2 of 4)

GM1608440

Courtesy of GENERAL MOTORS CORP.

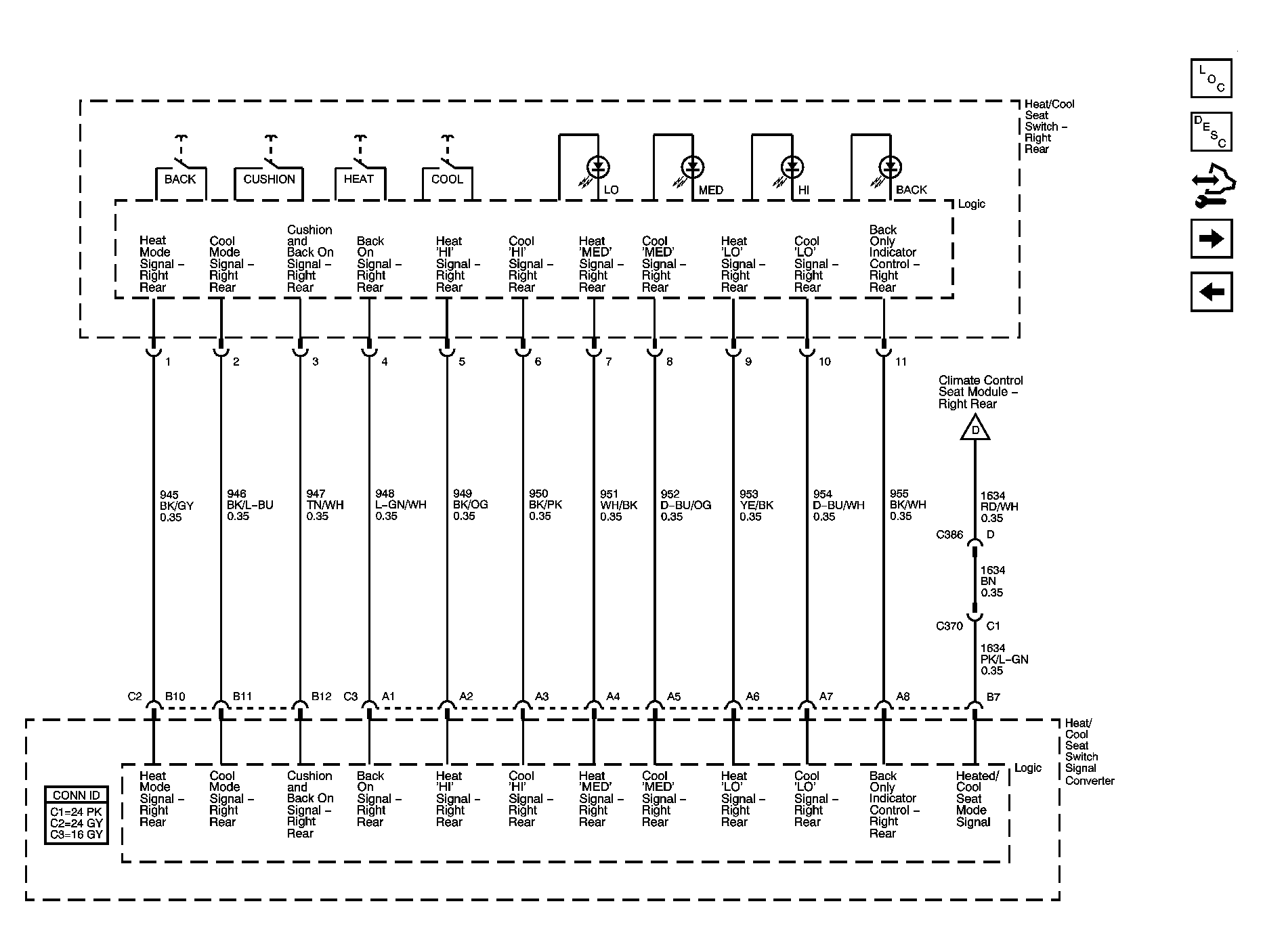

Fig 10: Right Rear w/ULT (3 of 4)

GM1608441

Courtesy of GENERAL MOTORS CORP.

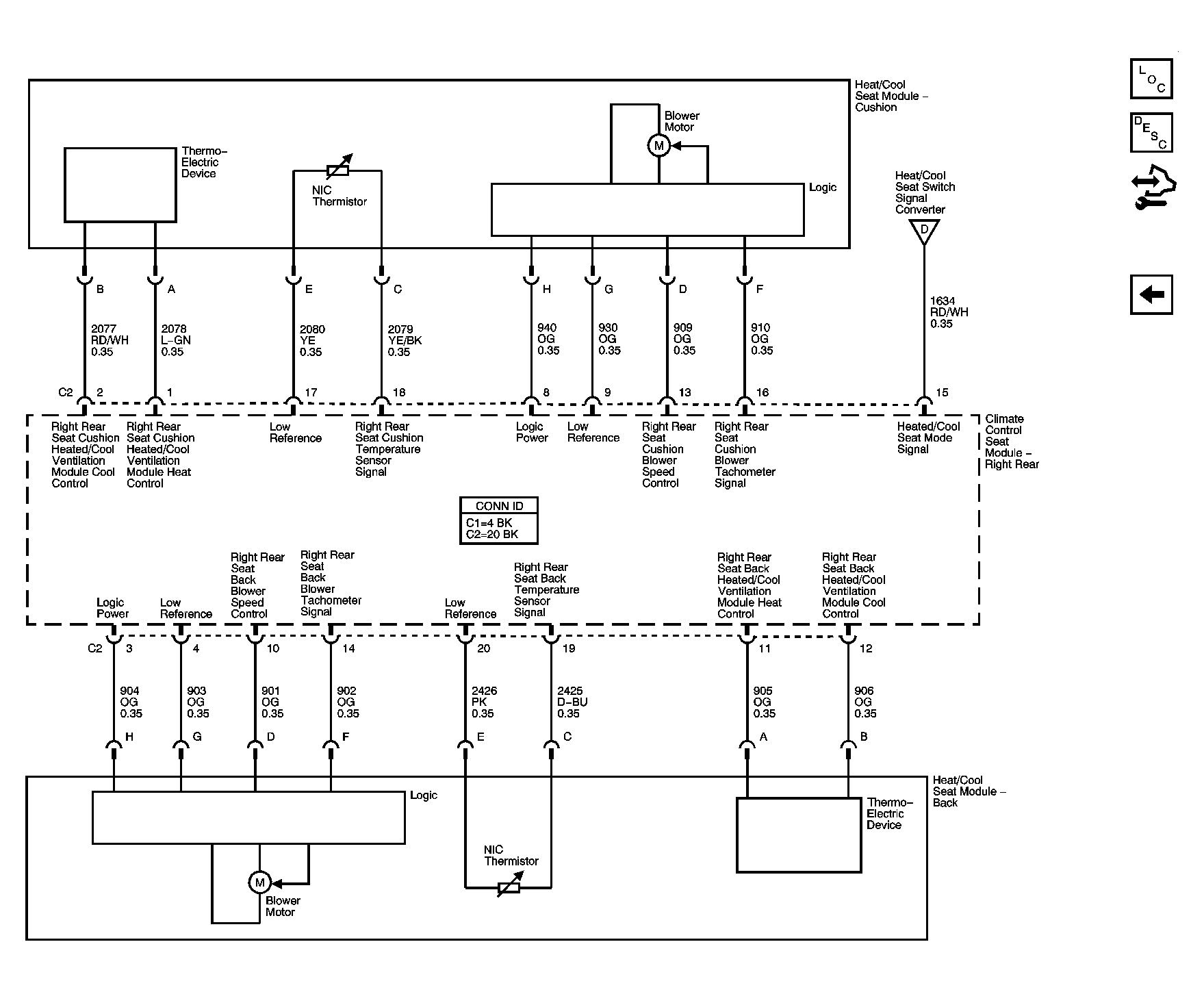

Fig 11: Right Rear w/ULT (4 of 4)

GM1608442

Courtesy of GENERAL MOTORS CORP.
