Passenger Seat Schematics

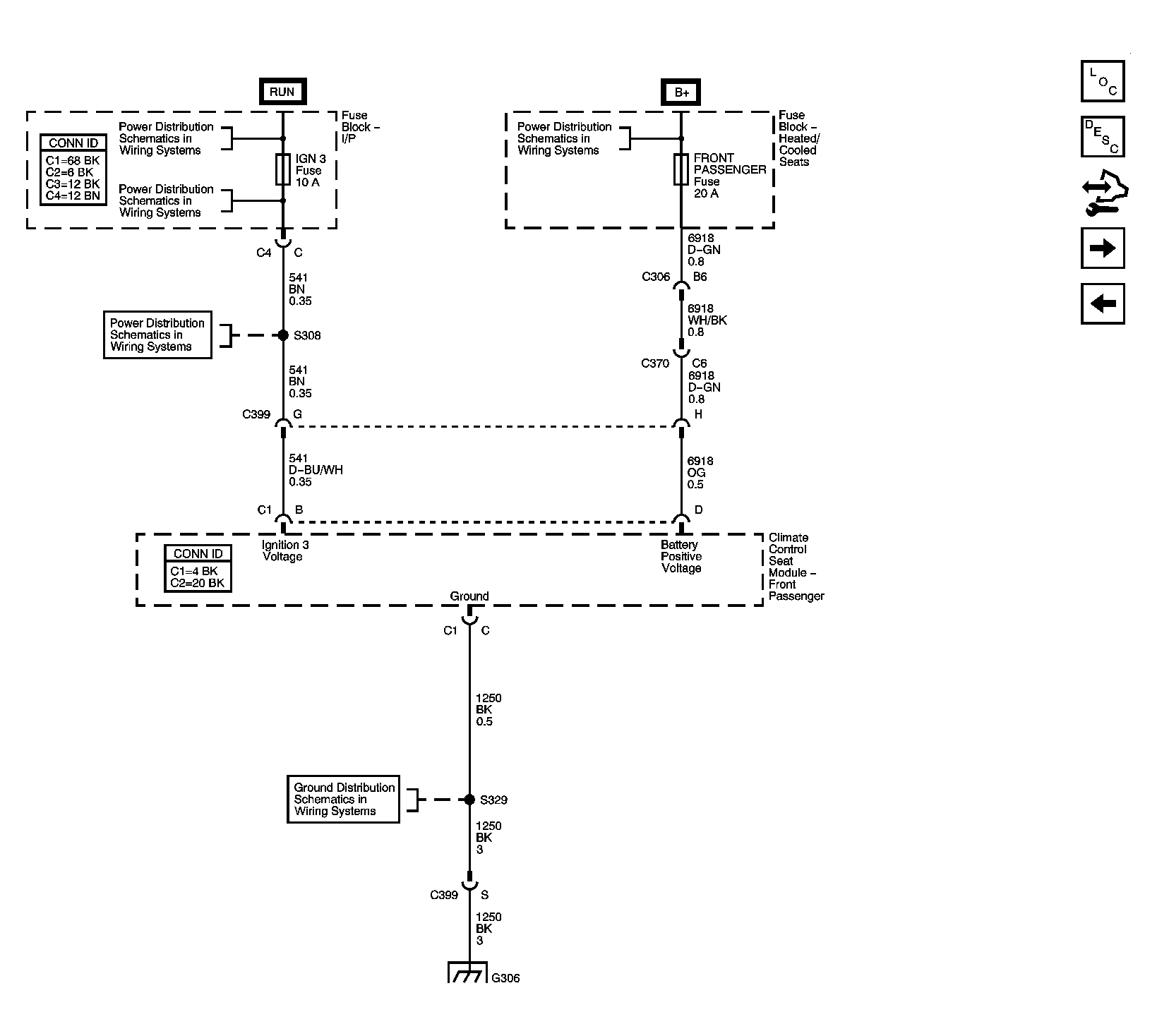

Fig 1: Front Passenger Seat Controls (AN3)

Courtesy of GENERAL MOTORS CORP.

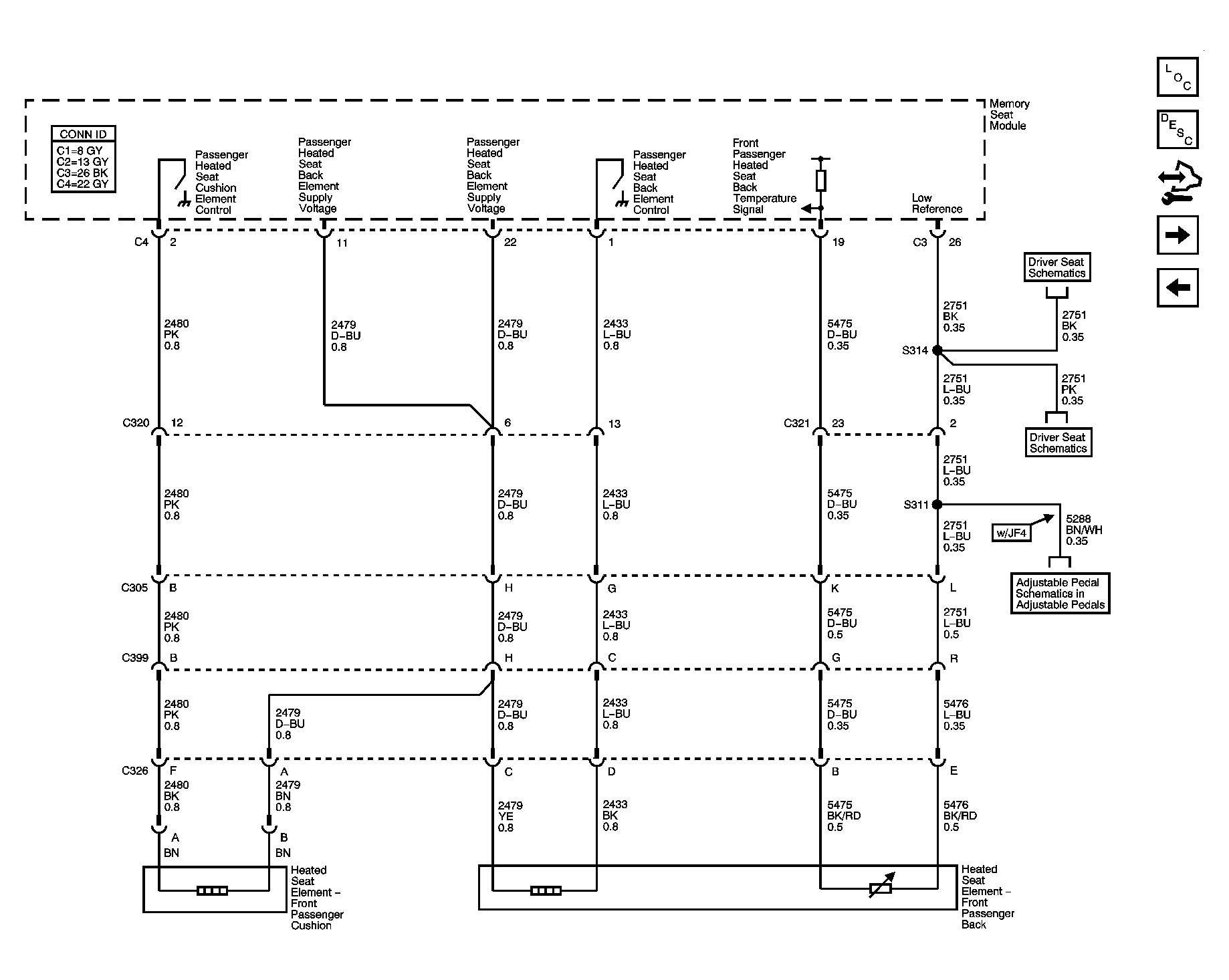

Fig 2: Heated Seat Controls - Front Passenger - Except ULT

Courtesy of GENERAL MOTORS CORP.

Fig 3: Front Passenger Heated Seat Elements - Except ULT

Courtesy of GENERAL MOTORS CORP.

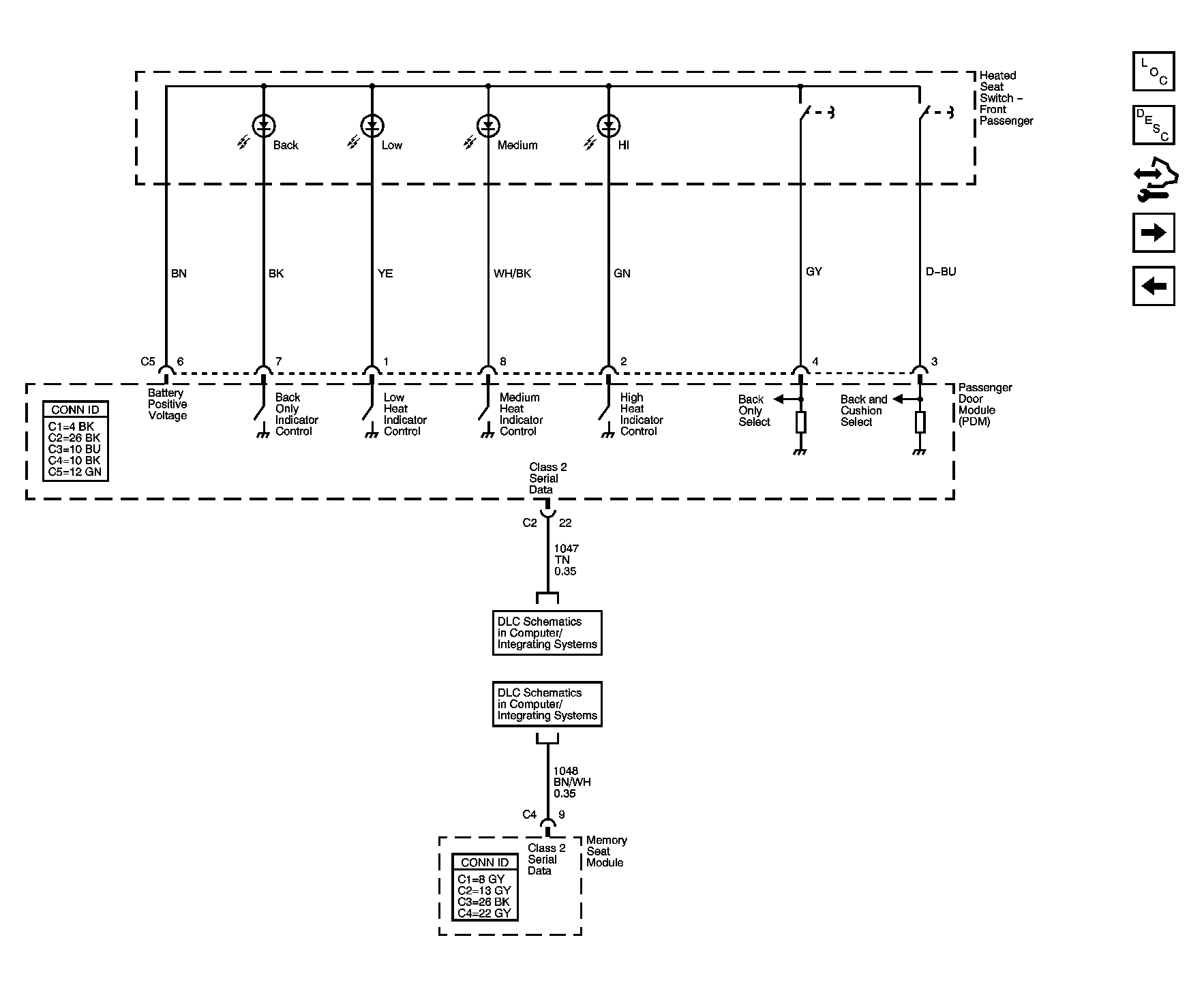

Fig 4: Heat Controls - AN3 w/ULT (1 of 4)

Courtesy of GENERAL MOTORS CORP.

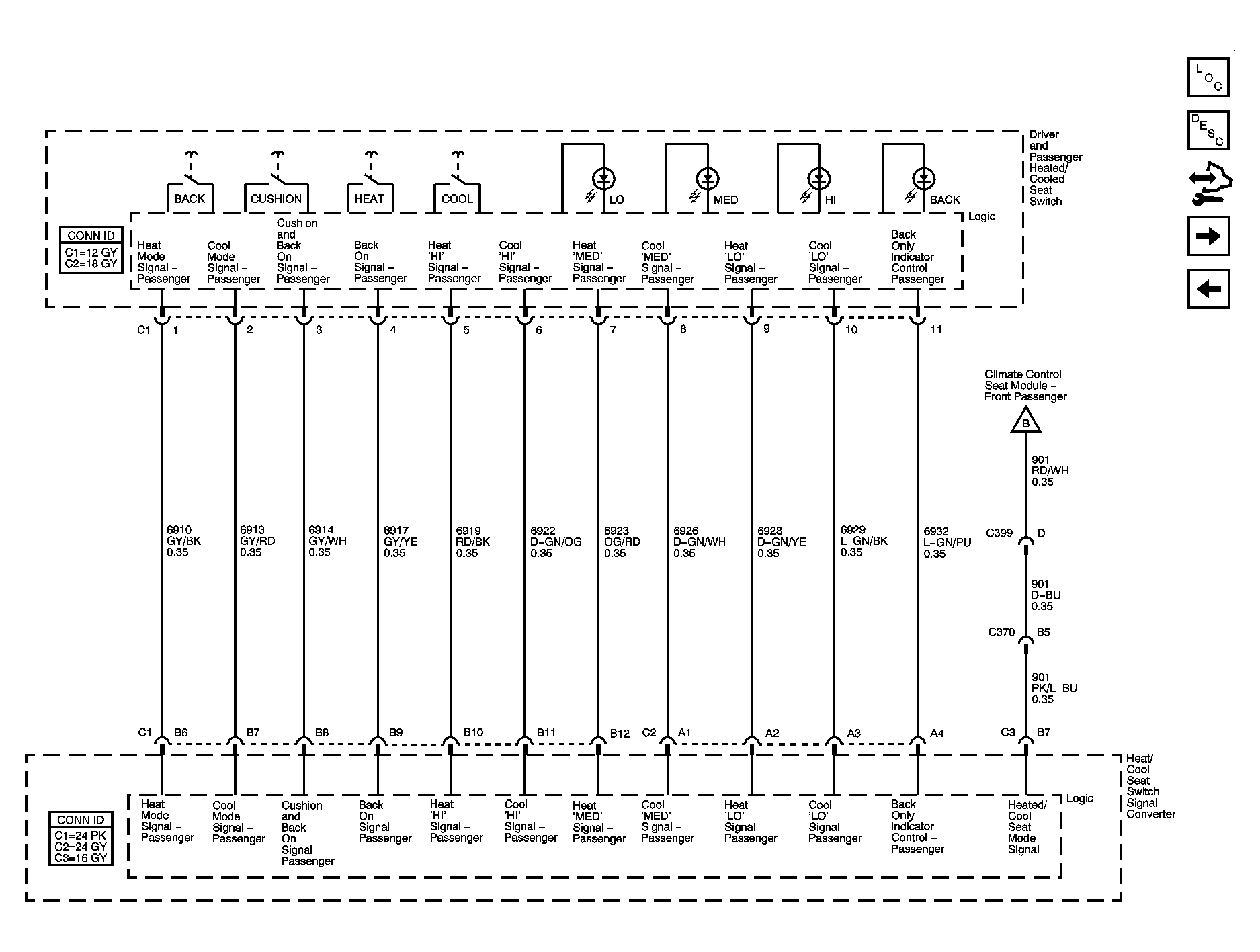

Fig 5: Heat Controls - AN3 w/ULT (2 of 4)

Courtesy of GENERAL MOTORS CORP.

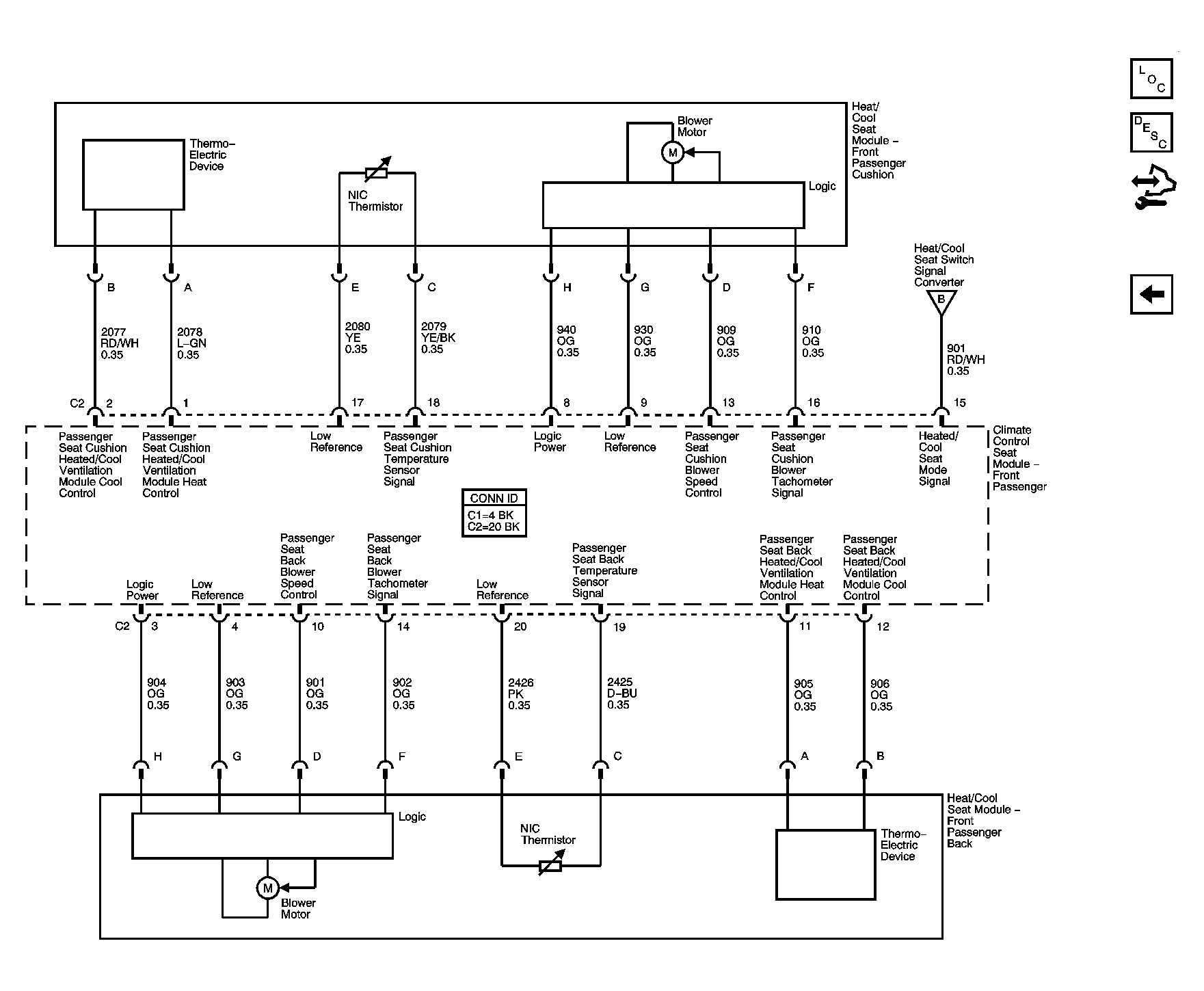

Fig 6: Heat Controls - AN3 w/ULT (3 of 4)

Courtesy of GENERAL MOTORS CORP.

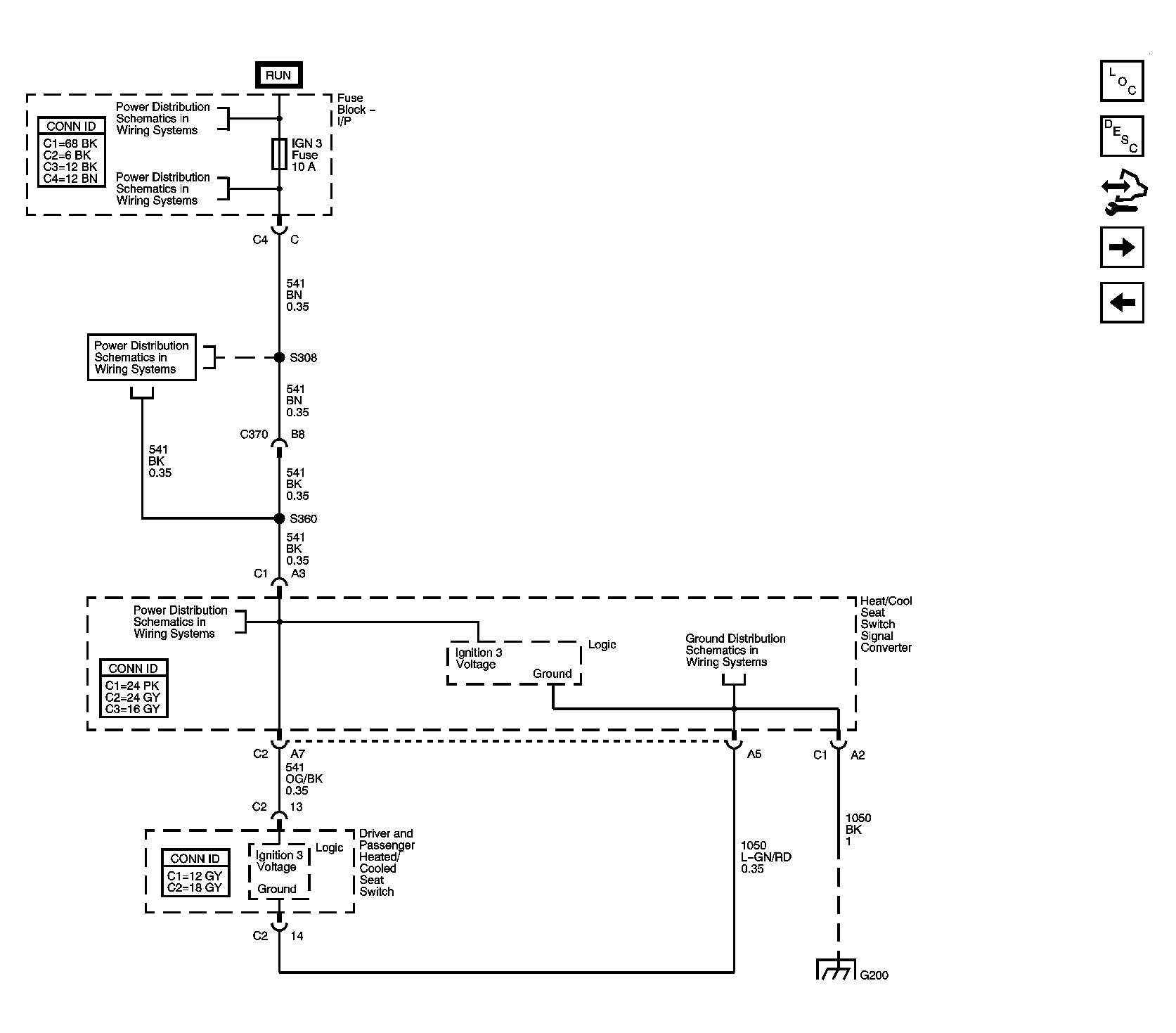

Fig 7: Heat Controls - AN3 w/ULT (4 of 4)

Courtesy of GENERAL MOTORS CORP.
