Driver Seat Schematics

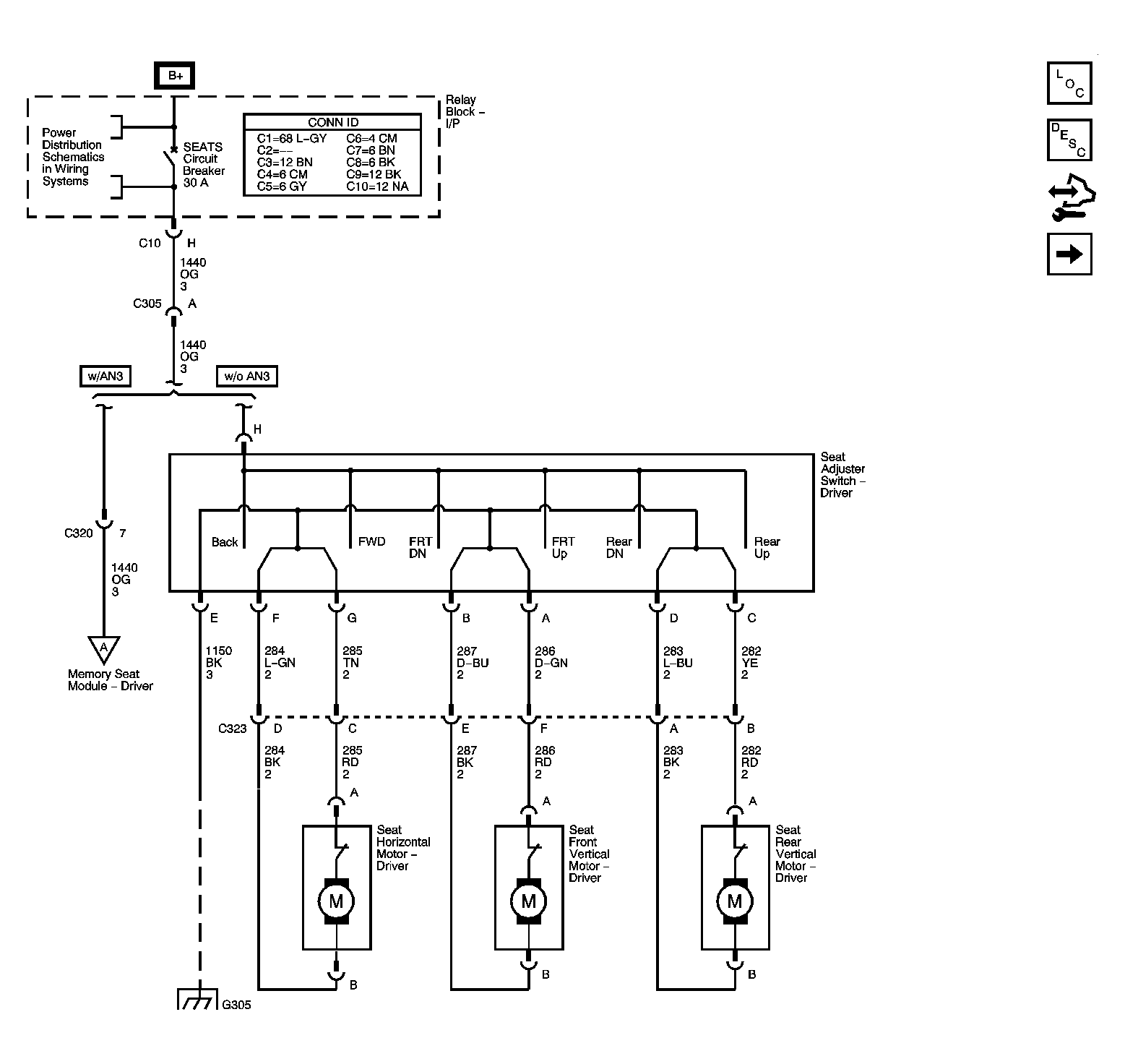

Fig 1: Driver Seat Controls (AG2)

GM1608394

Courtesy of GENERAL MOTORS CORP.

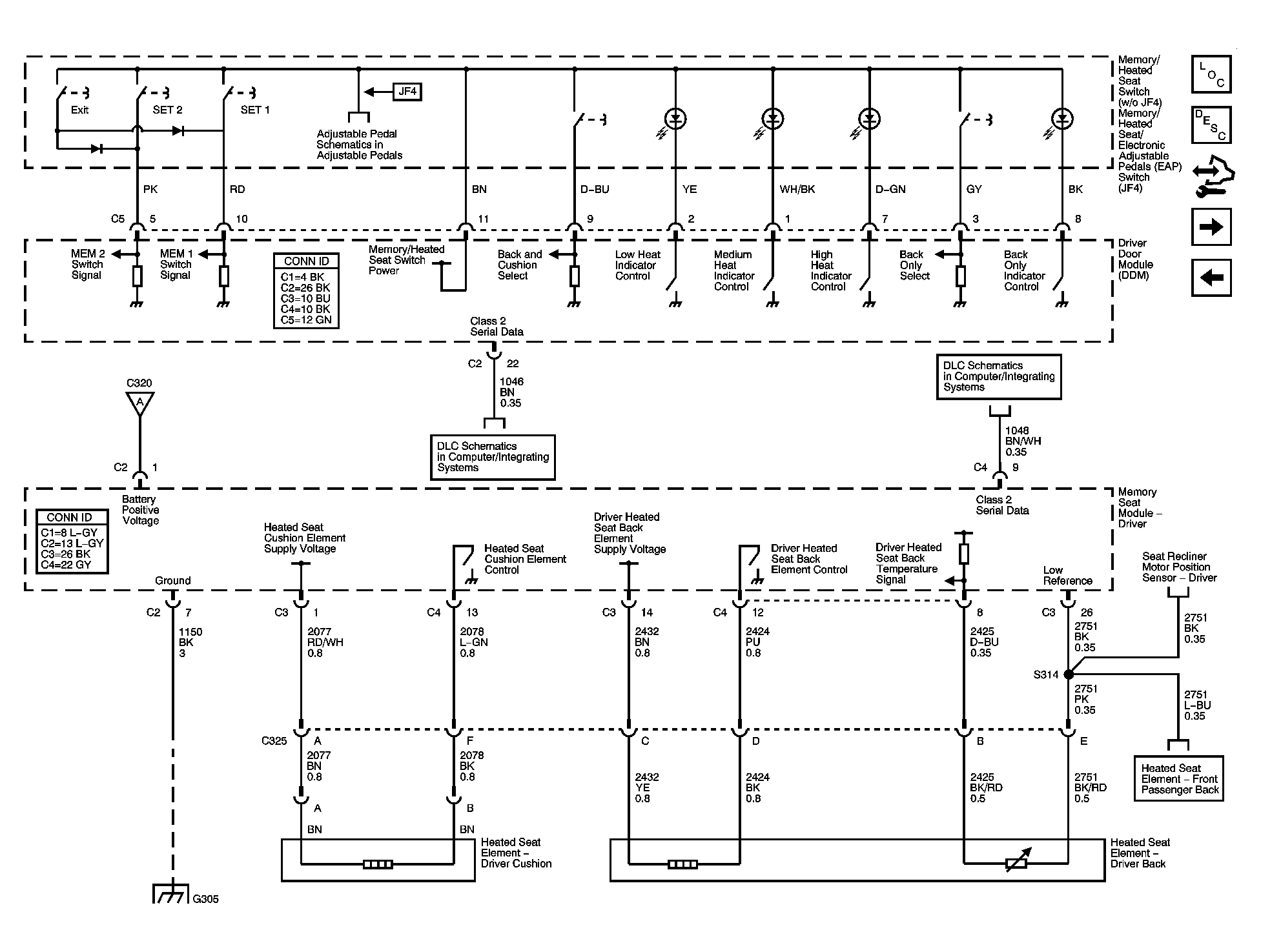

Fig 2: Heated Seat Controls - Driver - Except ULT

GM1608397

Courtesy of GENERAL MOTORS CORP.

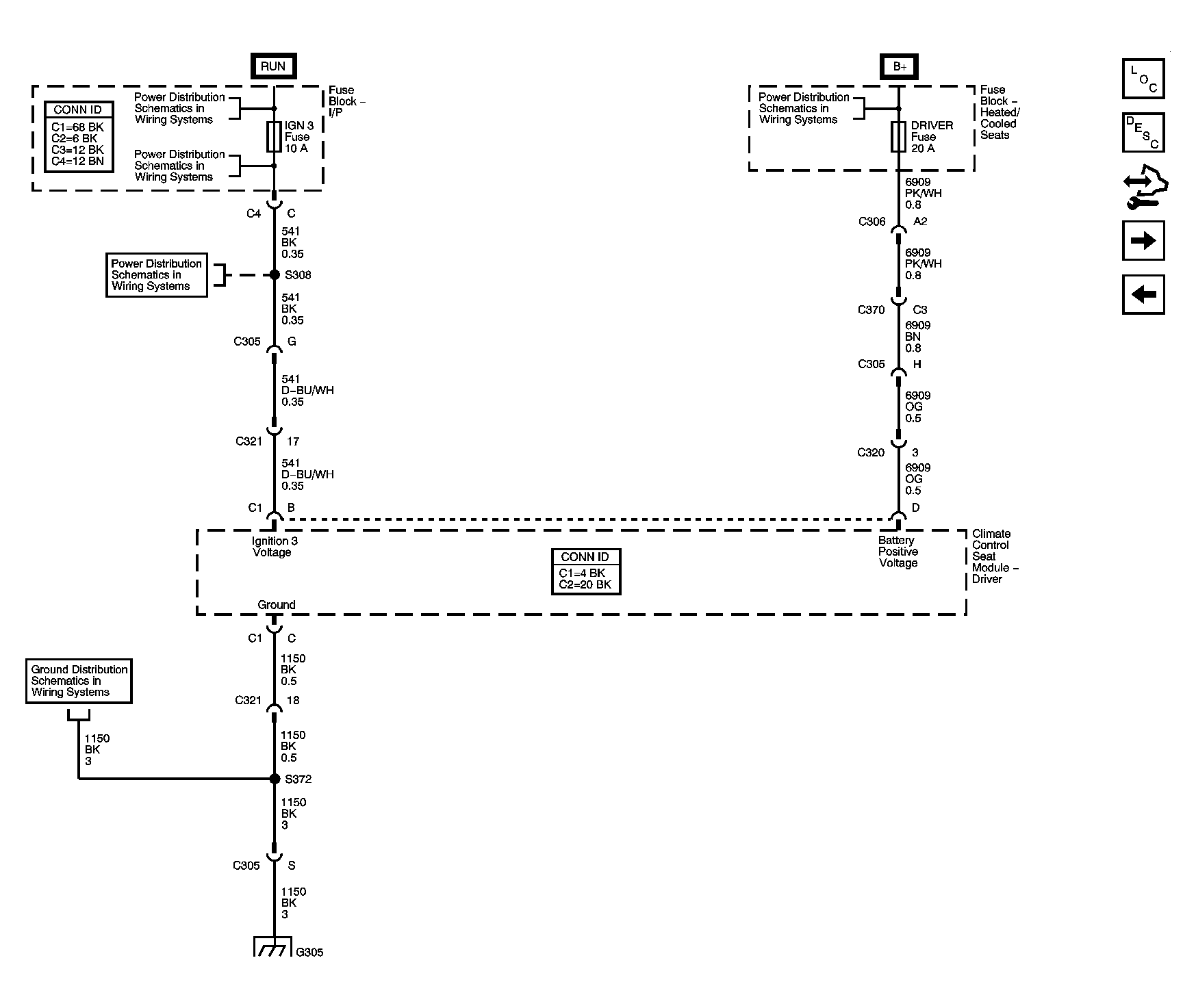

Fig 3: Heat Controls - AN3 w/ULT (1 of 4)

GM1608399

Courtesy of GENERAL MOTORS CORP.

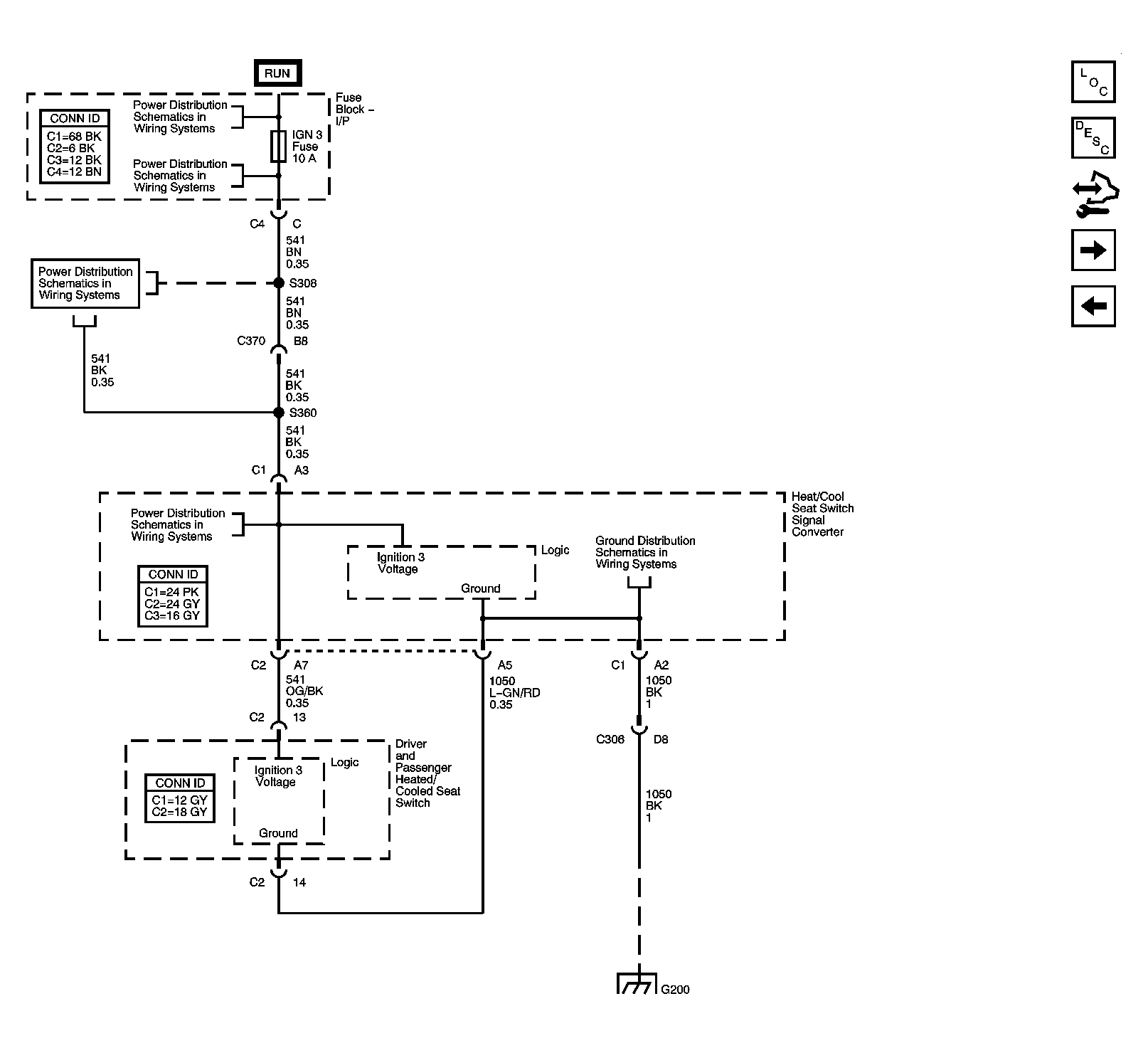

Fig 4: Heat Controls - AN3 w/ULT (2 of 4)

GM1608402

Courtesy of GENERAL MOTORS CORP.

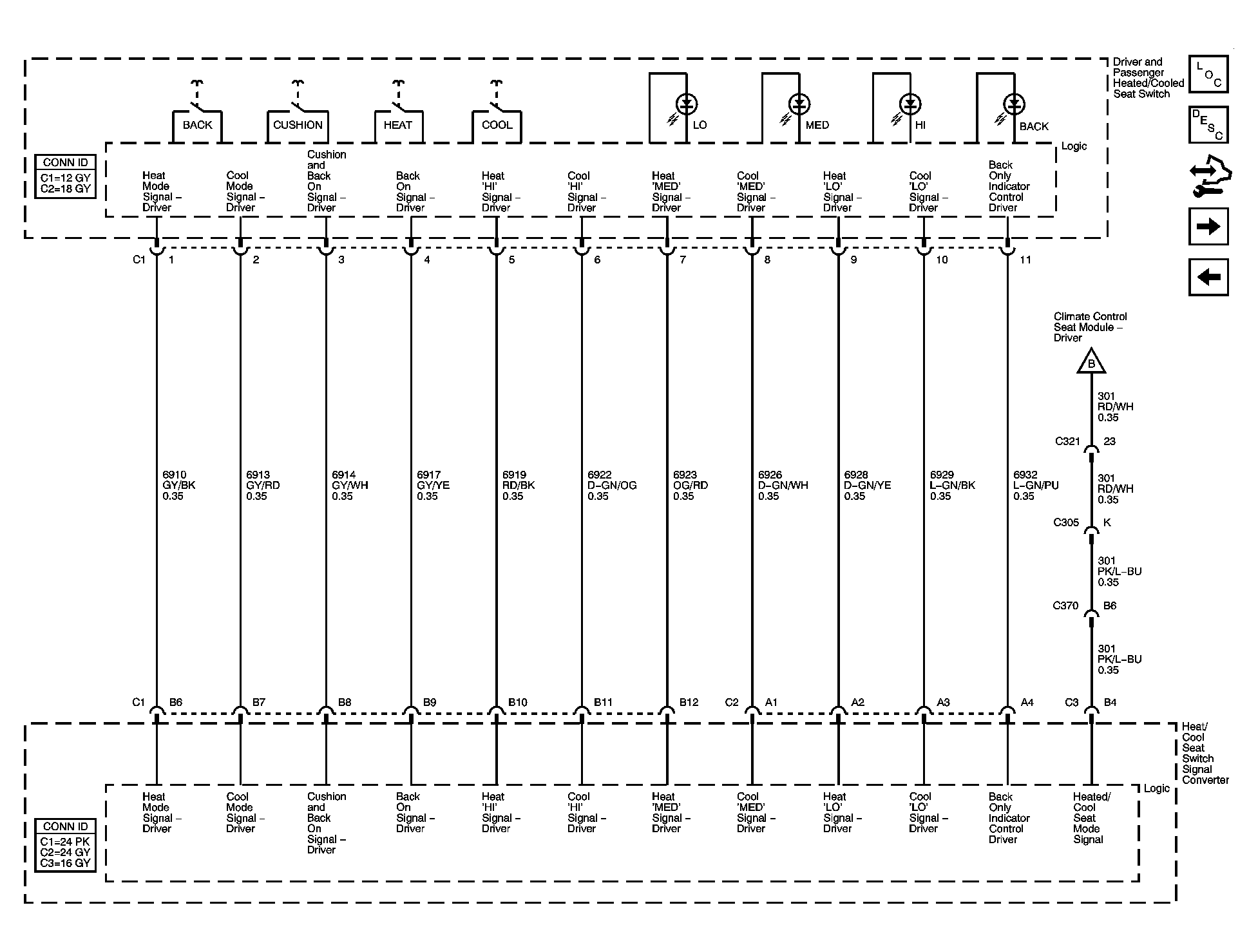

Fig 5: Heat Controls - AN3 w/ULT (3 of 4)

GM1608404

Courtesy of GENERAL MOTORS CORP.

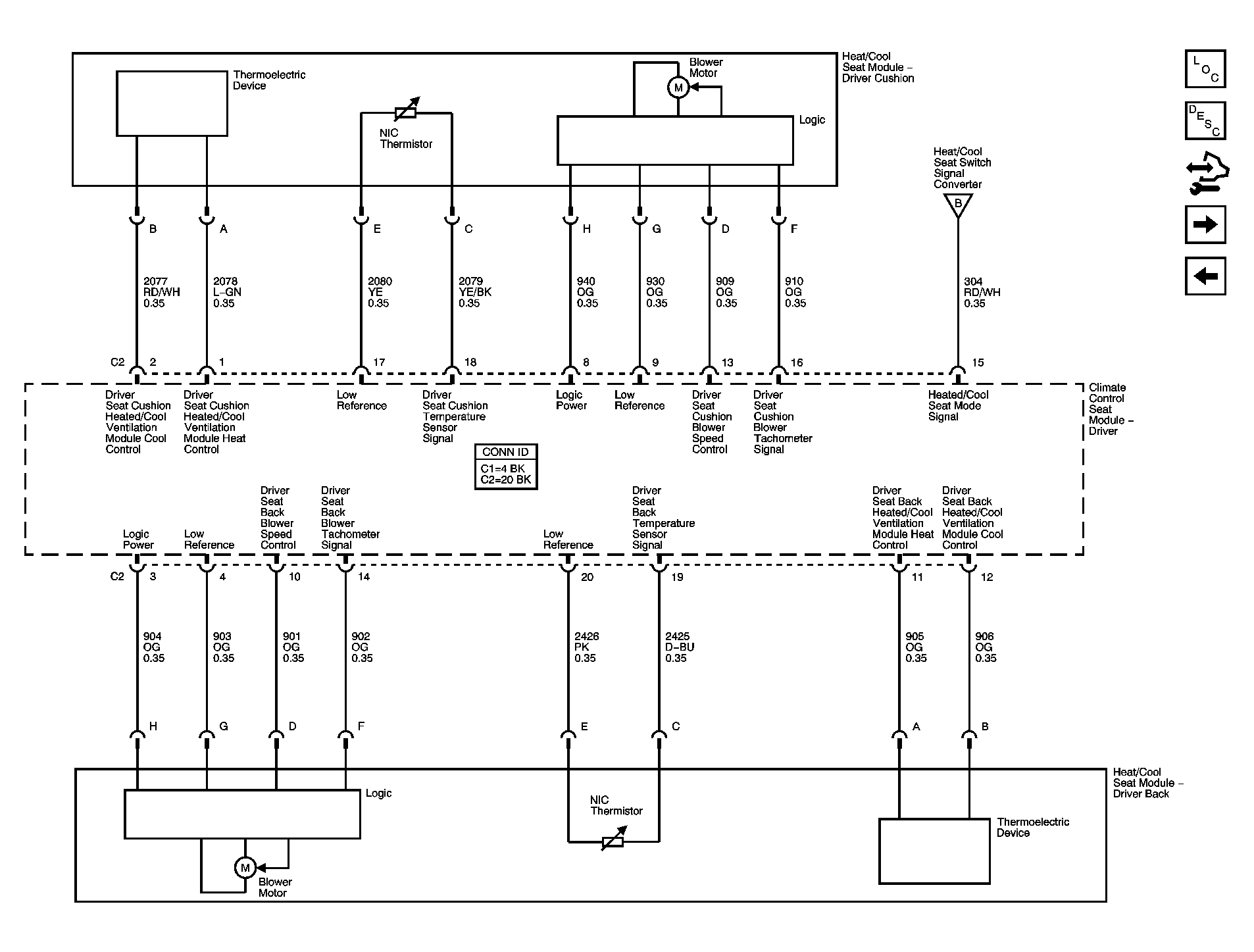

Fig 6: Heat Controls - AN3 w/ULT (4 of 4)

GM1608405

Courtesy of GENERAL MOTORS CORP.

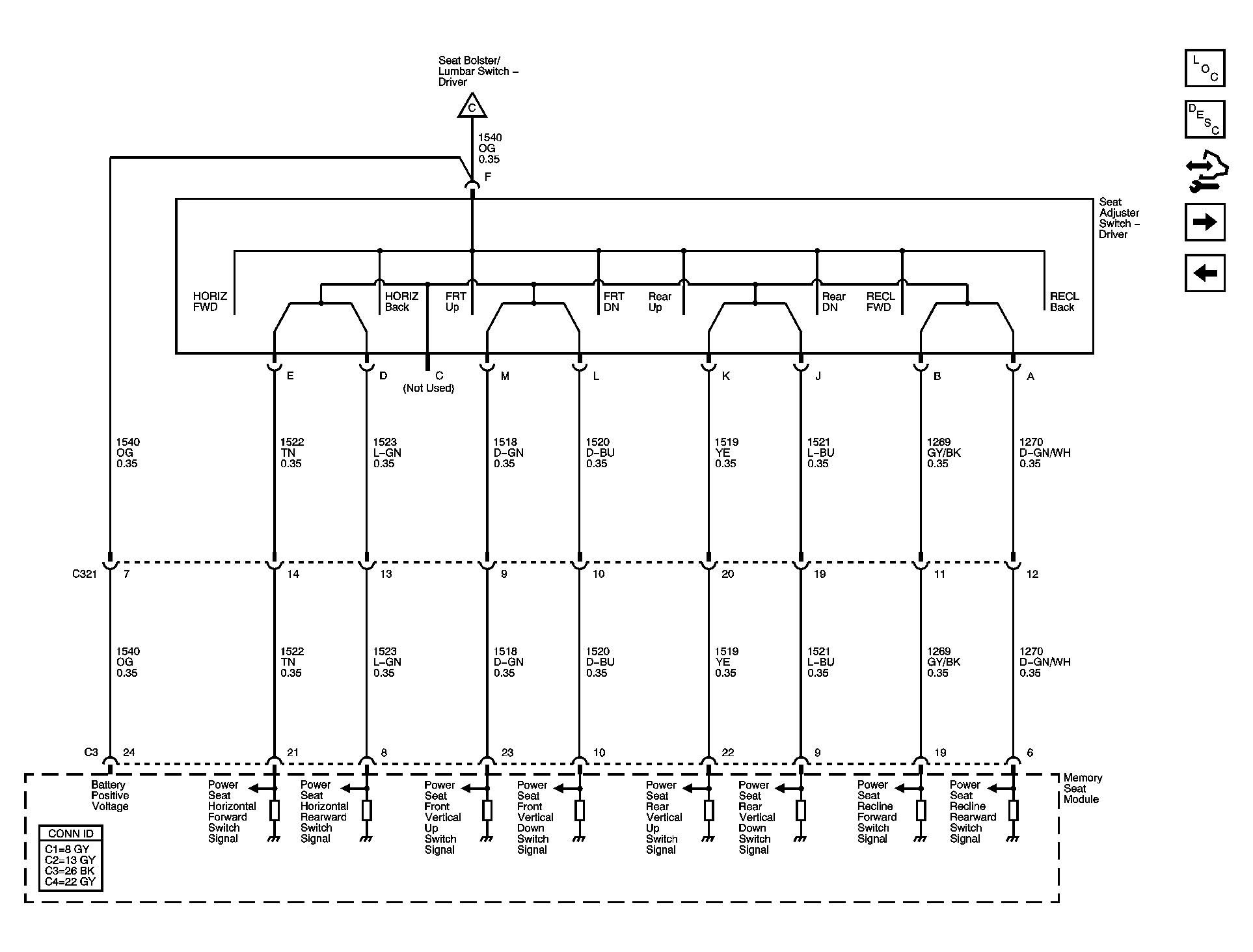

Fig 7: Seat Adjuster Switch

GM1608406

Courtesy of GENERAL MOTORS CORP.

Fig 8: Lumbar/Bolster Switch

GM1608408

Courtesy of GENERAL MOTORS CORP.

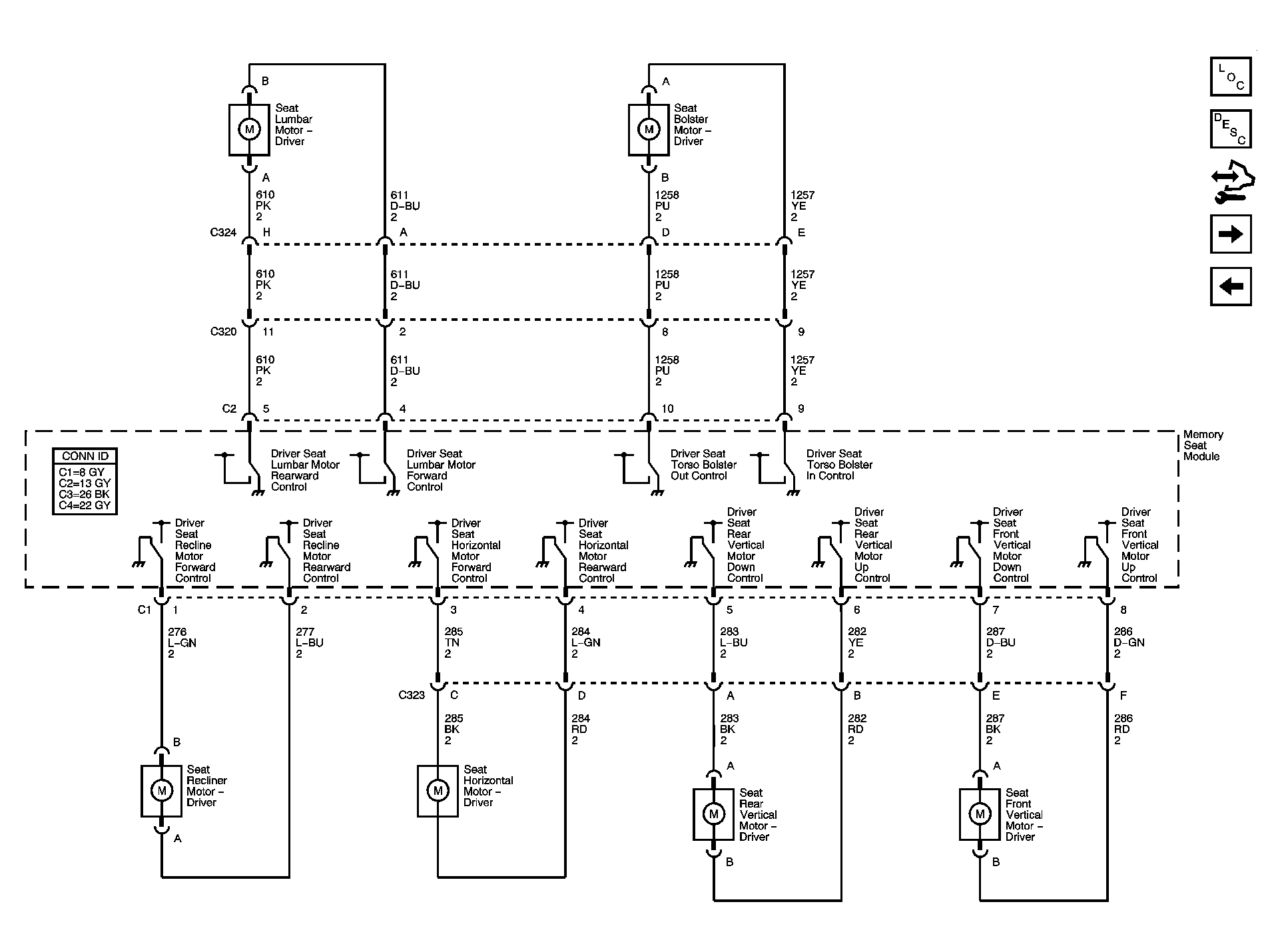

Fig 9: Seat Motors

GM1608410

Courtesy of GENERAL MOTORS CORP.

Fig 10: Seat Position Sensors (1 of 2)

GM1608411

Courtesy of GENERAL MOTORS CORP.

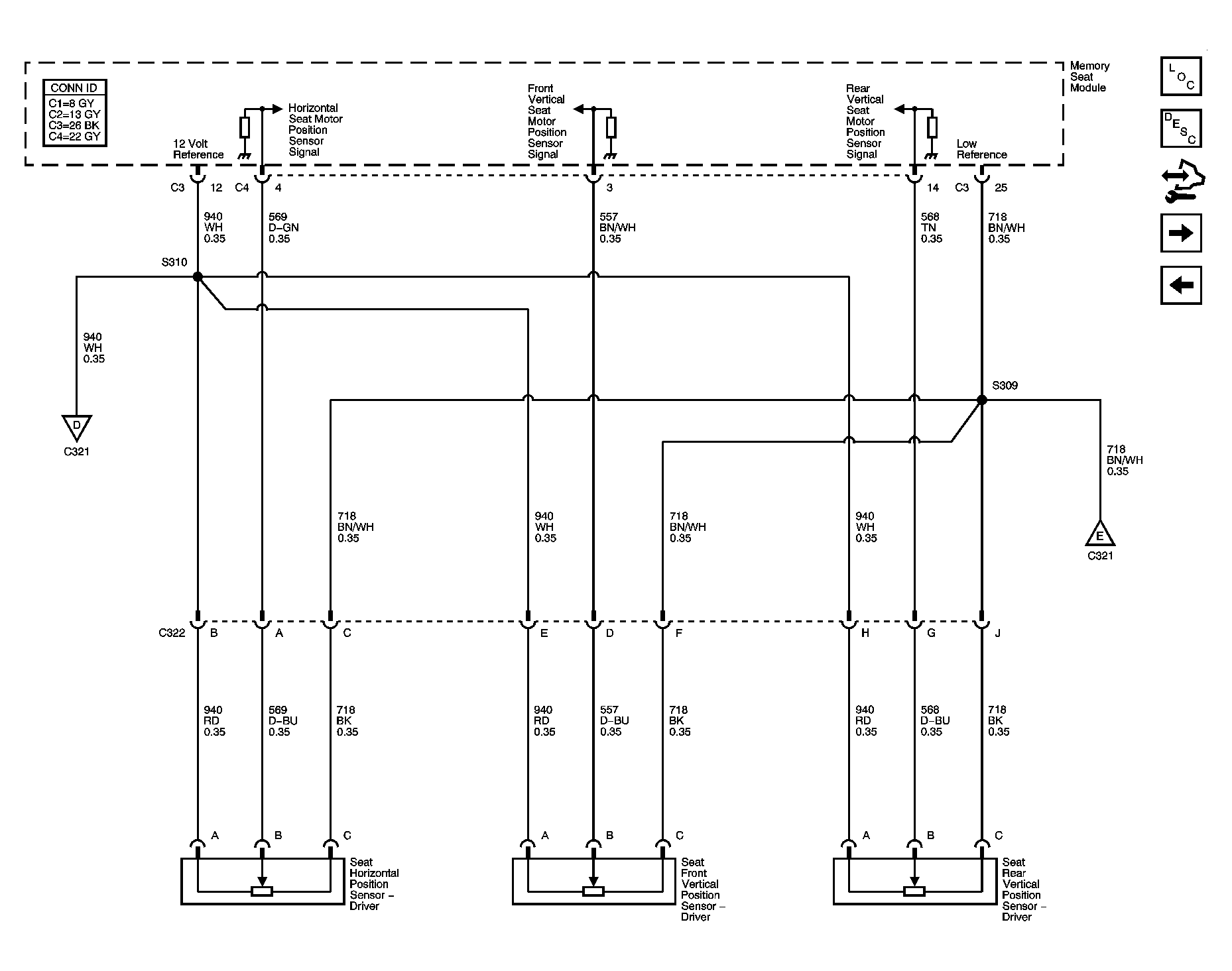

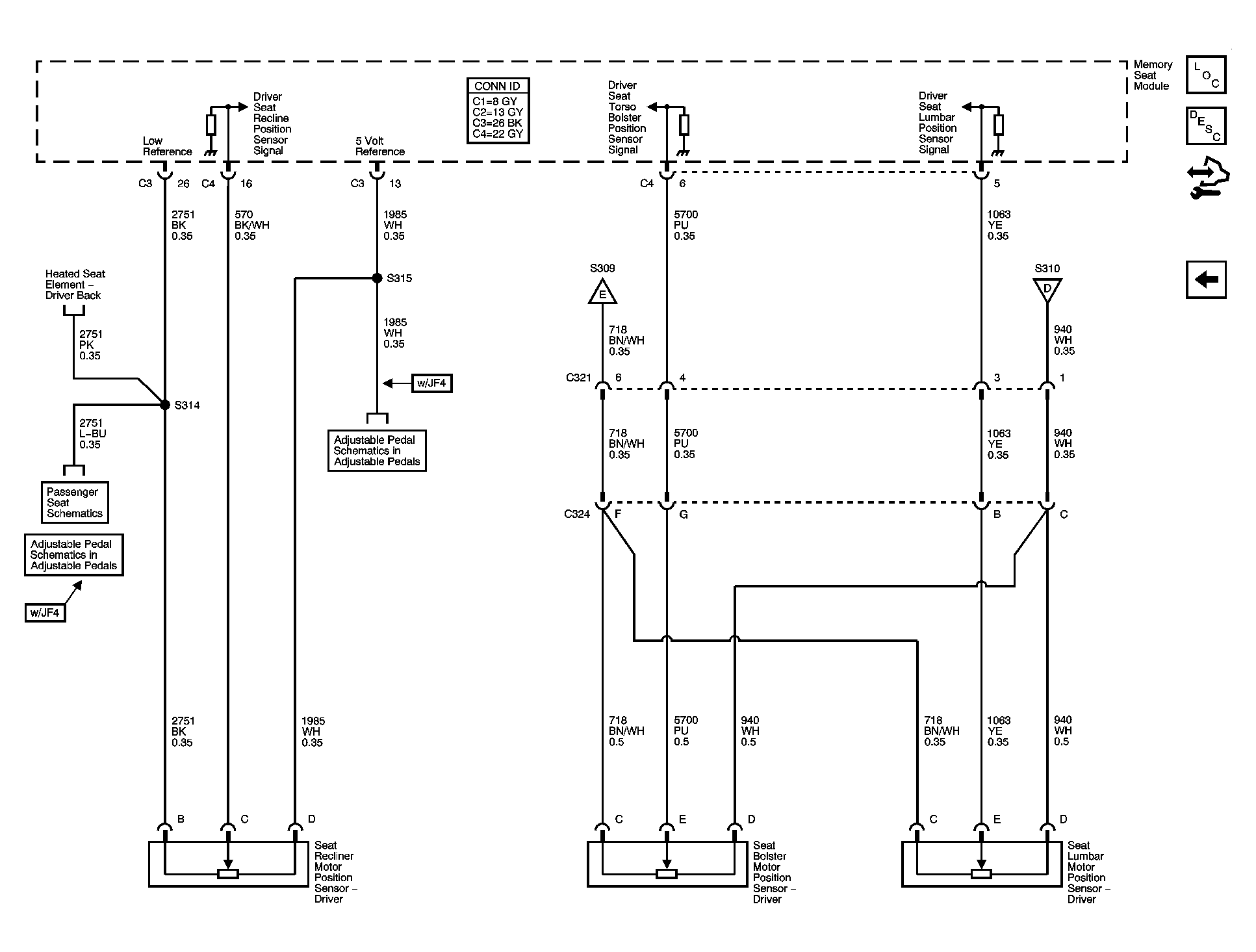

Fig 11: Seat Position Sensors (2 of 2)

GM1608413

Courtesy of GENERAL MOTORS CORP.
