Interior Lights Schematics

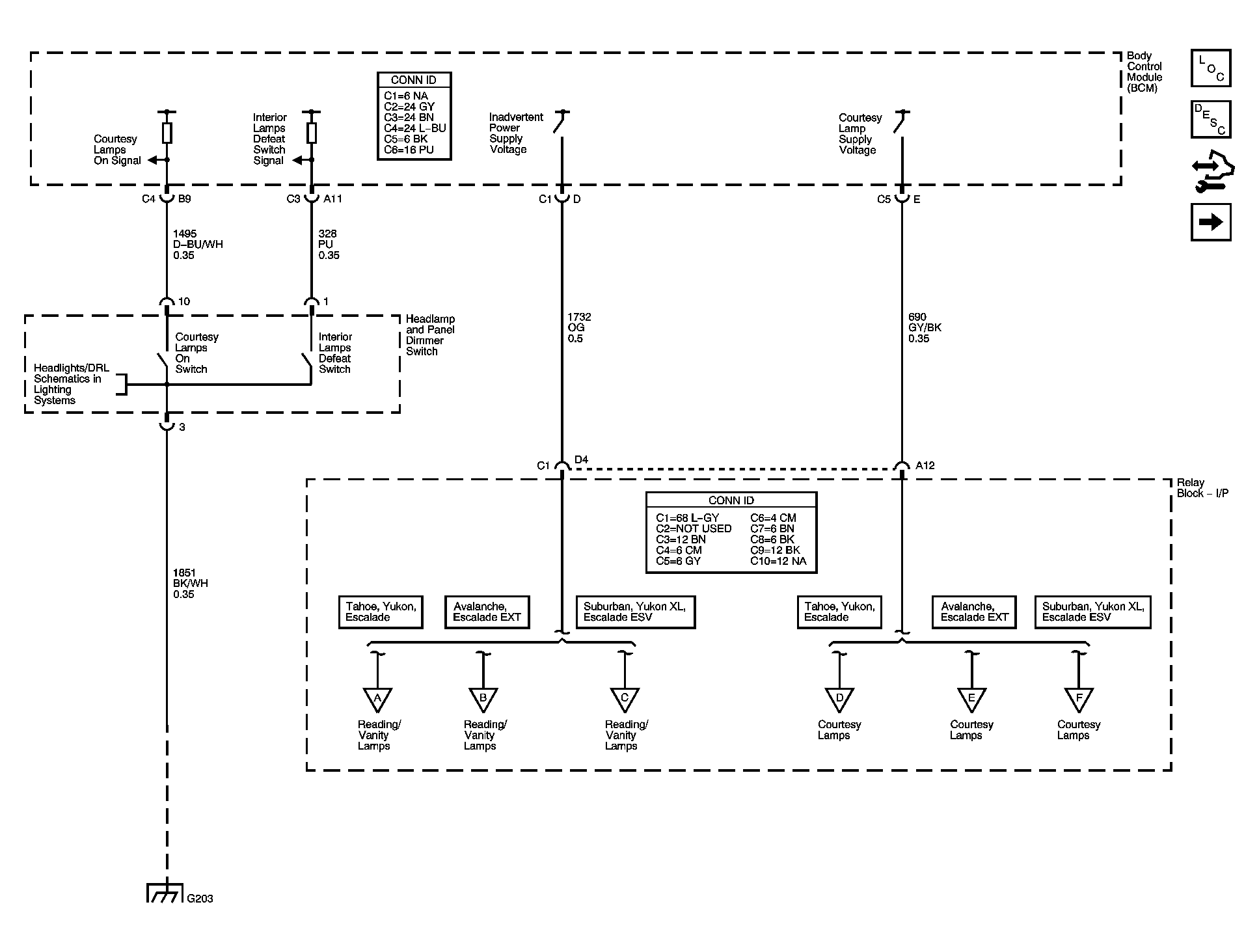

Fig 1: Headlamp Switches, Courtesy Lamp and Inadvertent Voltage Supplies

Courtesy of GENERAL MOTORS CORP.

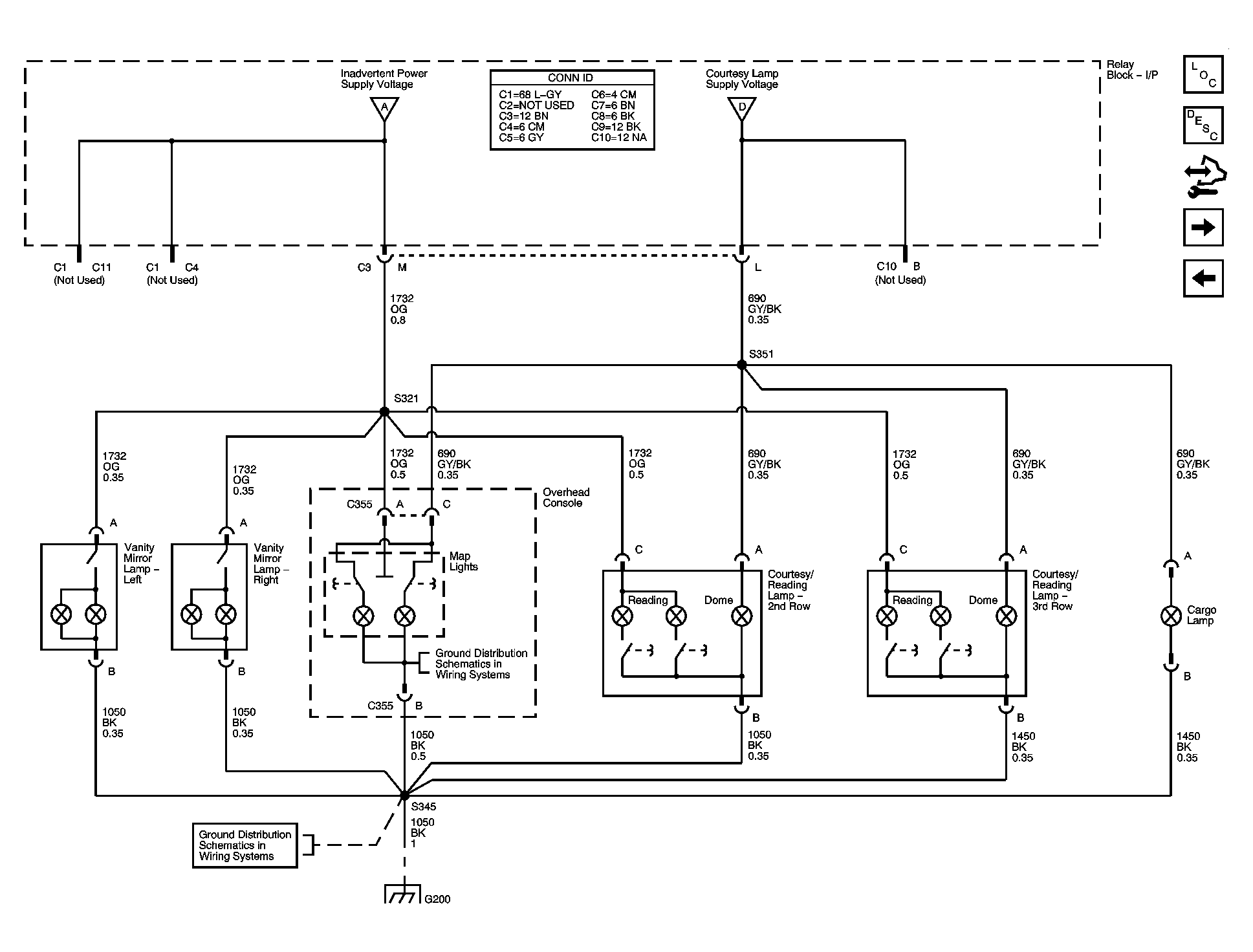

Fig 2: Interior Lamps - Tahoe, Yukon, and Escalade

Courtesy of GENERAL MOTORS CORP.

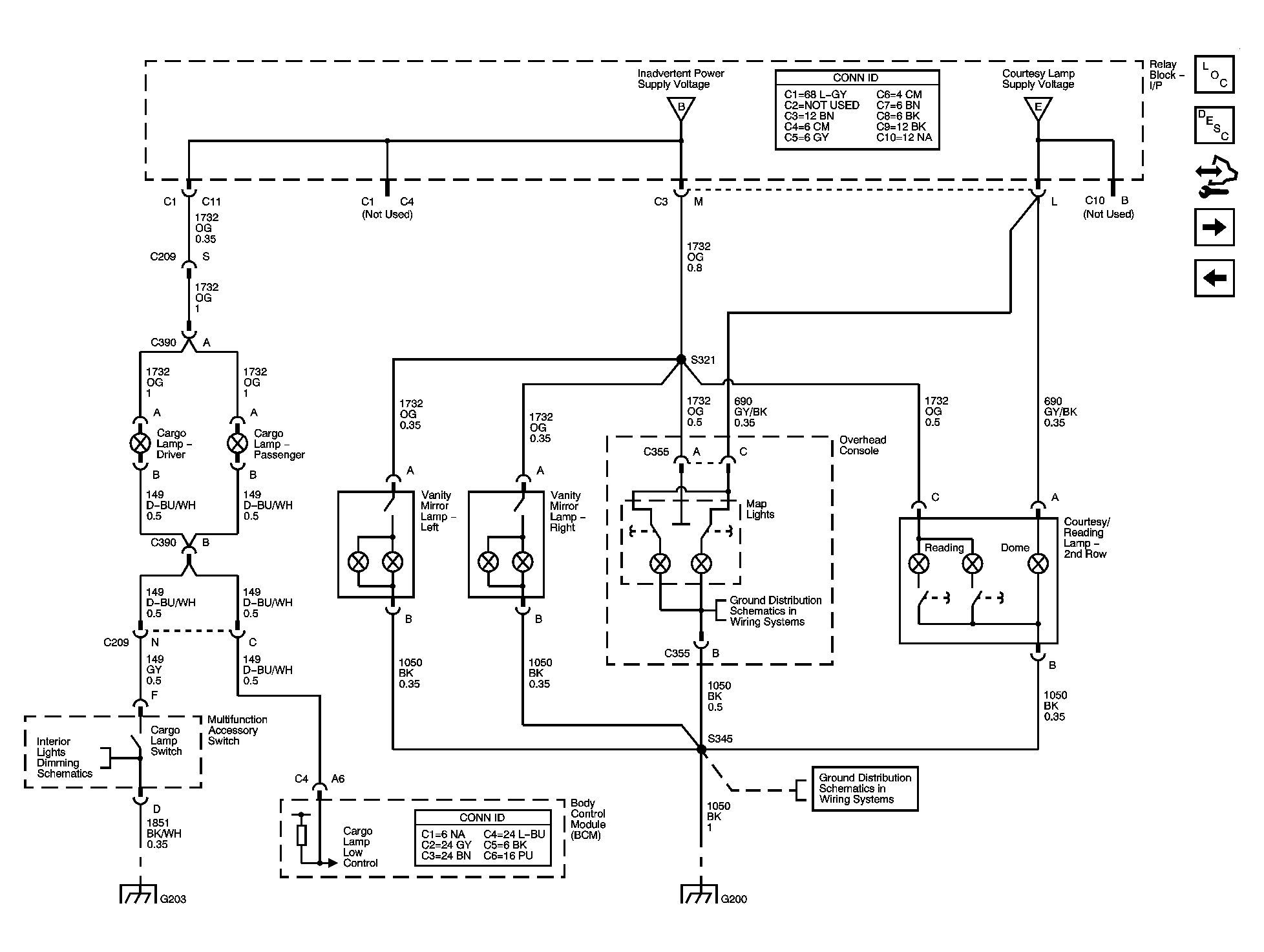

Fig 3: Interior Lamps - Avalanche and Escalade EXT

Courtesy of GENERAL MOTORS CORP.

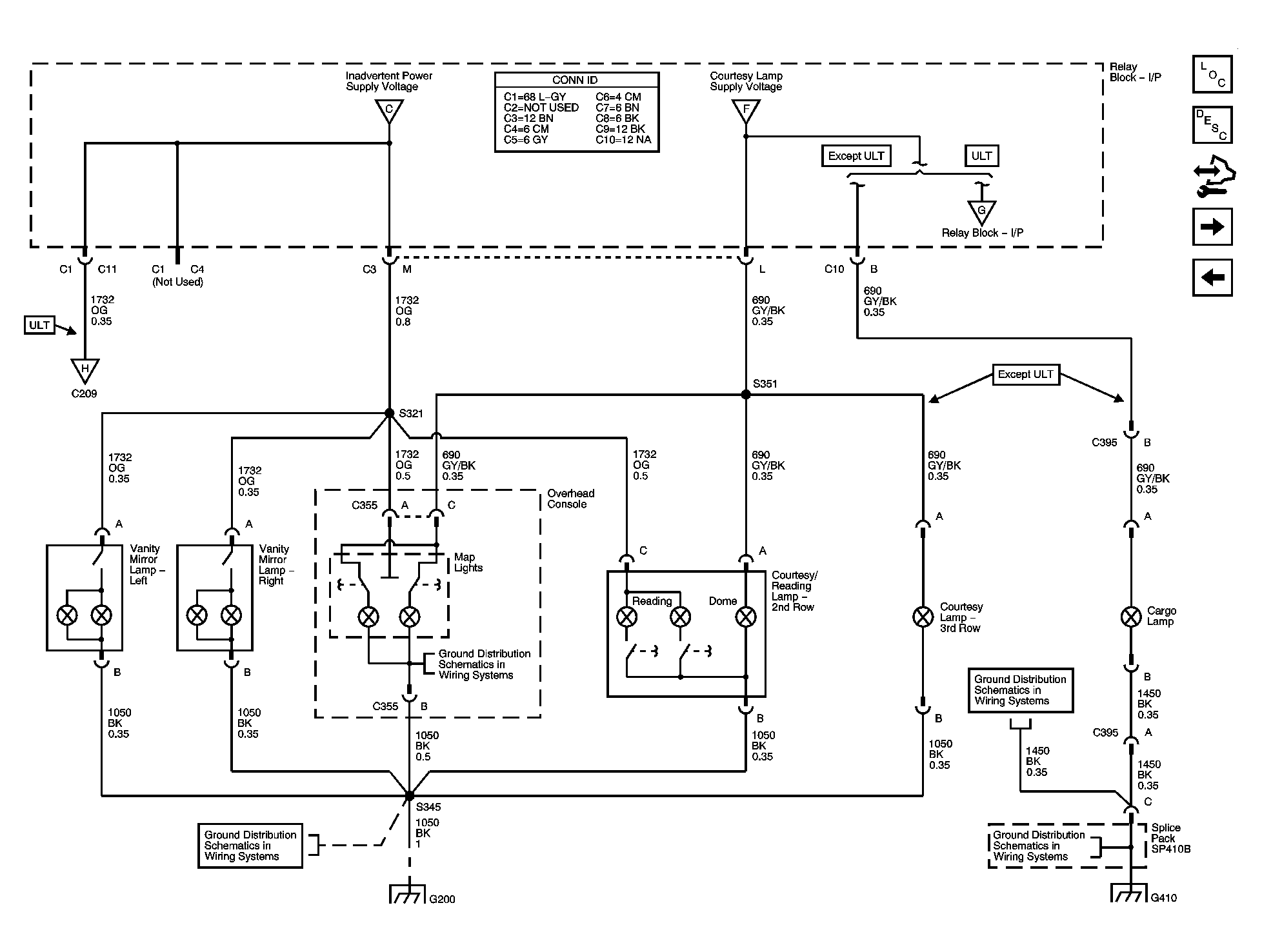

Fig 4: Interior Lamps - Suburban, Yukon XL, and Escalade ESV w/o ULT

Courtesy of GENERAL MOTORS CORP.

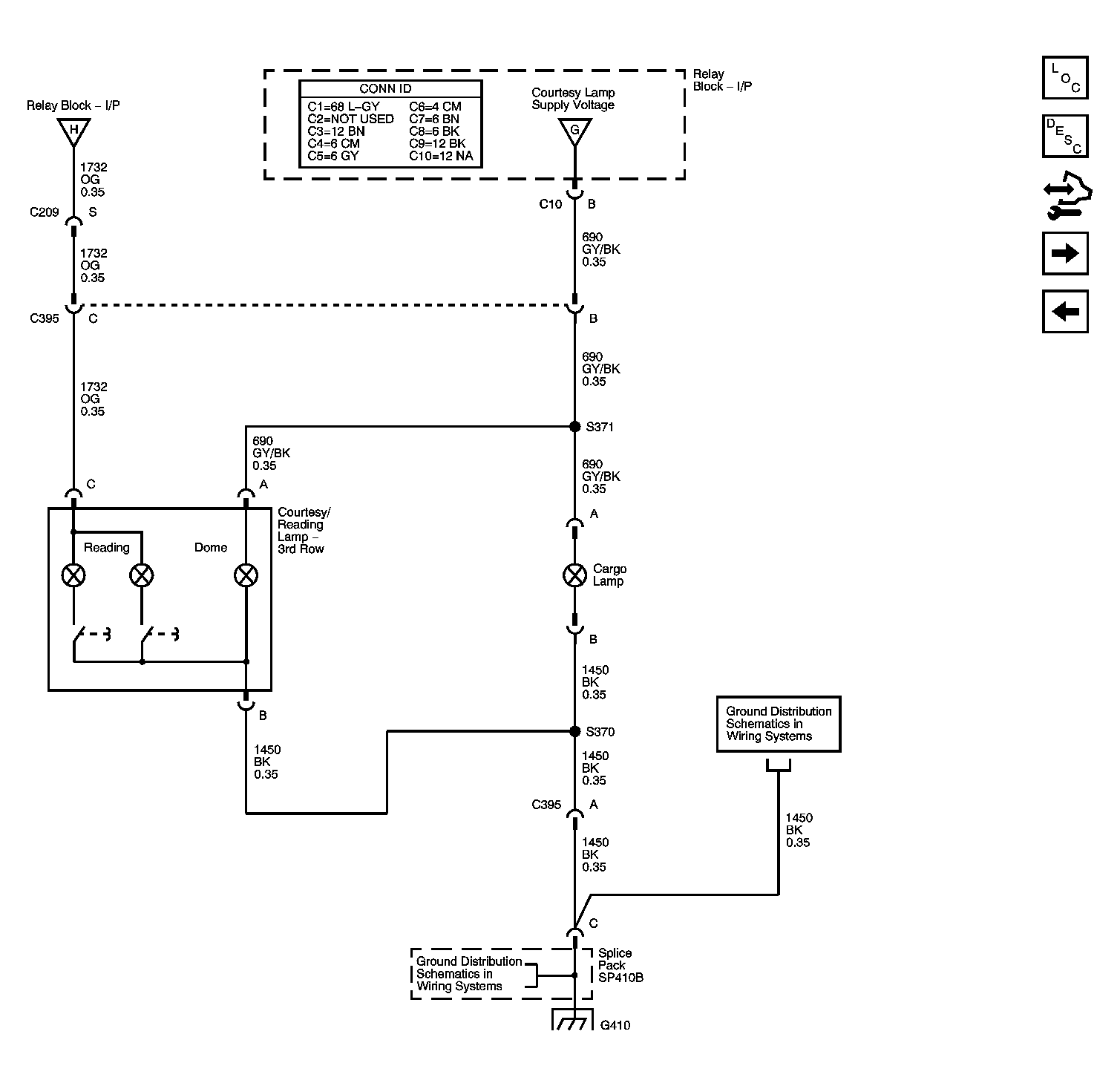

Fig 5: Interior Lamps - Escalade ESV w/ULT

Courtesy of GENERAL MOTORS CORP.

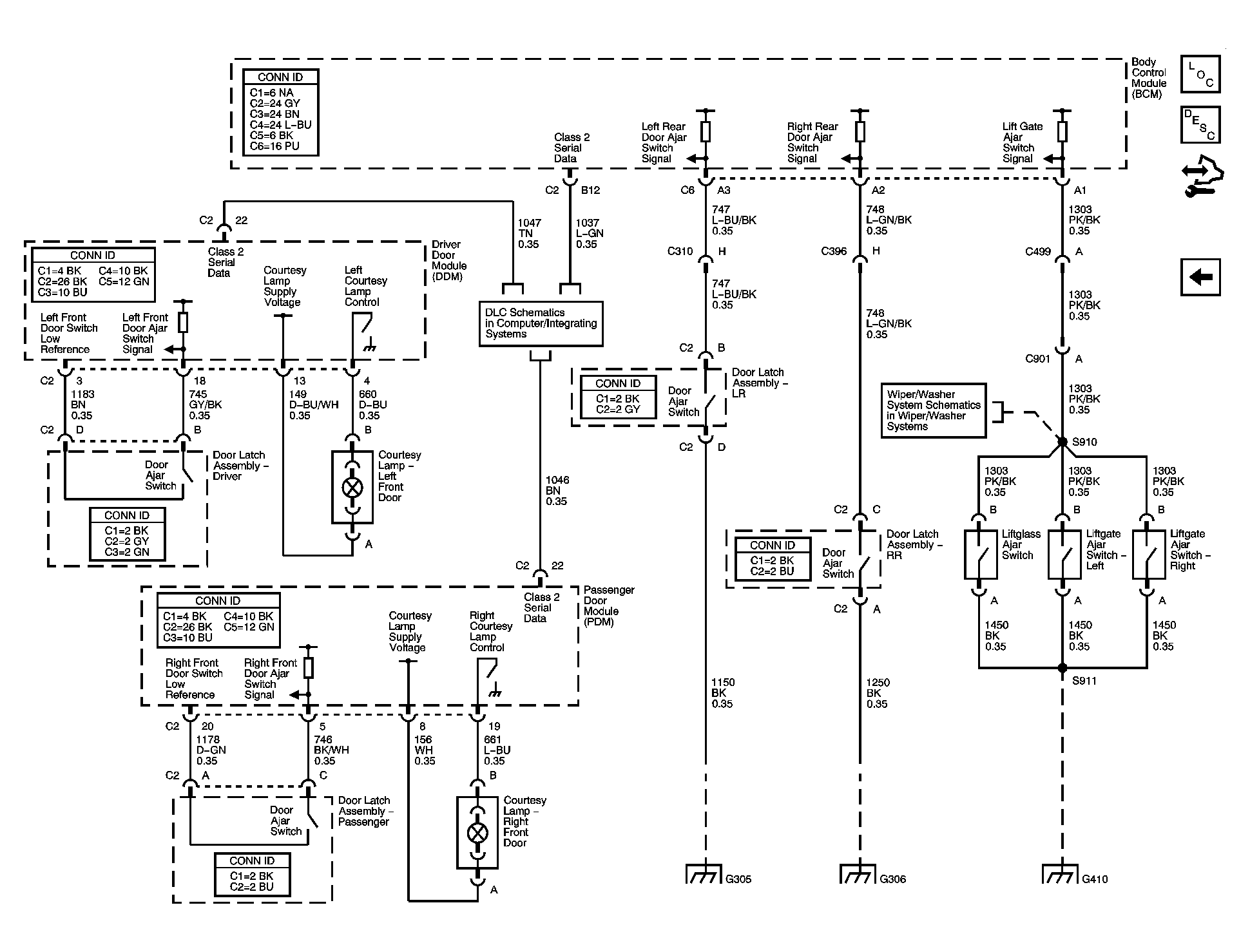

Fig 6: Switch Inputs and Door Courtesy Lamps

Courtesy of GENERAL MOTORS CORP.
