Radio/Audio System Schematics (Radio UQ7 w/o Y91 - non-Class 2 Amp)

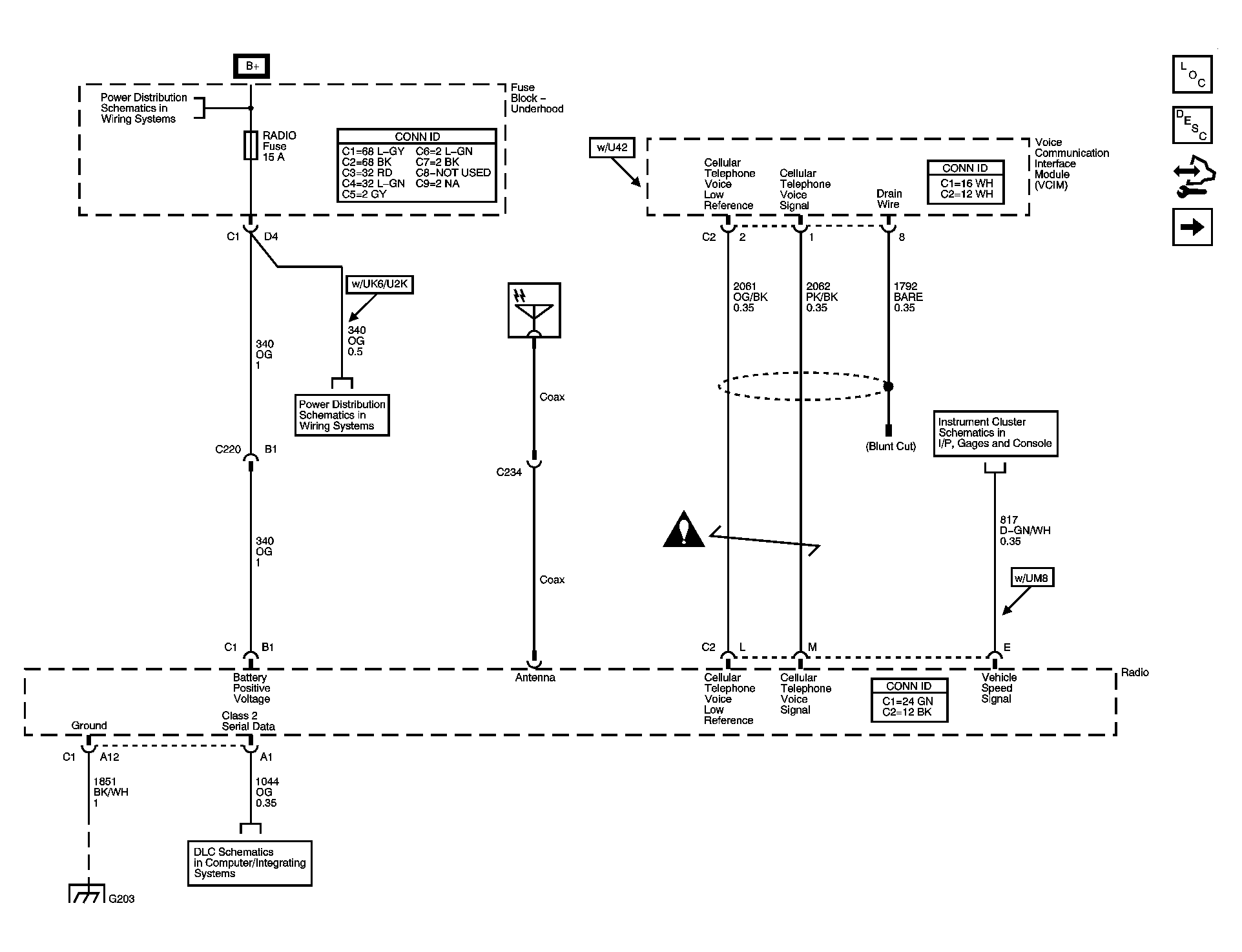

Fig 1: Power, Ground, Serial data, and OnStar Audio Input

Courtesy of GENERAL MOTORS CORP.

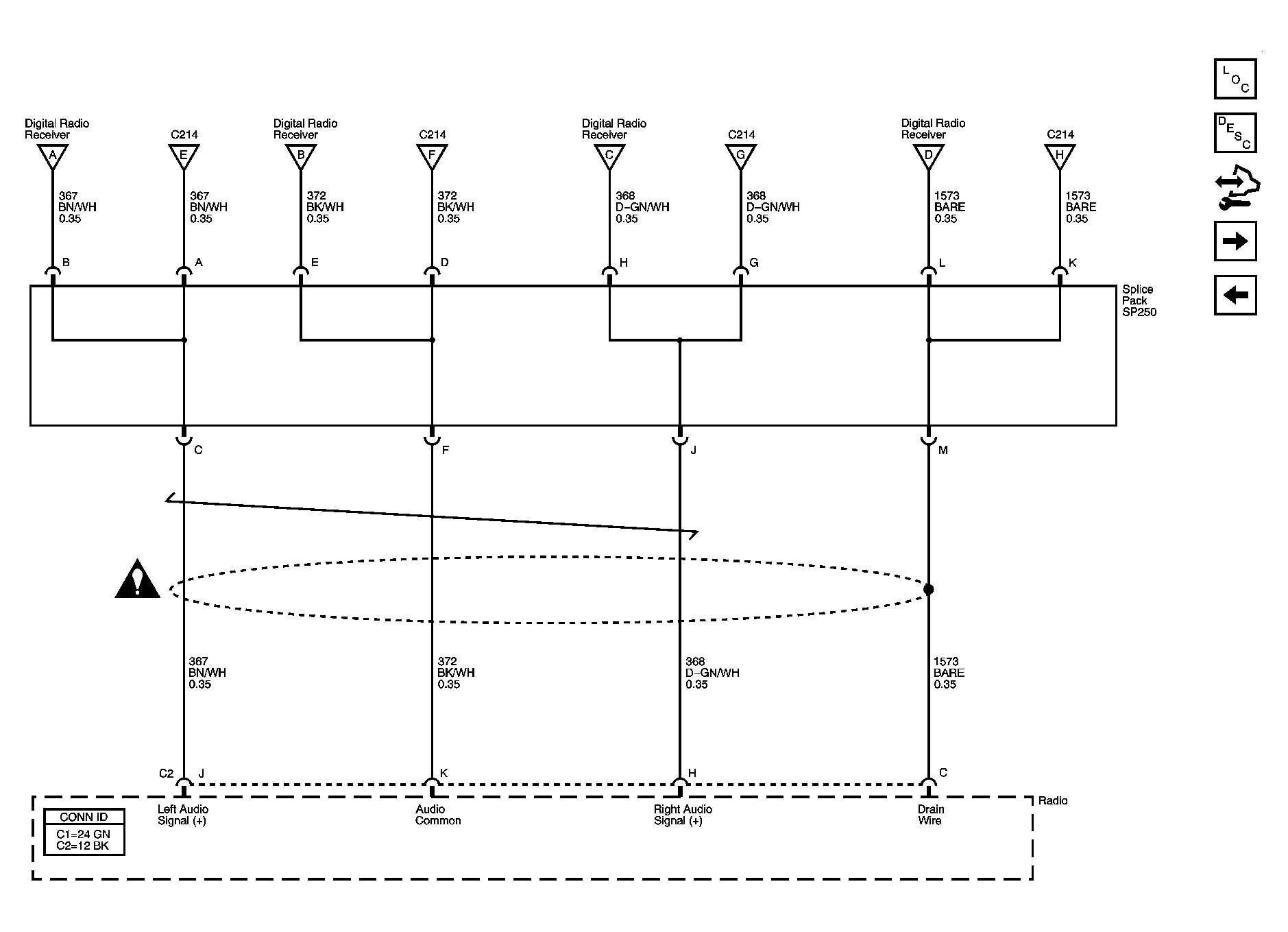

Fig 2: Splice Pack SP250

Courtesy of GENERAL MOTORS CORP.

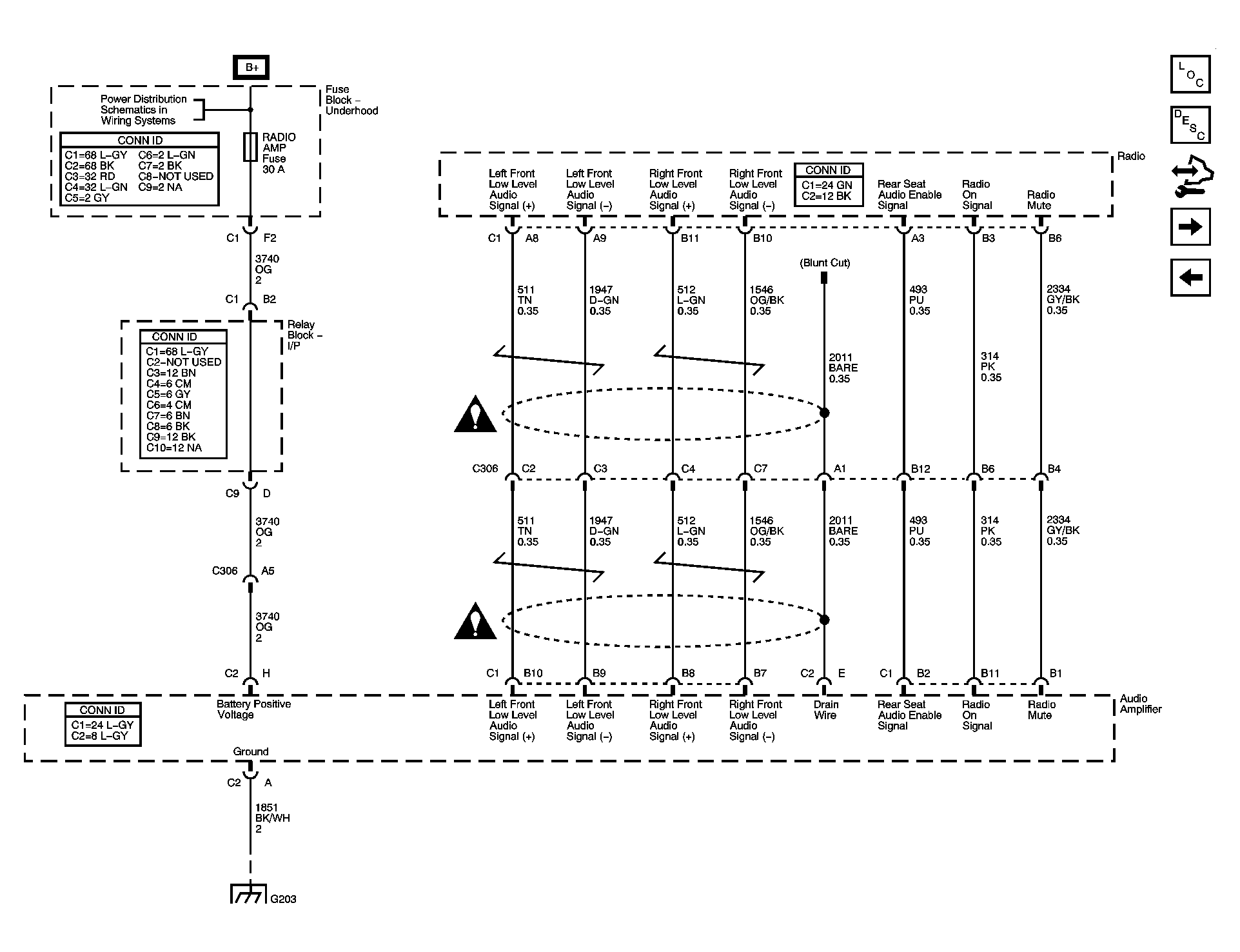

Fig 3: Amplifier Power, Ground, Front Audio, and Control Inputs

Courtesy of GENERAL MOTORS CORP.

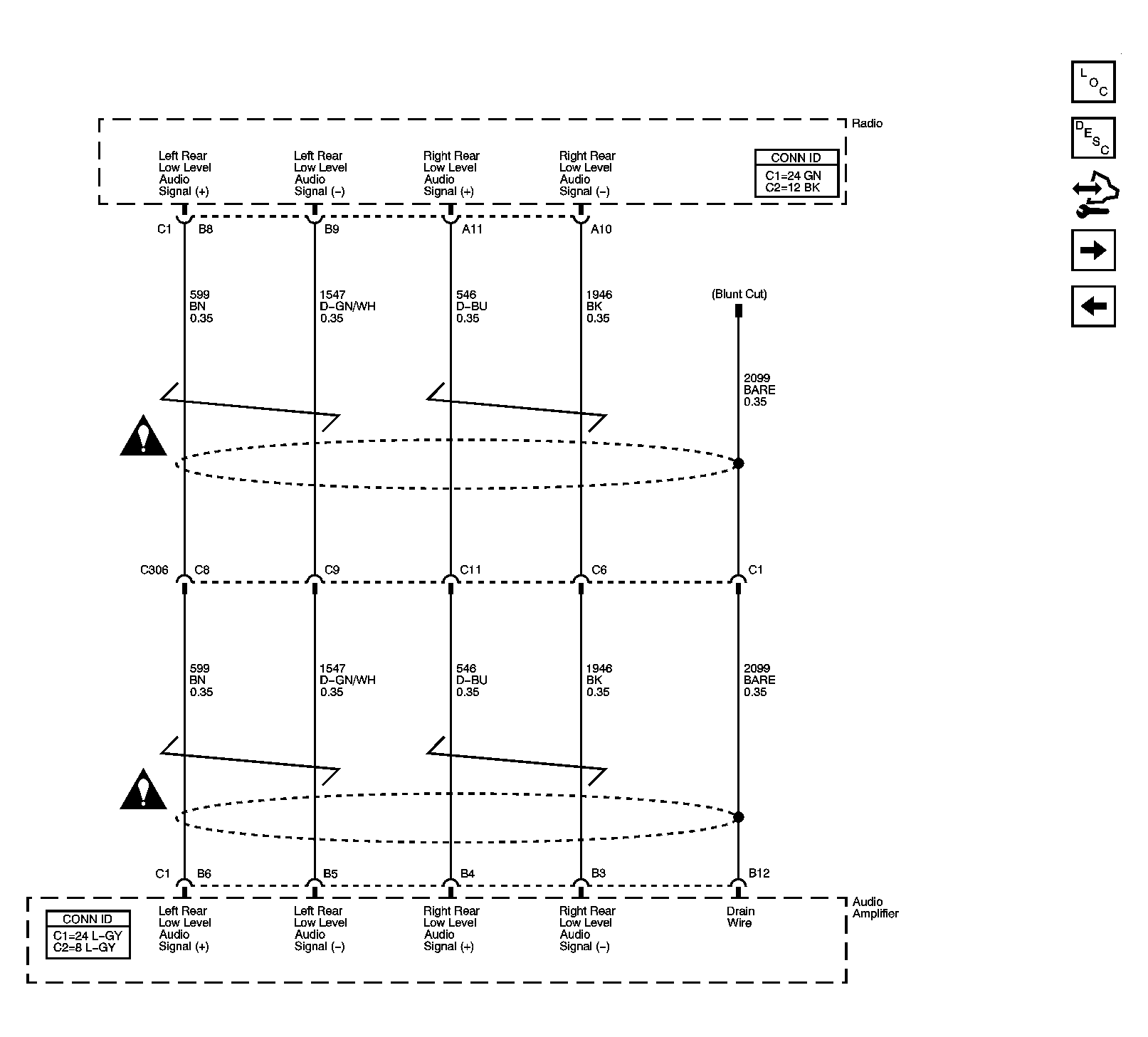

Fig 4: Amplifier Rear Audio Inputs - w/o UK6

Courtesy of GENERAL MOTORS CORP.

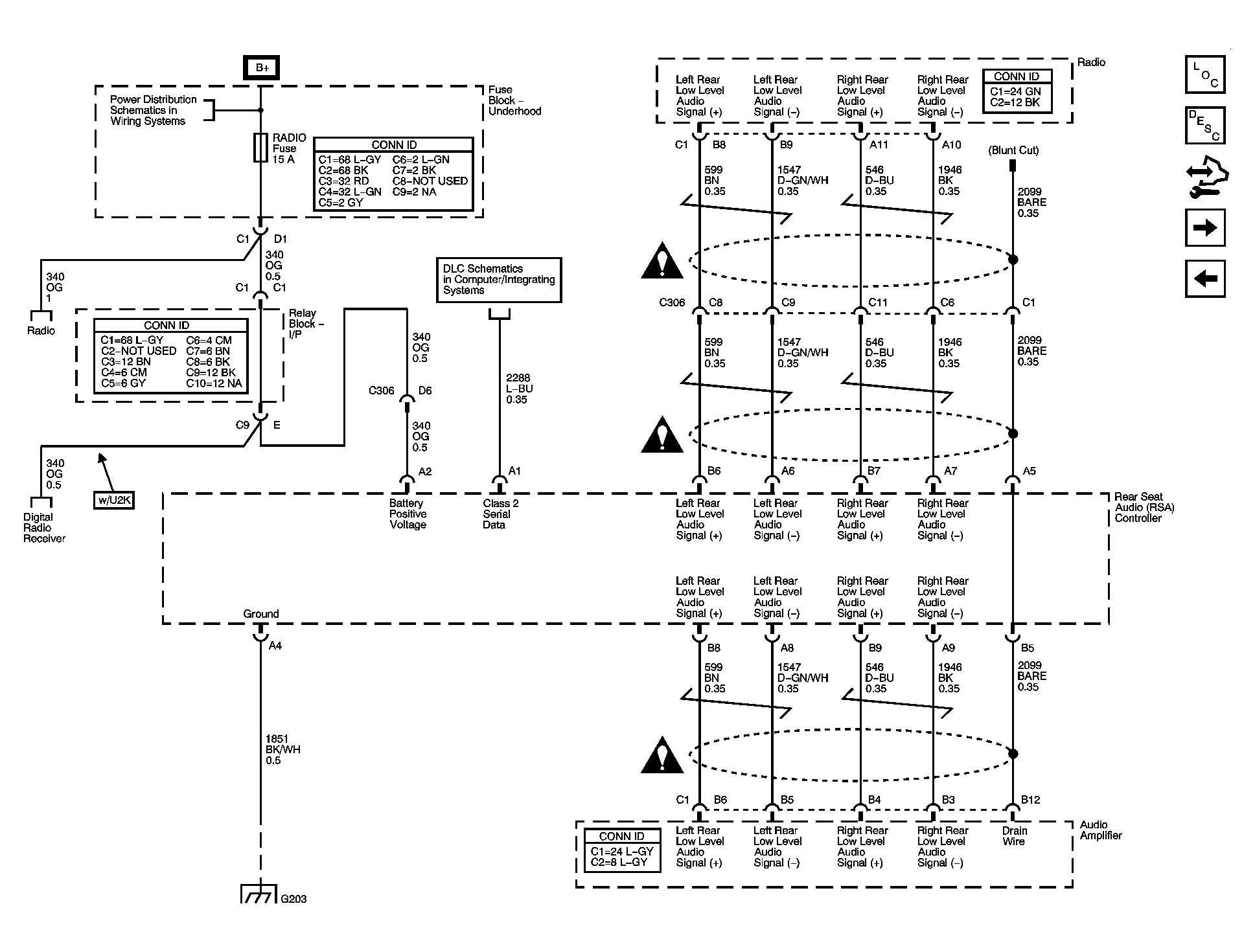

Fig 5: Amplifier Rear Audio Inputs and RSA Controller - w/UK6

Courtesy of GENERAL MOTORS CORP.

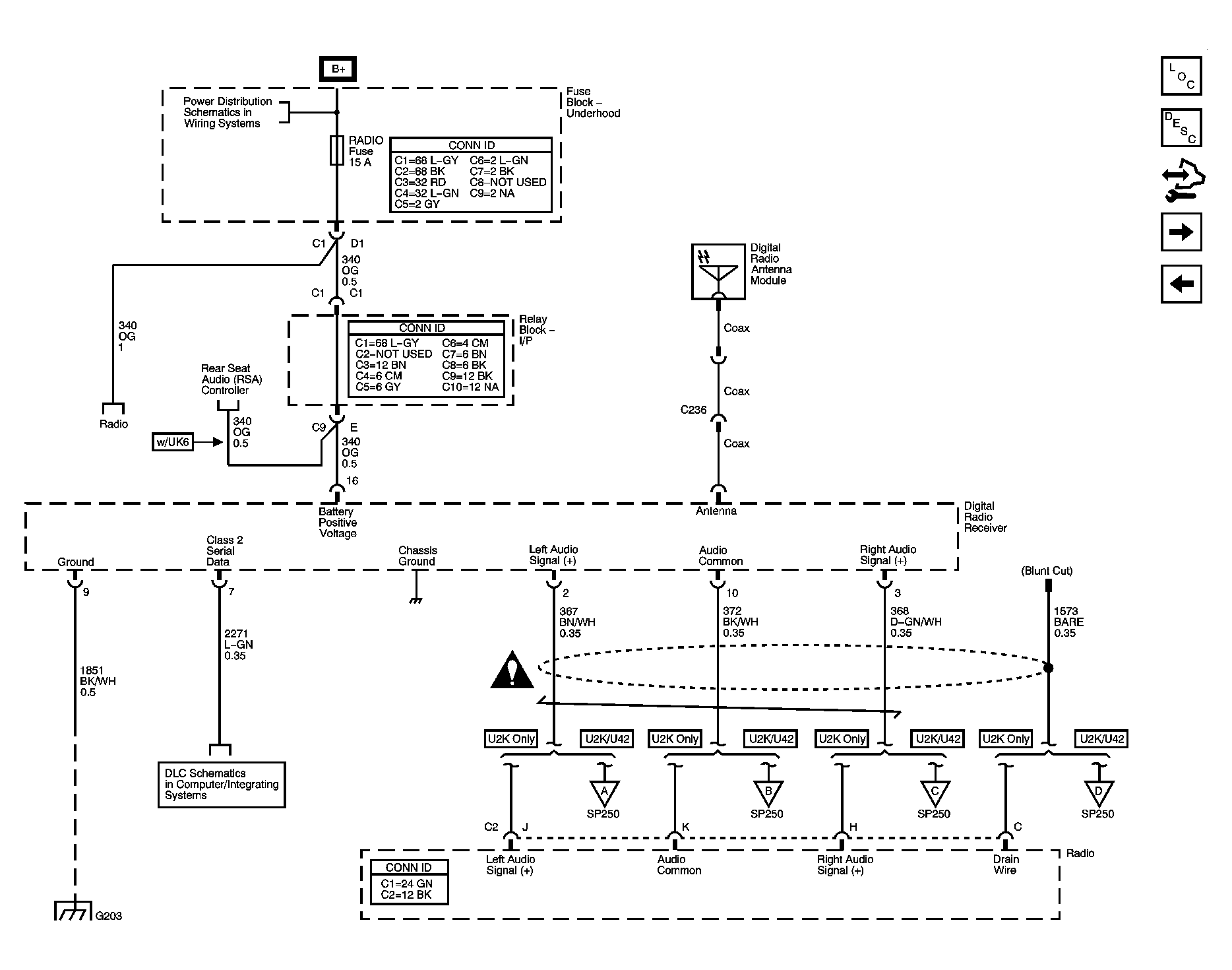

Fig 6: Digital Radio Receiver - U2K

Courtesy of GENERAL MOTORS CORP.

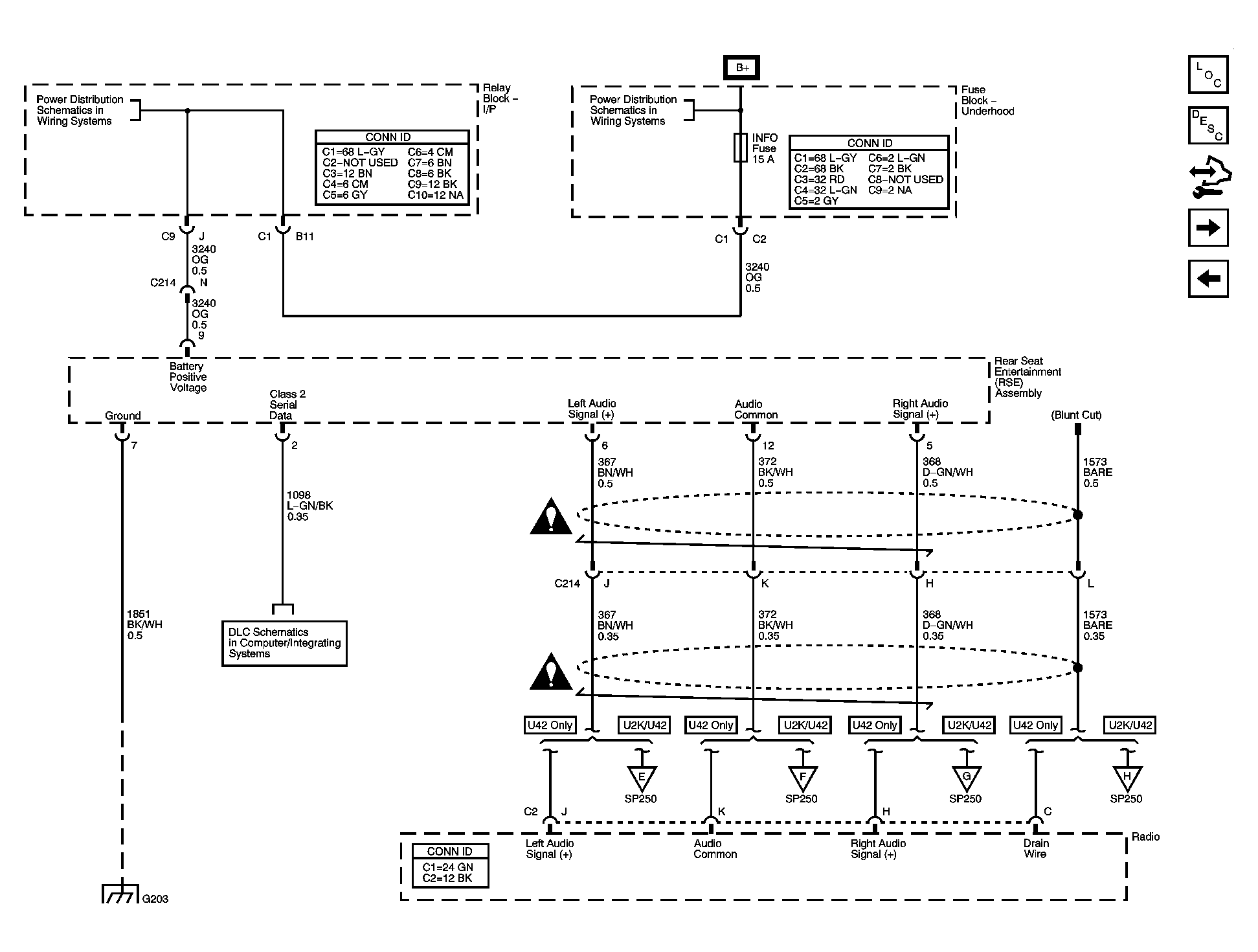

Fig 7: Rear Seat Entertainment - U42

Courtesy of GENERAL MOTORS CORP.

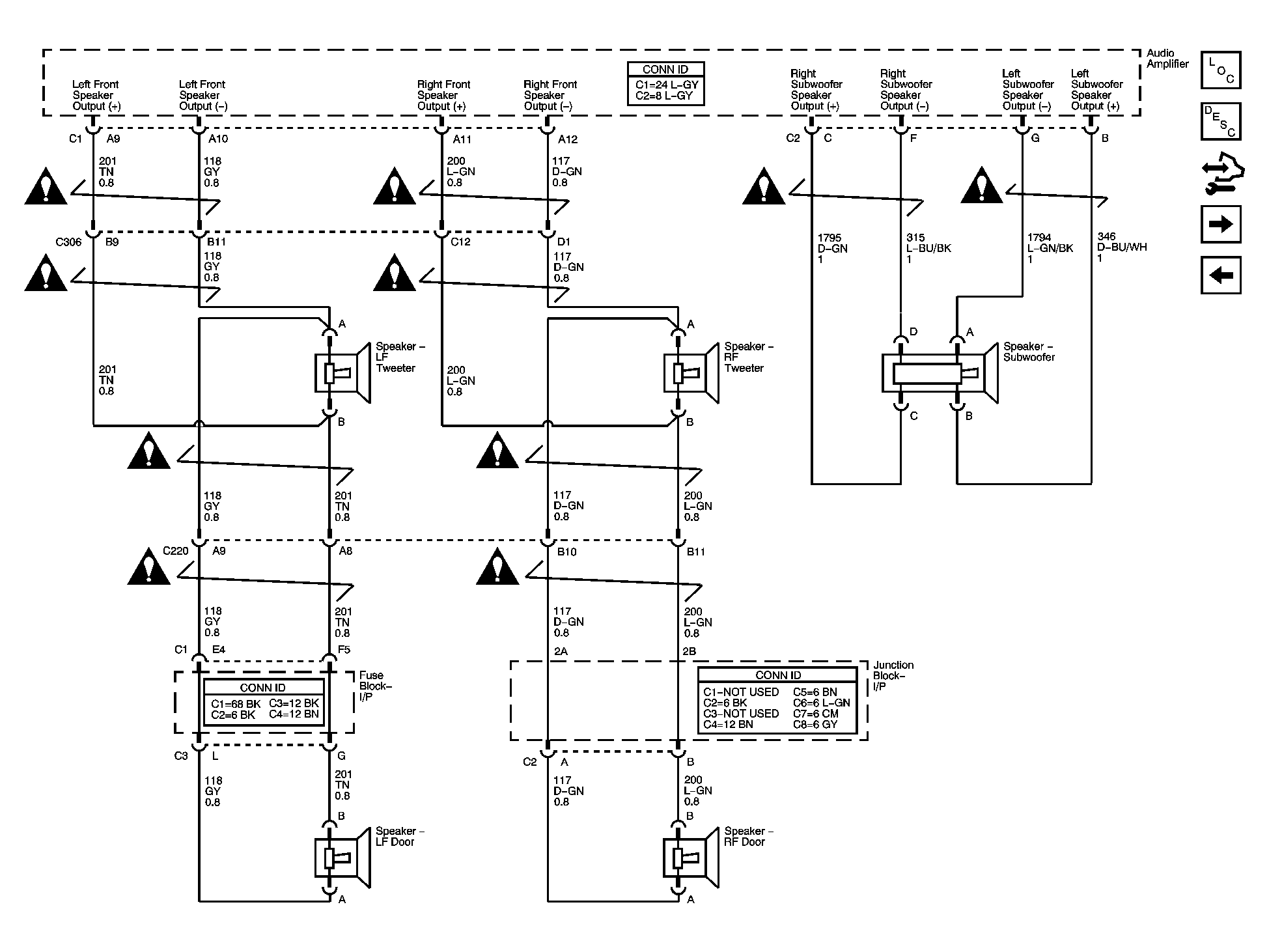

Fig 8: Front Speakers and Subwoofer

Courtesy of GENERAL MOTORS CORP.

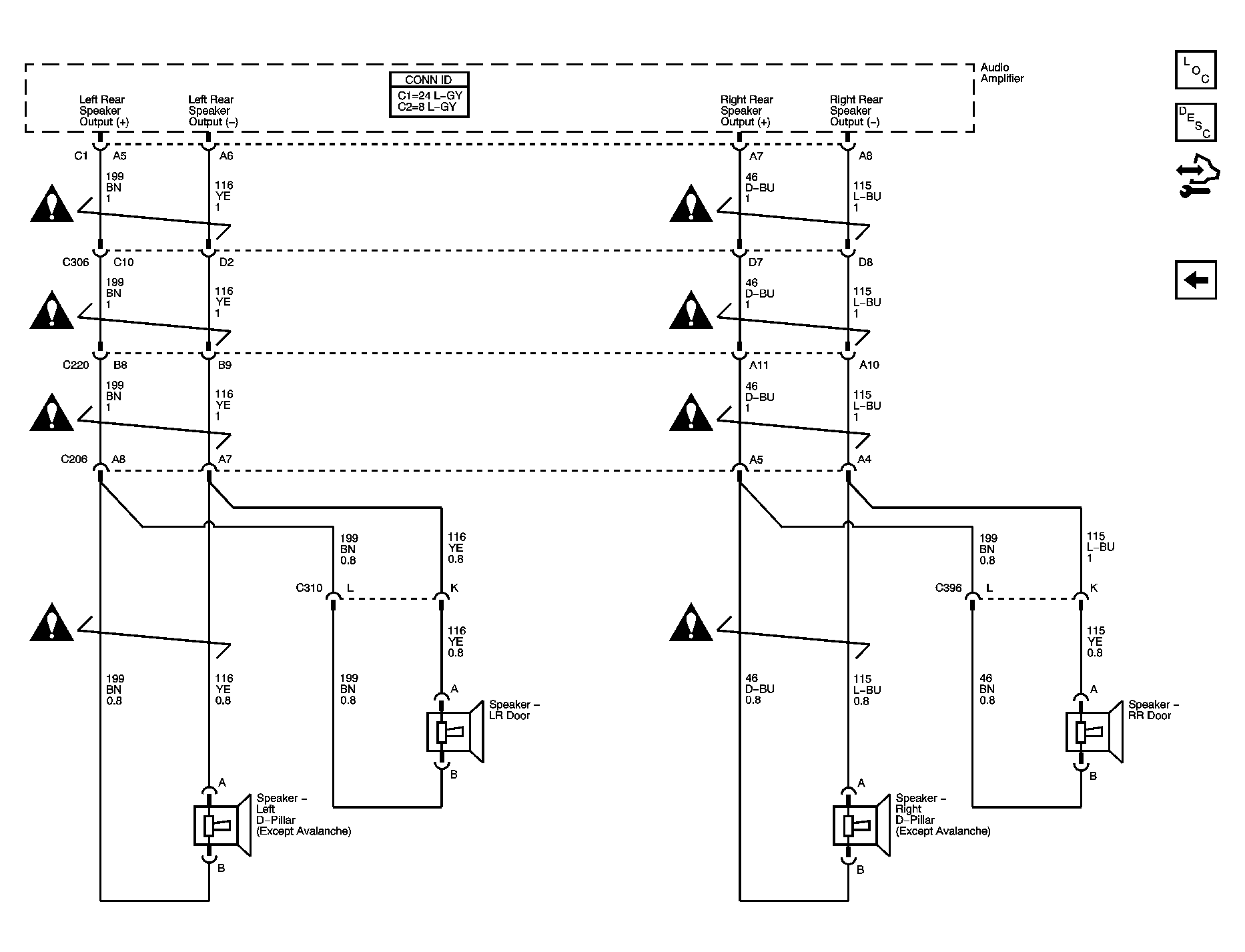

Fig 9: Rear Speakers

Courtesy of GENERAL MOTORS CORP.
