Radio/Audio System Schematics (Lux Radio - UQ7 w/Y91 - Class 2 Amp)

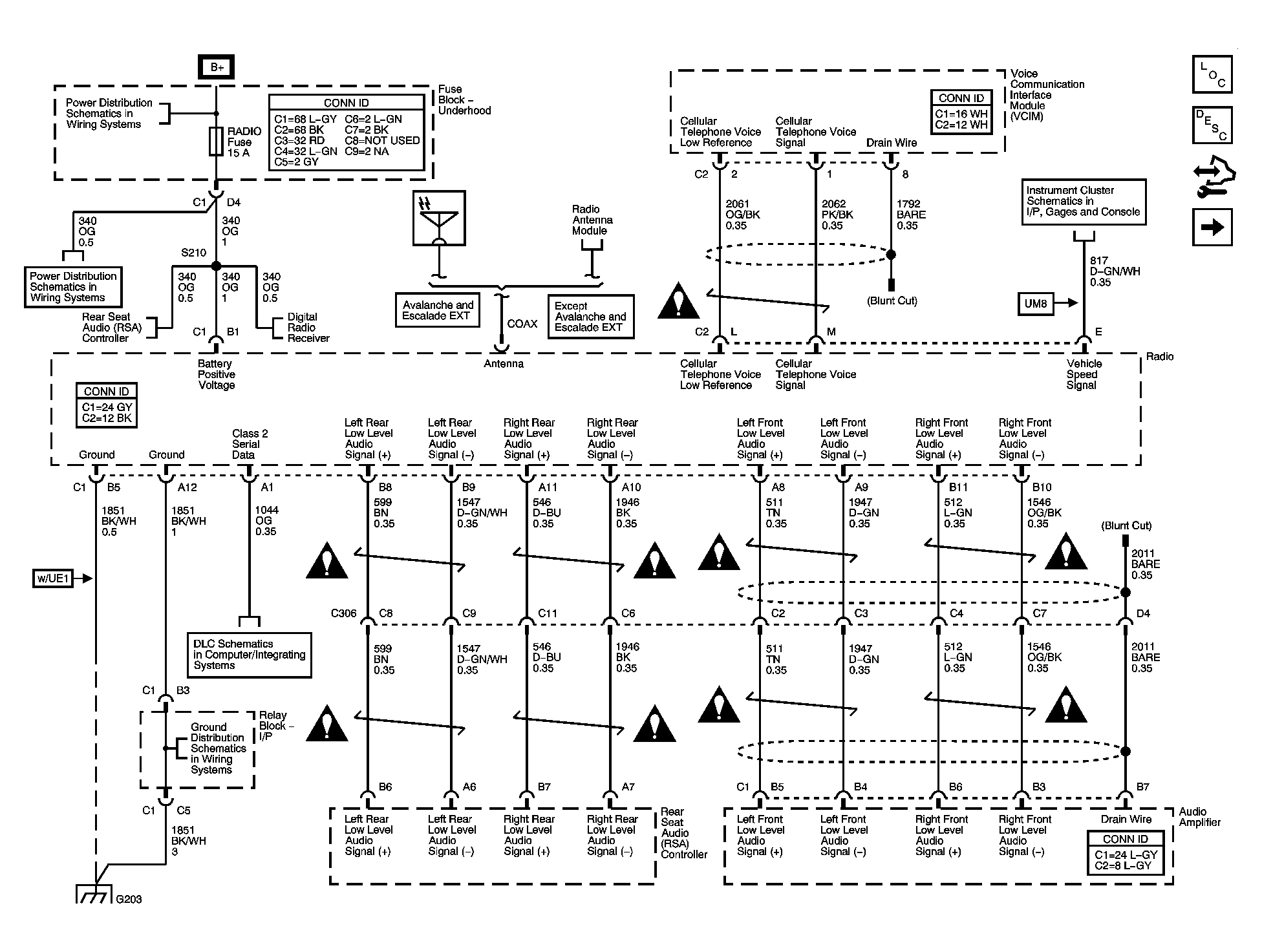

Fig 1: Radio Power, Ground, Class 2 Serial Data, and Audio Signals

Courtesy of GENERAL MOTORS CORP.

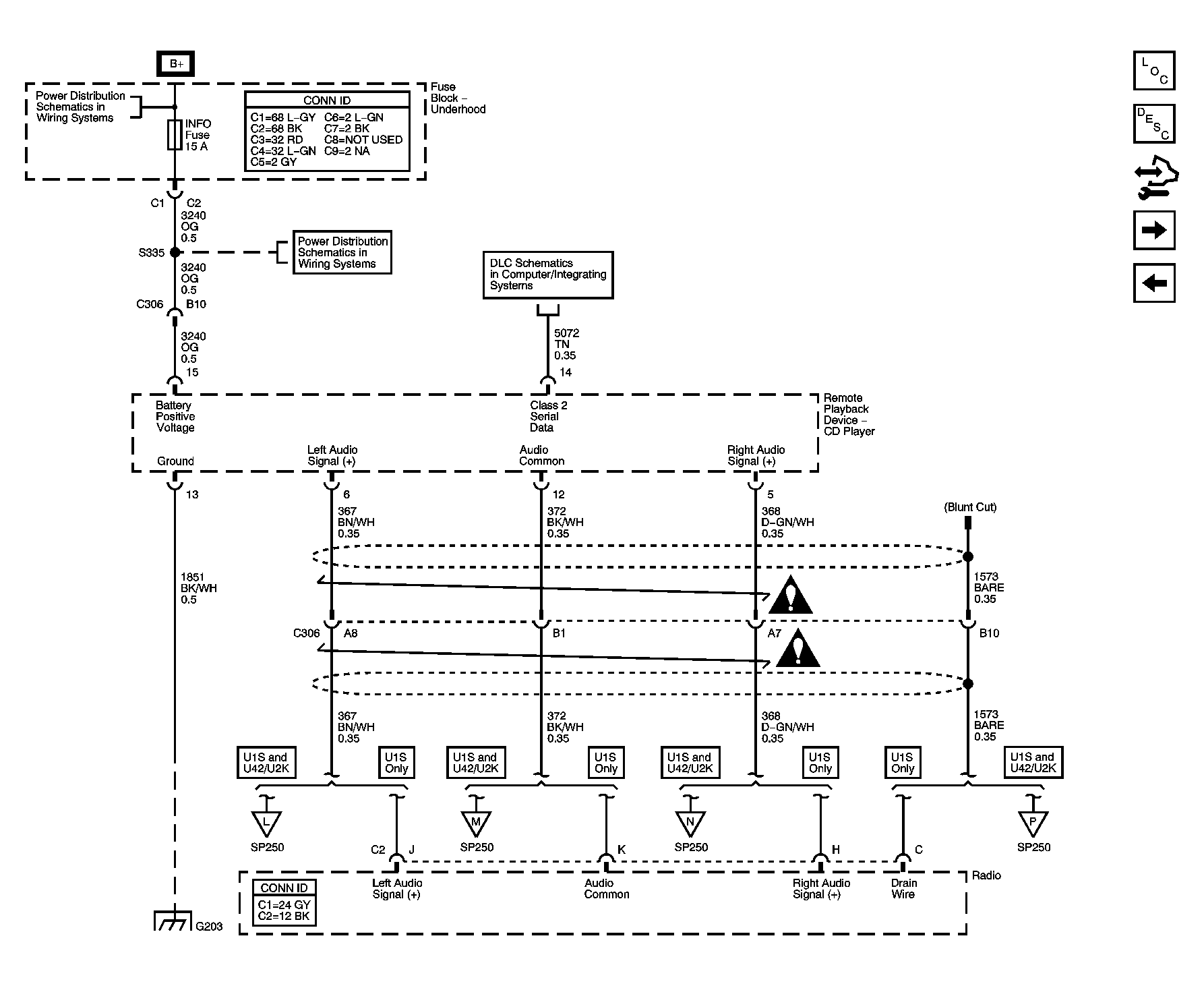

Fig 2: External Audio Source - U1S

Courtesy of GENERAL MOTORS CORP.

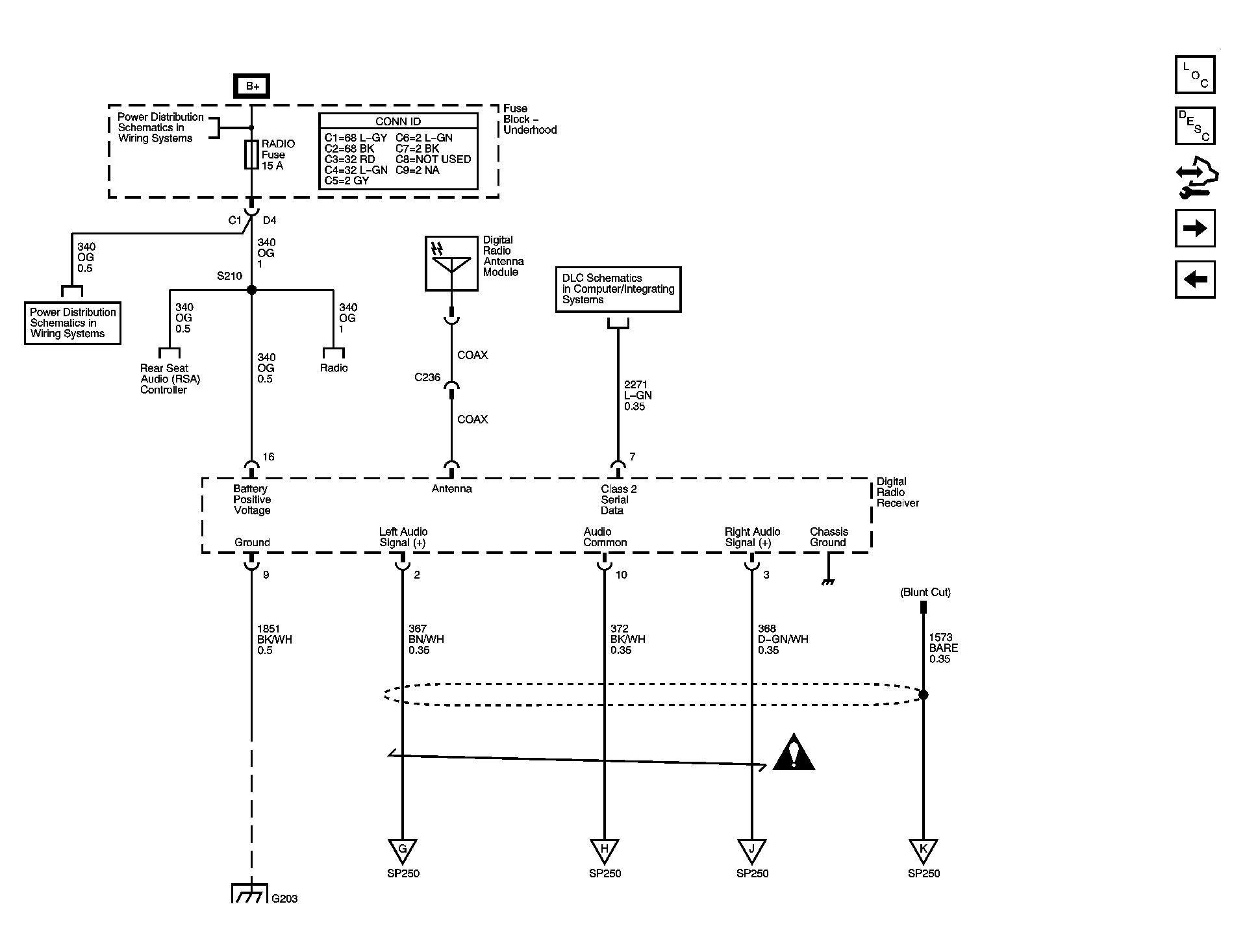

Fig 3: External Audio Source - U2K

Courtesy of GENERAL MOTORS CORP.

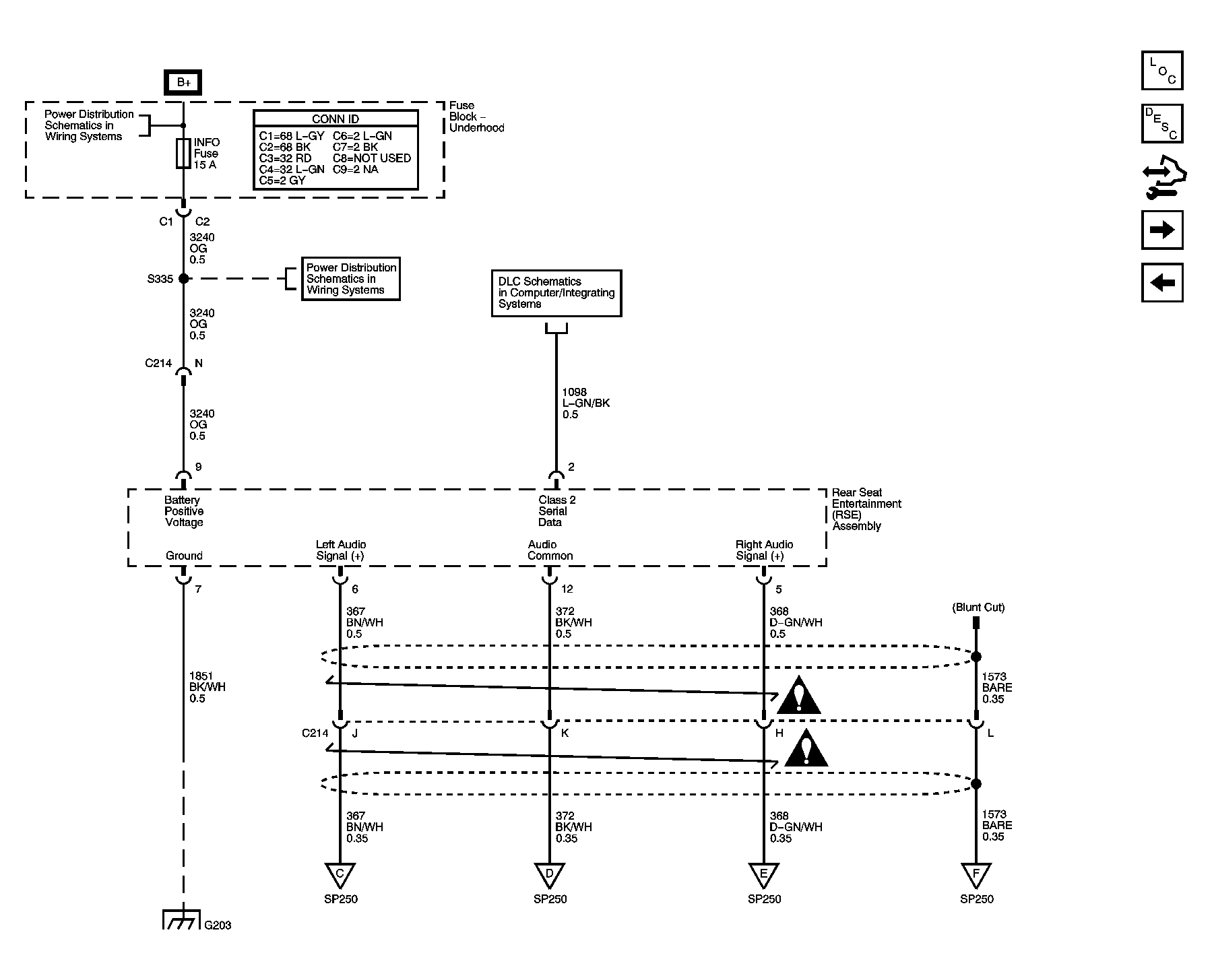

Fig 4: External Audio Source - U42

Courtesy of GENERAL MOTORS CORP.

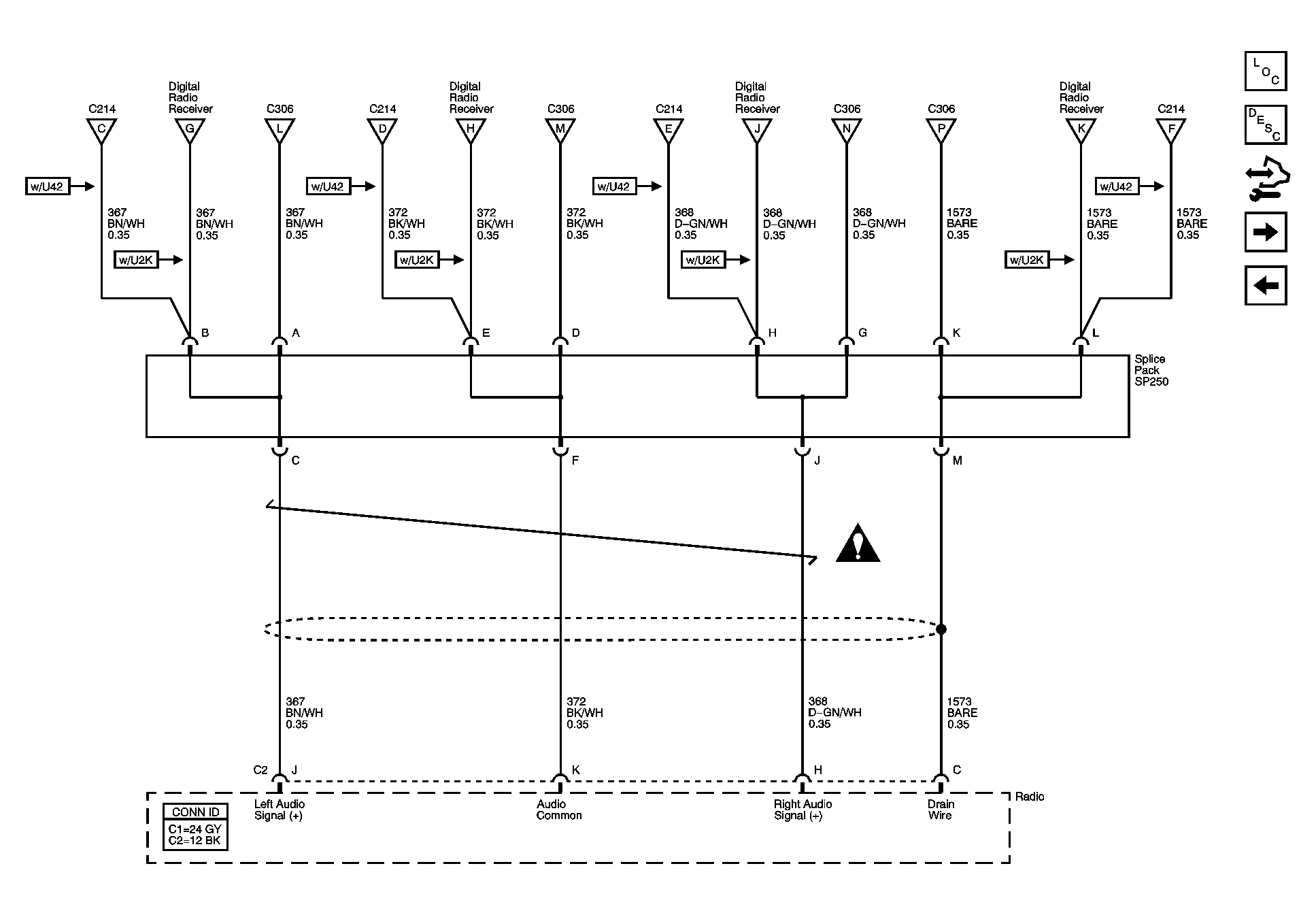

Fig 5: External Audio Sources - Splice Pack SP250

Courtesy of GENERAL MOTORS CORP.

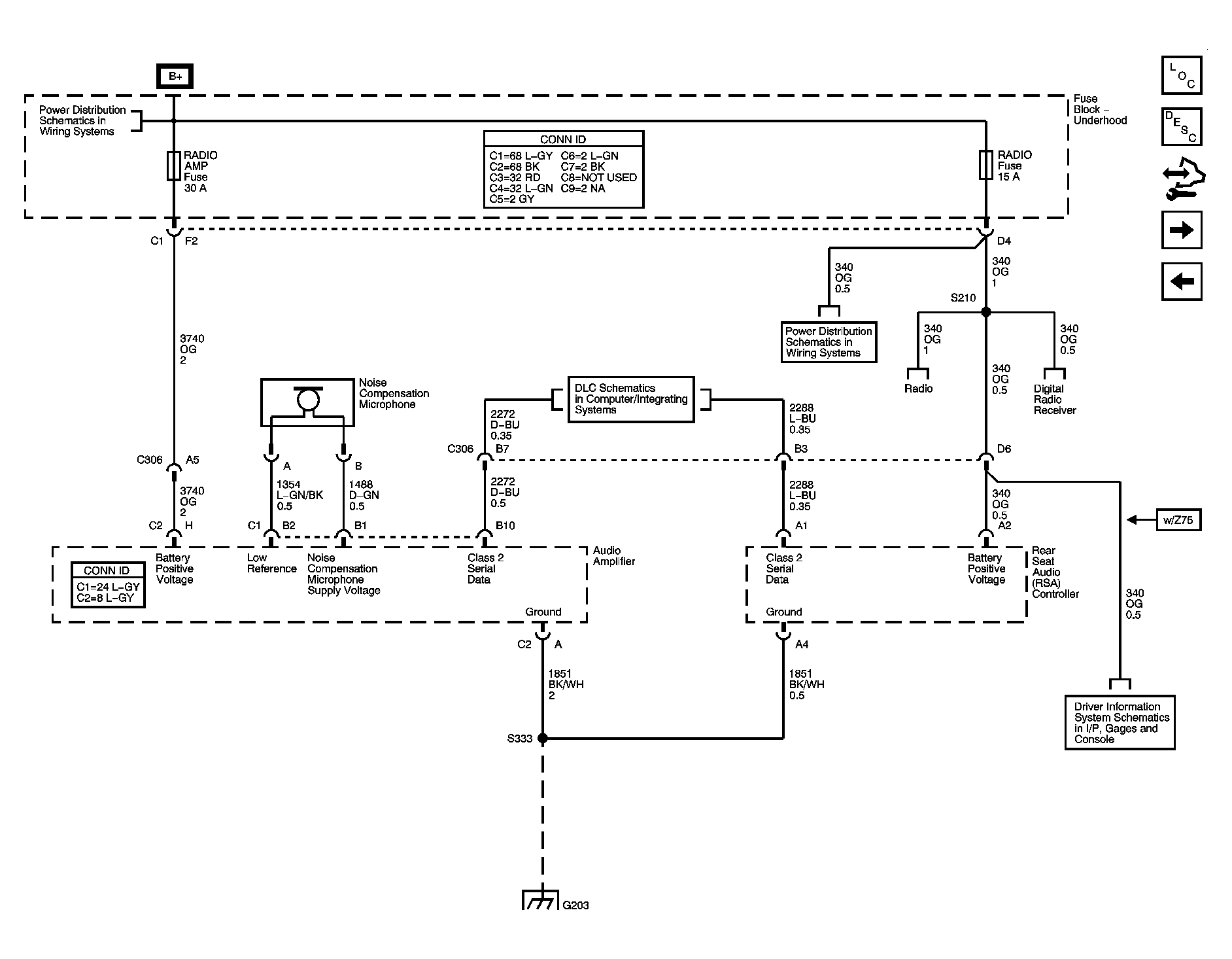

Fig 6: Amplifier and RSA Power, Ground, and Serial Data, and Noise Compensation Microphone

Courtesy of GENERAL MOTORS CORP.

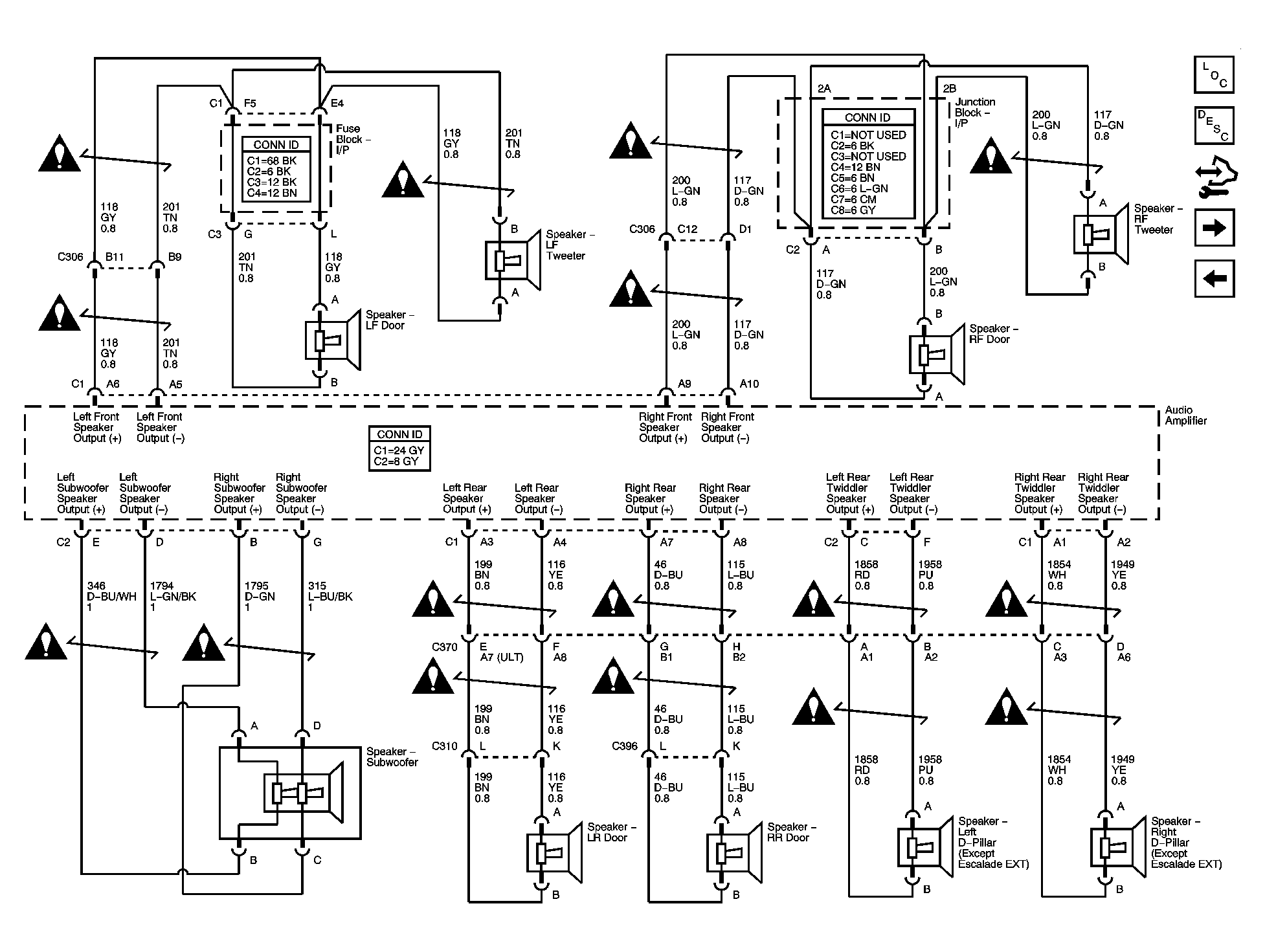

Fig 7: Speakers

Courtesy of GENERAL MOTORS CORP.

Fig 8: Antenna Module

Courtesy of GENERAL MOTORS CORP.
