Radio/Audio System Schematics (Base/Up Level Radio - UQ3)

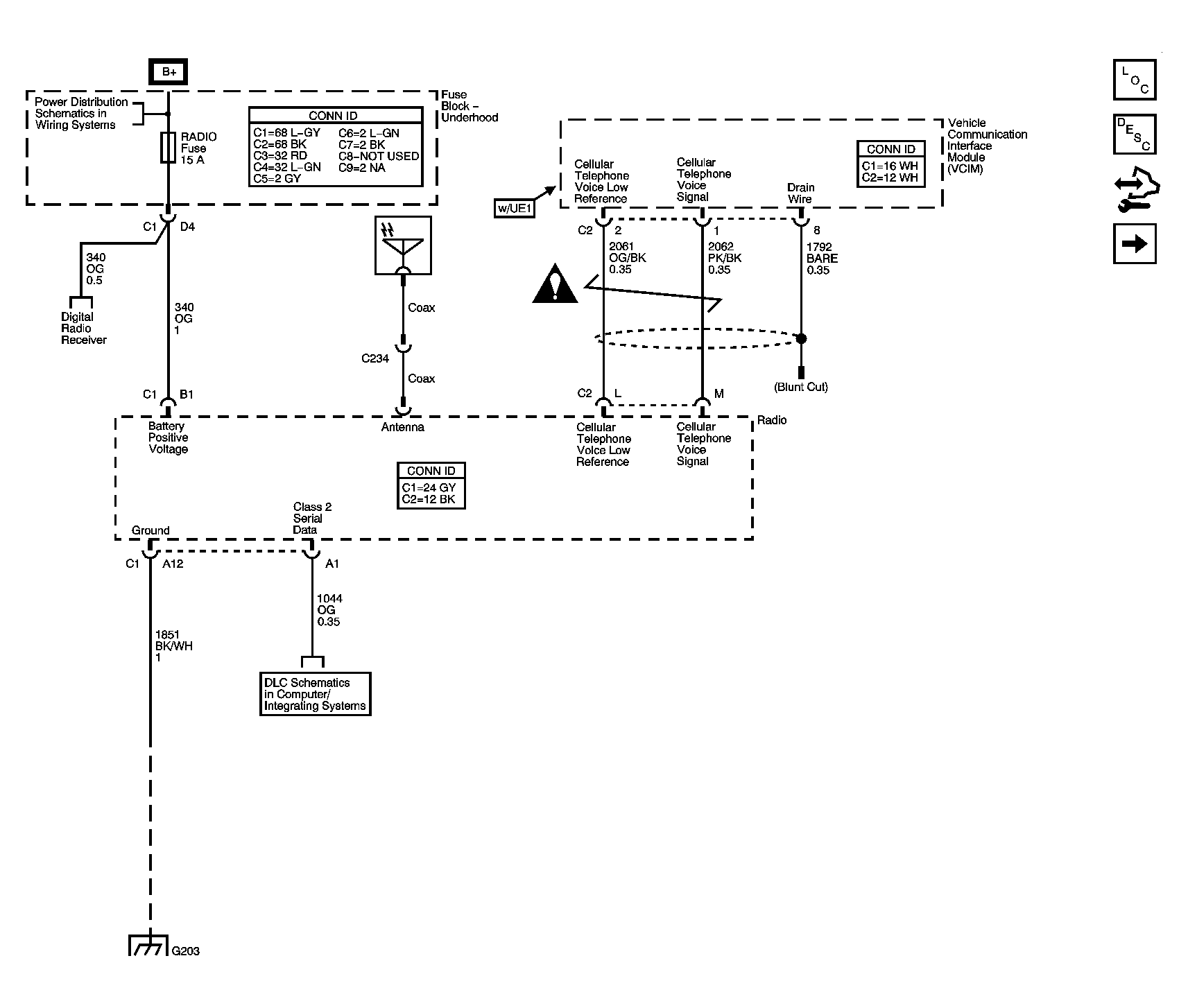

Fig 1: Power, Ground, and Audio Signals

Courtesy of GENERAL MOTORS CORP.

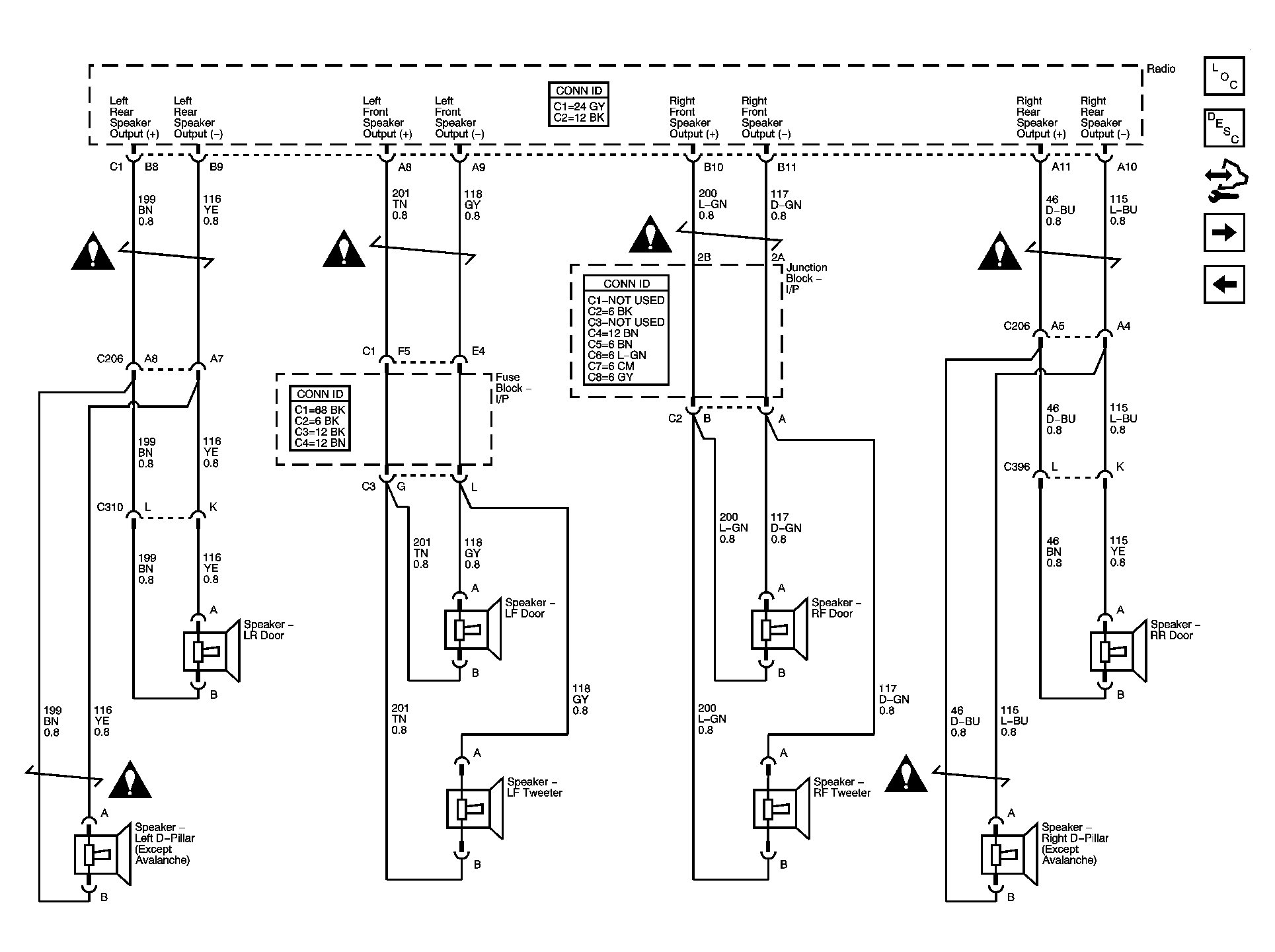

Fig 2: Speakers

Courtesy of GENERAL MOTORS CORP.

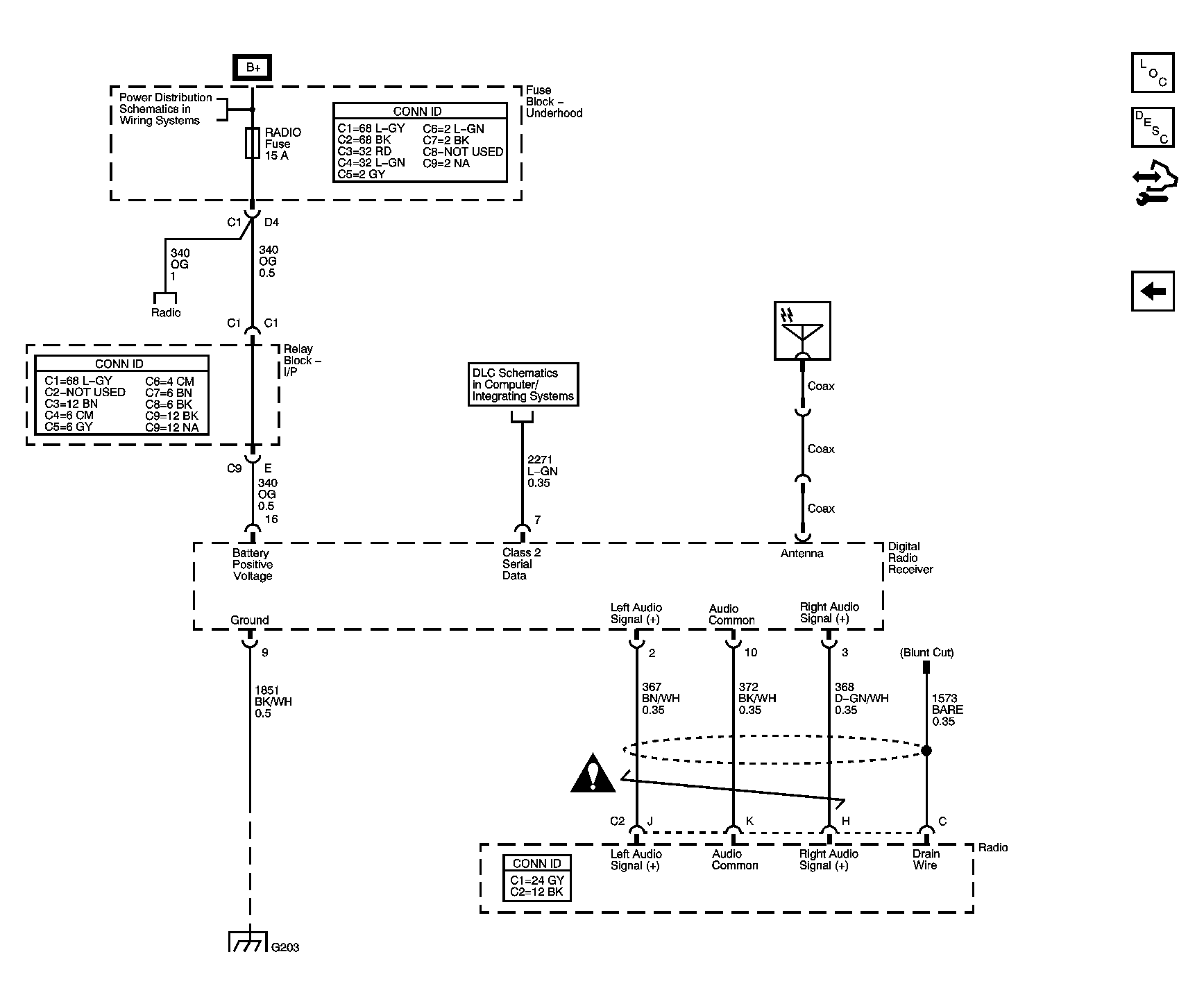

Fig 3: Digital Radio Receiver - U2K

Courtesy of GENERAL MOTORS CORP.
