OnStar Schematics

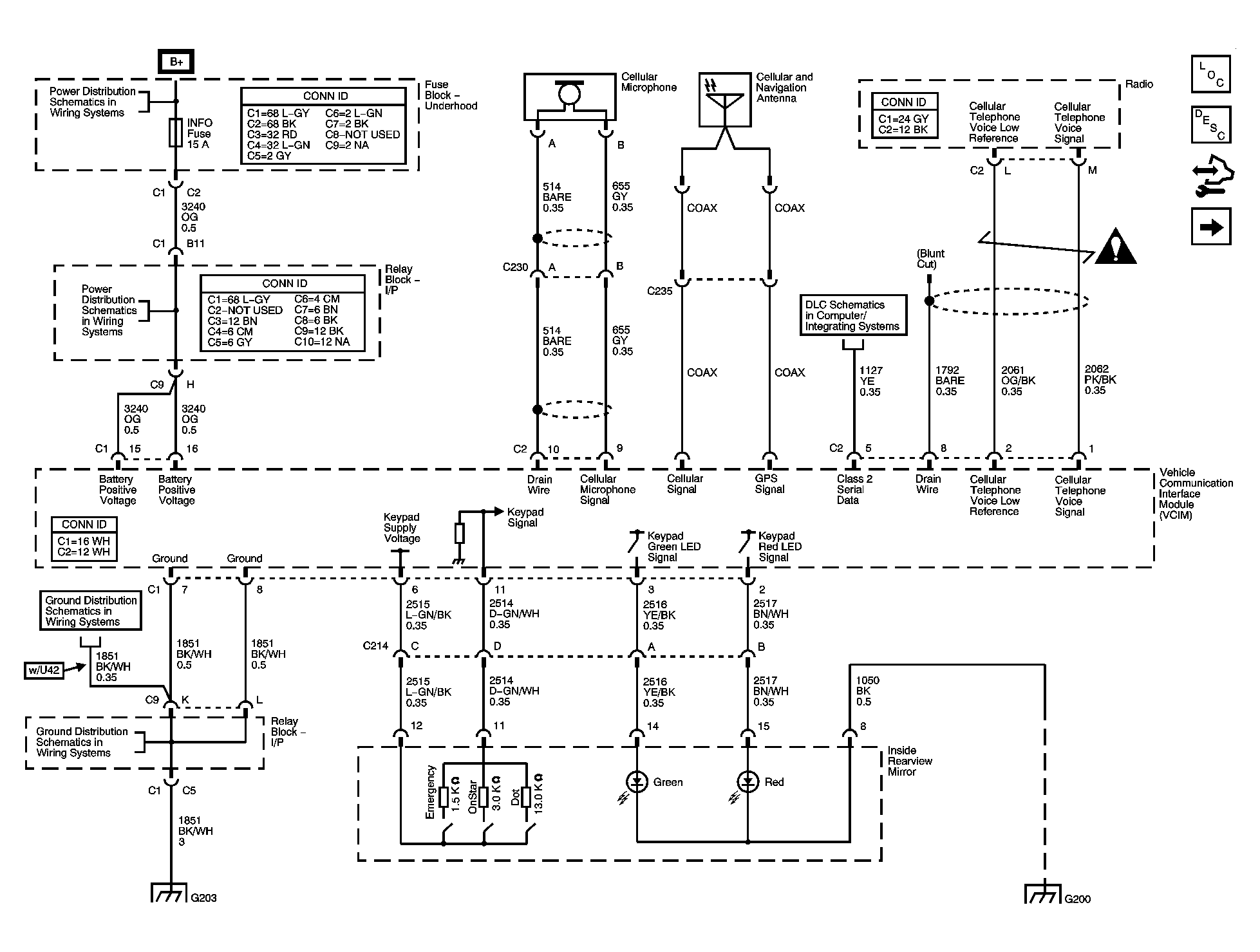

Fig 1: OnStar - w/o Y91
Courtesy of GENERAL MOTORS CORP.

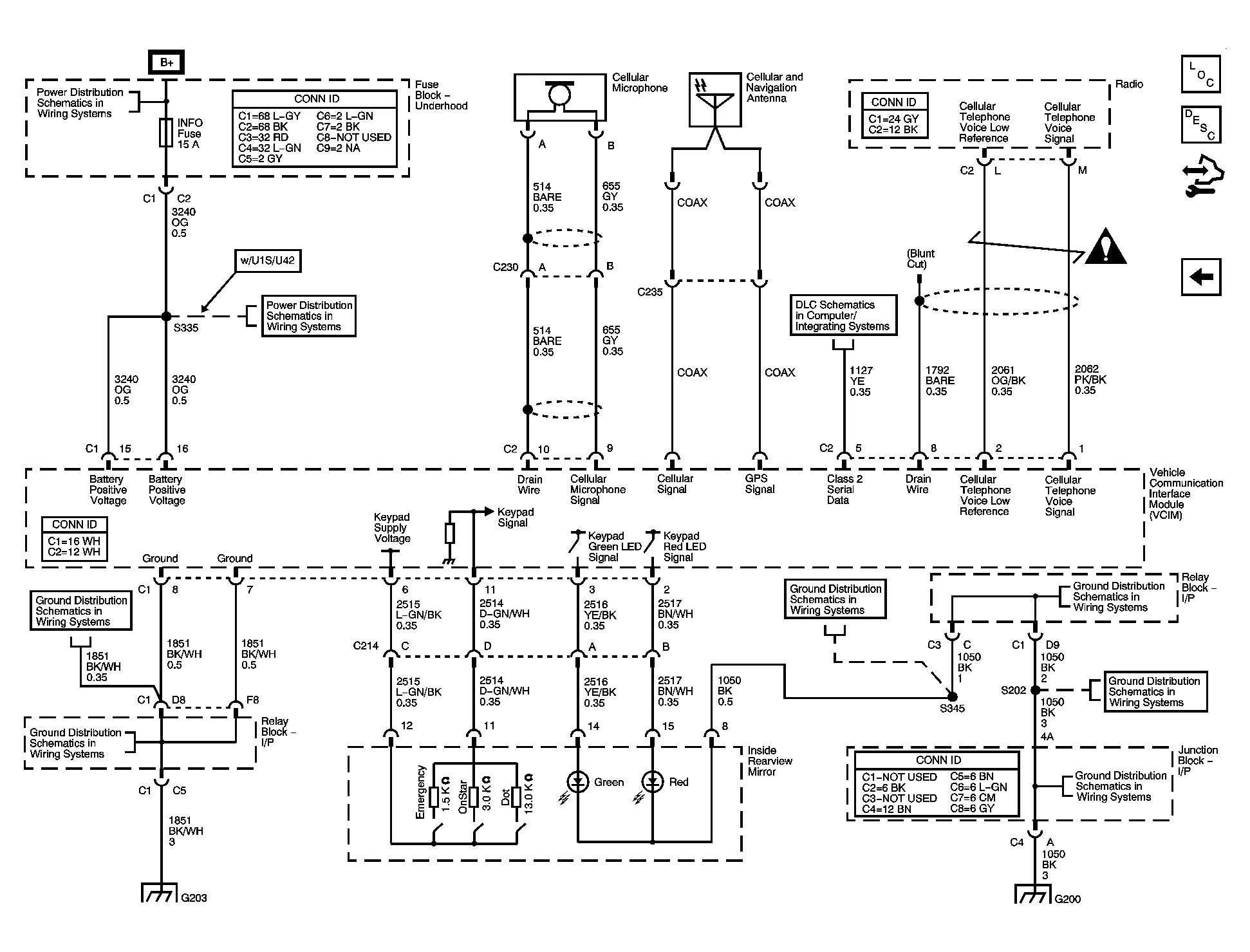

Fig 2: OnStar - w/Y91
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
