Section 8 (Manual Transmission - AISIN AY6 - Introduction)
>>
Component Locator
>>
Manual Transmission Component Views
Manual Transmission Component Views
WARNING:
This page is about a different variant/trim than selected.

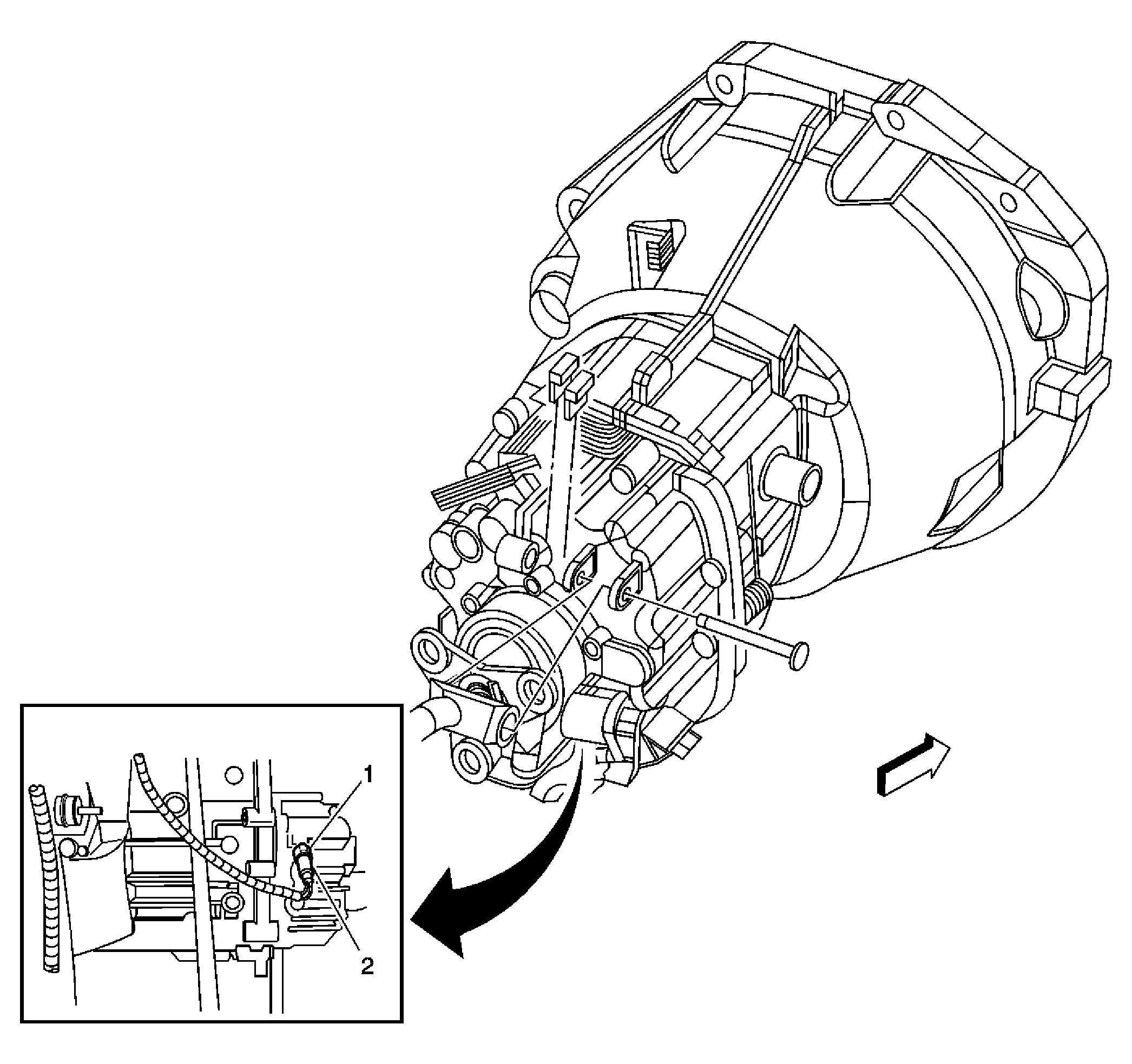

Fig 1: Vehicle Speed Sensor - Aisin M6 D173
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Transmission Vehicle Speed Sensor
2
Transmission Vehicle Speed Sensor Connector
Courtesy of GENERAL MOTORS CORP.
