J 25033-C: Pulley Installer

For equivalent regional tools, refer to Special Tools .

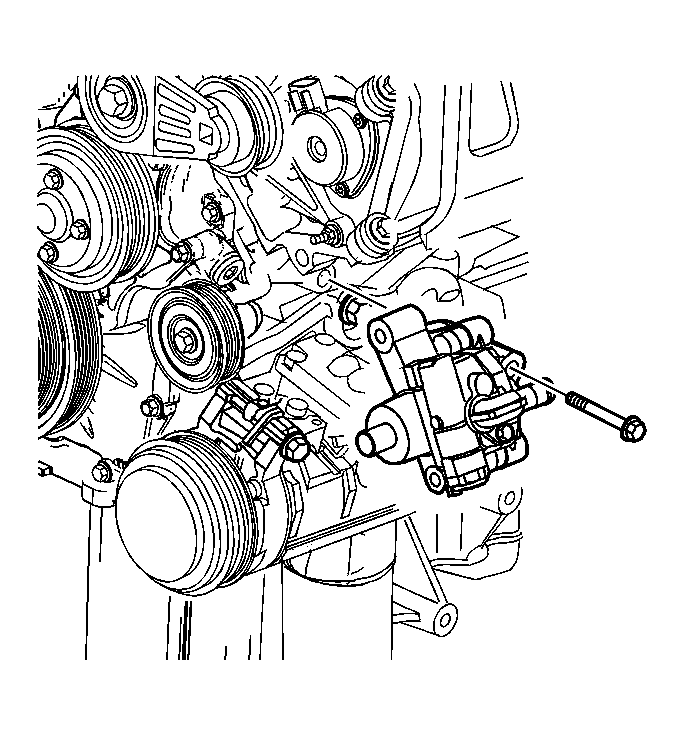

Fig 1: Power Steering Pump & Side Bolt

GM1346187

Courtesy of GENERAL MOTORS CORP.

Place the power steering pump in position to the engine.

CAUTION: Refer to Fastener Caution .

Loosely install the power steering pump side bolt.

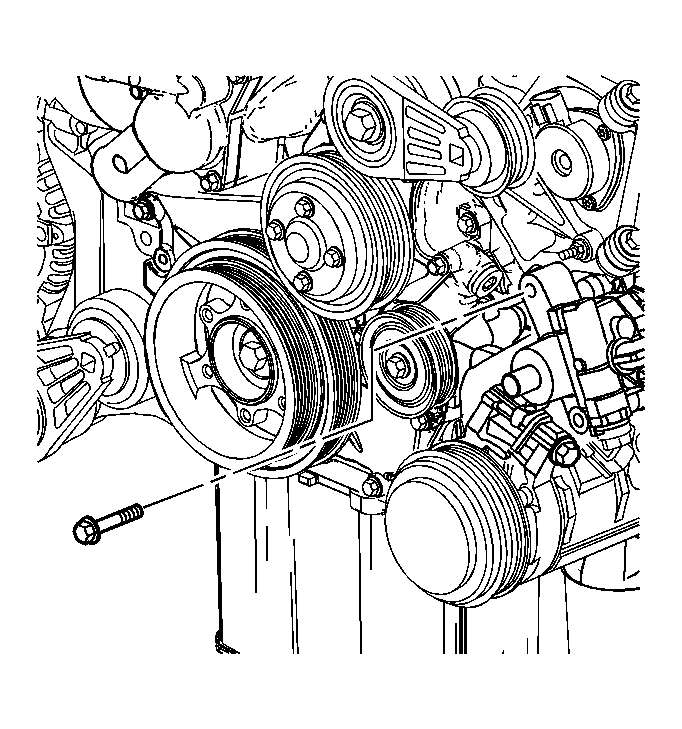

Fig 2: Power Steering Pump Front Mounting Bolt

GM1346186

Courtesy of GENERAL MOTORS CORP.

Loosely install the power steering pump front bolt.
Tighten the power steering pump bolts and tighten to 50 N.m (37 lb ft).

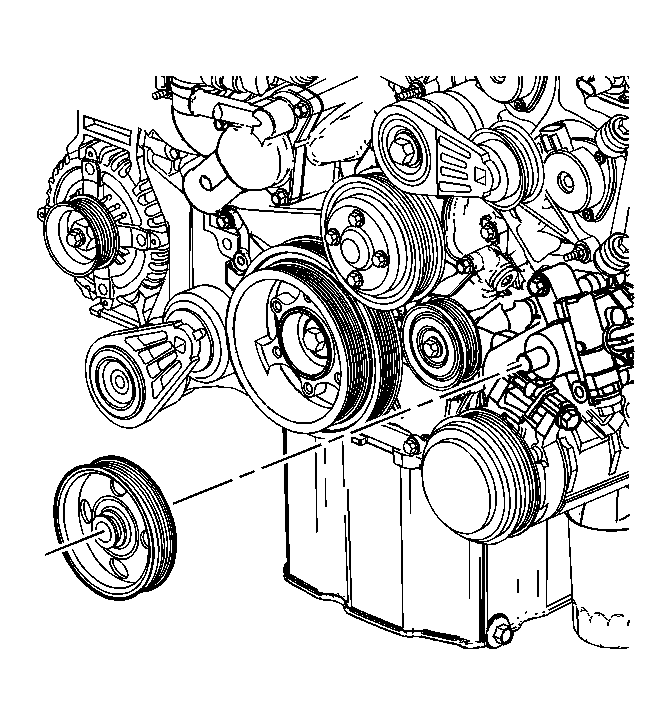

Fig 3: Power Steering Pulley

GM1346185

Courtesy of GENERAL MOTORS CORP.

If removed, place power steering pulley in position to the power steering pump.

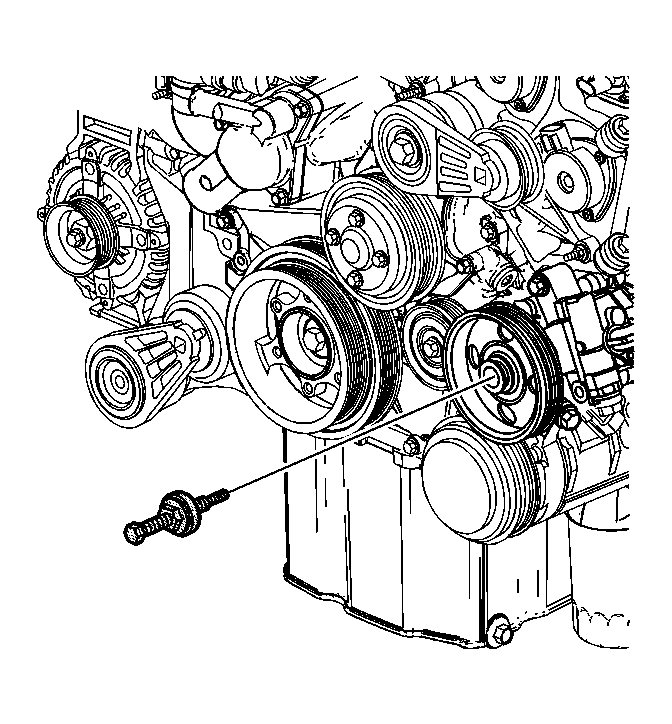

Fig 4: 25033-C

GM1400637

Courtesy of GENERAL MOTORS CORP.

Install the J 25033-C: installer into the threads of the power steering pump shaft. Ensure the J 25033-C: installer threads completely into the shaft of the power steering pump before the pressing components of the J 25033-C: installer contact the power steering pulley.

Fig 5: Hub Of Power Steering Pulley On Pump Shaft

GM254752

Courtesy of GENERAL MOTORS CORP.

Tighten the nut on the J 25033-C: installer until the hub of the power steering pulley is flush with the end of the power steering pump shaft.
Remove the J 25033-C: installer.
