Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Oil Level Indicator Tube O-Ring
    GM1583980Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW O-ring on the oil level indicator tube.

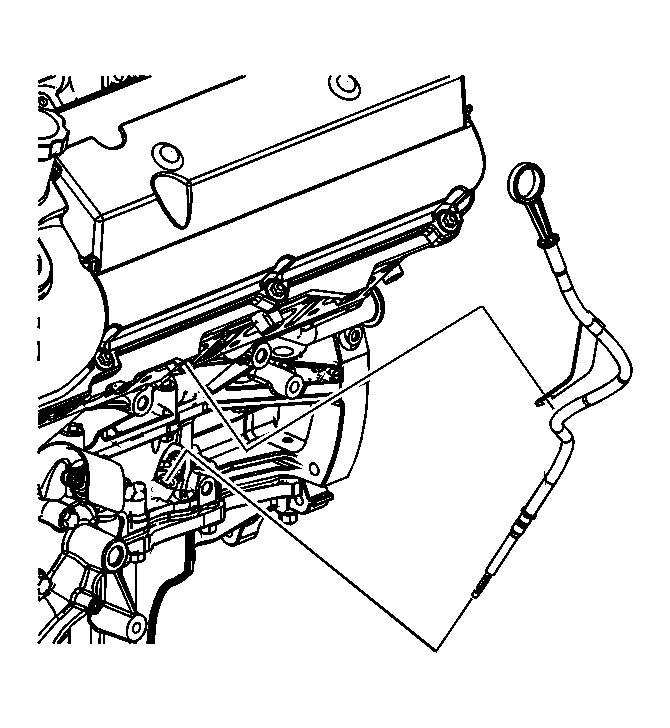

    2. Fig 2: Oil Level Indicator Tube
    GM1346207Courtesy of GENERAL MOTORS CORP.
  2. Install the oil level indicator tube.

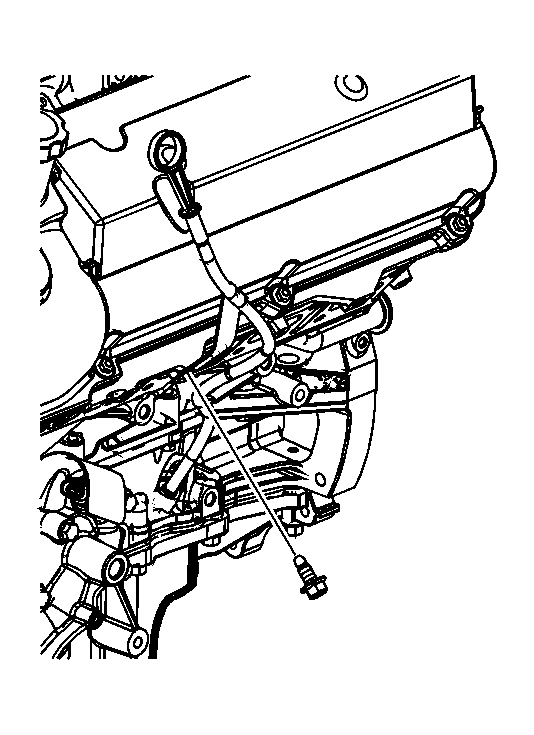

    3. Fig 3: Oil Level Indicator Tube Nut
    GM1657522Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the oil level indicator tube nut and tighten to 10 N.m (89 lb in).
