Engine Front Cover Installation

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

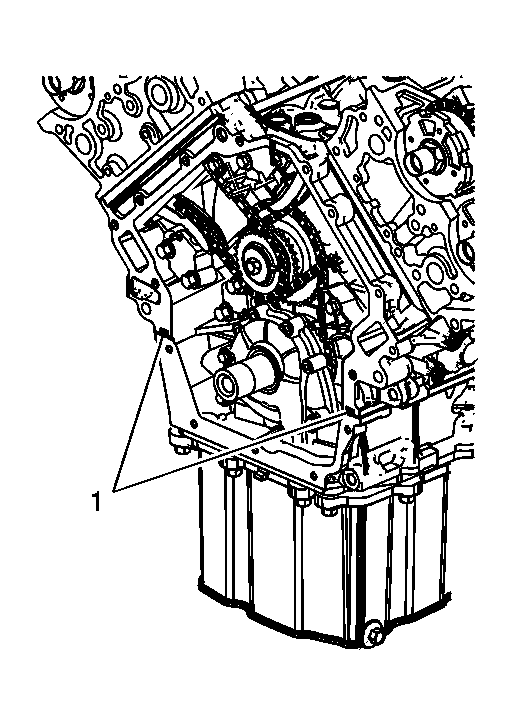

    Fig 1: Split Line Of Upper & Lower Crankcase
    GM1651529Courtesy of GENERAL MOTORS CORP.
  1. Place a small amount of sealant GM P/N 12378521 (Canadian P/N 88901148) or equivalent at the split line of the upper and lower crankcases (1).

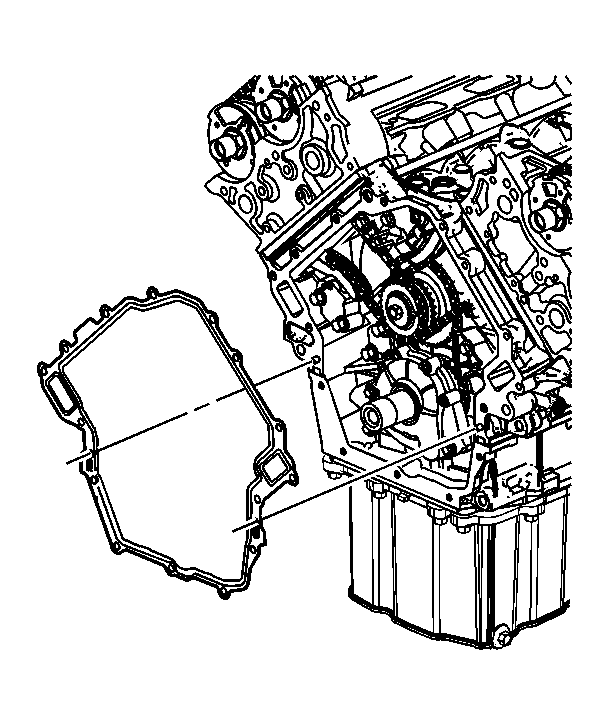

    2. Fig 2: Engine Front Cover Gasket
    GM1651530Courtesy of GENERAL MOTORS CORP.
  2. Place the NEW engine front cover gasket over the crankcase dowel pins.

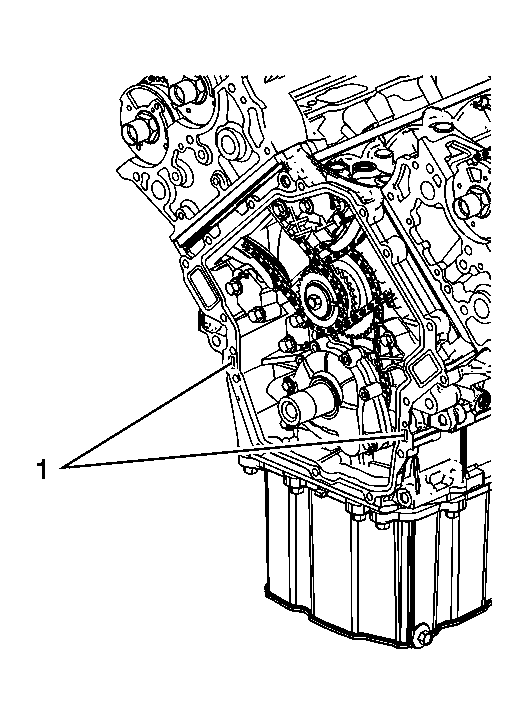

    3. Fig 3: Split Line Of Upper & Lower Crankcases
    GM1651531Courtesy of GENERAL MOTORS CORP.
  3. Place a small amount of sealant GM P/N 12378521 (Canadian P/N 88901148) or equivalent at the engine front cover gasket pad area located on top of the split line of the upper and lower crankcases (1).

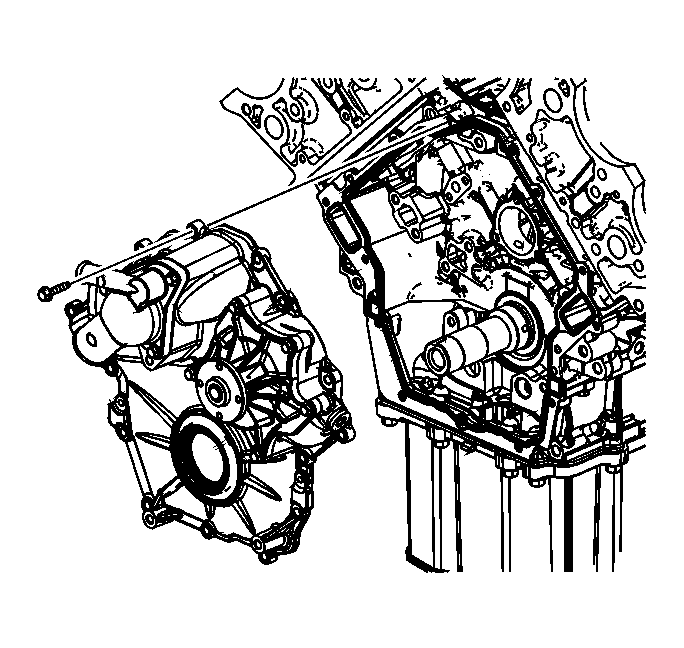

    4. Fig 4: Engine Front Cover & Bolts
    GM1657527Courtesy of GENERAL MOTORS CORP.
  4. Place the engine front cover in position on the crankcase.
  5. Apply the thread locking compound GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the threads of the engine front cover bolts.
  6. Install the engine front cover bolts.

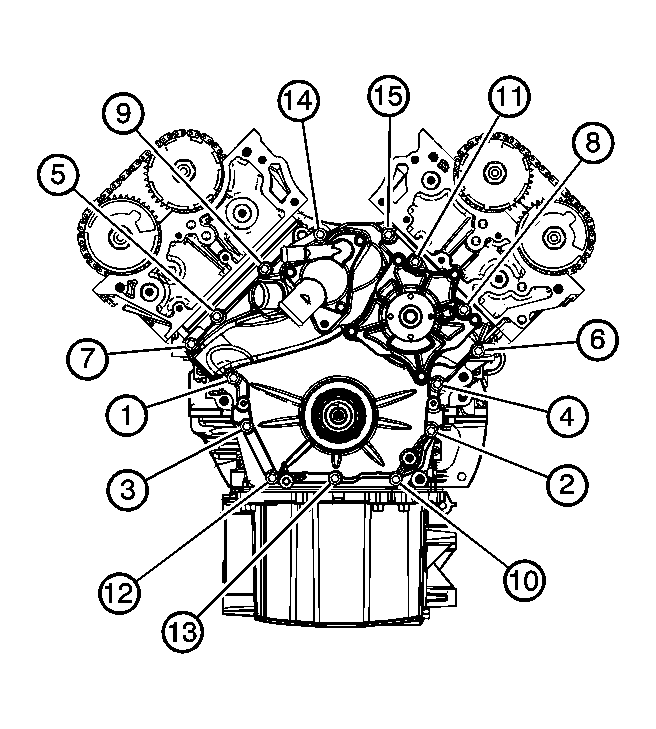

    7. Fig 5: Identifying Engine Front Cover Bolt Tightening Sequence
    GM1657533Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  7. Tighten the engine front cover bolts in the sequence shown to 15 N.m (11 lb ft).

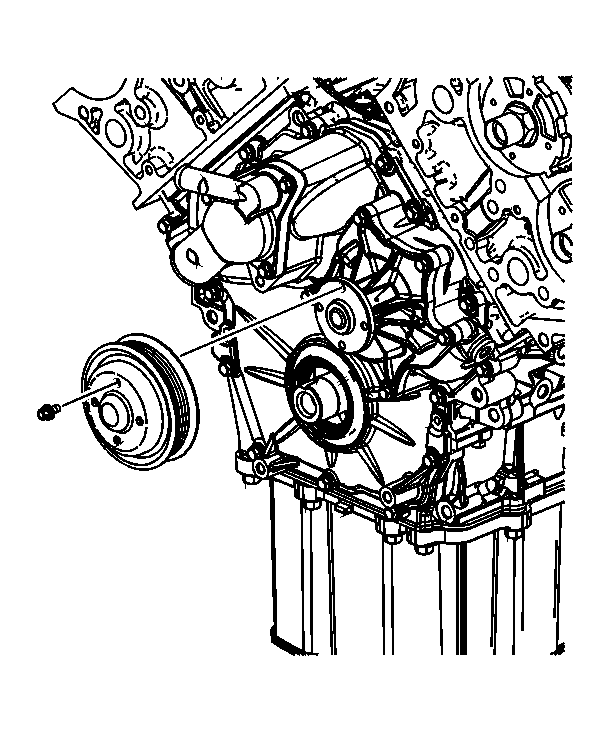

    8. Fig 6: Water Pump Pulley & Bolts
    GM1657525Courtesy of GENERAL MOTORS CORP.
  8. Install the water pump pulley.
  9. Install the water pump pulley bolts and tighten to 10 N.m (89 lb in).
