TAP Shift Circuit Performance: Notes

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

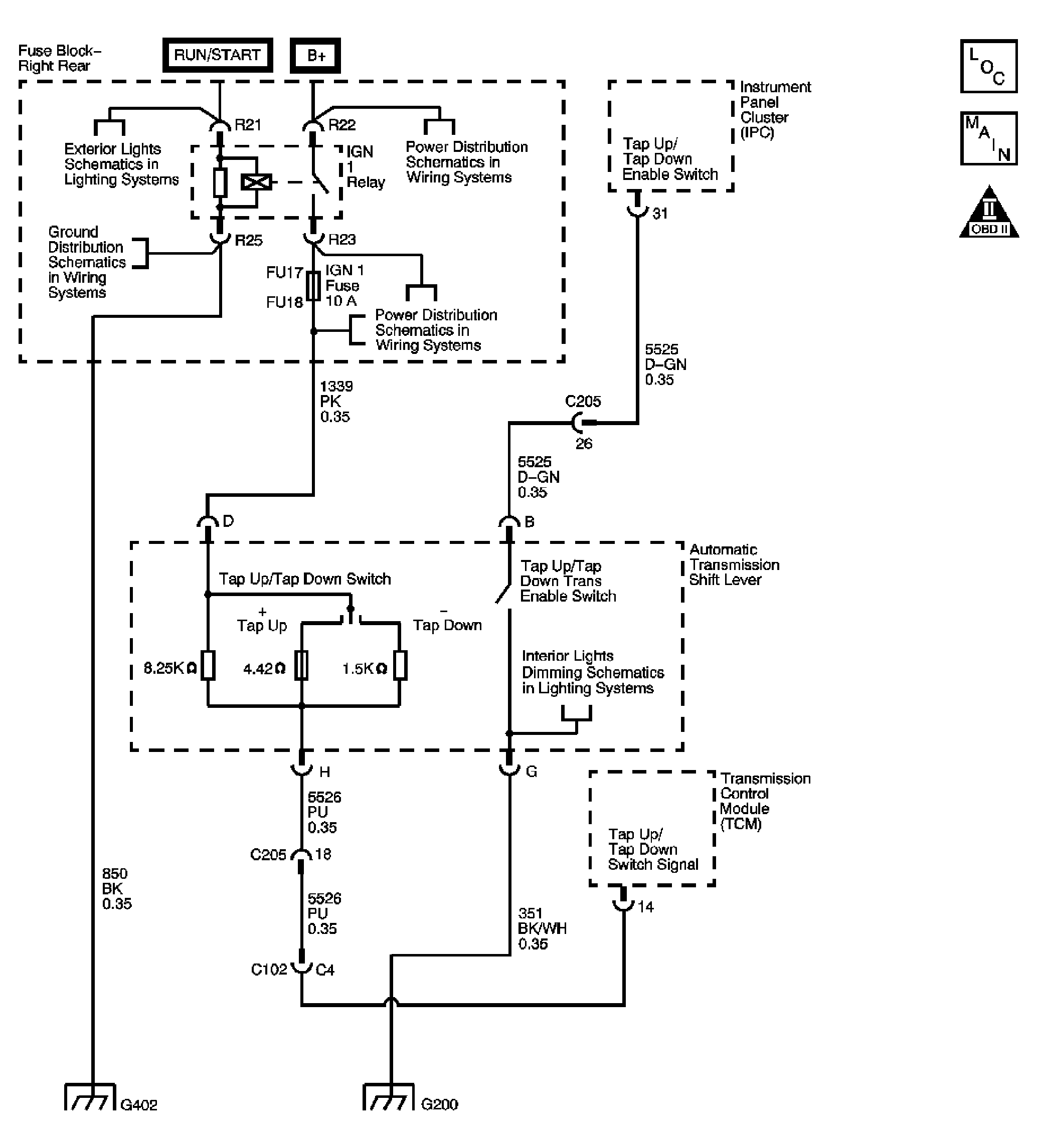

Fig 1: TAP Shift System Circuit Diagram
GM1384304Courtesy of GENERAL MOTORS CORP.
