Power Distribution Schematics

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

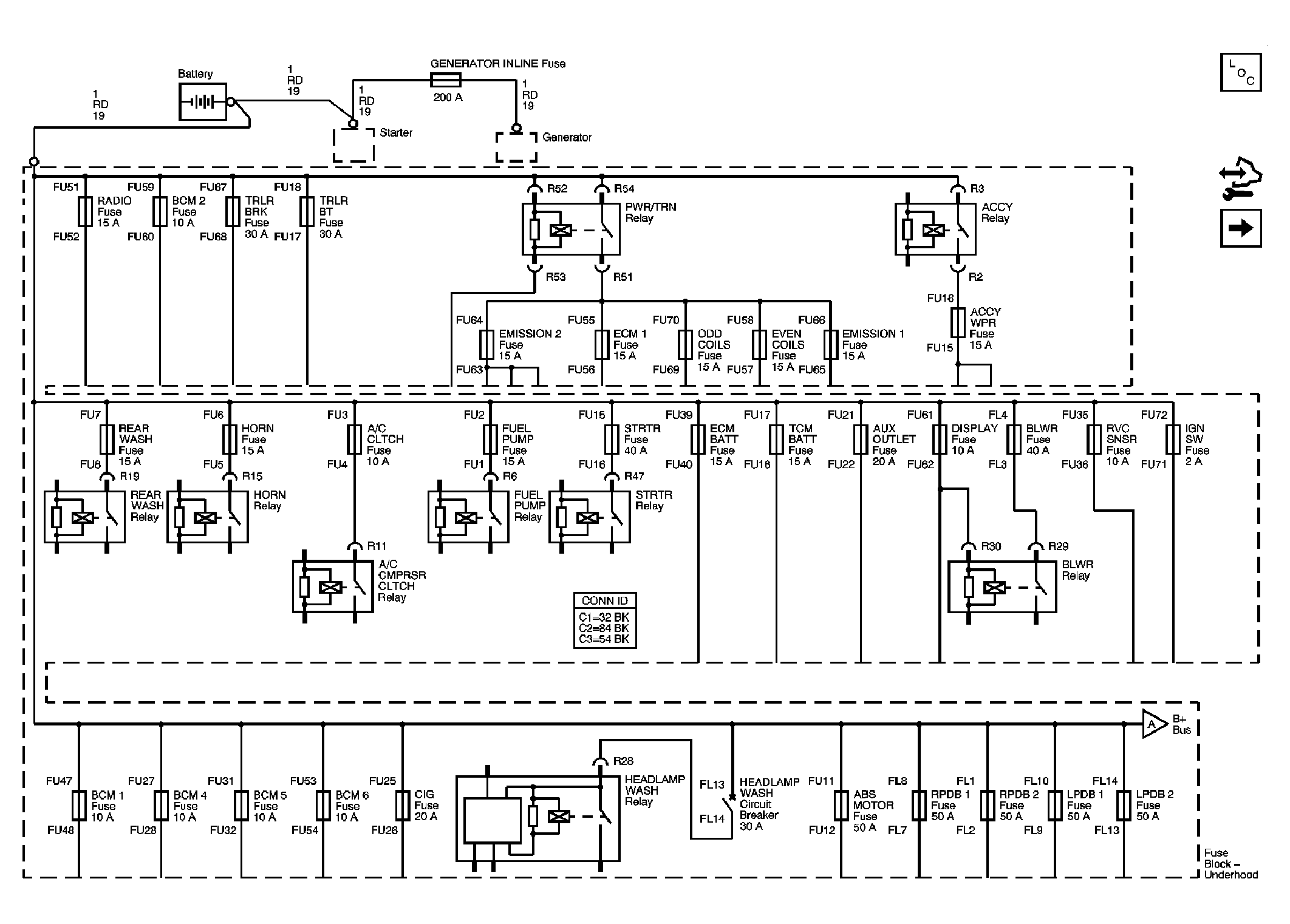

Fig 1: Underhood Fuse Block B+ Bus Schematic (1 Of 2)

GM1749922

Courtesy of GENERAL MOTORS CORP.

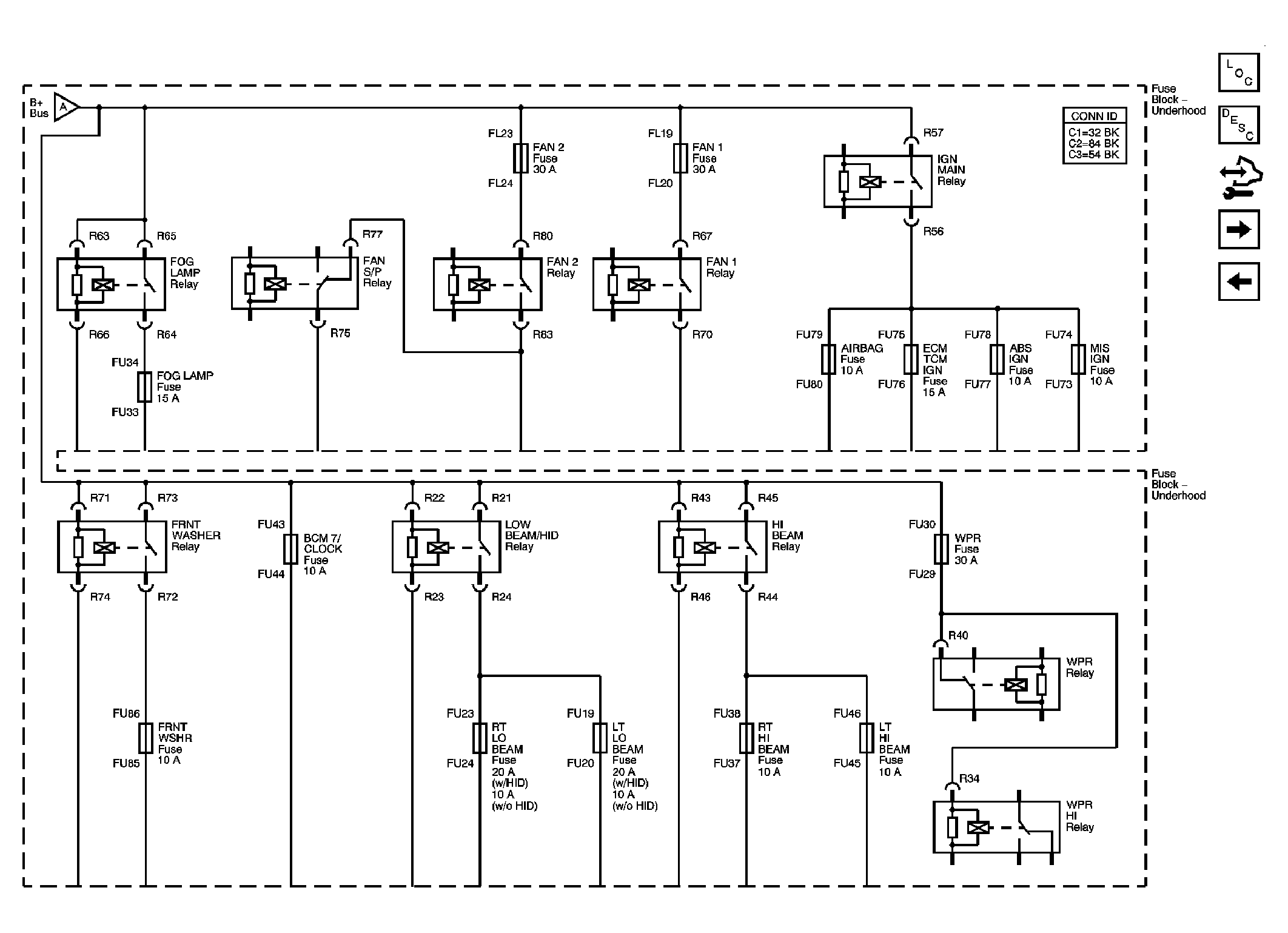

Fig 2: Underhood Fuse Block B+ Bus Schematic (2 Of 2)

GM1749925

Courtesy of GENERAL MOTORS CORP.

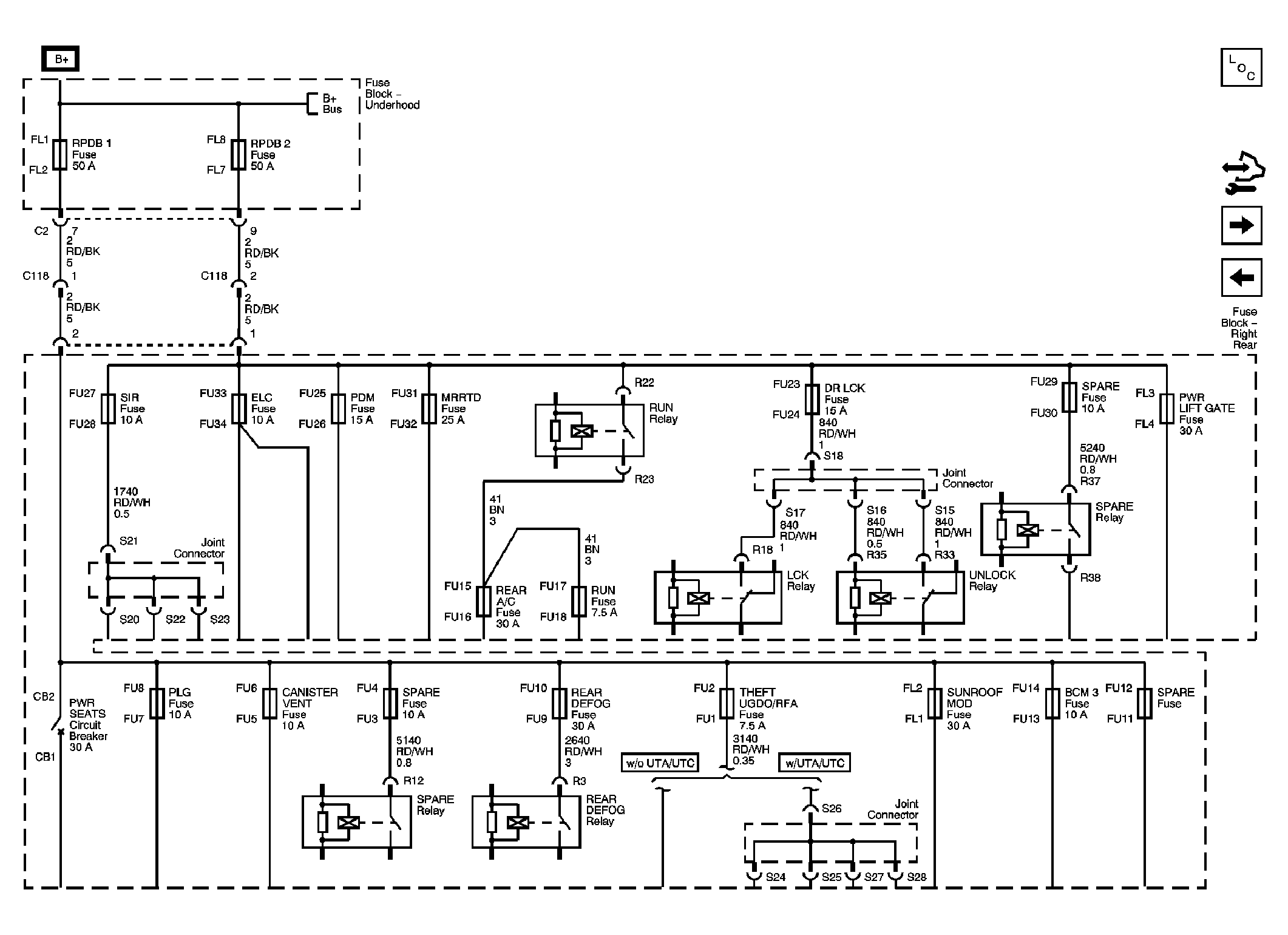

Fig 3: Right Rear Fuse Block B+ Bus Schematic

GM1749923

Courtesy of GENERAL MOTORS CORP.

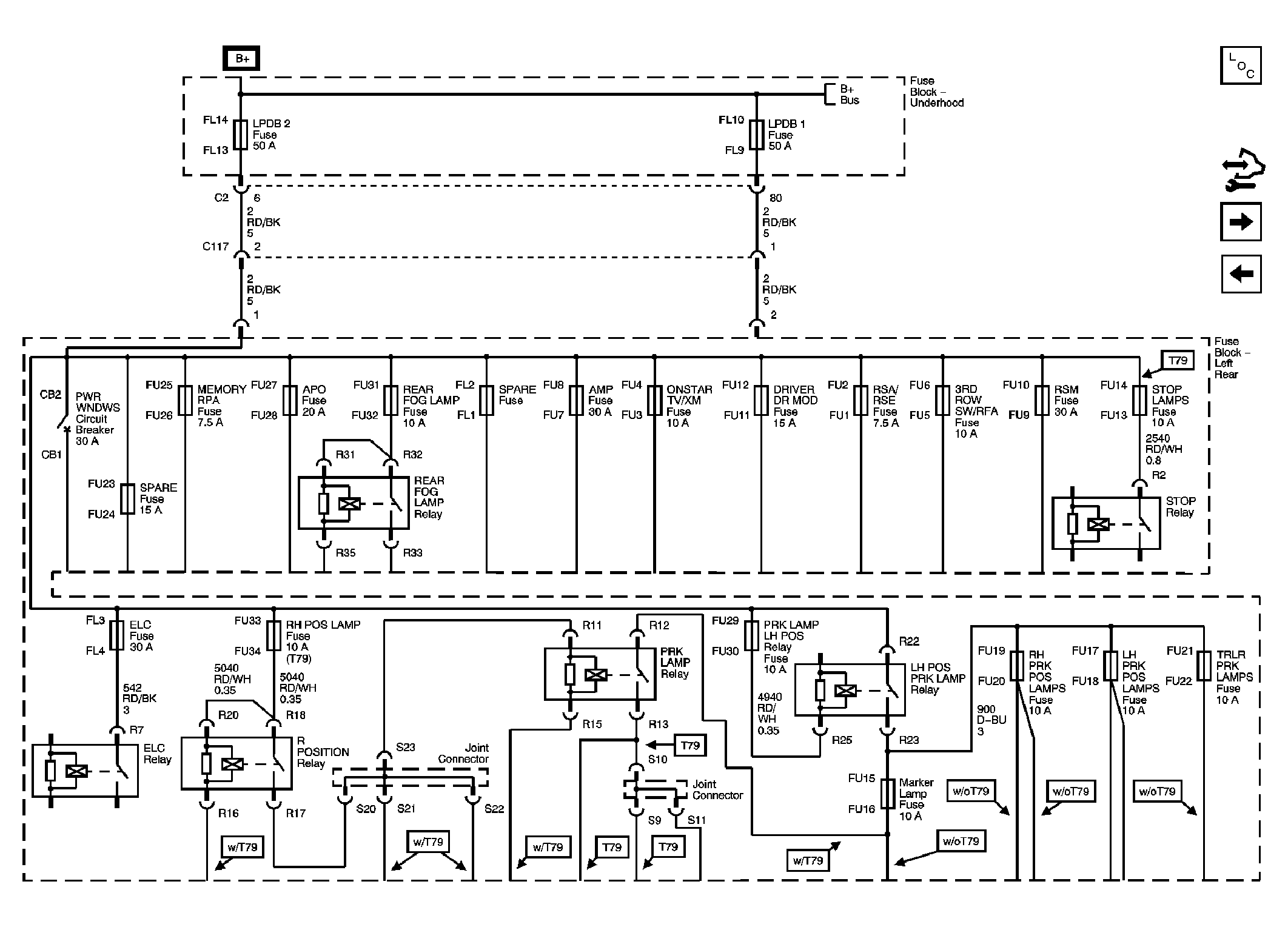

Fig 4: Left Rear Fuse Block B+ Bus Schematic

GM1749924

Courtesy of GENERAL MOTORS CORP.

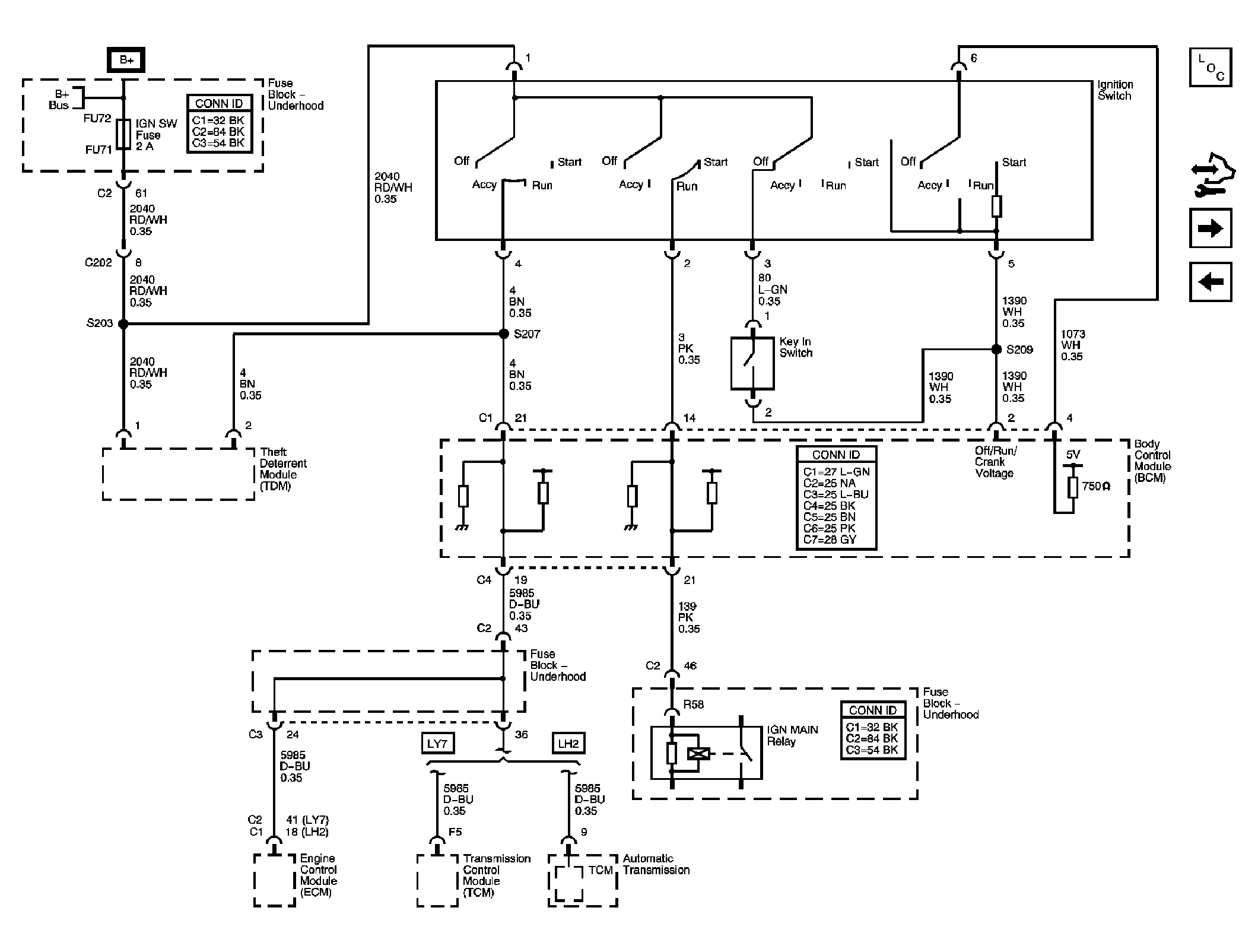

Fig 5: IGN SW Fuse and Ignition Switch Schematic

GM1749927

Courtesy of GENERAL MOTORS CORP.

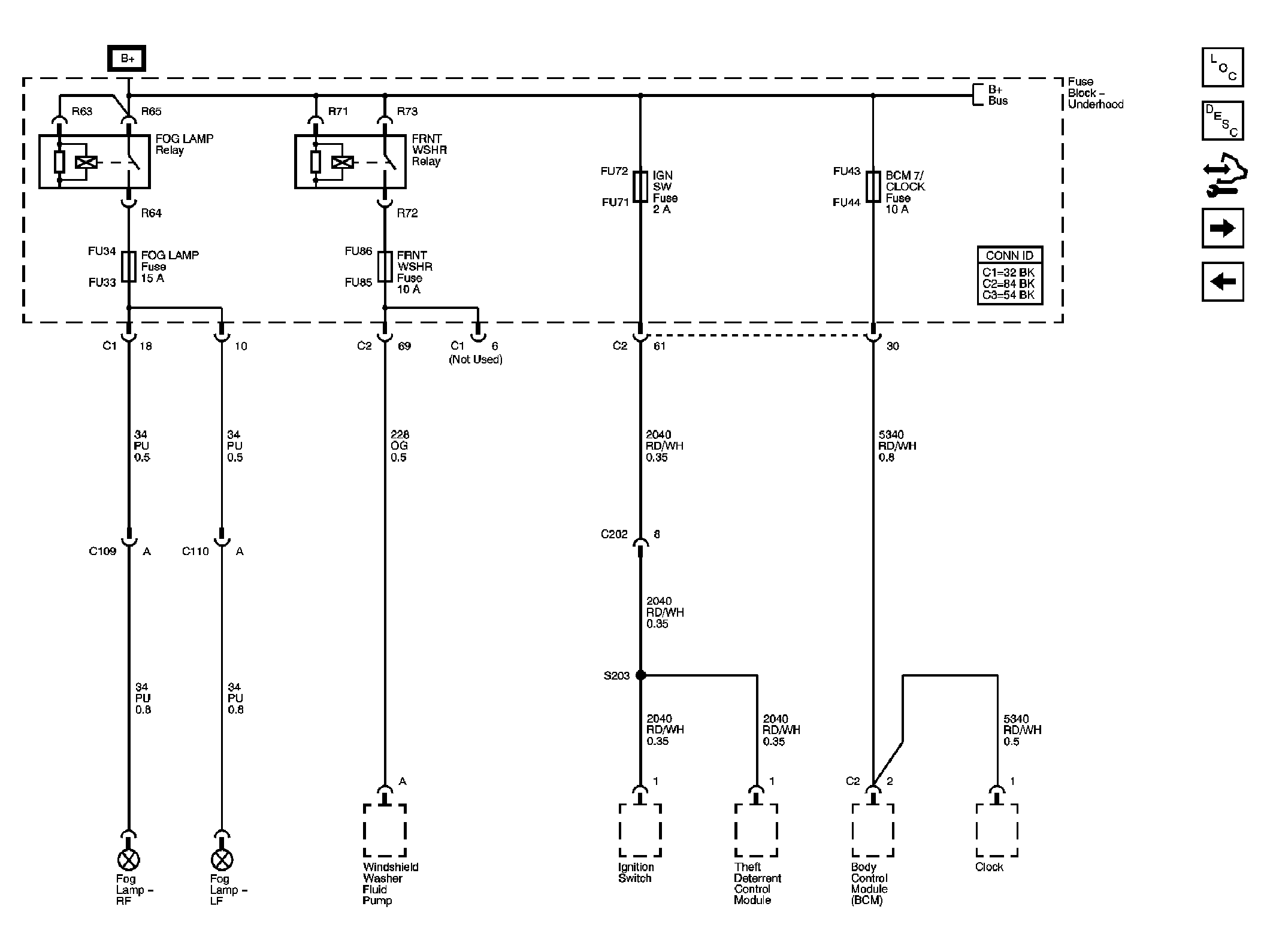

Fig 6: BCM 7/CLOCK, FOG LAMP Fuse, FRNT WSHR Fuse, and IGN SW Fuse Schematic

GM1749928

Courtesy of GENERAL MOTORS CORP.

Fig 7: BCM 1 Fuse, BCM2 Fuse, BCM 4 Fuse, BCM 5 Fuse, BCM 6 Fuse, RADIO Fuse, and SPARE (V92 w/o T79) Fuse Schematic

GM1749929

Courtesy of GENERAL MOTORS CORP.

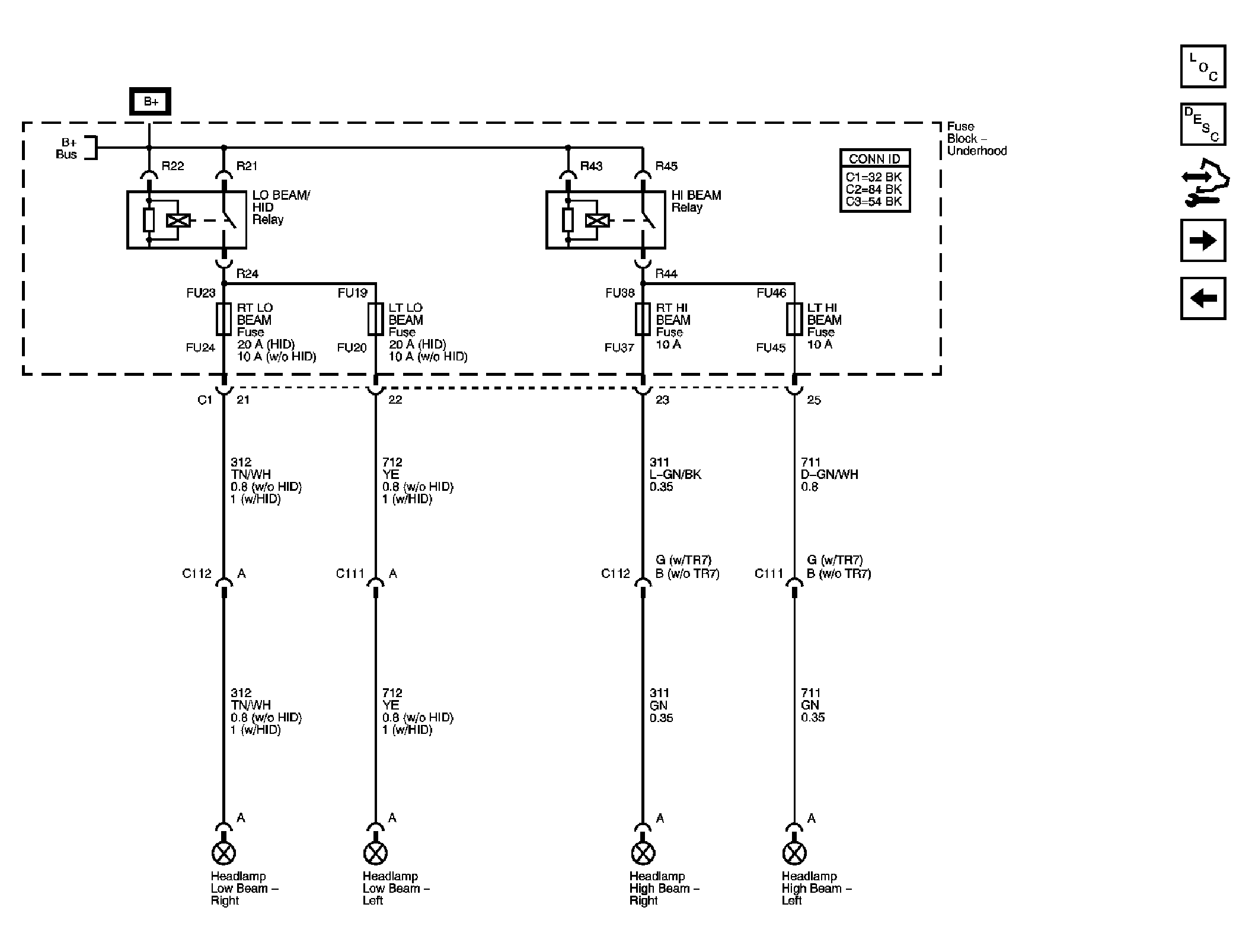

Fig 8: Headlamp Fuses Schematic

GM1749931

Courtesy of GENERAL MOTORS CORP.

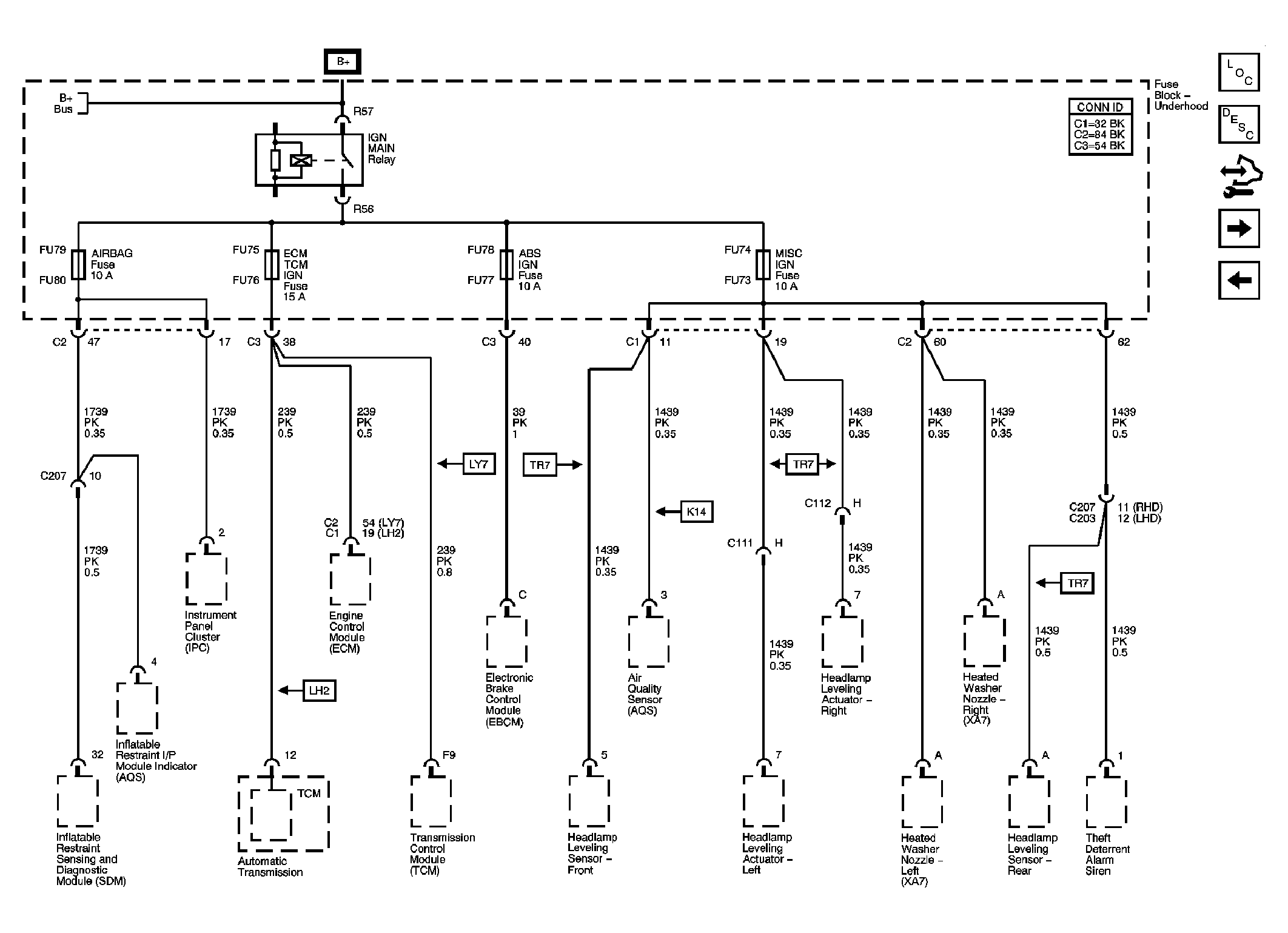

Fig 9: IGN MAIN Relay, ABS IGN Fuse, AIRBAG Fuse, EBCM TCM IGN Fuse, and MISC IGN Fuse Schematic

GM1749932

Courtesy of GENERAL MOTORS CORP.

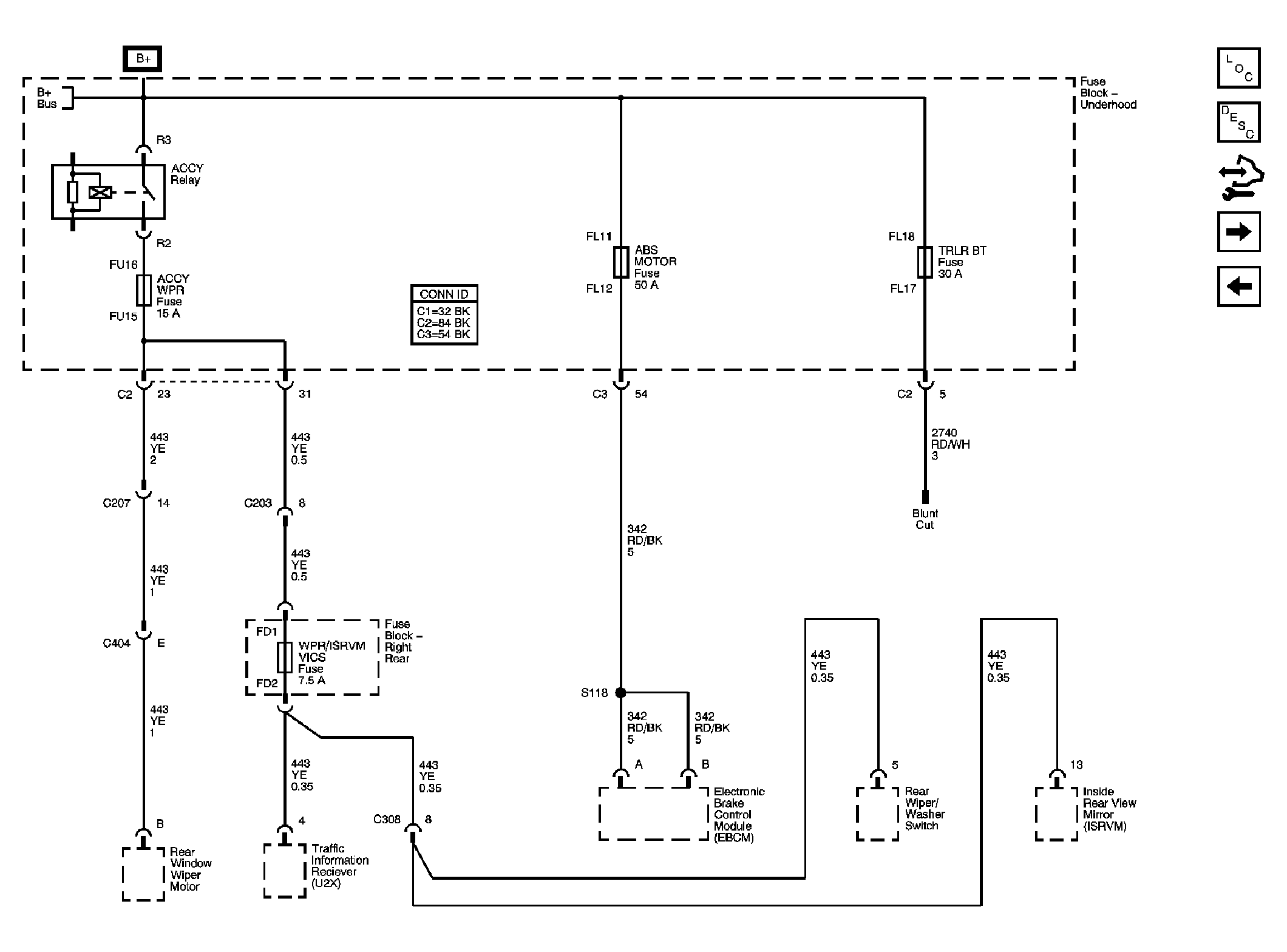

Fig 10: ABS MOTOR Fuse, ACCY Relay, ACCY WPR Fuse, and TRLR BT Fuse Schematic

GM1749933

Courtesy of GENERAL MOTORS CORP.

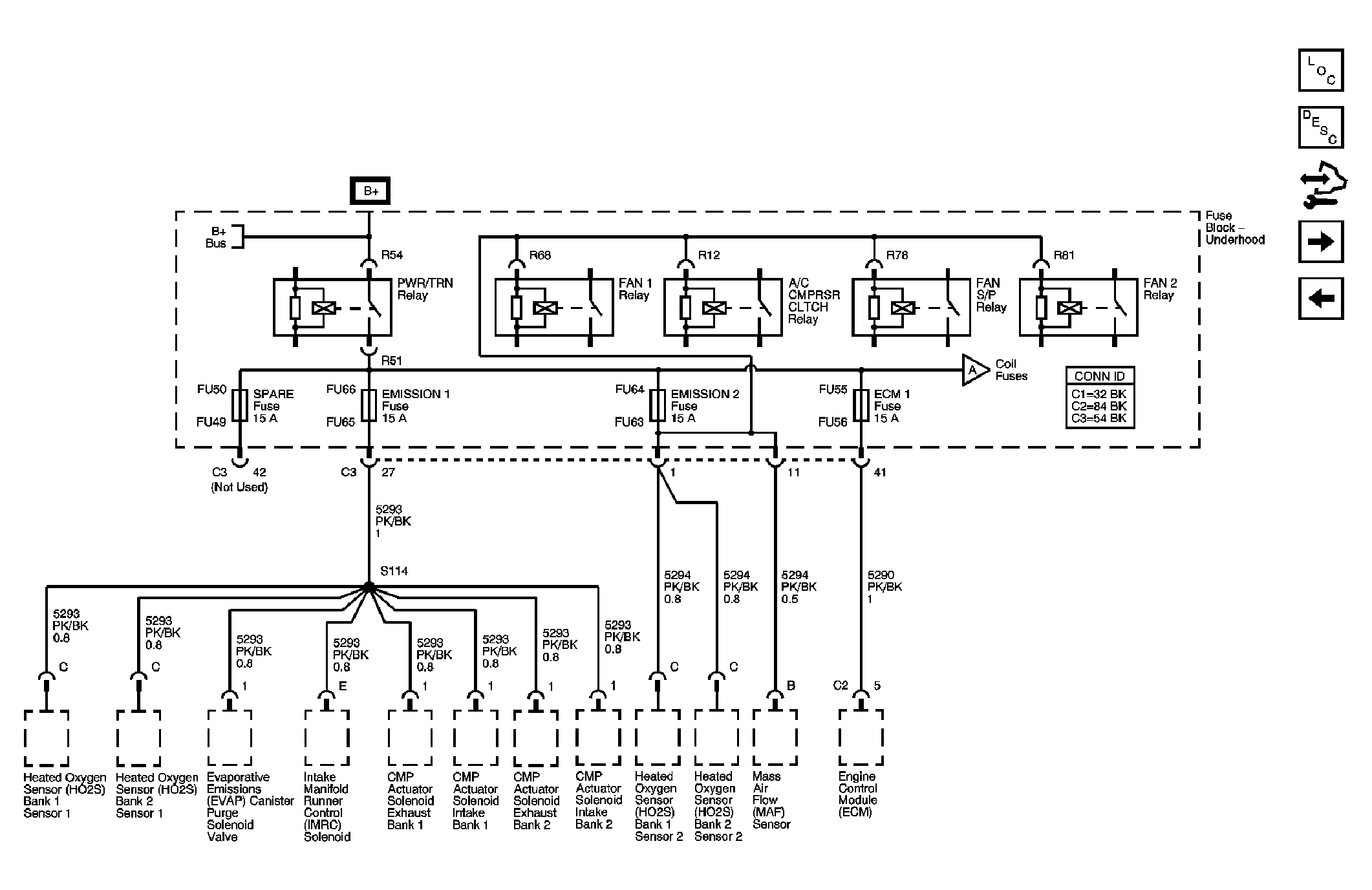

Fig 11: ECM 1 Fuse, EMISSION 1 Fuse, EMISSION 2 Fuse, and PWR/TRN Relay (LY7) Schematic

GM1749935

Courtesy of GENERAL MOTORS CORP.

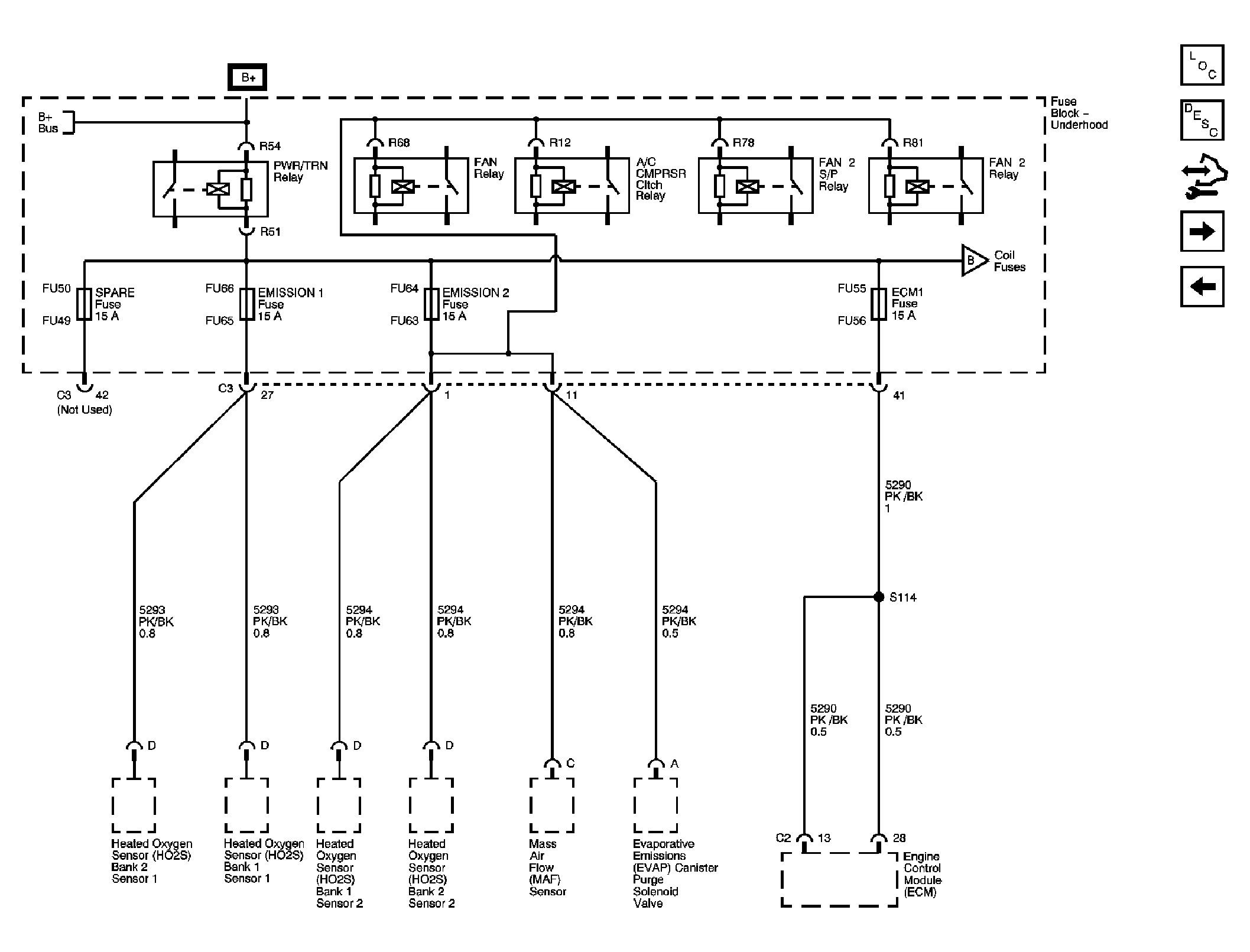

Fig 12: ECM 1 Fuse, EMISSION 1 Fuse, EMISSION 2 Fuse, and PWR/TRN Relay (LH2) Schematic

GM1749936

Courtesy of GENERAL MOTORS CORP.

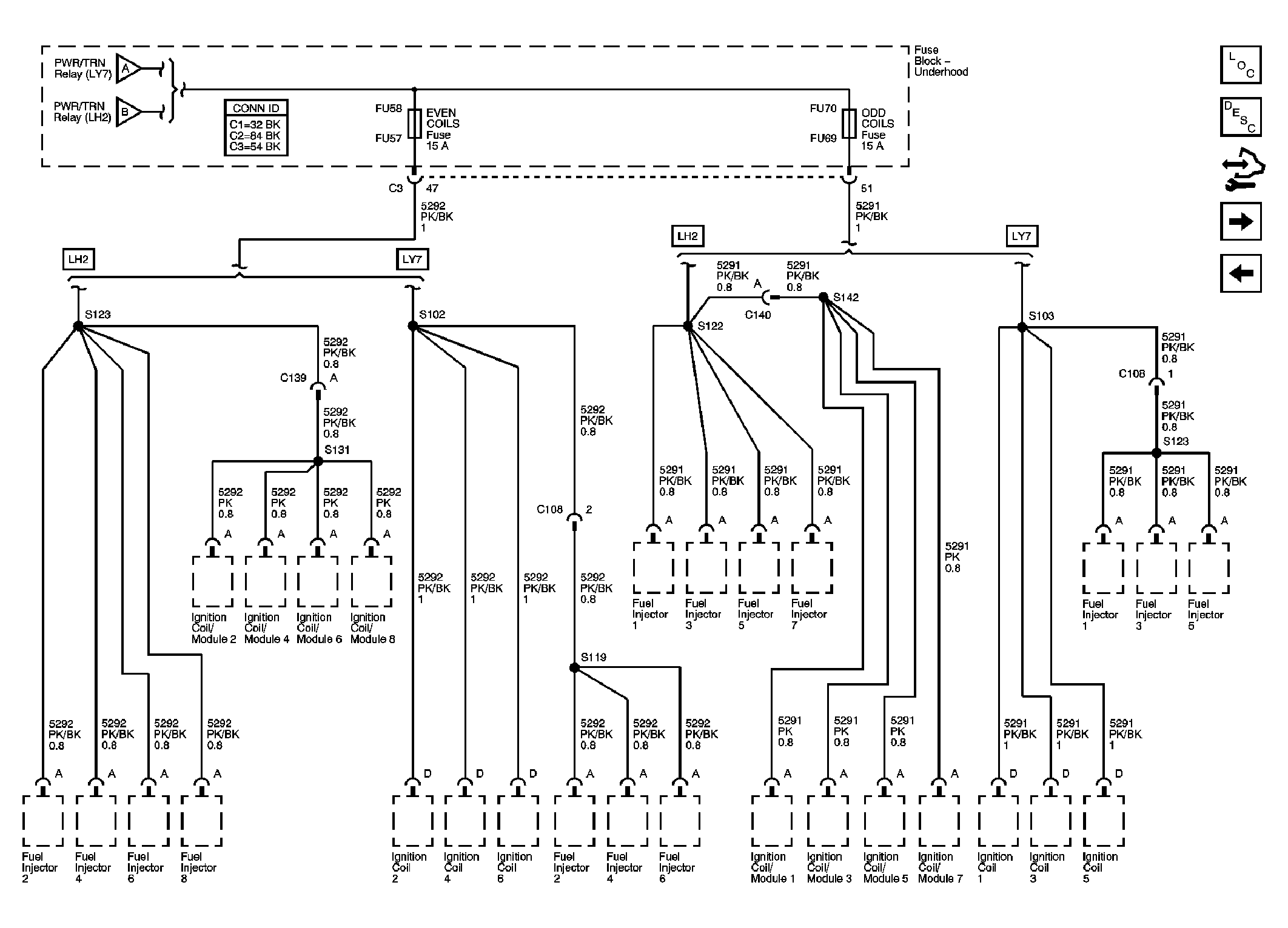

Fig 13: EVEN COILS Fuse and ODD COILS Fuse Schematic

GM1749937

Courtesy of GENERAL MOTORS CORP.

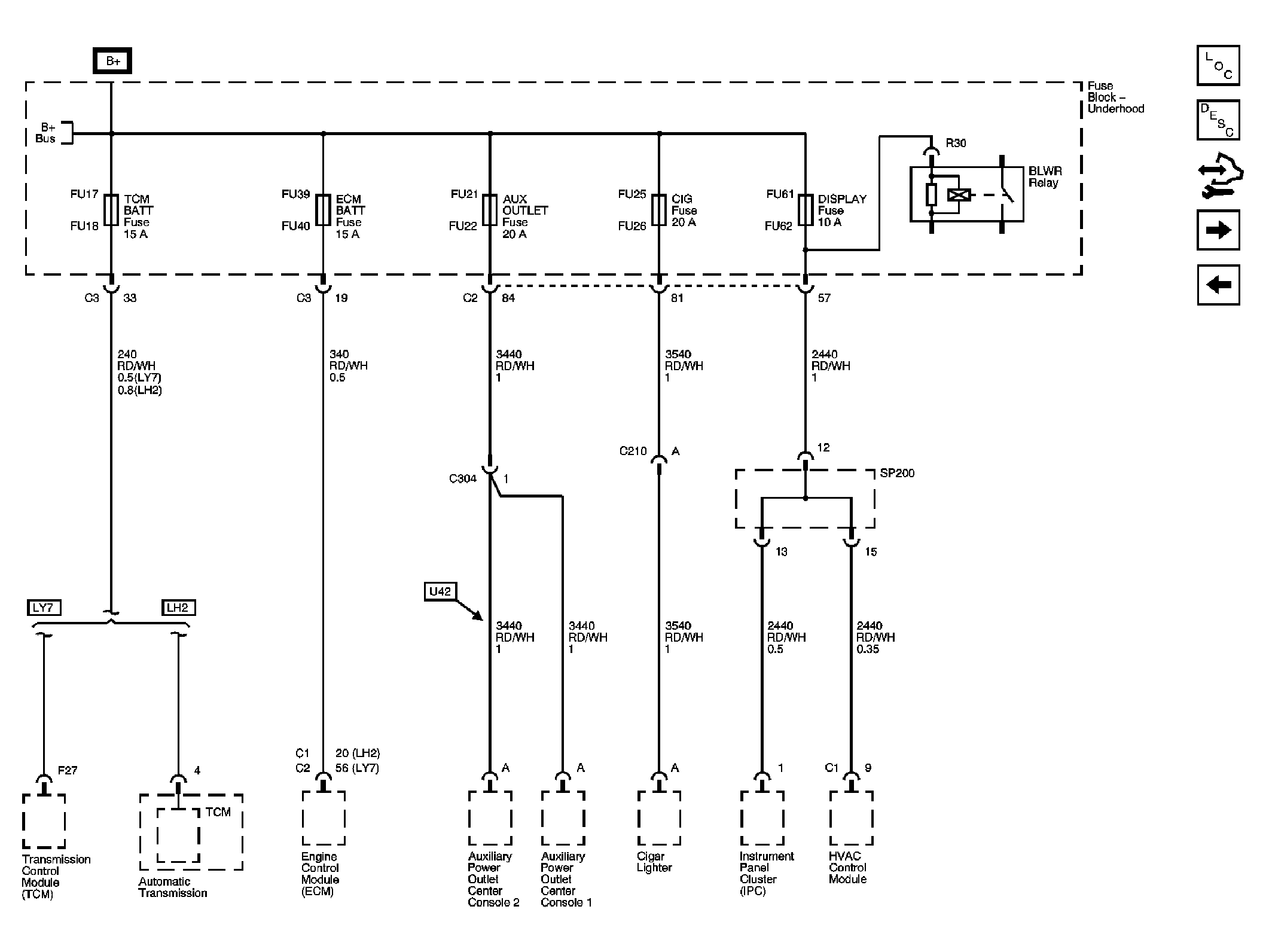

Fig 14: AUX OUTLET Fuse, BLWR Relay, CIG Fuse, DISPLAY Fuse, ECM BATT Fuse, and TCM BATT Fuse Schematic

GM1749944

Courtesy of GENERAL MOTORS CORP.

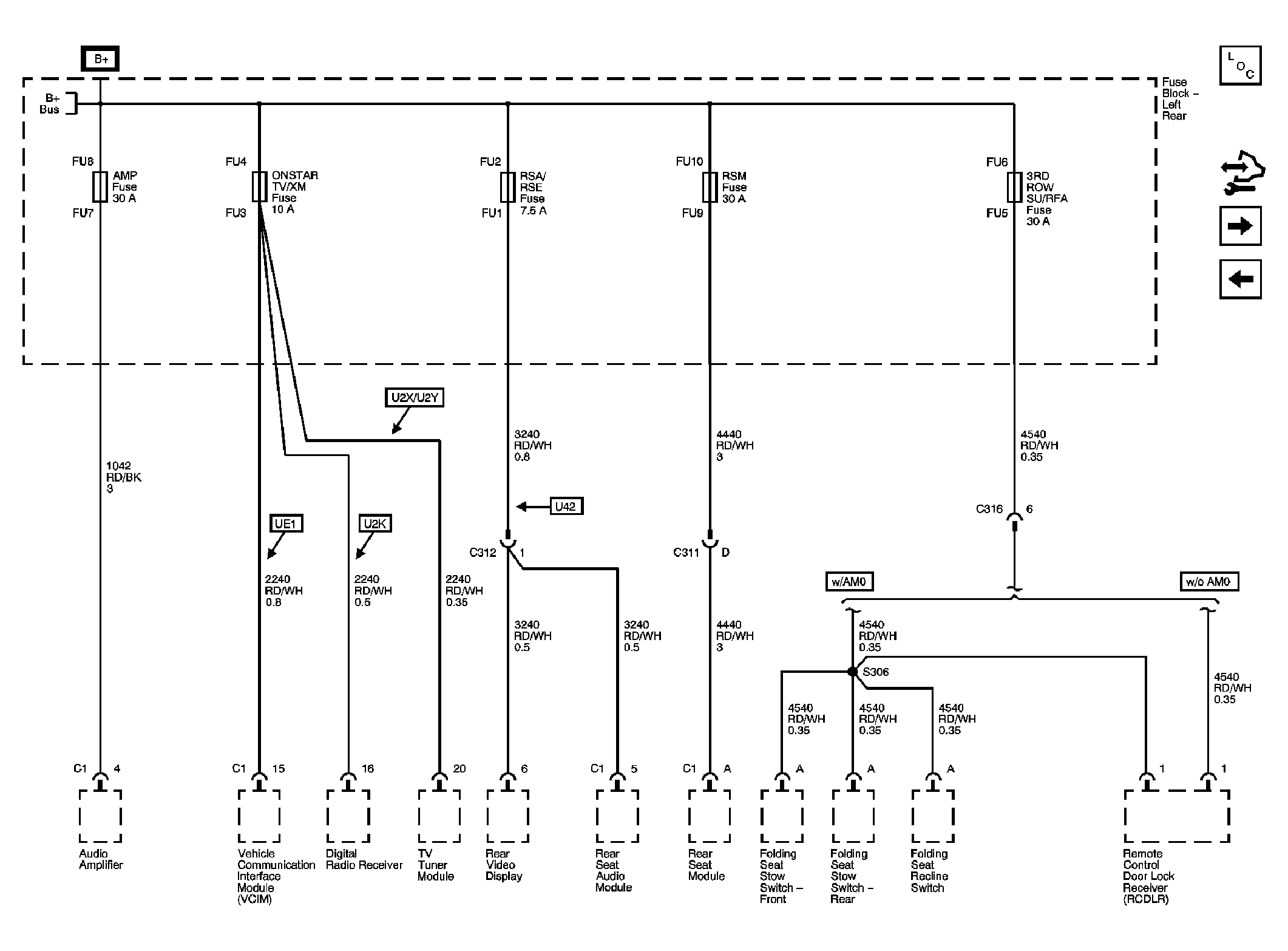

Fig 15: 3RD ROW SU/RFA Fuse, AMP Fuse, ONSTAR TV/XM Fuse, RSA/RSE Fuse, and RSM Fuse Schematic

GM1749945

Courtesy of GENERAL MOTORS CORP.

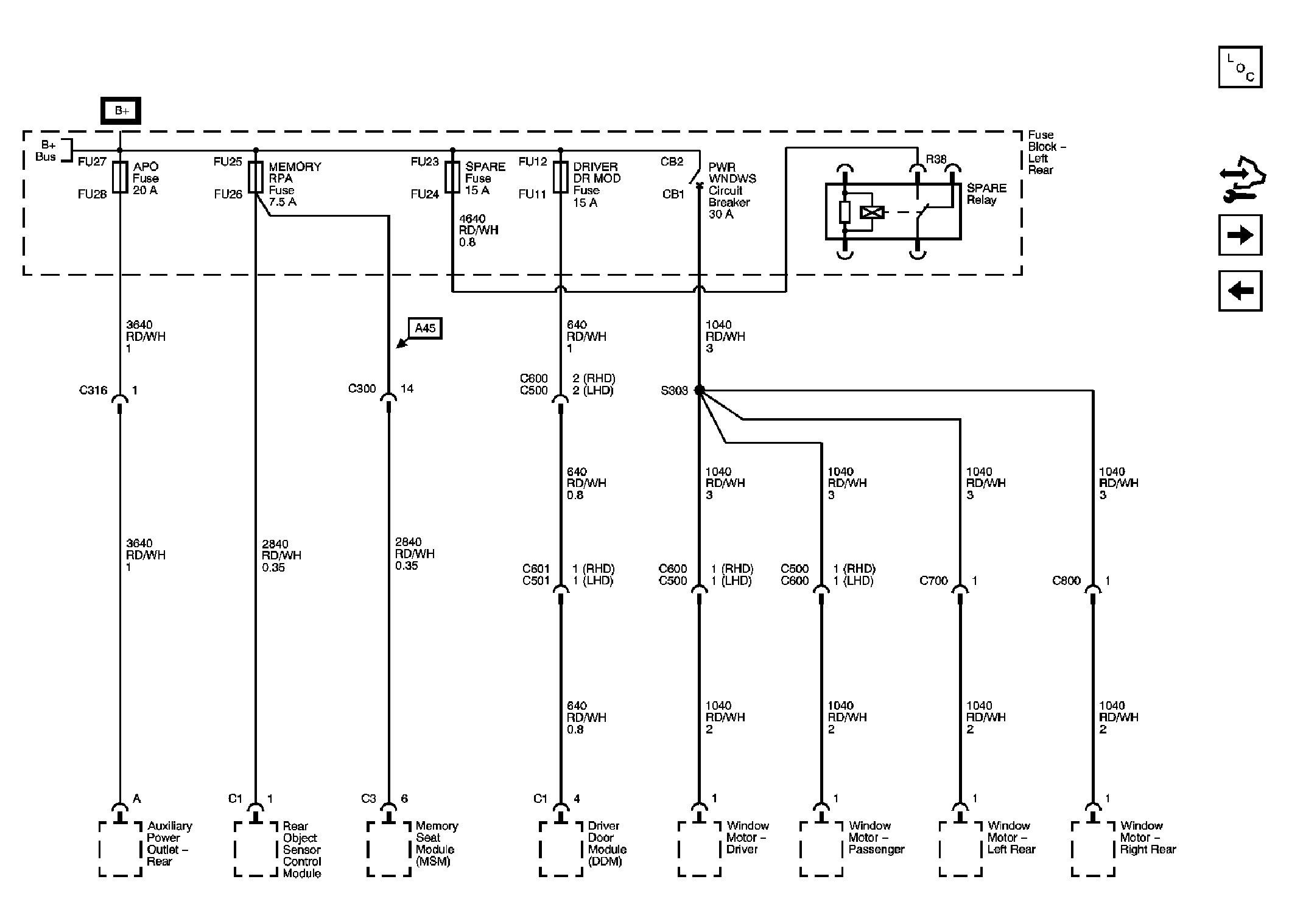

Fig 16: APO Fuse, DRIVER DR MOD Fuse, MEMORY RPA Fuse, and PWR WNDWS Circuit Breaker Schematic

GM1749948

Courtesy of GENERAL MOTORS CORP.

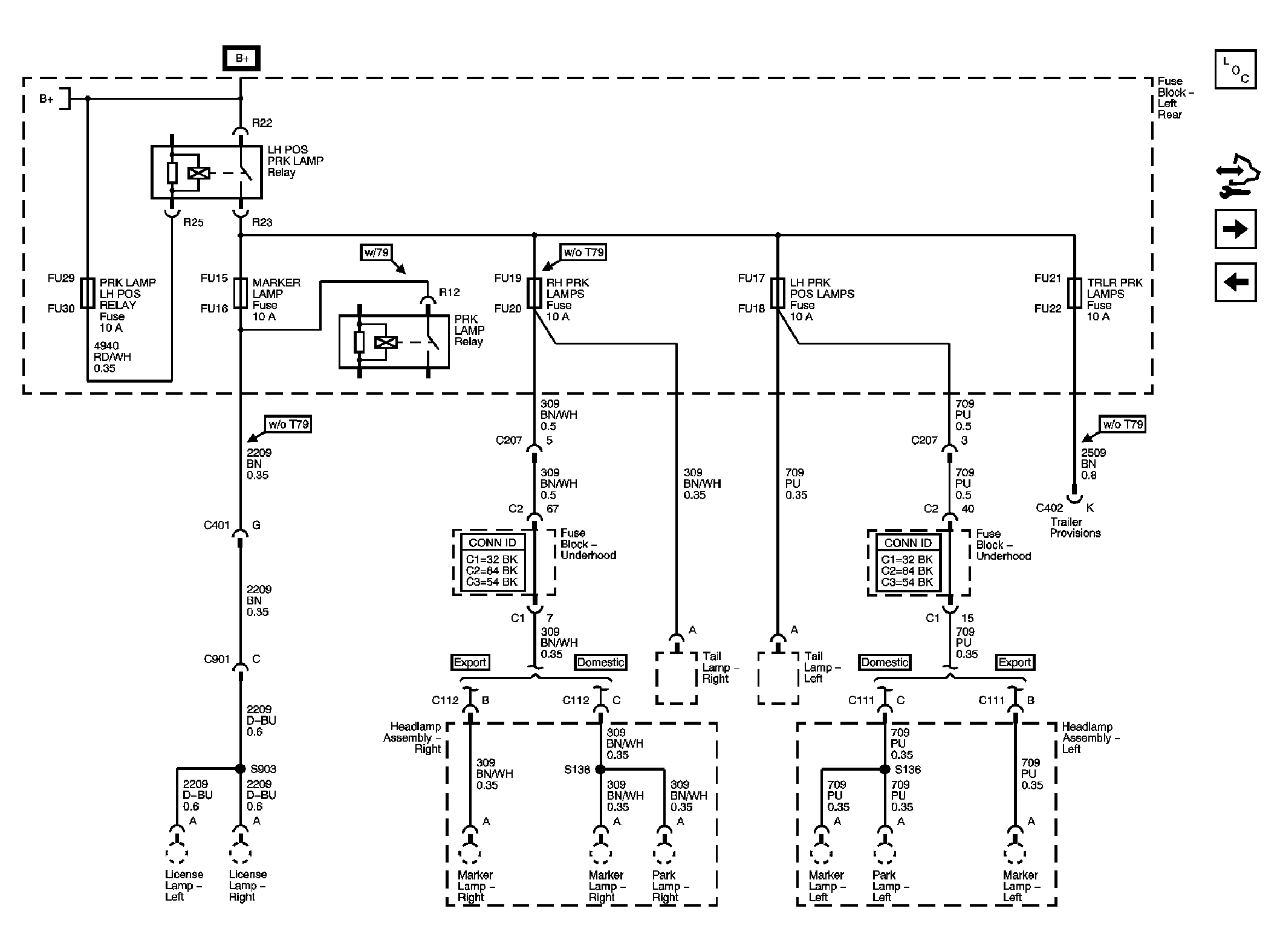

Fig 17: LH PRK POS LAMPS Fuse, MARKER LAMP Fuse, PRK LAMP LH POS RELAY Fuse, RH PRK LAMPS Fuse, and TRLR PRK LAMPS Fuse Schematic

GM1826090

Courtesy of GENERAL MOTORS CORP.

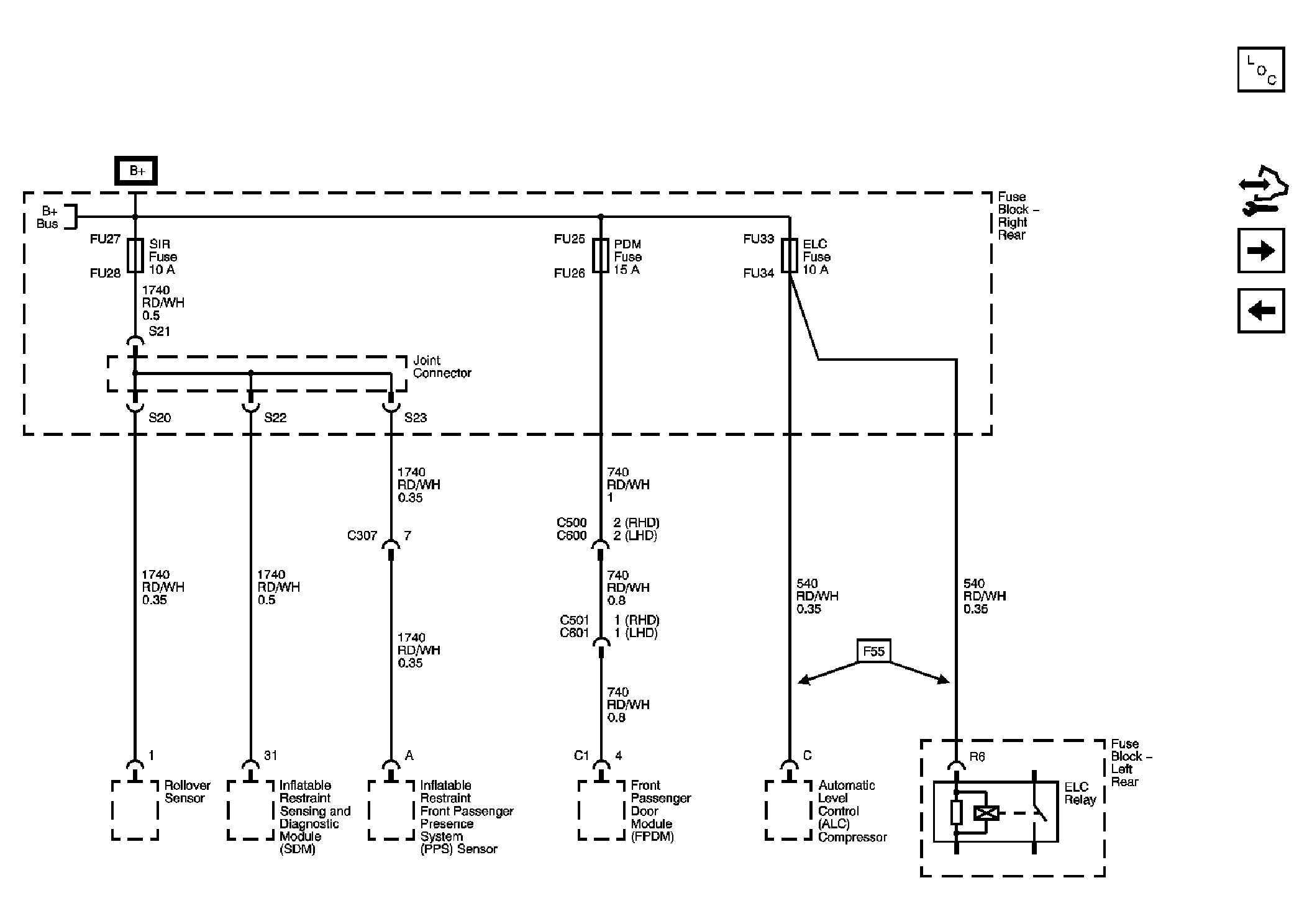

Fig 18: ELC Fuse, PDM Fuse, and SIR Fuse Schematic

GM1826092

Courtesy of GENERAL MOTORS CORP.

Fig 19: BCM 3 Fuse, CANISTER VENT Fuse, MRRTD Fuse, PLG Fuse, and PWR LIFT GATE Fuse Schematic

GM1826094

Courtesy of GENERAL MOTORS CORP.

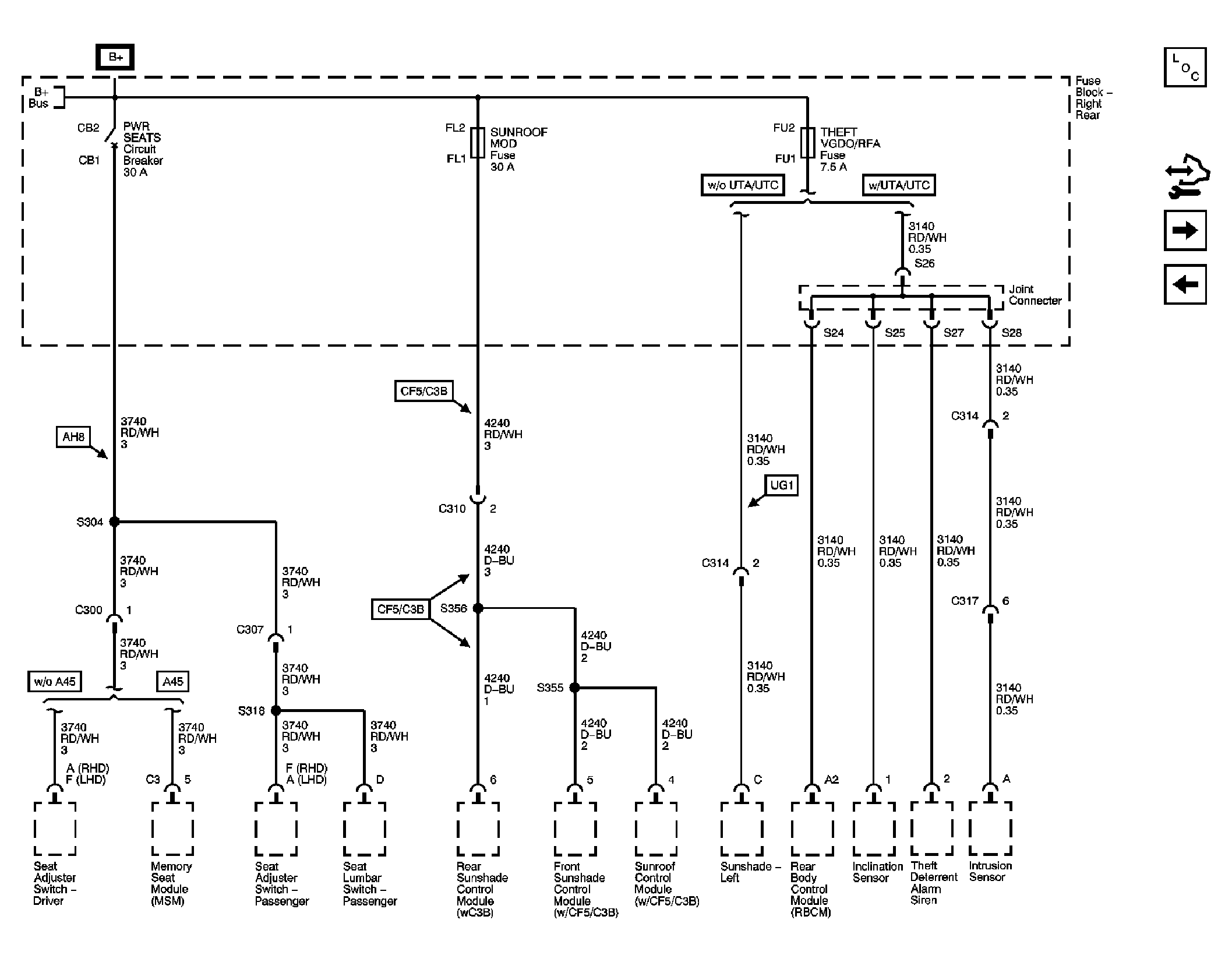

Fig 20: PWR SEATS Circuit Breaker, SUNROOF MOD Fuse, and THEFT VGDO/RFA Fuse Schematic

GM1826095

Courtesy of GENERAL MOTORS CORP.

Fig 21: REAR A/C Fuse, RUN Fuse, RUN Relay, and Trailer Provision Fuses and Relays Schematic

GM1826097

Courtesy of GENERAL MOTORS CORP.
