Ground Distribution Schematics

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

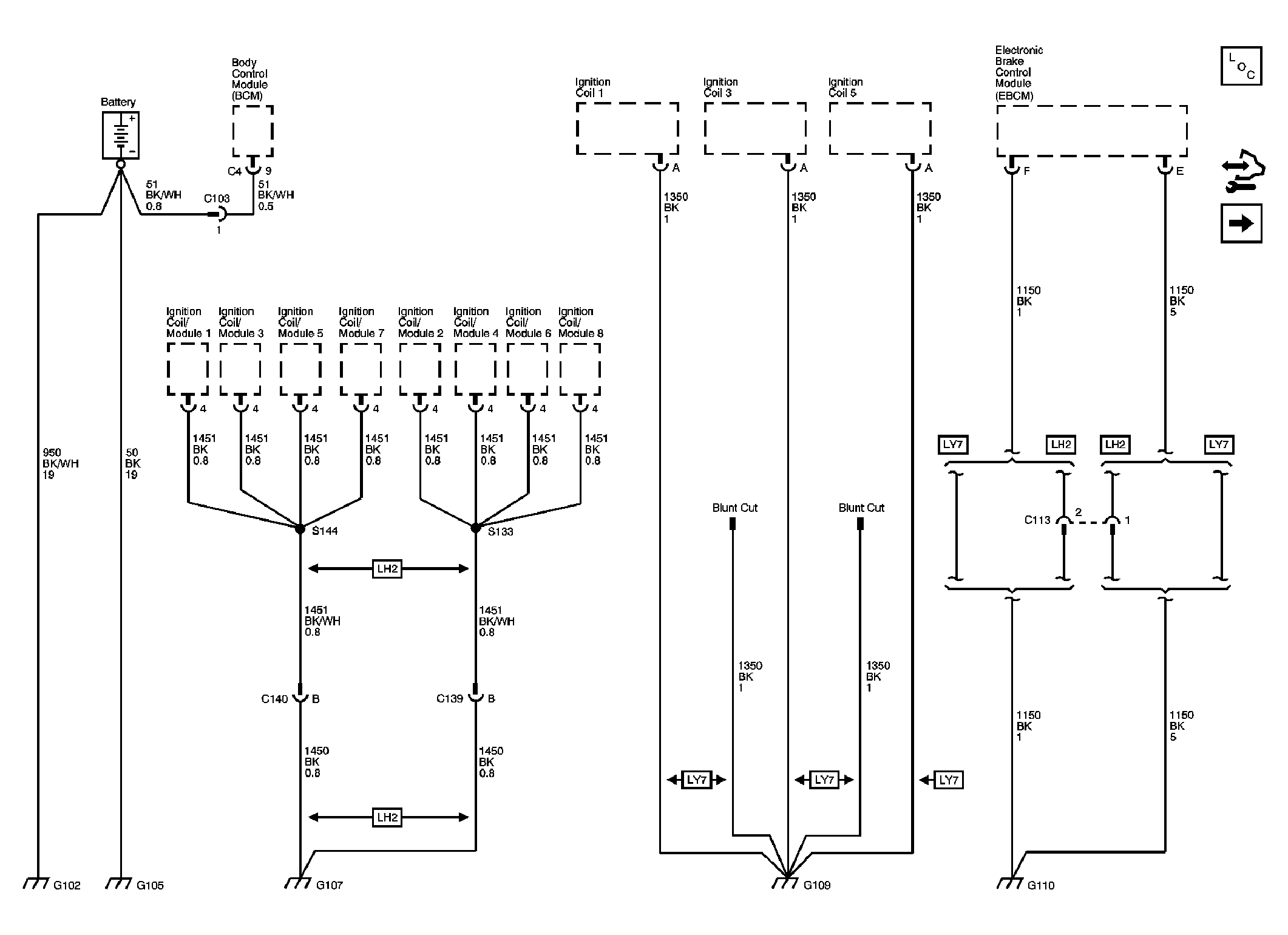

Fig 1: G102, G105, G107, G108, G109 and G110 Schematic

Courtesy of GENERAL MOTORS CORP.

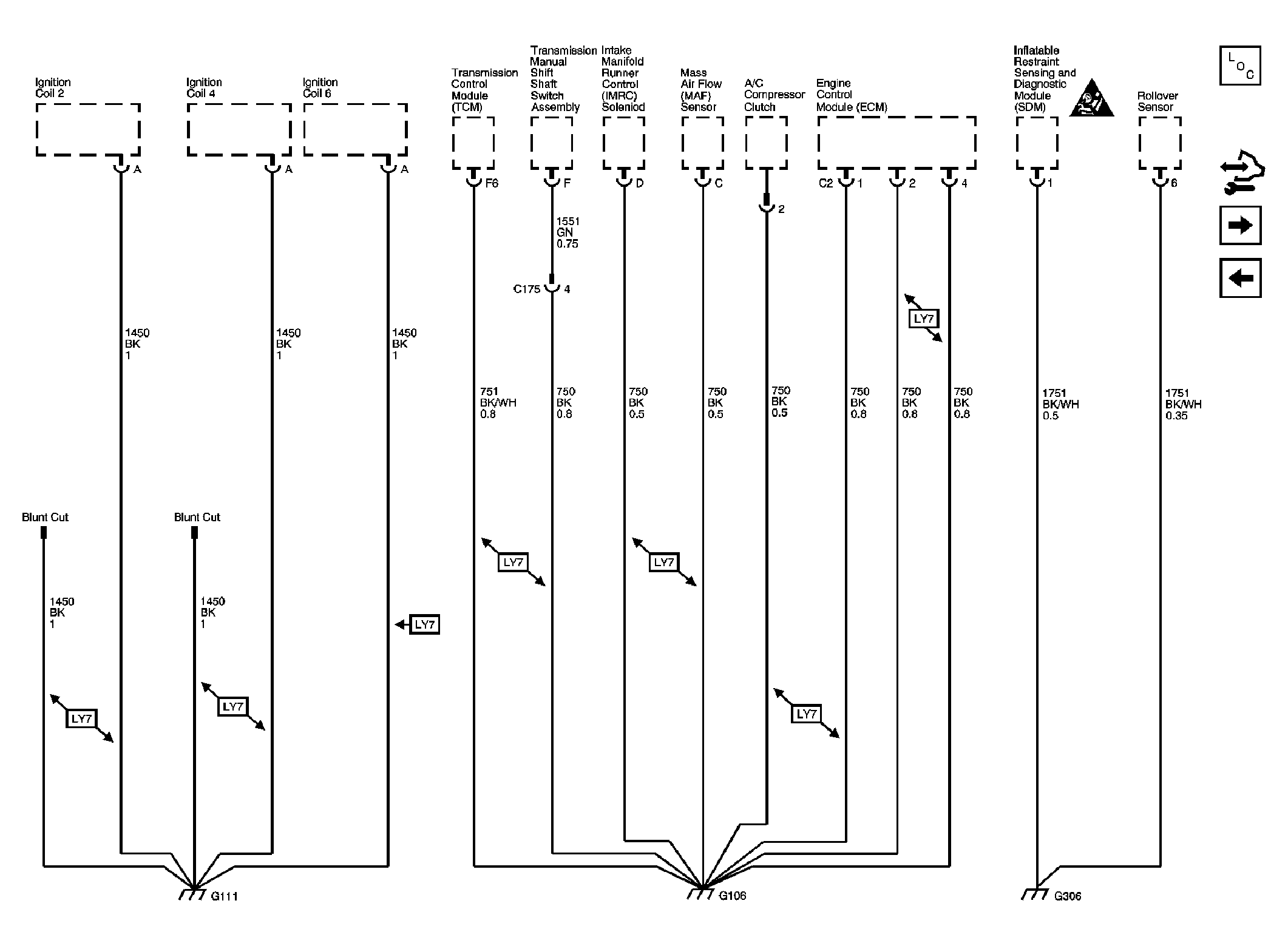

Fig 2: G106, G111, G306 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: G100 (LH2) Schematic

Courtesy of GENERAL MOTORS CORP.

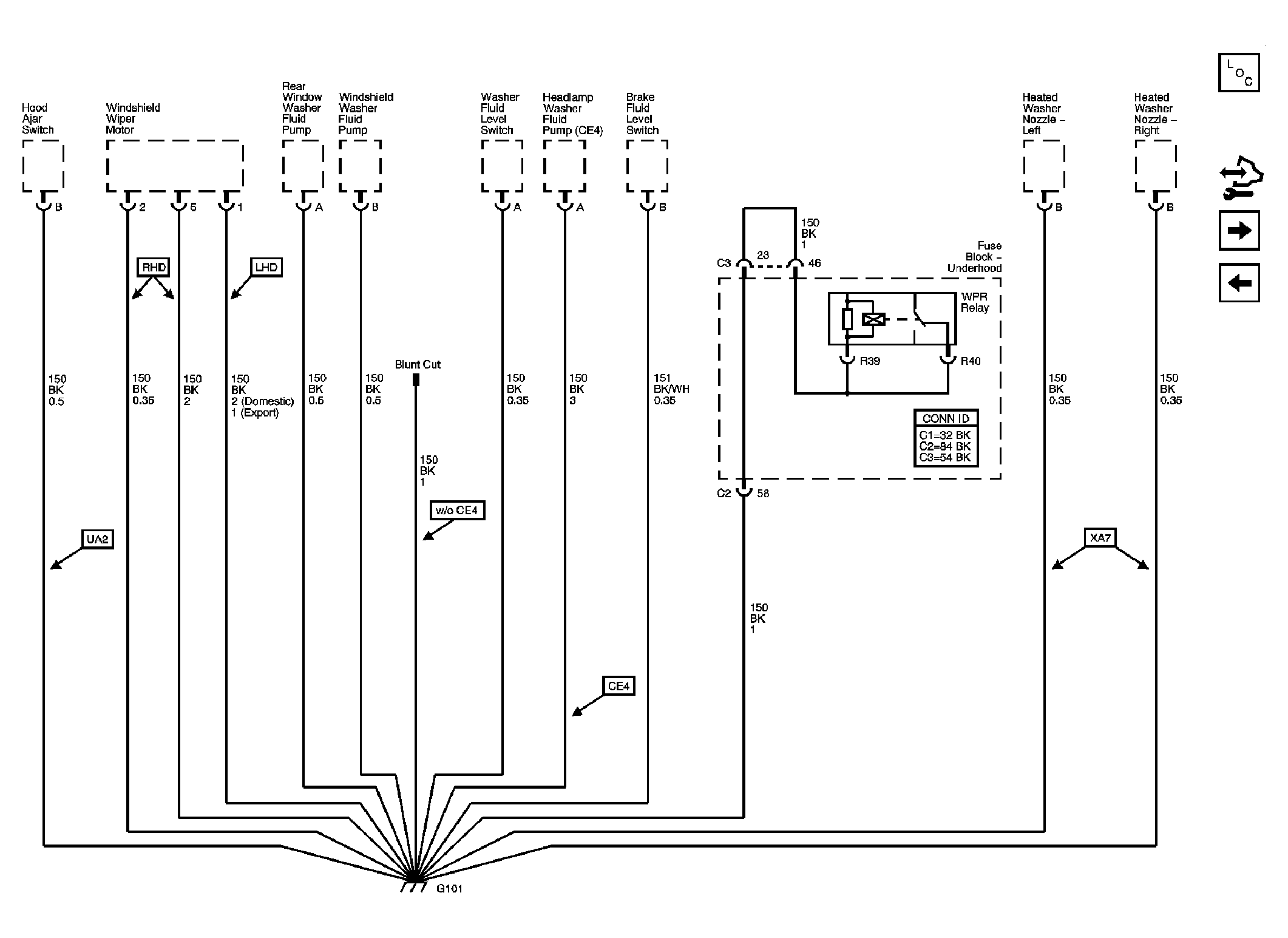

Fig 4: G101 Schematic

Courtesy of GENERAL MOTORS CORP.

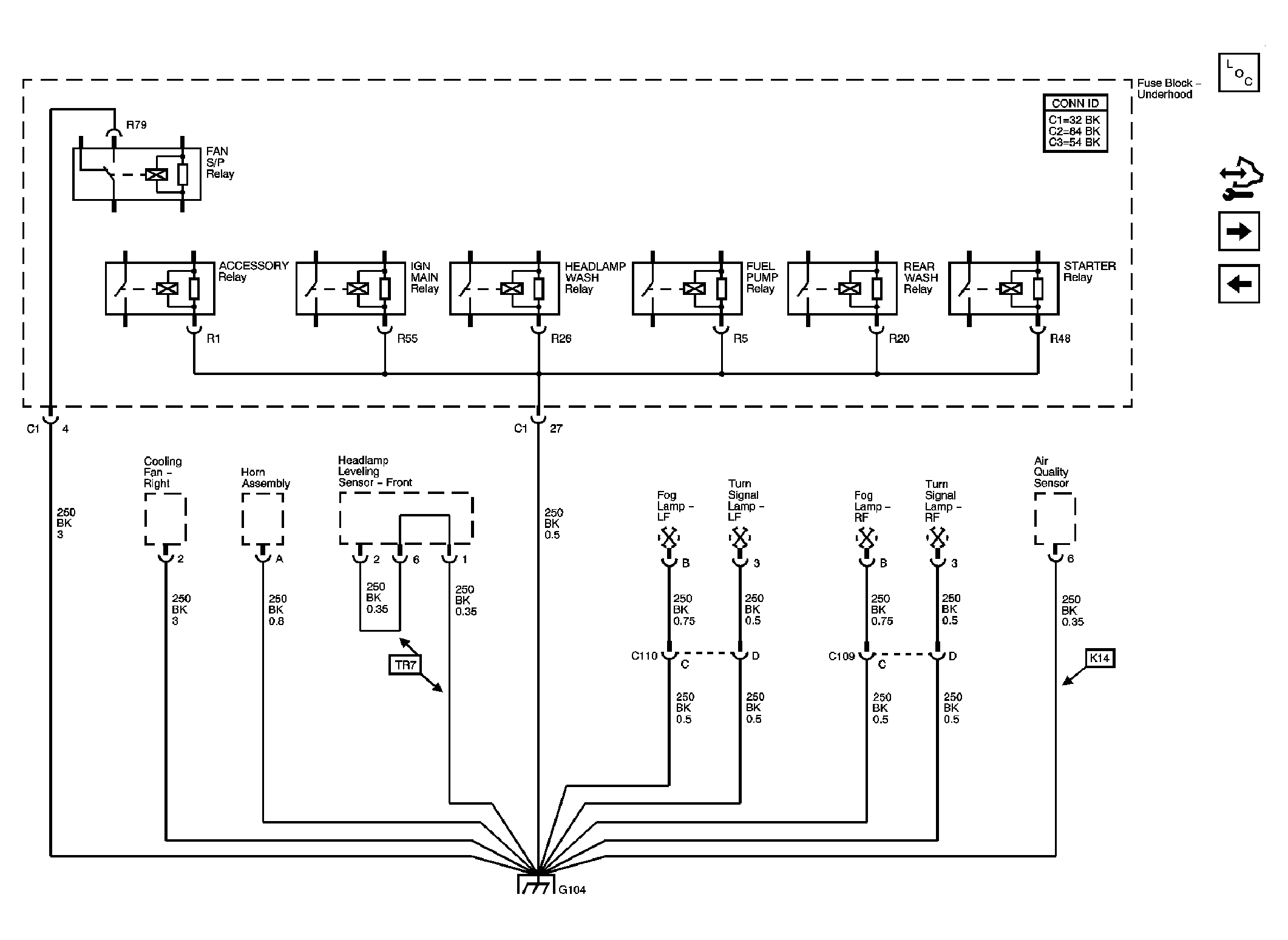

Fig 5: G104 (1 of 2) Schematic

Courtesy of GENERAL MOTORS CORP.

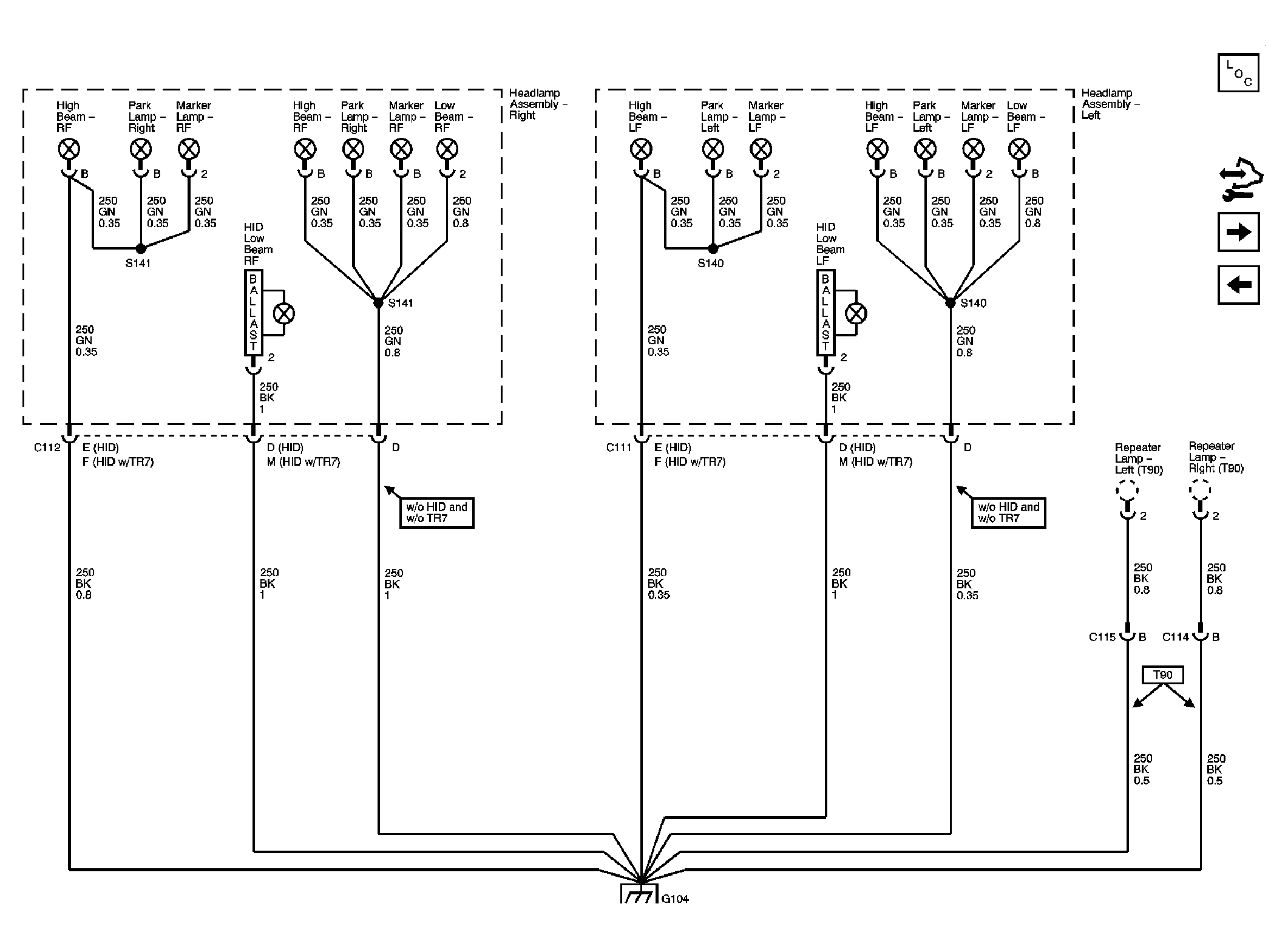

Fig 6: G104 (2 of 2) Schematic

Courtesy of GENERAL MOTORS CORP.

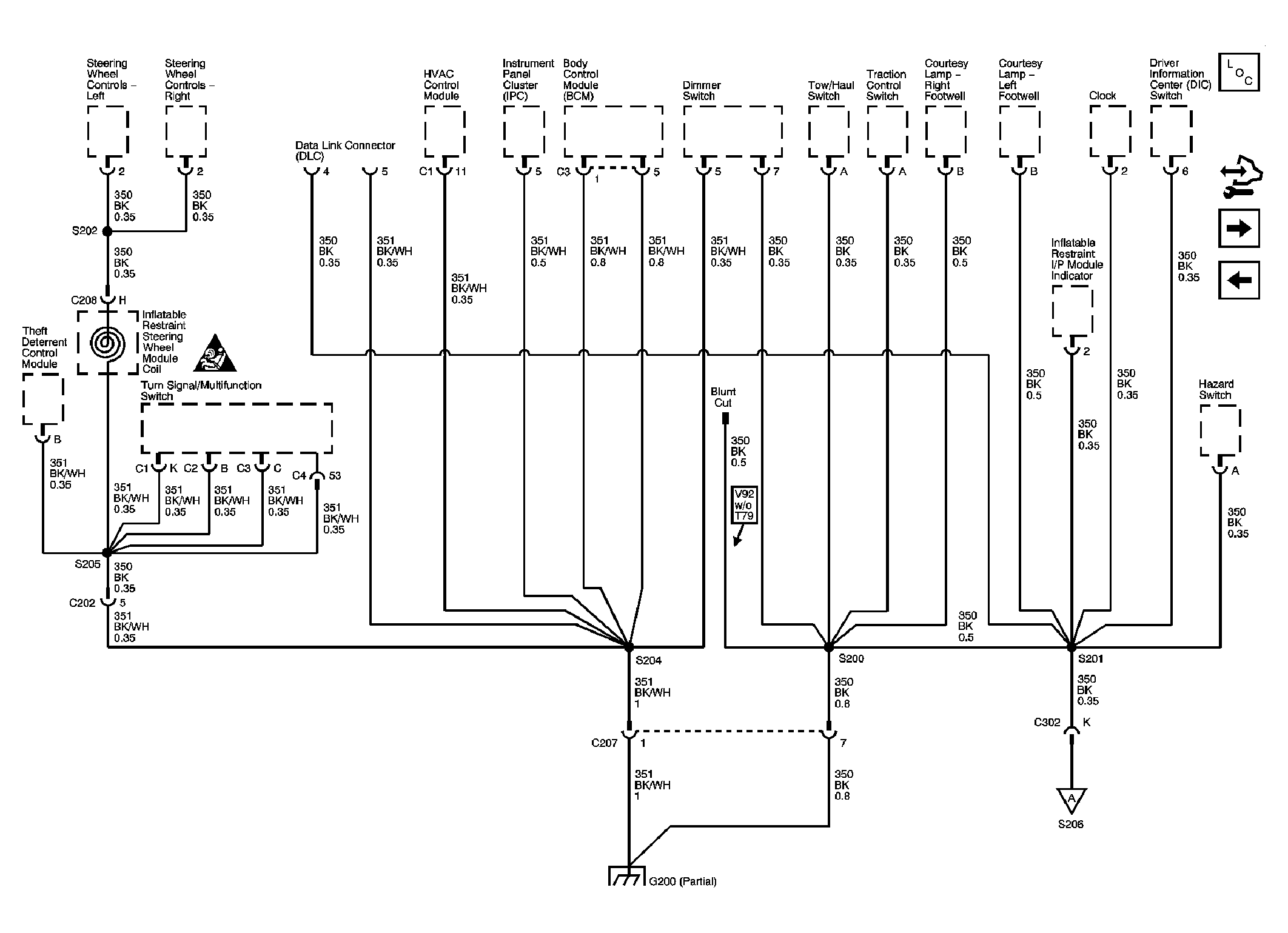

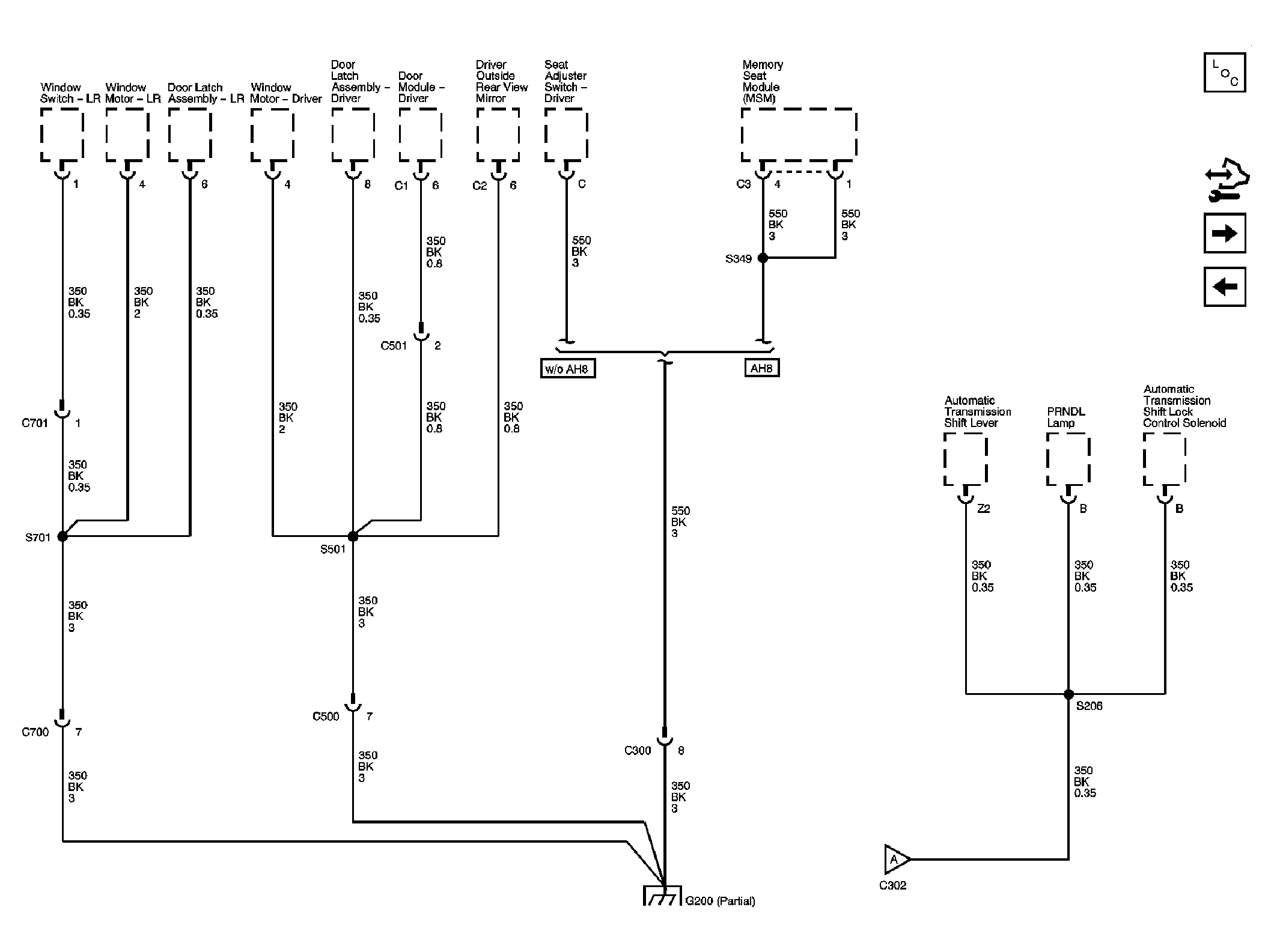

Fig 7: G200 (1 of 2) LHD Schematic

Courtesy of GENERAL MOTORS CORP.

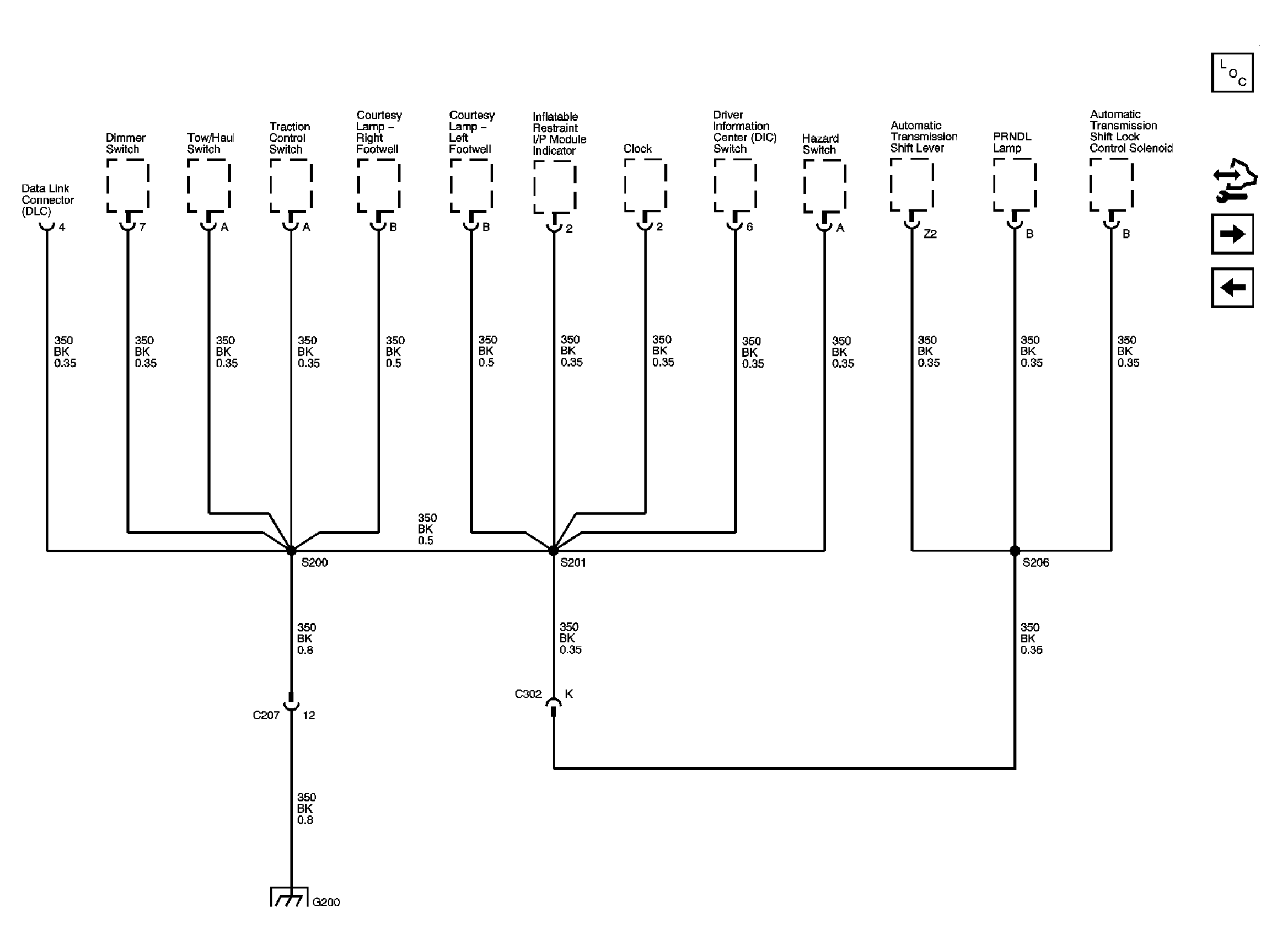

Fig 8: G200 (2 of 2) LHD Schematic

Courtesy of GENERAL MOTORS CORP.

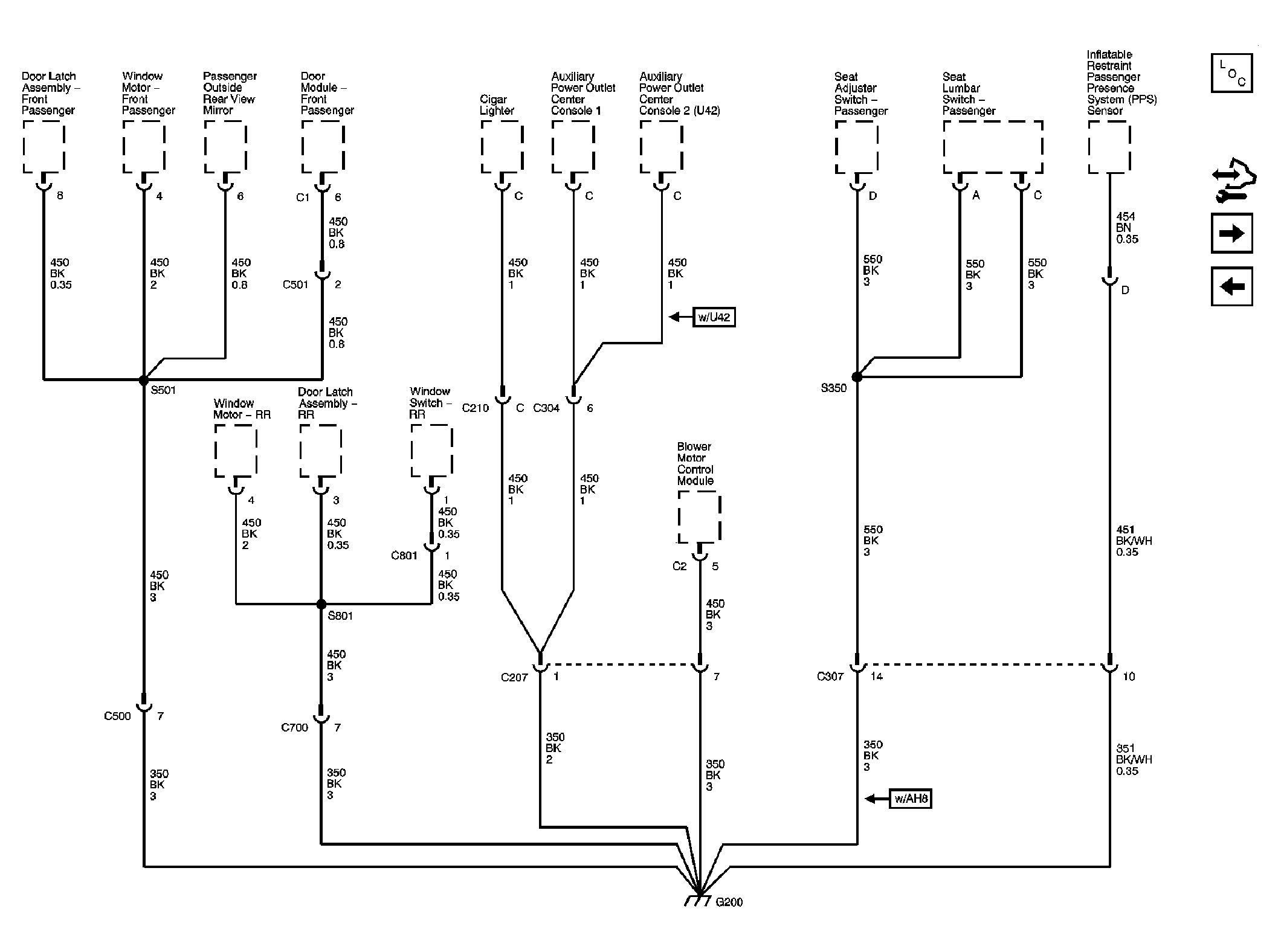

Fig 9: G200 1 of 2 (RHD) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: G200 2of 2 (RHD) Schematic

Courtesy of GENERAL MOTORS CORP.

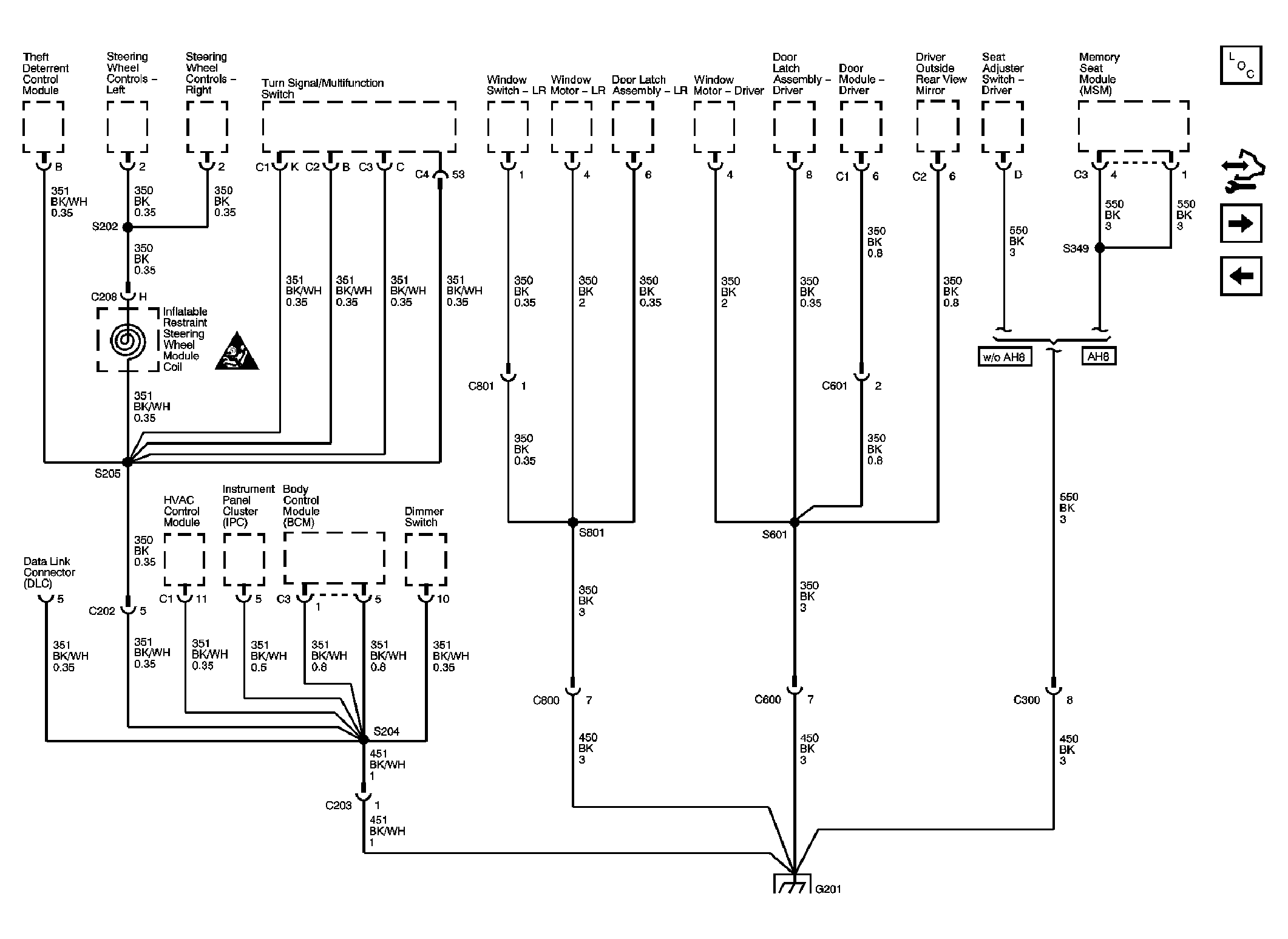

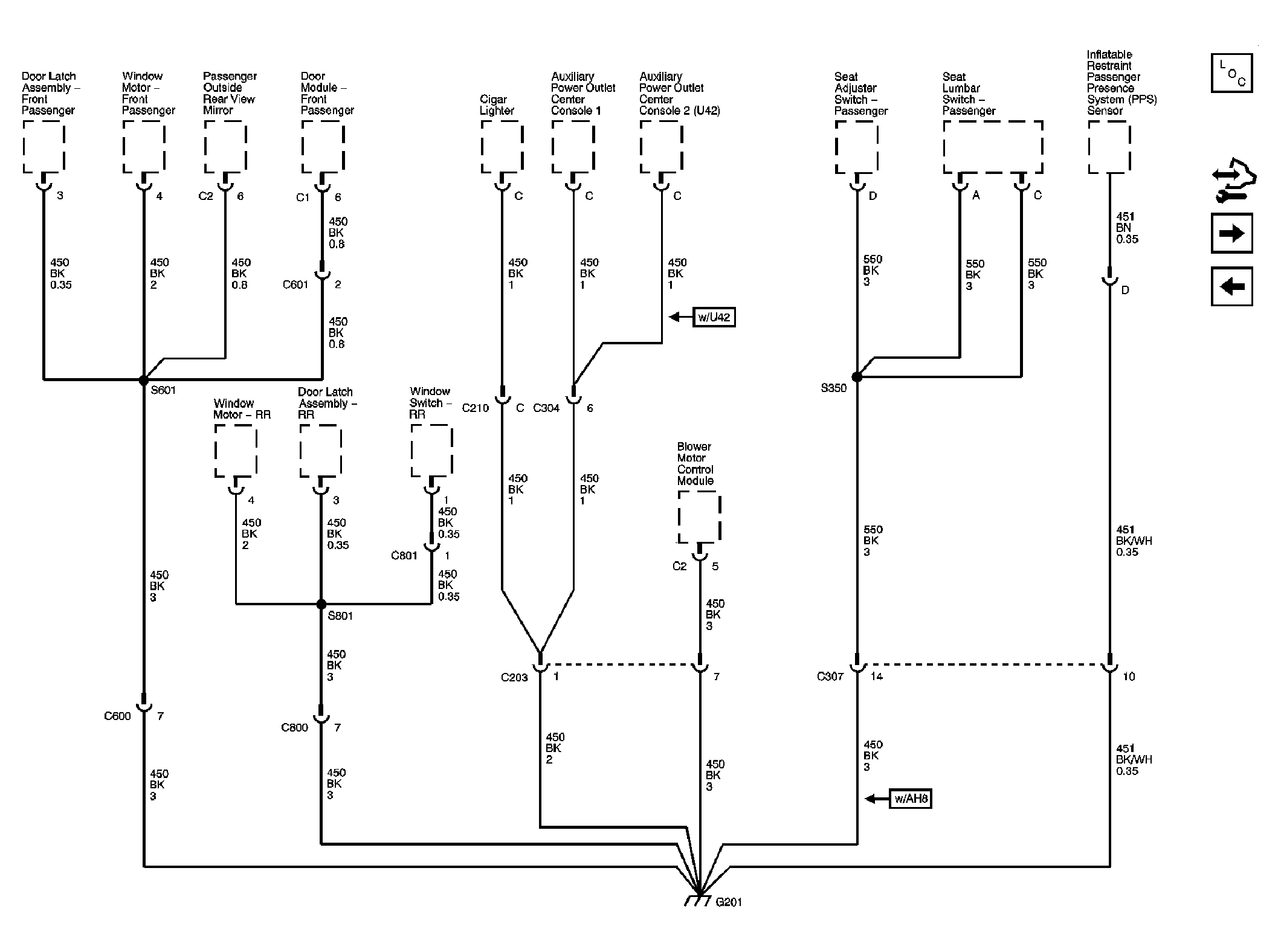

Fig 11: G201 LHD Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: G201 (RHD) Schematic

Courtesy of GENERAL MOTORS CORP.

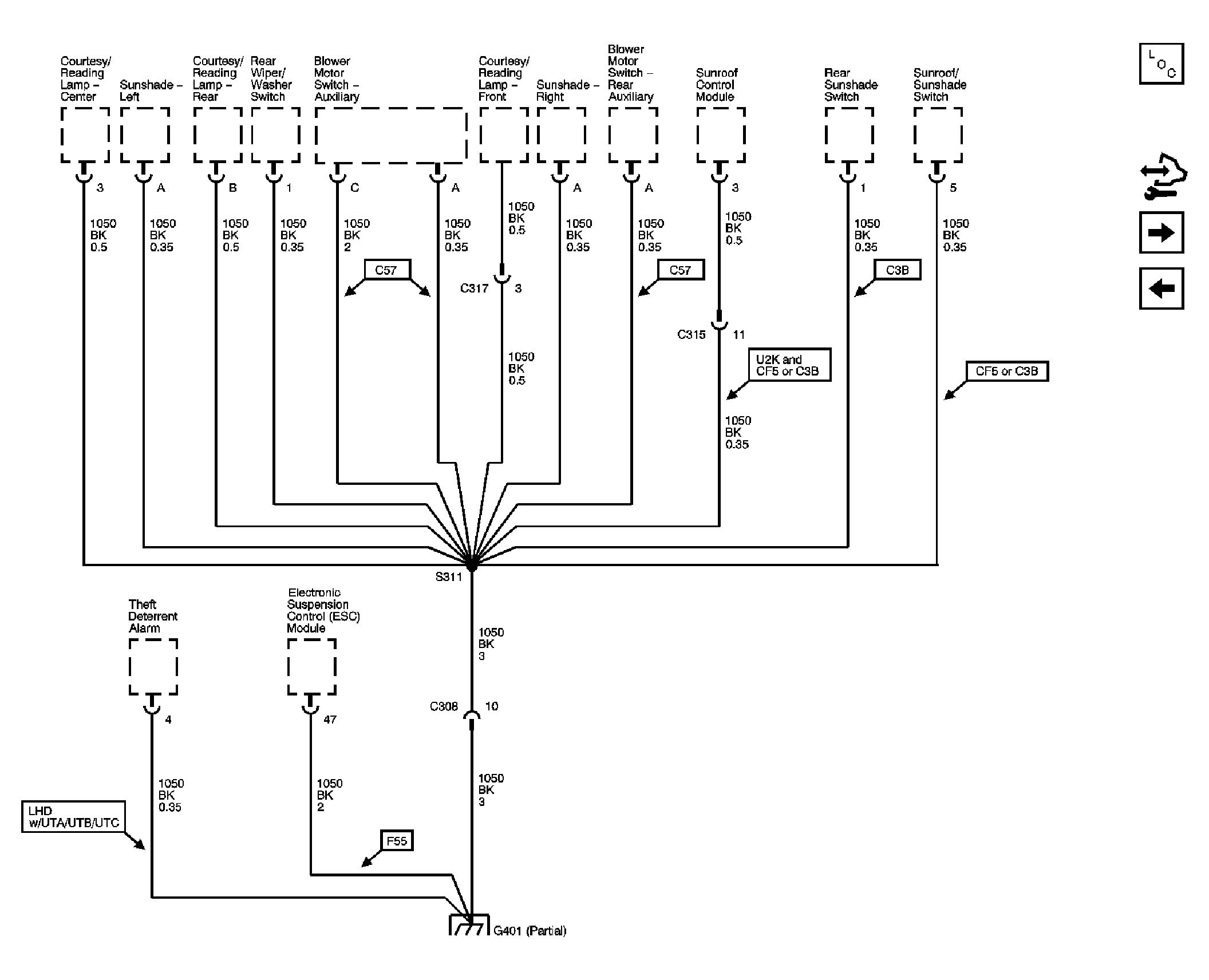

Fig 13: G401 (1 of 3) Schematic

Courtesy of GENERAL MOTORS CORP.

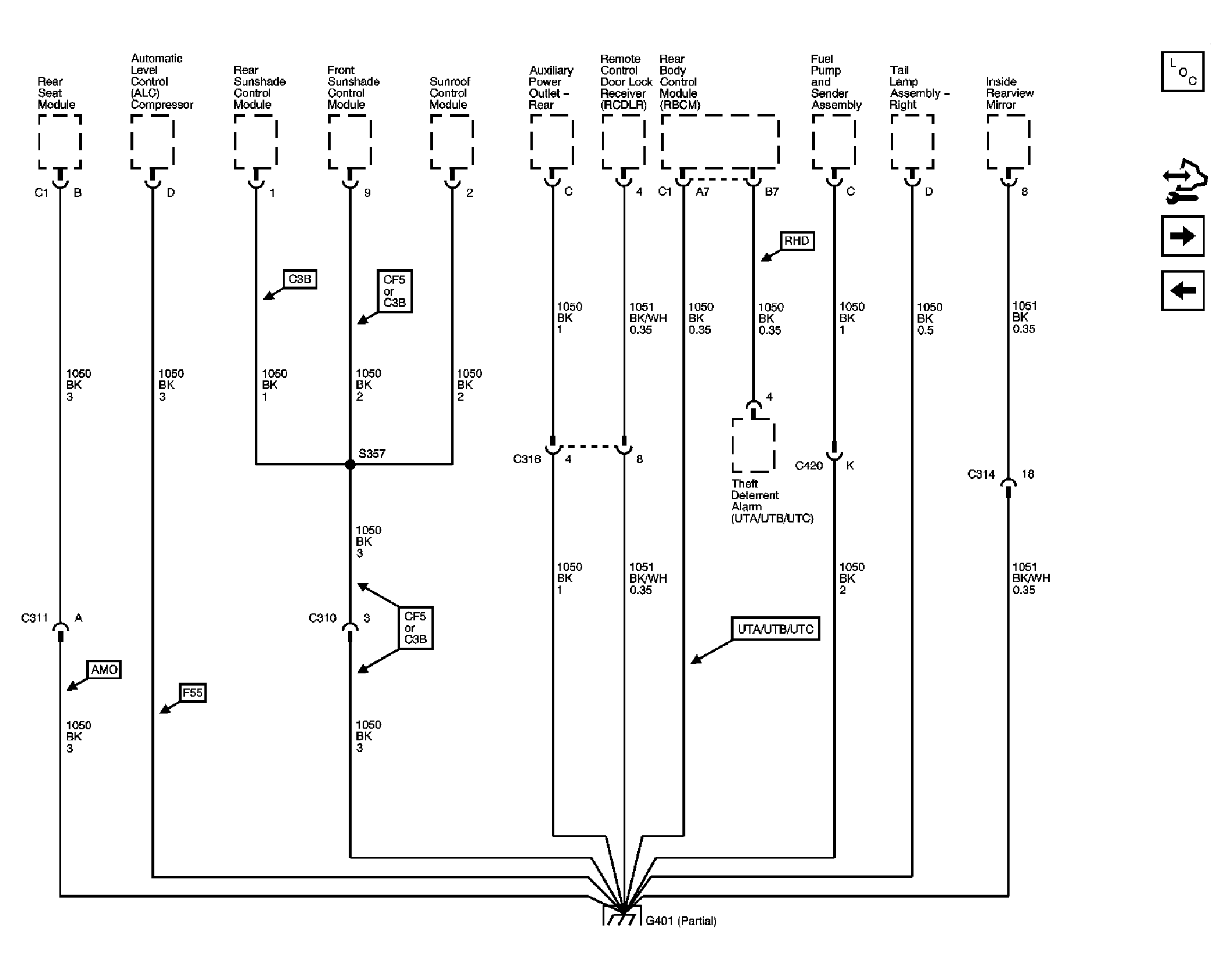

Fig 14: G401 (2 of 3) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 15: G401 (3 of 3) Schematic

Courtesy of GENERAL MOTORS CORP.

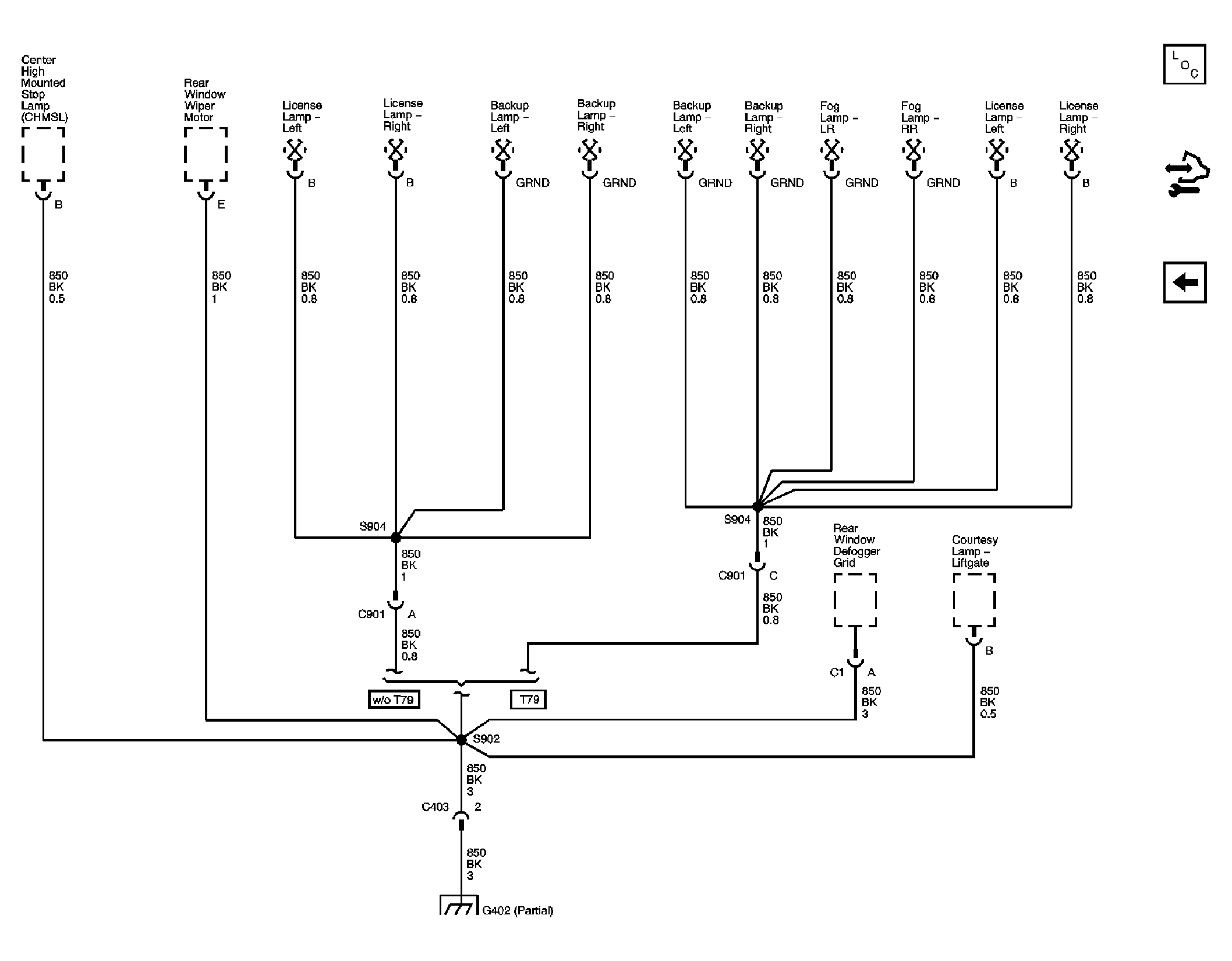

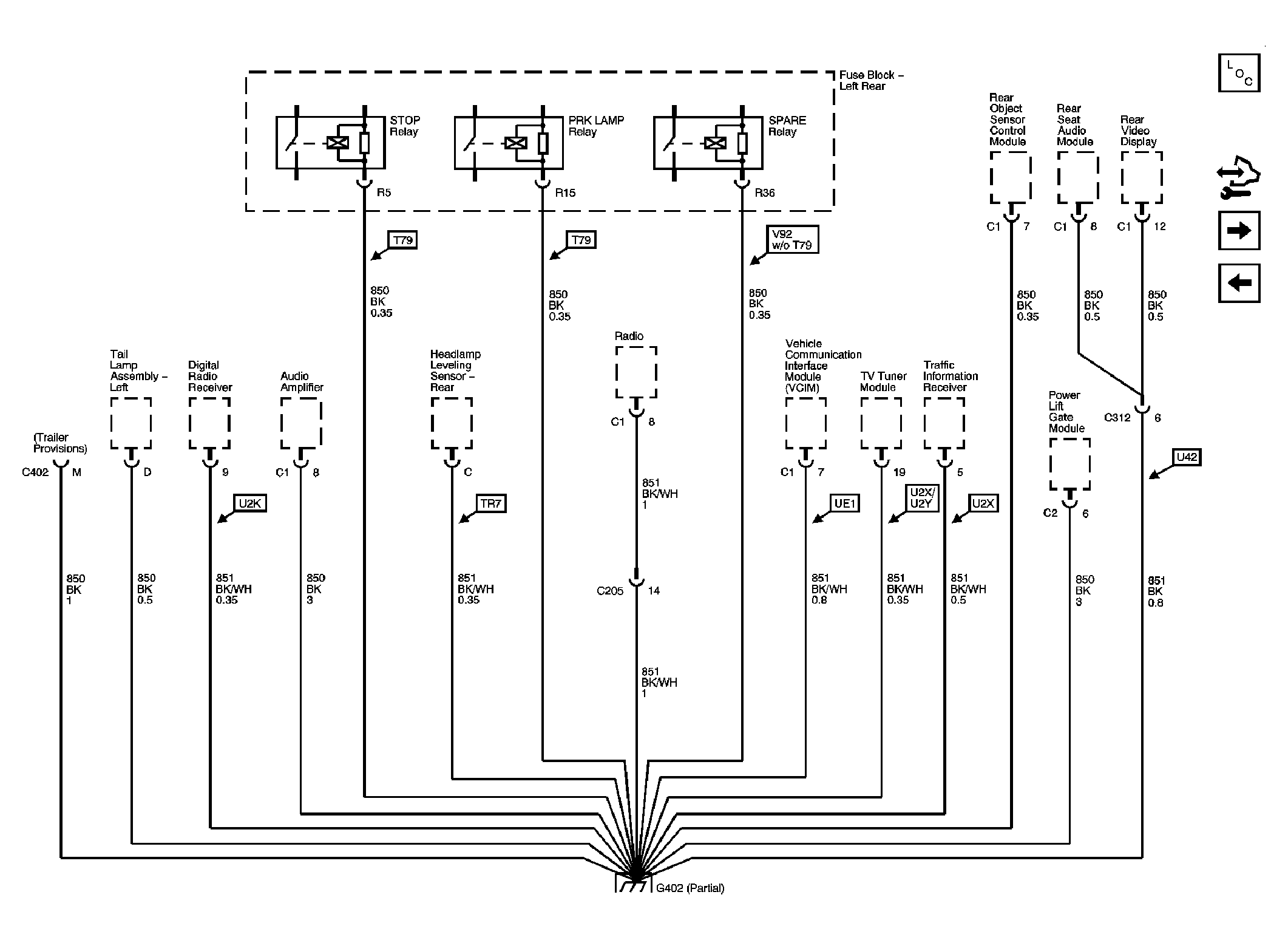

Fig 16: G402 (1 of 2) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 17: G402 (2 of 2) Schematic

Courtesy of GENERAL MOTORS CORP.
