Power and Grounding Component Views (RHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

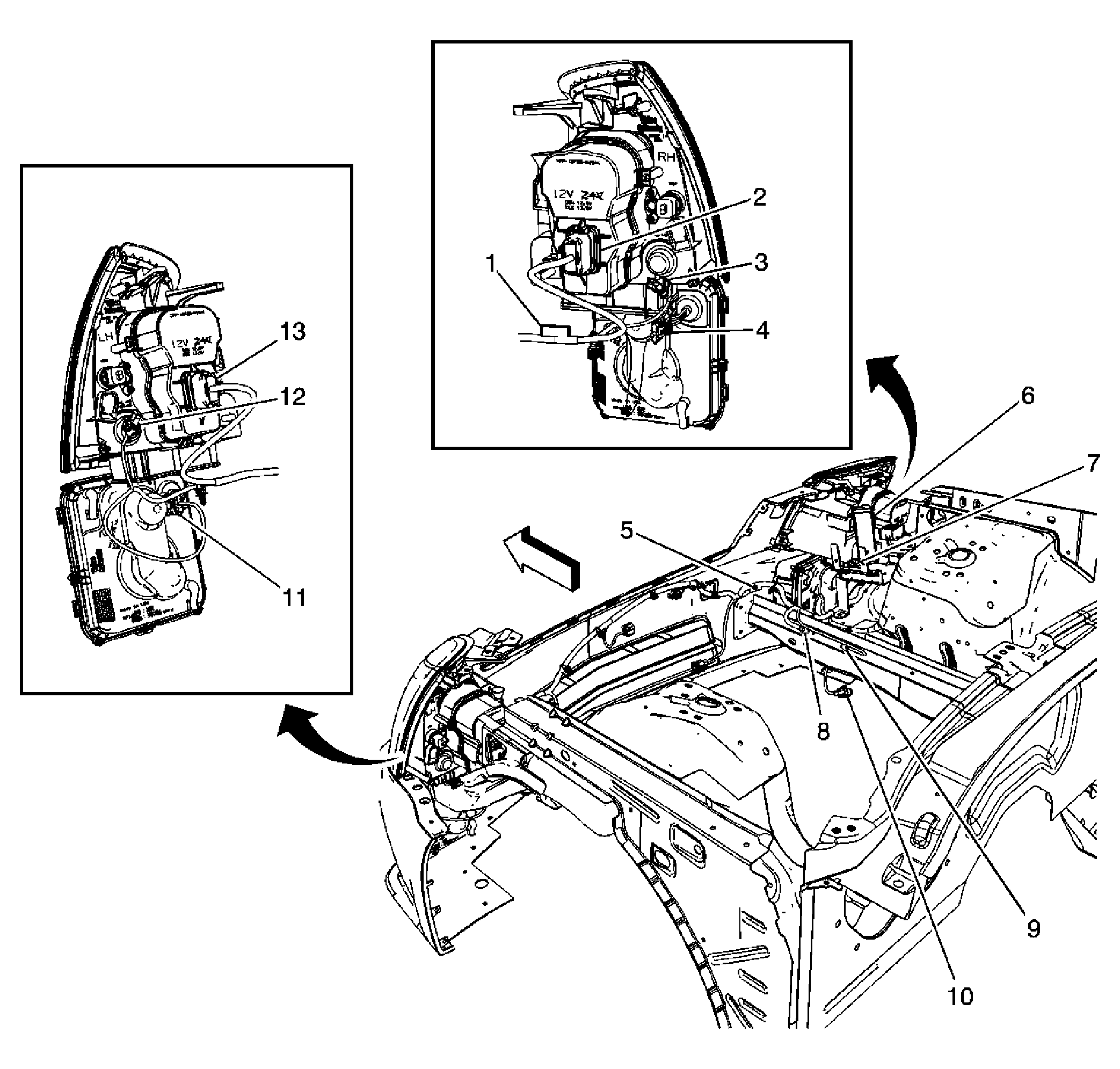

Fig 1: Forward Lamp Harness Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S104 (TR7)
2	C112
3	C114 (T90)
4	C109
5	S105 (K14)
6	Fuse Block - Underhood Bracket
7	C116
8	G104
9	G110 (LH2)
10	C113 (LH2)
11	C110
12	C115 (T90)
13	C111

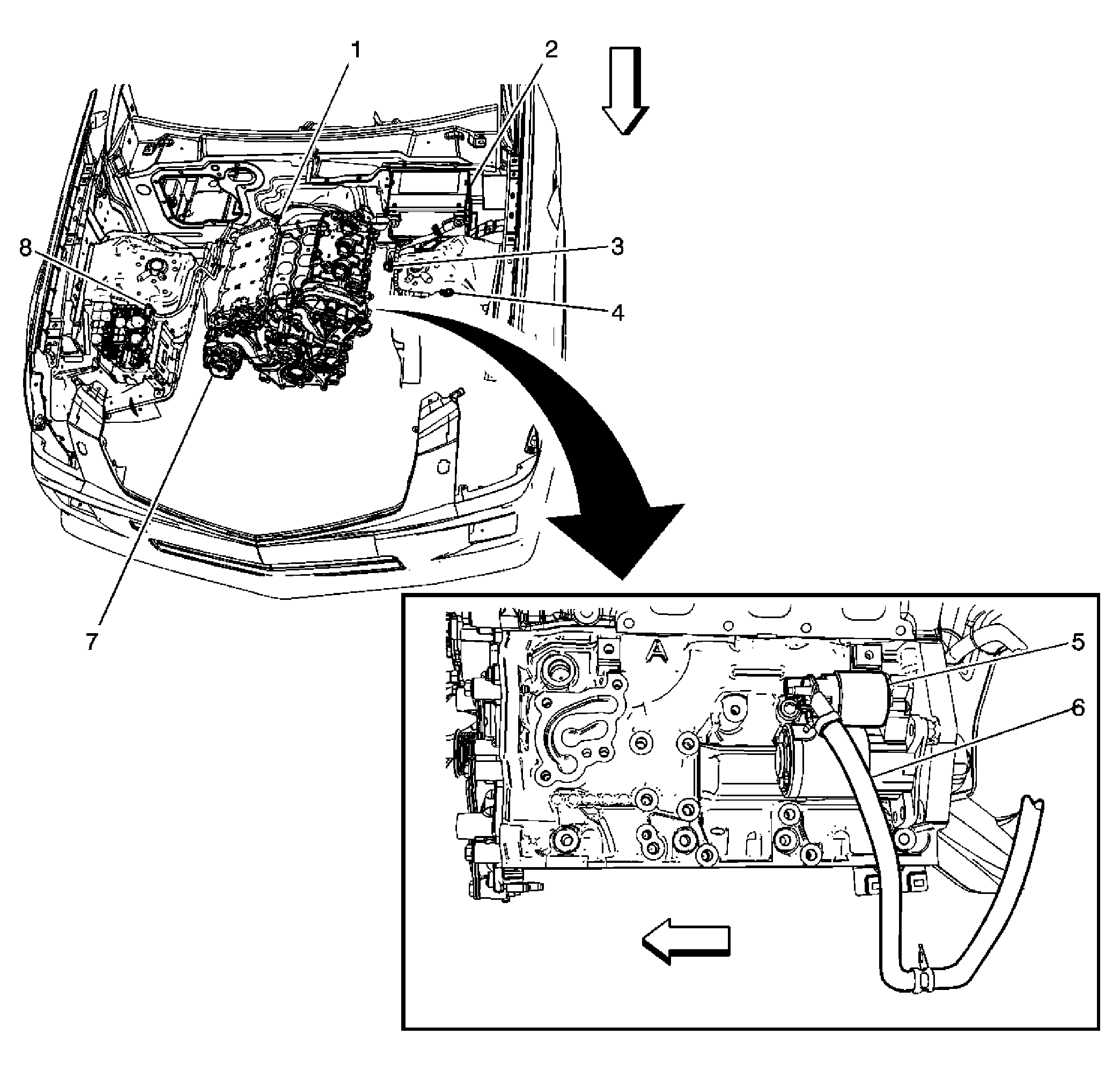

Fig 2: Engine Electrical Components - LY7 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	Battery
3	C103
4	G105
5	Starter
6	Positive Battery Cable
7	Generator
8	Fuse Block - Underhood Positive Voltage Studs

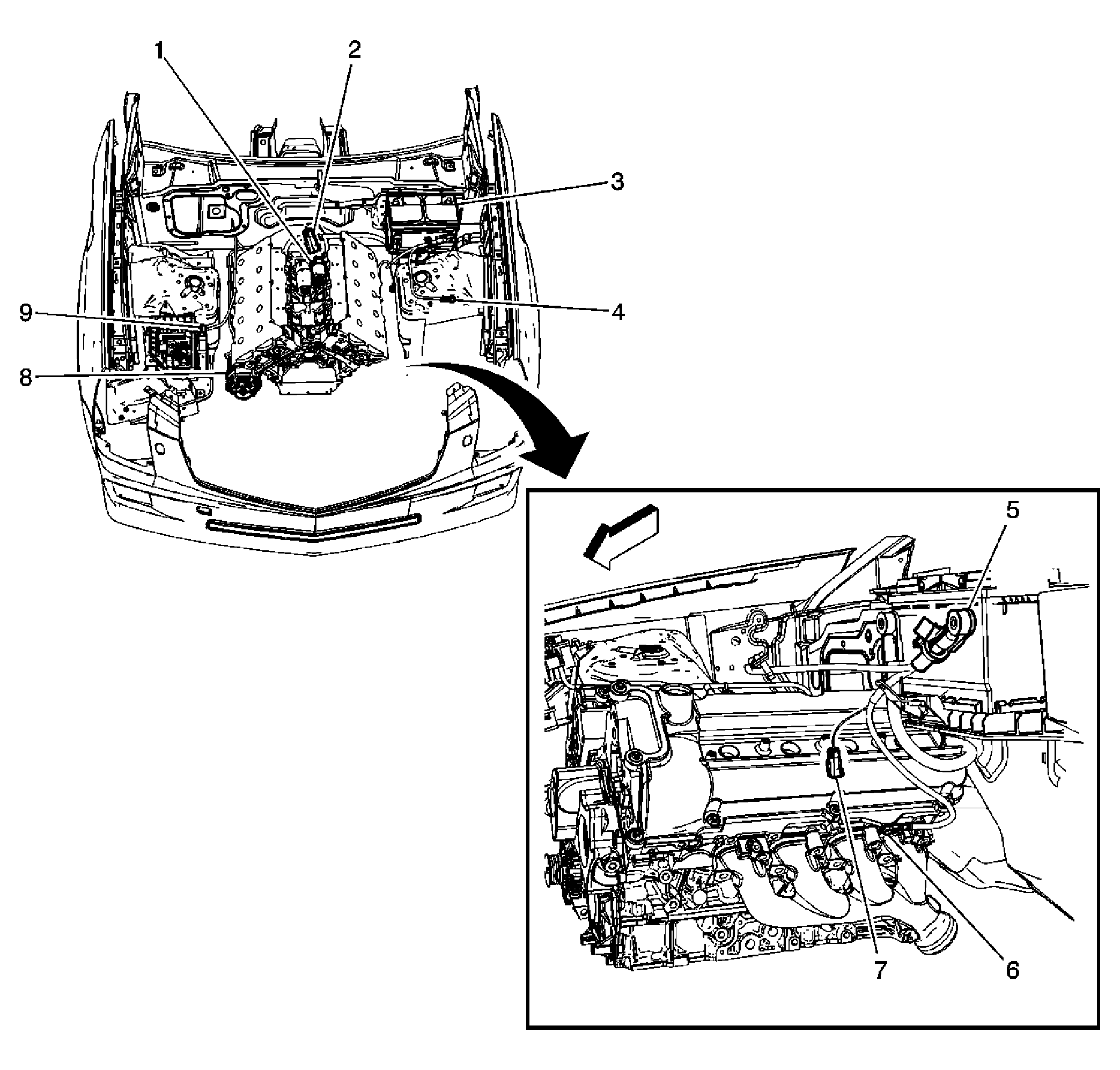

Fig 3: Engine Electrical Components - LH2 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter
2	C107
3	Battery
4	G105
5	Battery Current Sensor
6	G102
7	C103
8	Generator
9	Fuse Block - Underhood Positive Voltage Studs

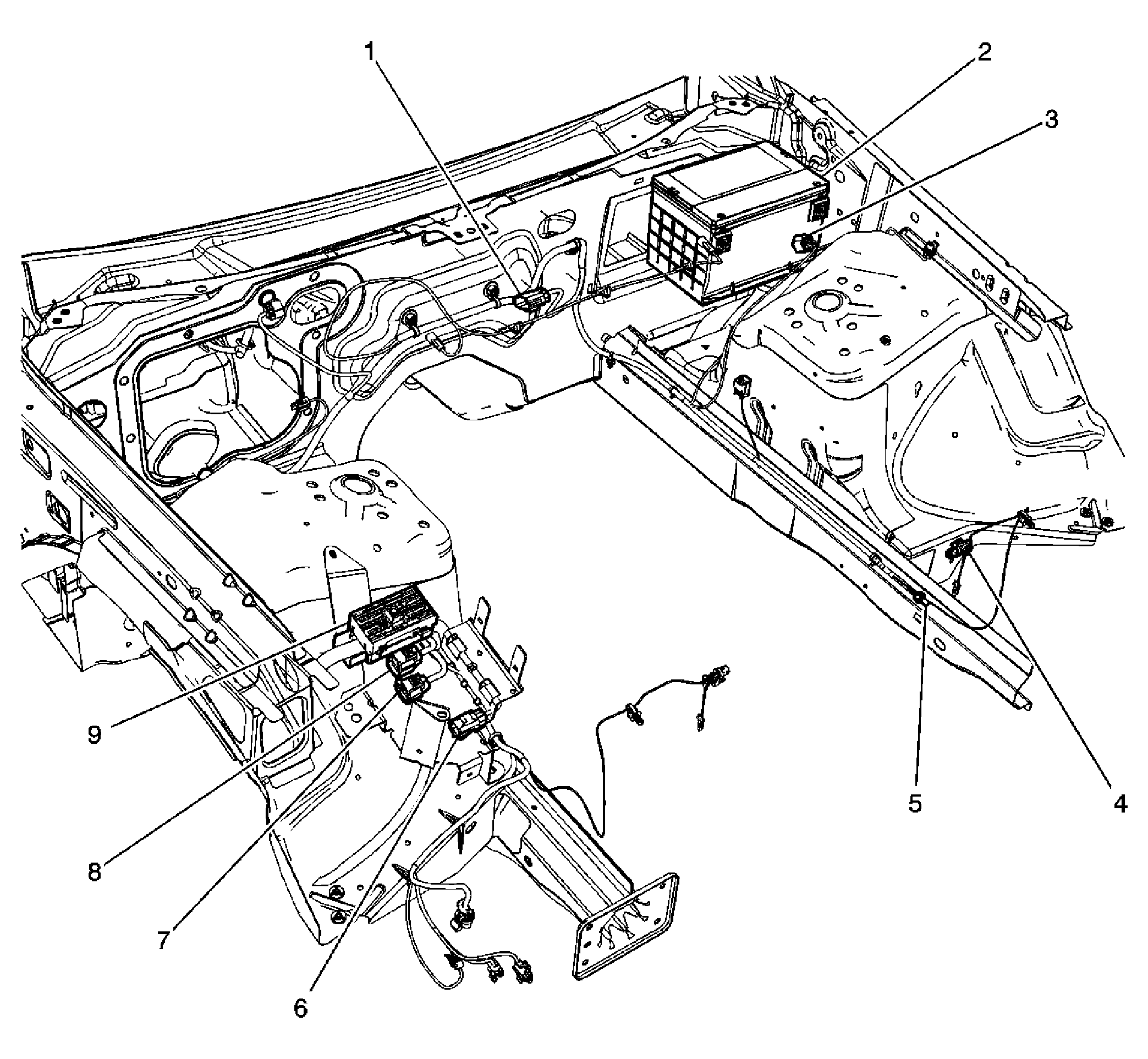

Fig 4: I/P Harness Routing - Front Engine Compartment Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C102
2	Battery
3	Battery Current Sensor
4	C103
5	G101
6	C116
7	C118
8	C117
9	Fuse Block - Underhood C2

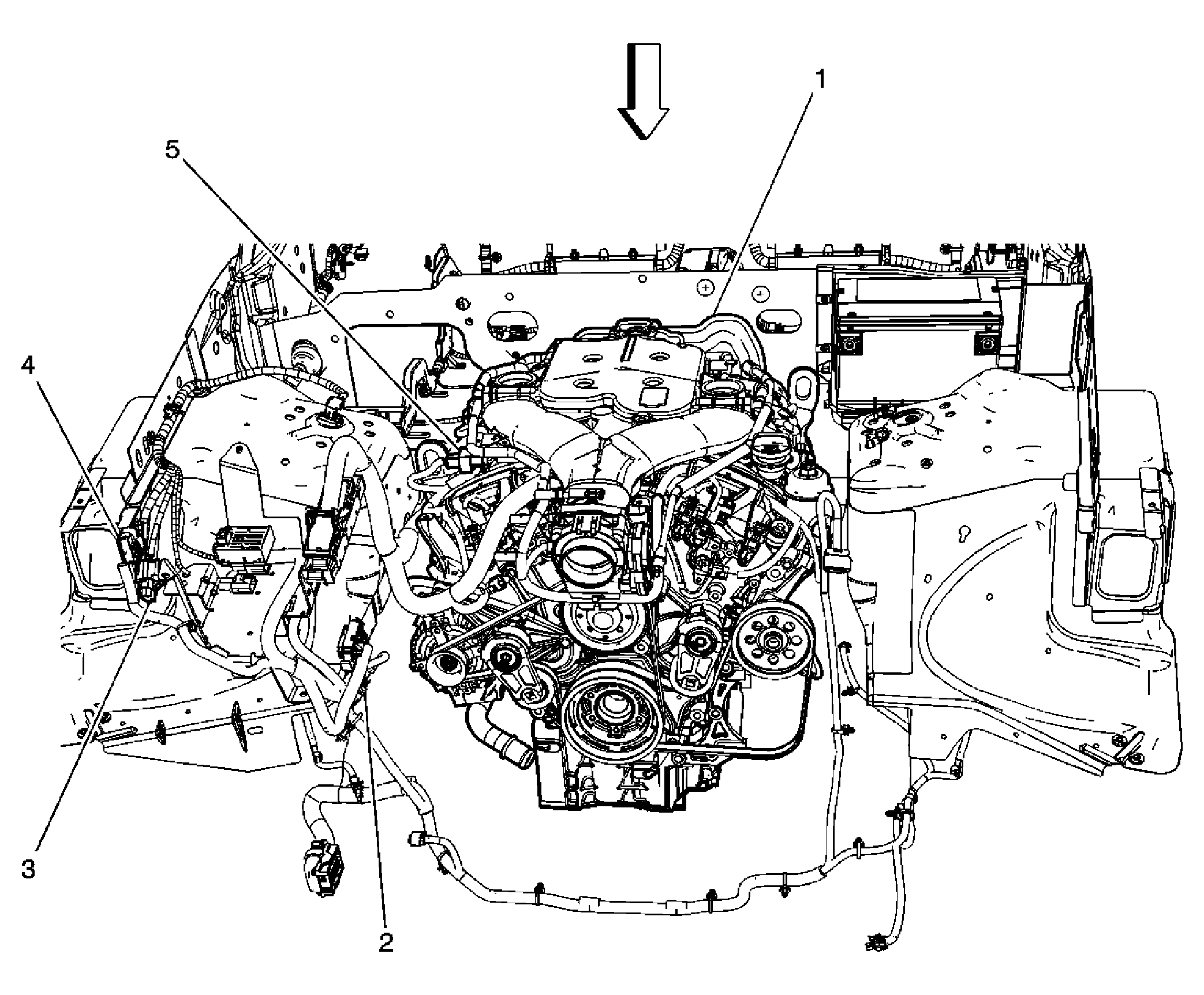

Fig 5: C101 And C105 (LY7) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine-LY7
2	C105 (F55)
3	C101
4	C108

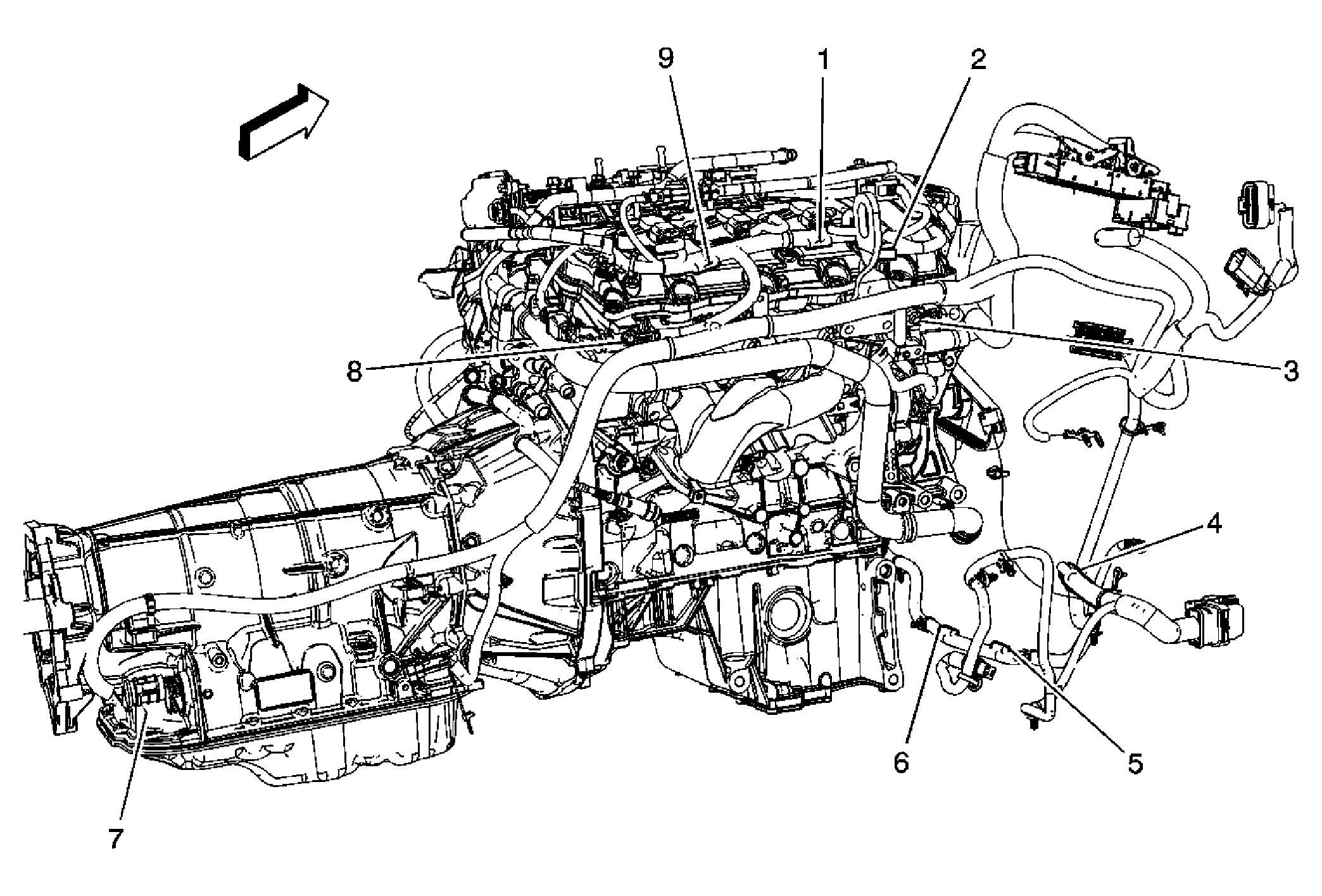

Fig 6: Right Side of Engine (LY7) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S111
2	S114
3	G106
4	S118
5	S100
6	S101
7	C175
8	G109
9	S112

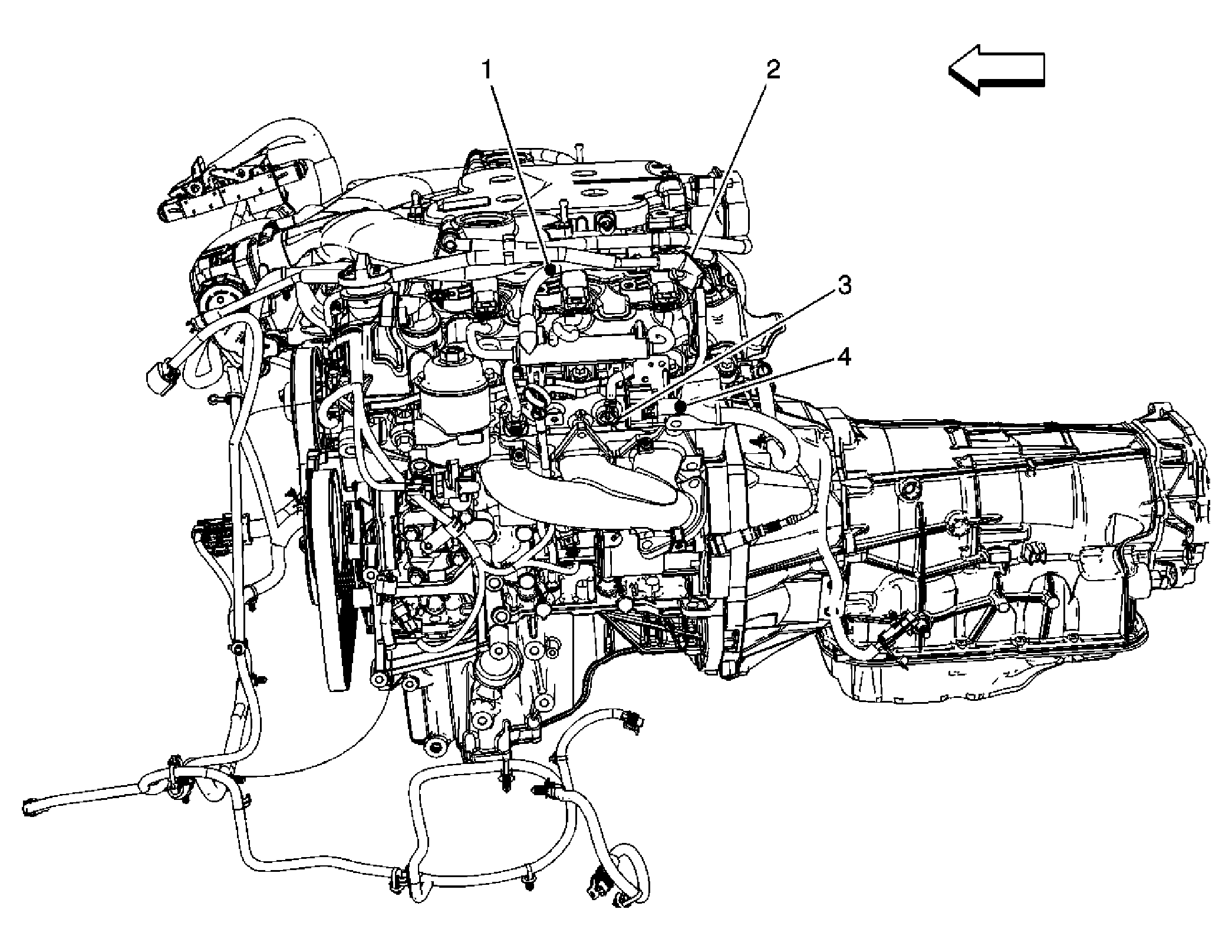

Fig 7: Left Side of Engine (LY7) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S102
2	S112
3	G111
4	C102

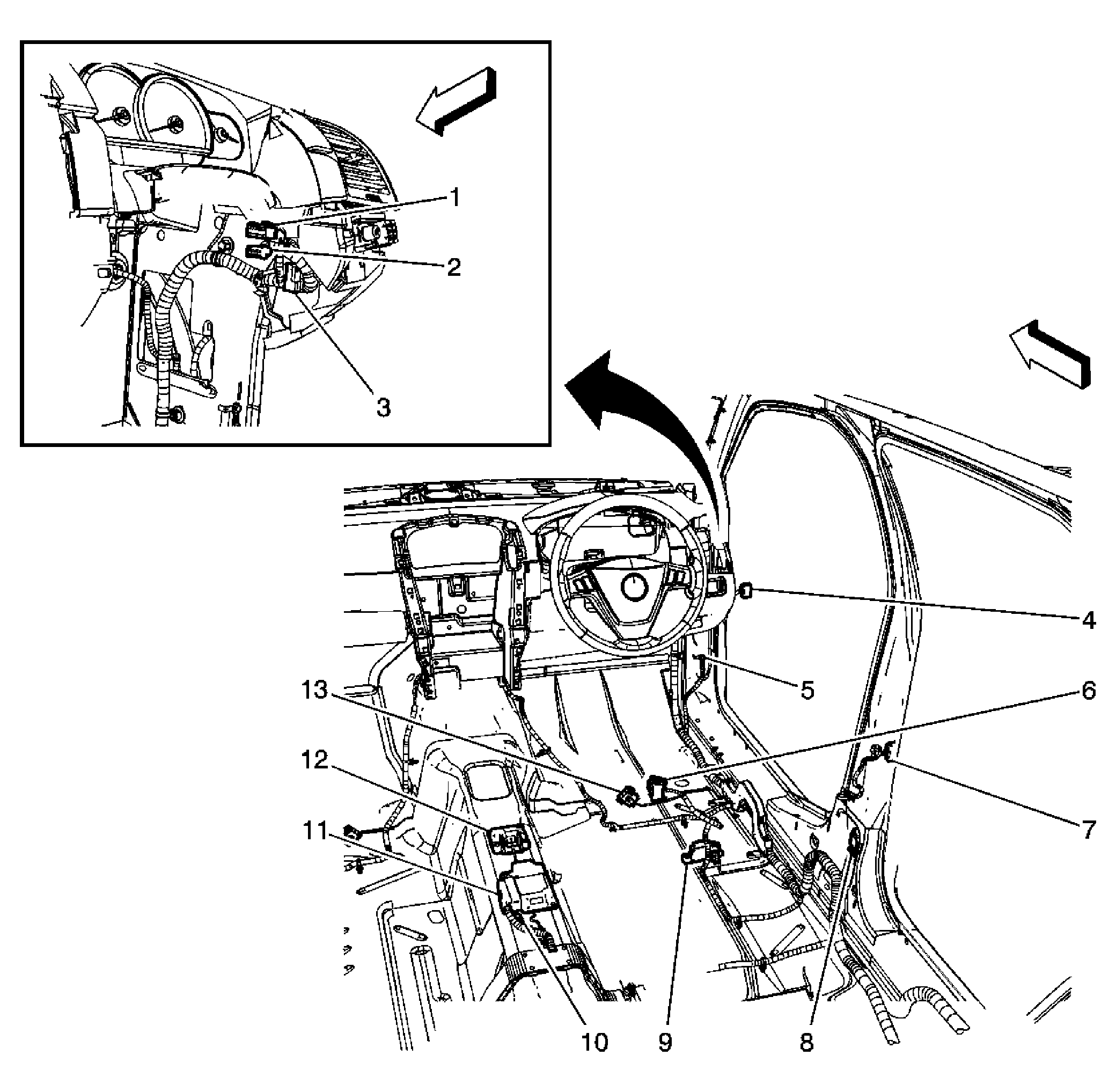

Fig 8: Body Harness Routing - Right Side Of Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C203
2	C201
3	C209
4	G201
5	C600
6	C300
7	C800
8	Right C-Pillar
9	Yaw and Lateral/Long Acceleration Sensor
10	G306
11	Inflatable Restraint Sensing and Diagnostic Module (SDM)
12	Rollover Sensor
13	C301

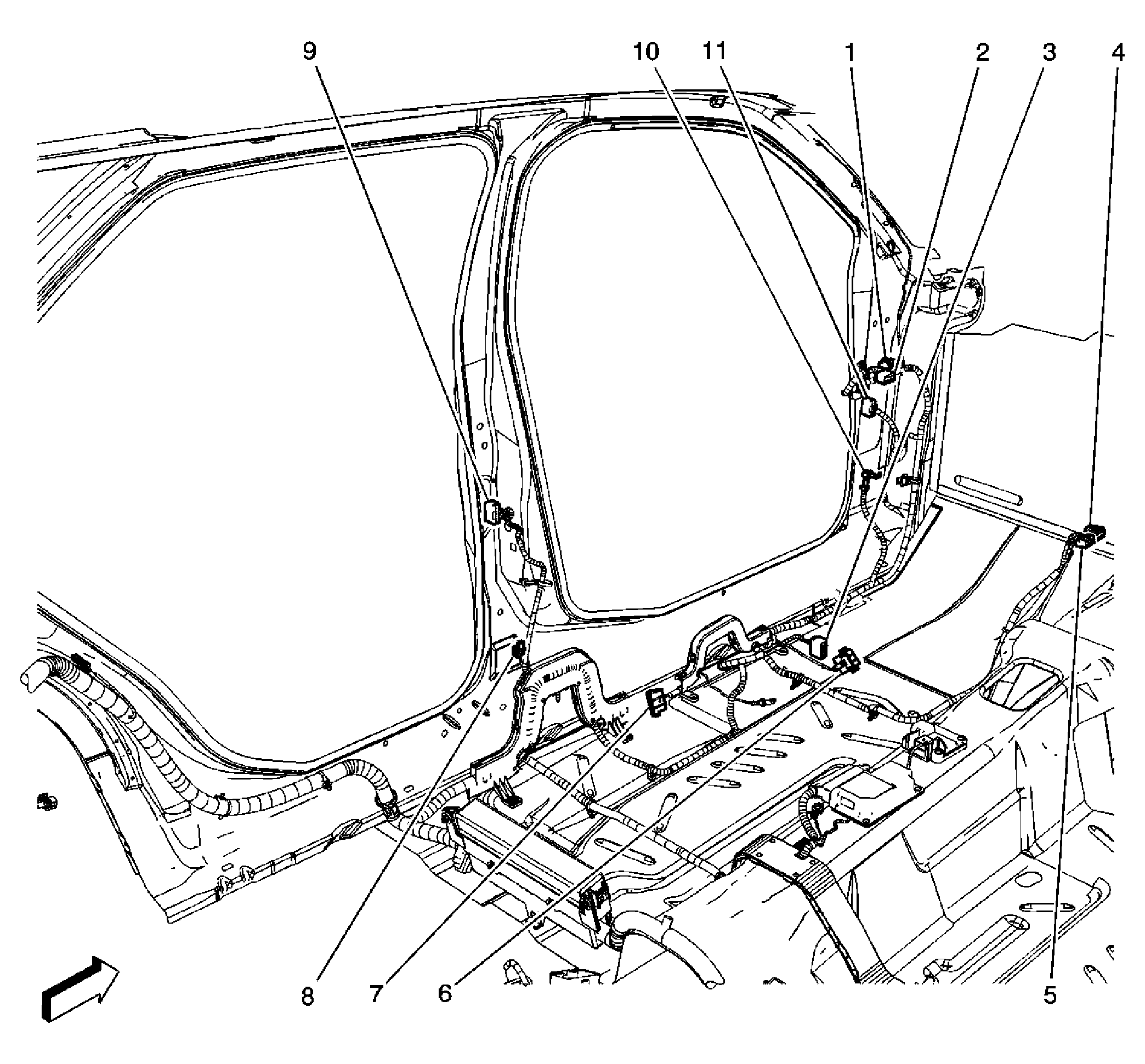

Fig 9: Body Harness Routing - Left Side of Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C206
2	C207
3	C307
4	C205
5	C200
6	C306
7	Splice Pack SP300
8	Left C-Pillar
9	C700
10	G200
11	C500

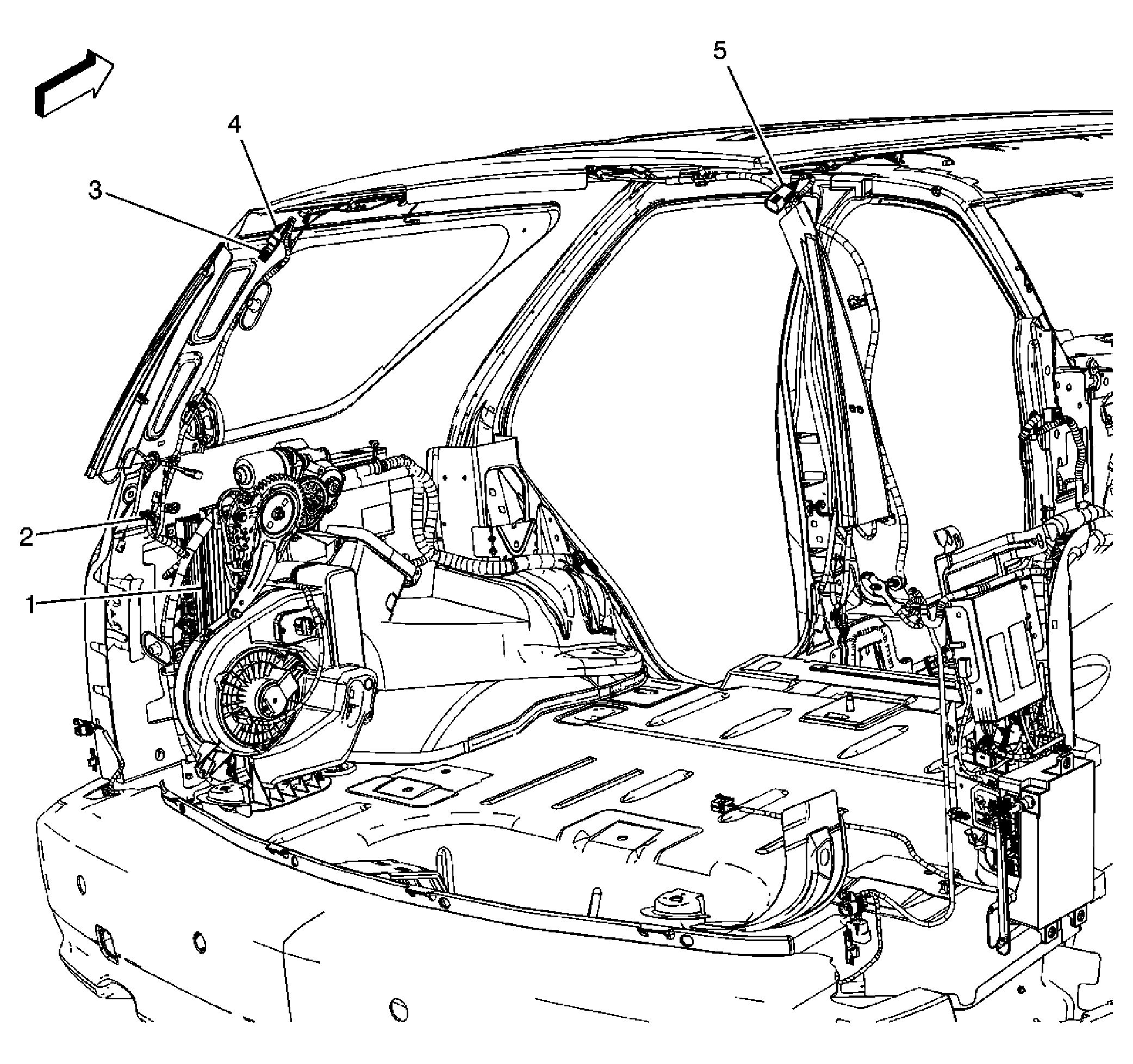

Fig 10: Body Harness Routing - Left Rear Cargo Area Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (UQA/UQS)
2	G402
3	C403
4	C404
5	C401

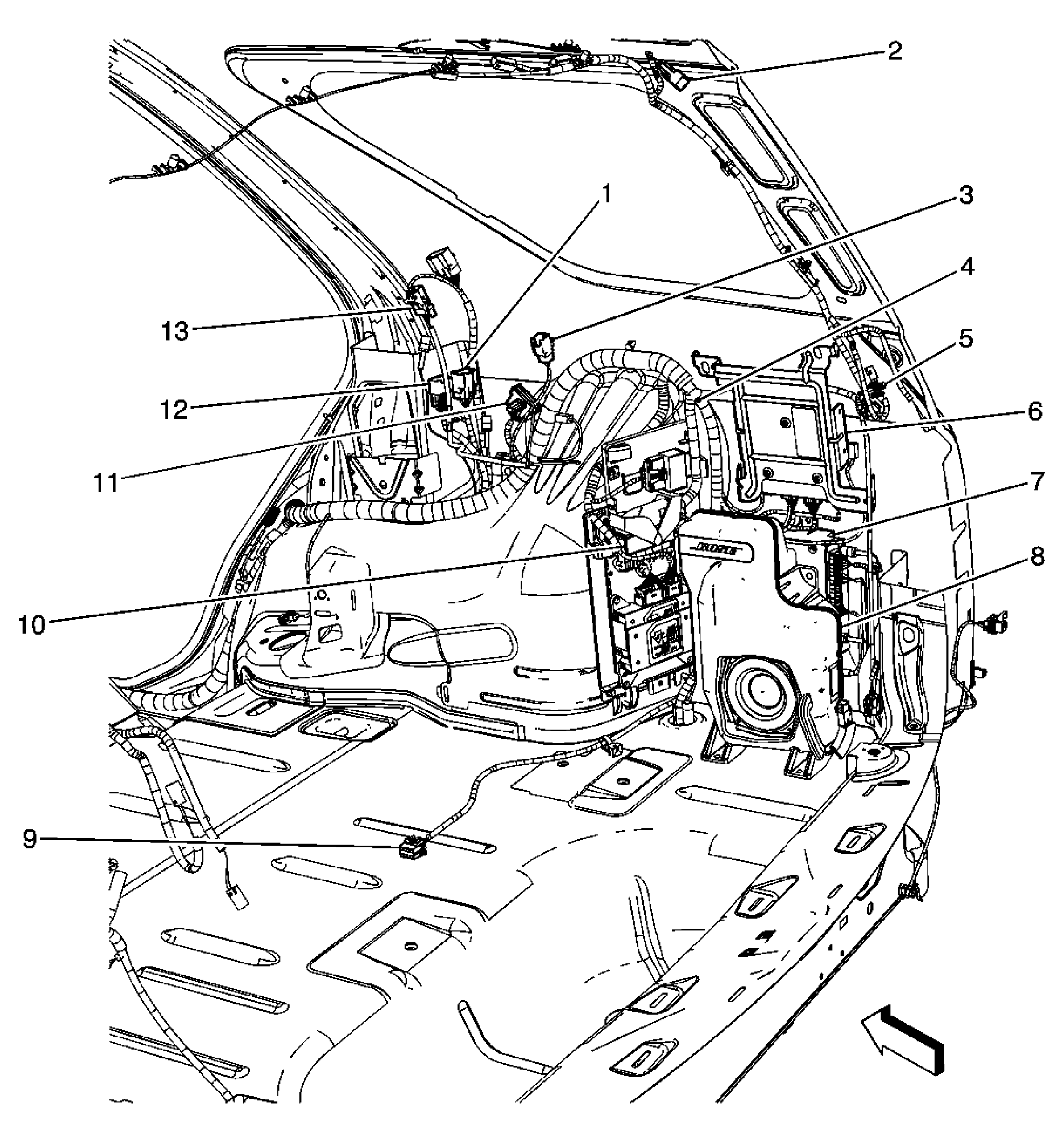

Fig 11: Body Harness Routing - Right Rear Cargo Area Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C308
2	C401
3	C310
4	Terminator Resistor
5	G401
6	Digital Radio Receiver (U2K)
7	Vehicle Communication Interface Module (VCIM) - (UE1)
8	Speaker - Rear Subwoofer
9	C311
10	Electronic Suspension Control (ESC) Module (F55)
11	Splice Pack SP304
12	C314
13	C316
