Power and Grounding Component Views (LHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

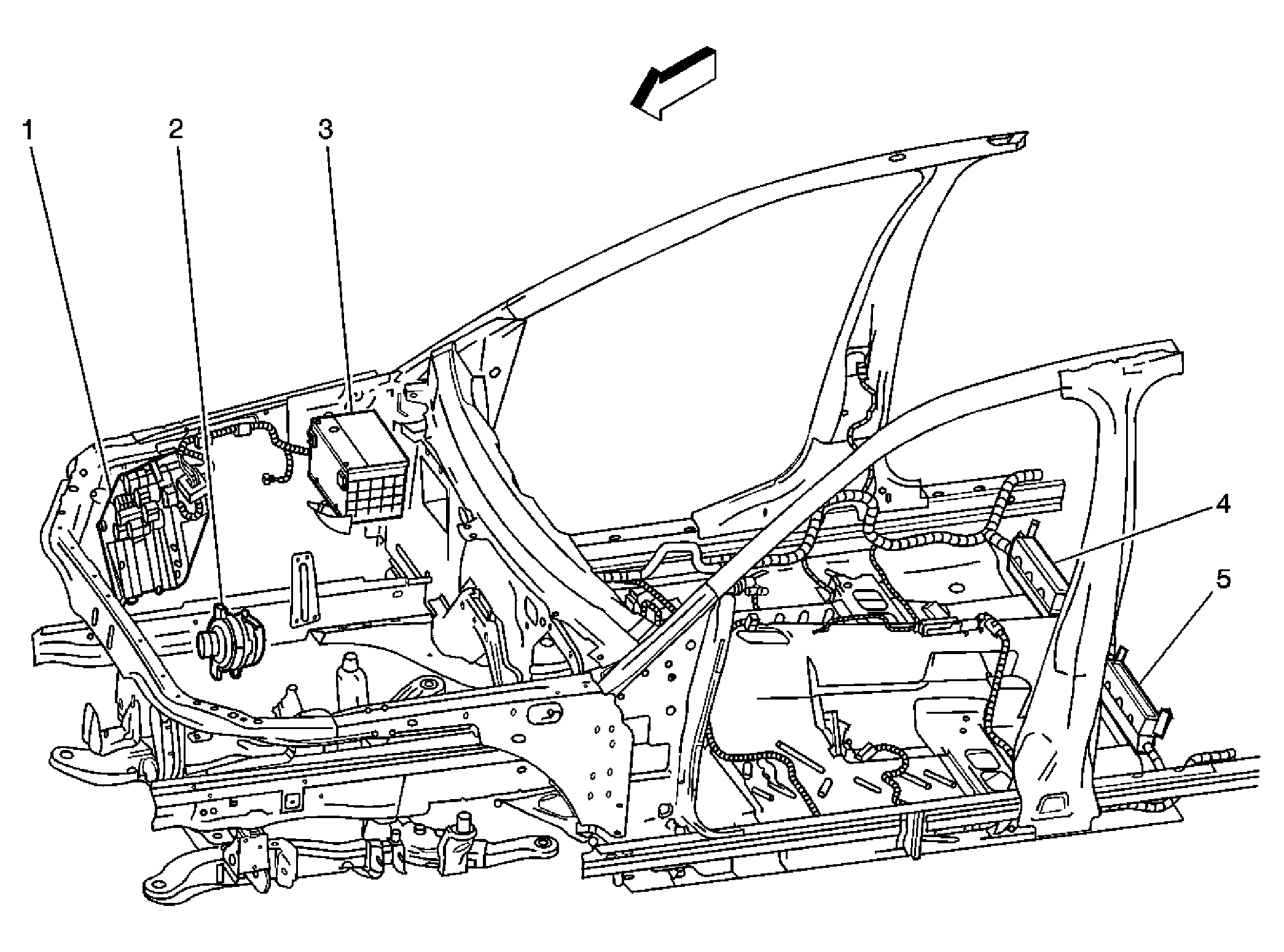

Fig 1: Front Of Engine Compartment & Passenger Compartment Component View
GM1276434Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Generator
3 Battery
4 Fuse Block - Right Rear
5 Fuse Block - Left Rear

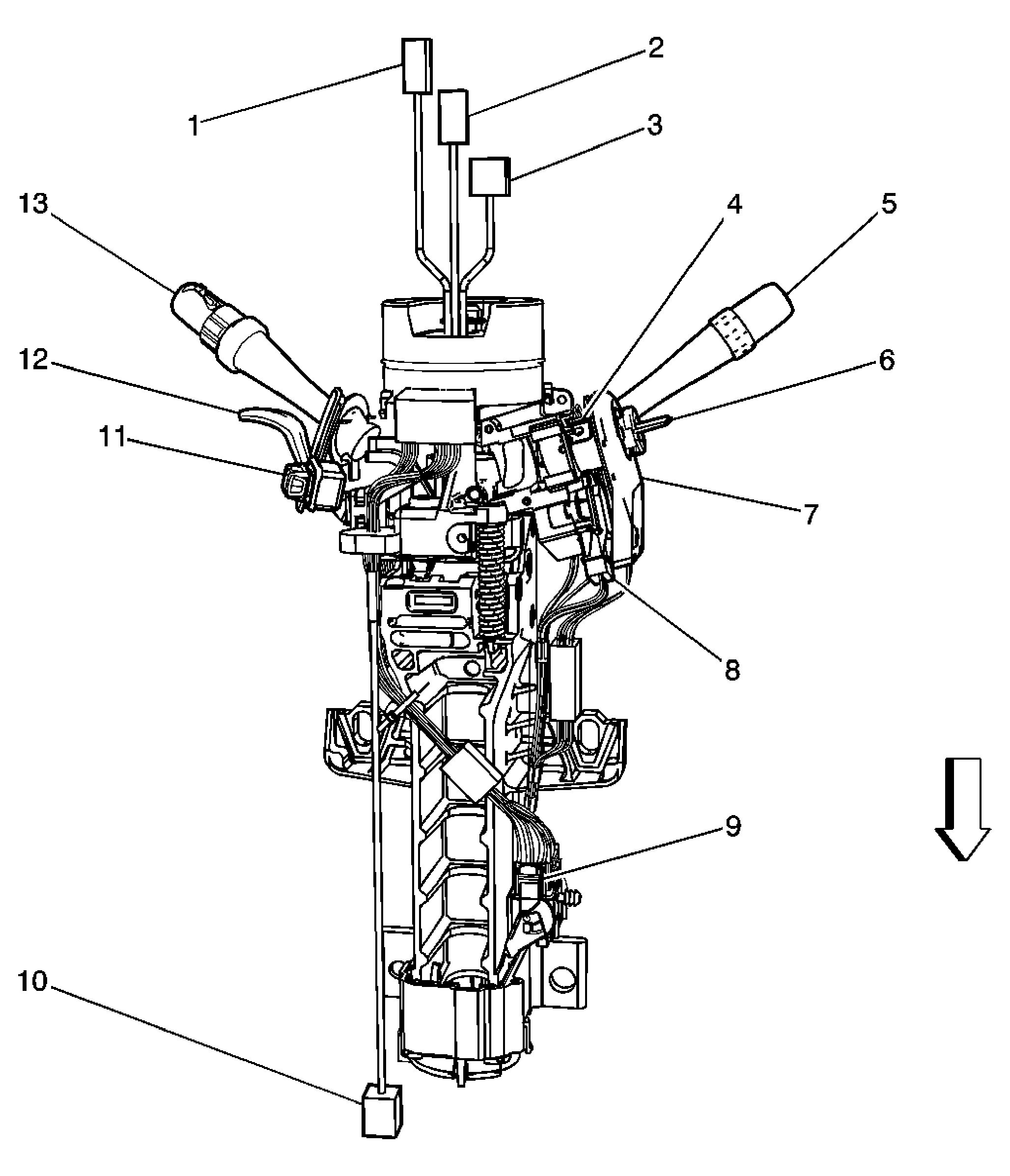

Fig 2: Steering Column Components Views
GM1870767Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module Coil Connector
2 Inflatable Restraint Steering Wheel Module Coil Connector
3 C208
4 Ignition Lock Cylinder Solenoid
5 Windshield Wiper Washer Switch
6 Ignition Lock Cylinder Case
7 Theft Deterrent Module (TDM)
8 Ignition Switch Connector
9 C202
10 C203
11 Adjustable Pedal Switch (JF4)
12 Steering Tilt Lever
13 Turn Signal/Multifunction Switch

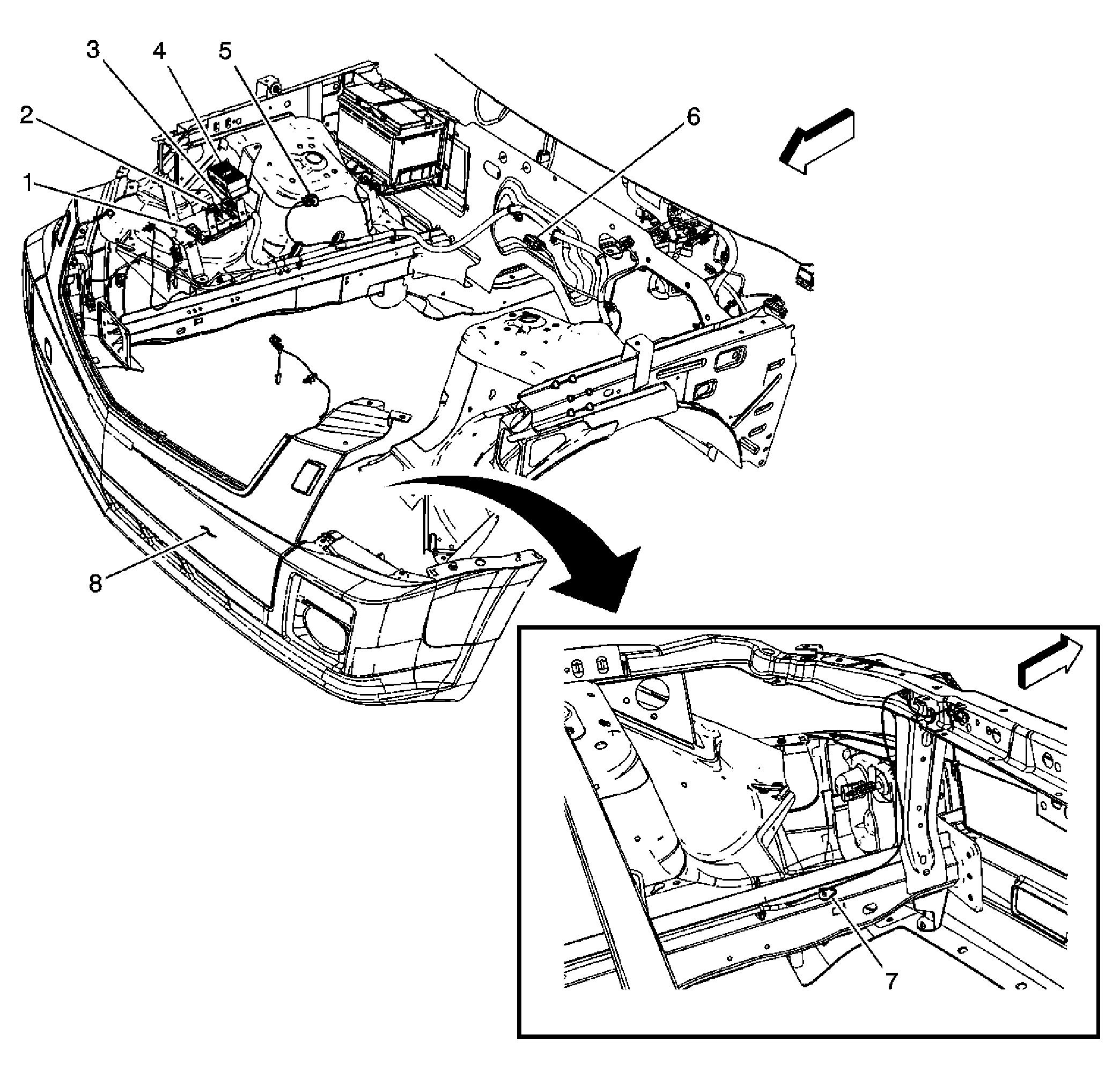

Fig 3: I/P Harness Routing - Front Engine Compartment Component Views
GM1827853Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C116
2 C118
3 C117
4 Fuse Block - Underhood C2
5 C103
6 C102
7 G101
8 Front Fascia

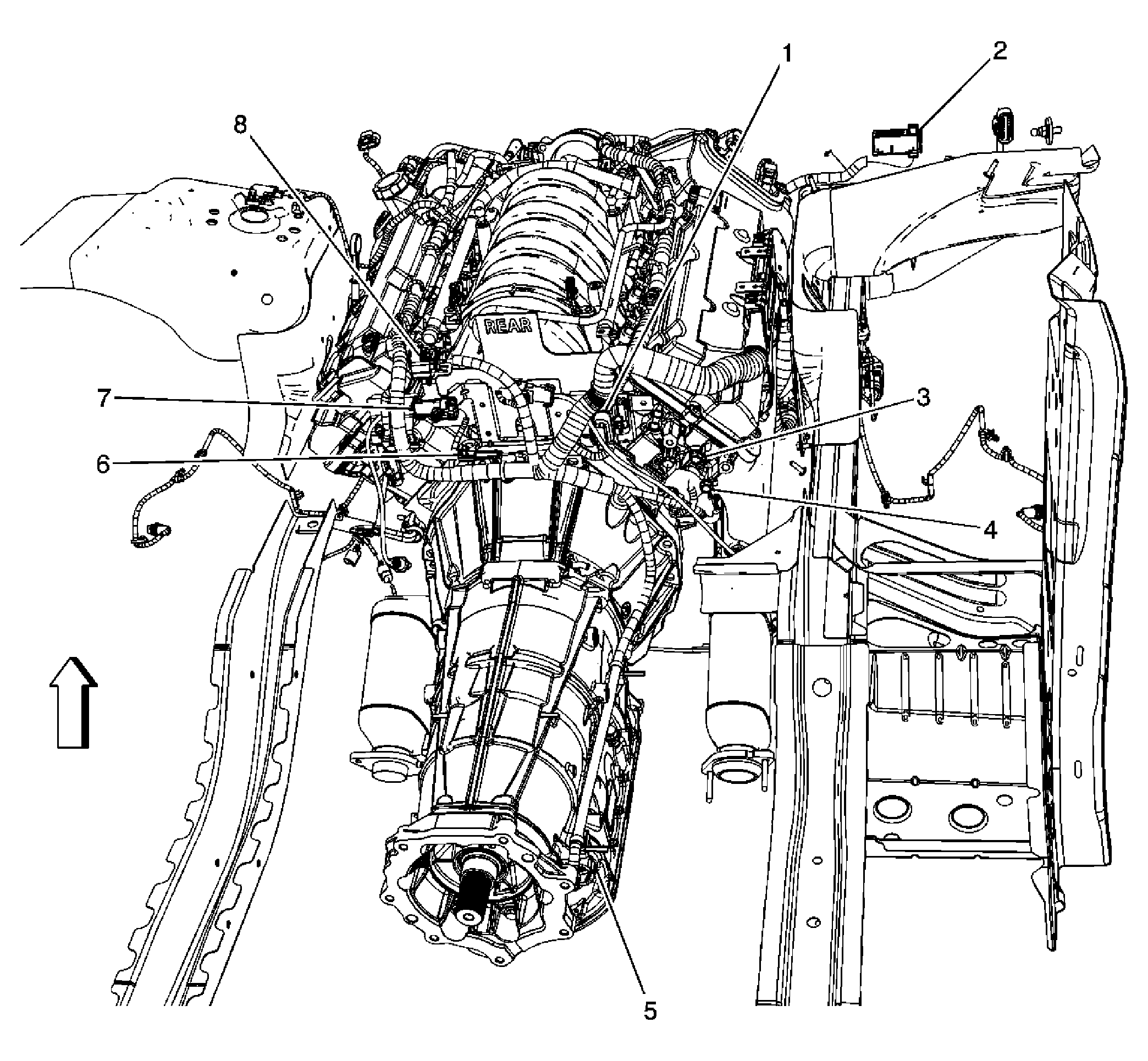

Fig 4: Rear of Engine Compartment (LH2) Component Views
GM1827826Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C104
2 Fuse Block - Underhood C3
3 G100
4 G107
5 C175
6 C107
7 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
8 C102
Fig 5: Forward Lamp Harness Component Views
GM1827830Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S104 (TR7)
2 C112
3 C114 (T90)
4 C109
5 S105 (K14)
6 Fuse Block - Underhood Bracket
7 C116
8 G104
9 G110 (LH2)
10 C113 (LH2)
11 C110
12 C115 (T90)
13 C111

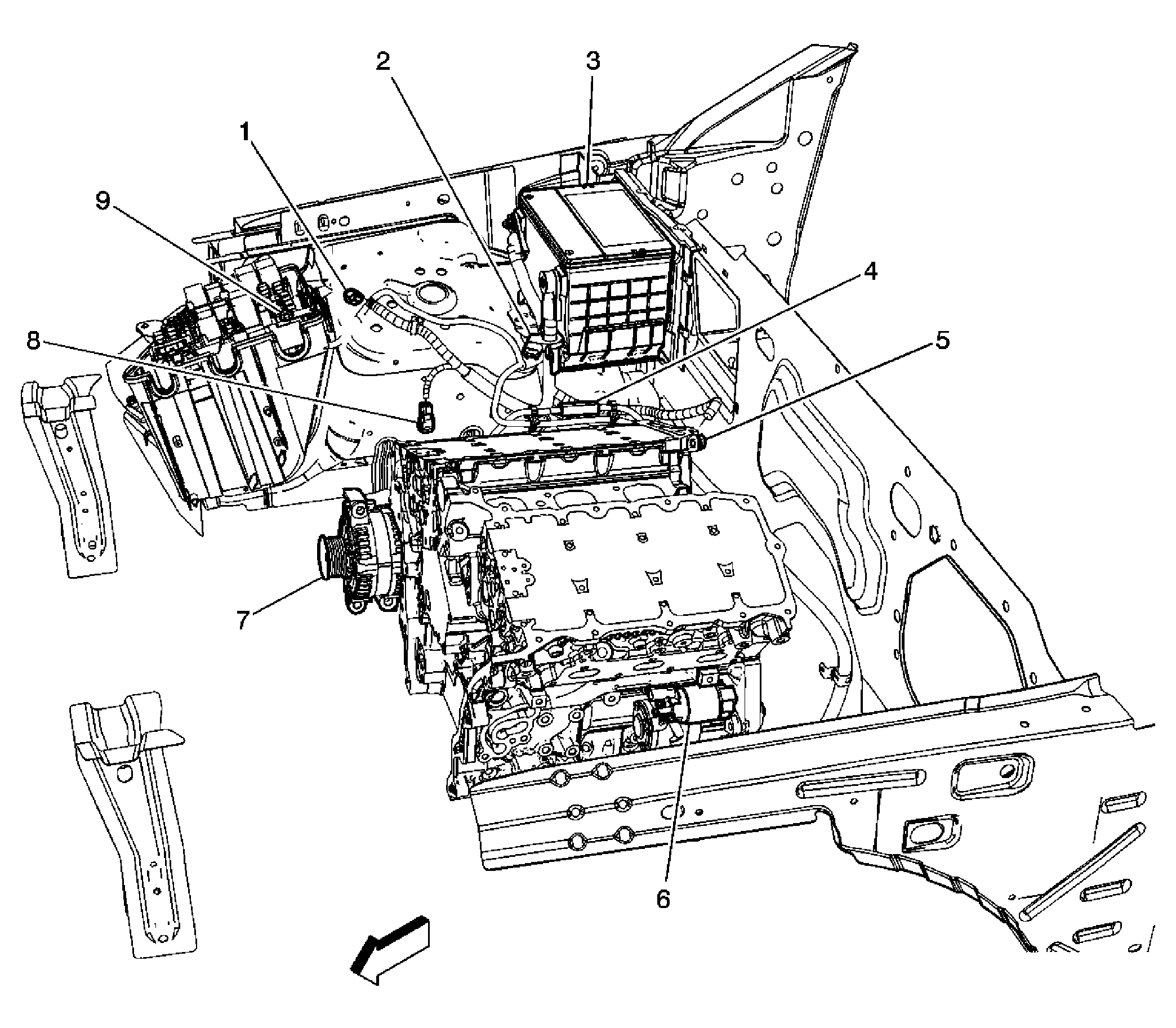

Fig 6: Battery Cables (LY7) Component Views
GM1828281Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G105
2 Battery Current Sensor
3 Battery
4 Mega Fuse (200A)
5 G102
6 Starter
7 Generator
8 C103
9 Battery Positive Voltage (Stud)

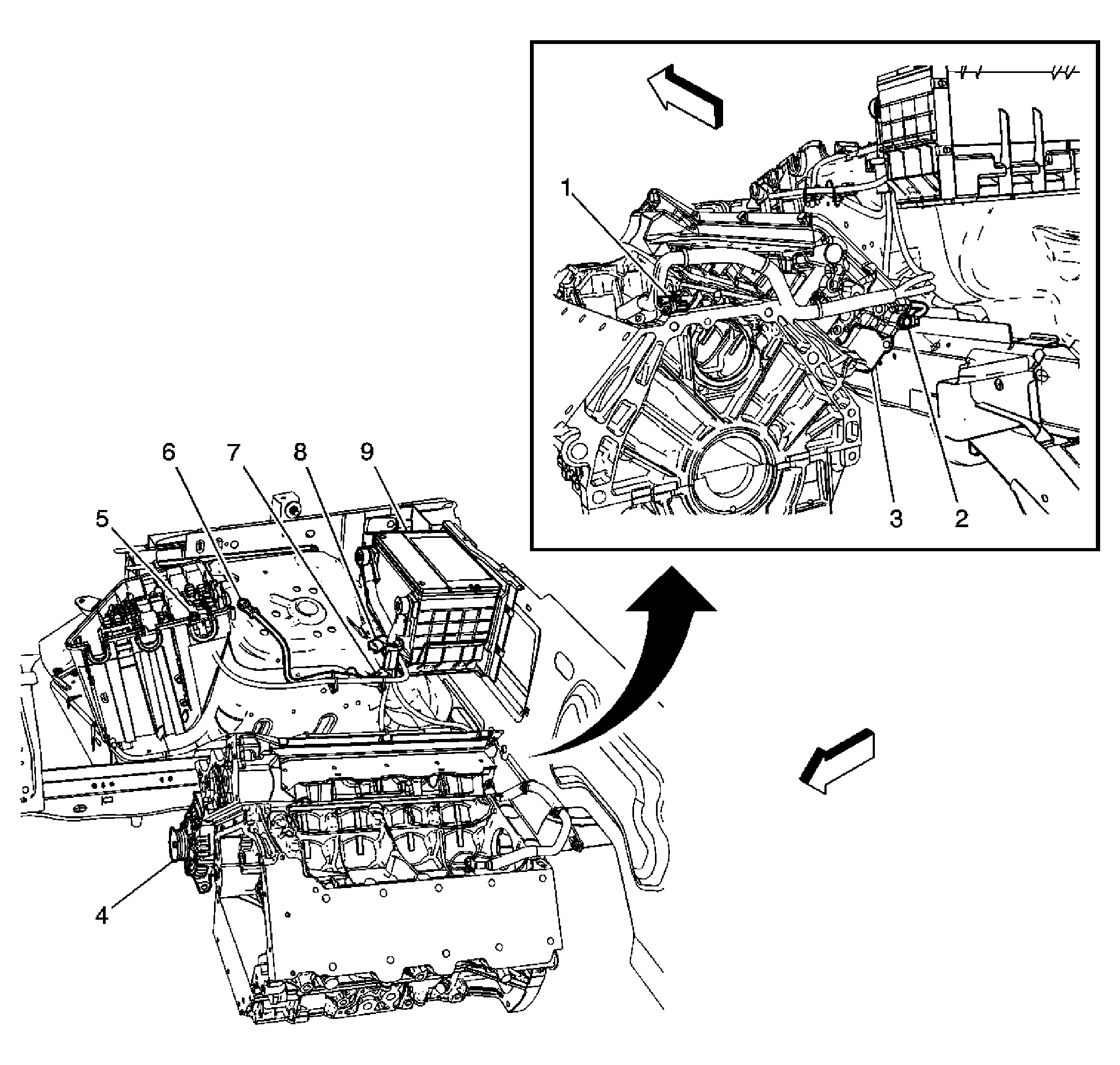

Fig 7: Battery Cables (LH2) Component Views
GM1828284Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C107
2 G102
3 Cylinder Head - RH
4 Generator
5 Battery Positive Voltage (Stud)
6 G105
7 C103
8 Battery Current Sensor
9 Battery
Fig 8: Right Side of Engine (LY7) Component Views
GM1827800Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S111
2 S114
3 G106
4 S118
5 S100
6 S101
7 C175
8 G109
9 S112
Fig 9: Left Side of Engine (LY7) Component Views
GM1827821Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S102
2 S112
3 G111
4 C102

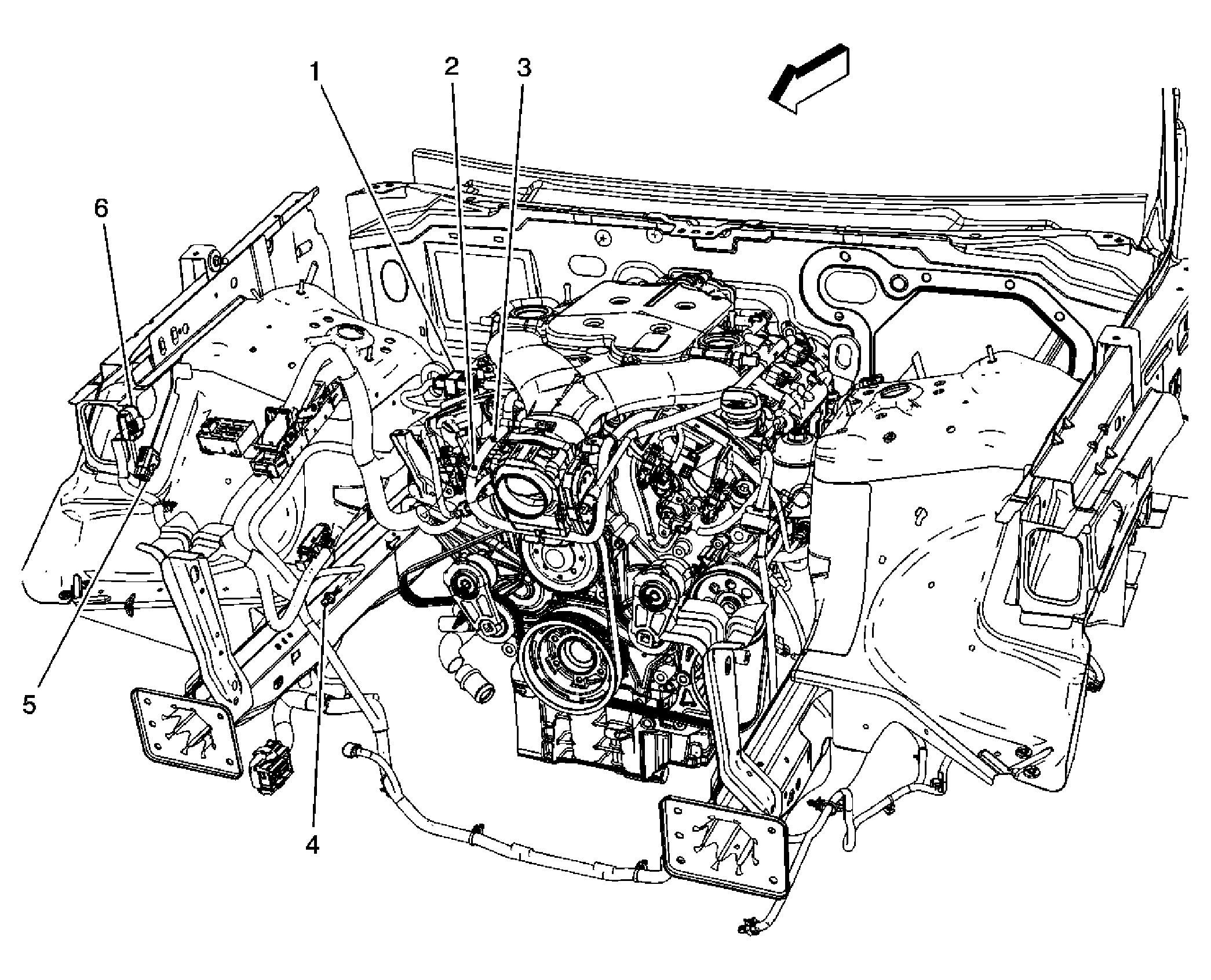

Fig 10: Front Of Engine Compartment (LY7) Component Views
GM1827812Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C108
2 S108
3 S109
4 G110
5 C105
6 C101

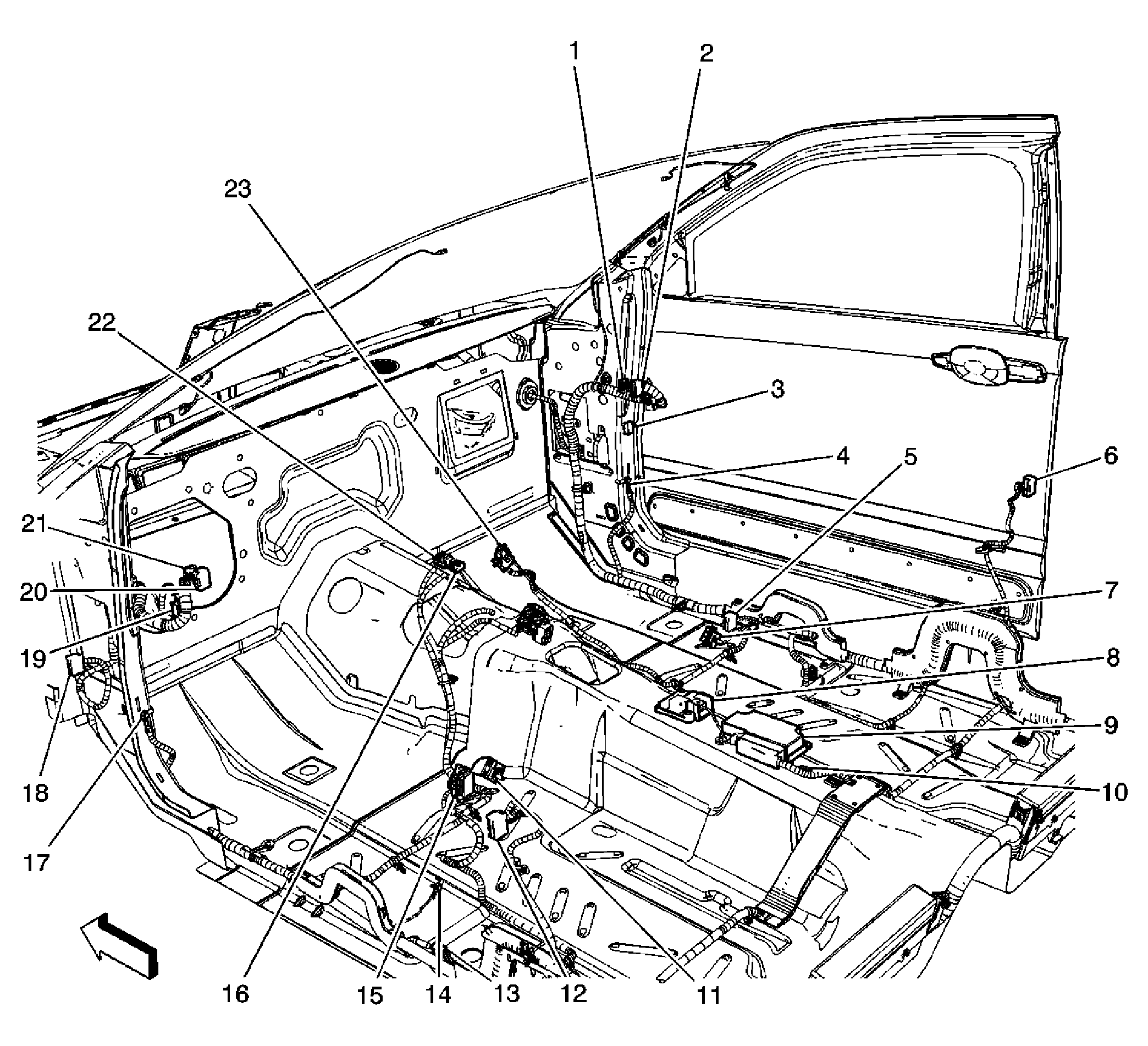

Fig 11: Body Harness Routing - Passenger Compartment Component Views
GM1827895Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C201
2 C203
3 C600
4 G201
5 C307
6 C800
7 C306
8 Rollover Sensor
9 Inflatable Restraint Sensing and Diagnostic Module (SDM)
10 G306
11 C301
12 C700
13 Splice Pack SP300
14 Floor Pan
15 C300
16 C200
17 G200
18 C500
19 C209 (LHD)
20 C207
21 C206
22 C205
23 C312

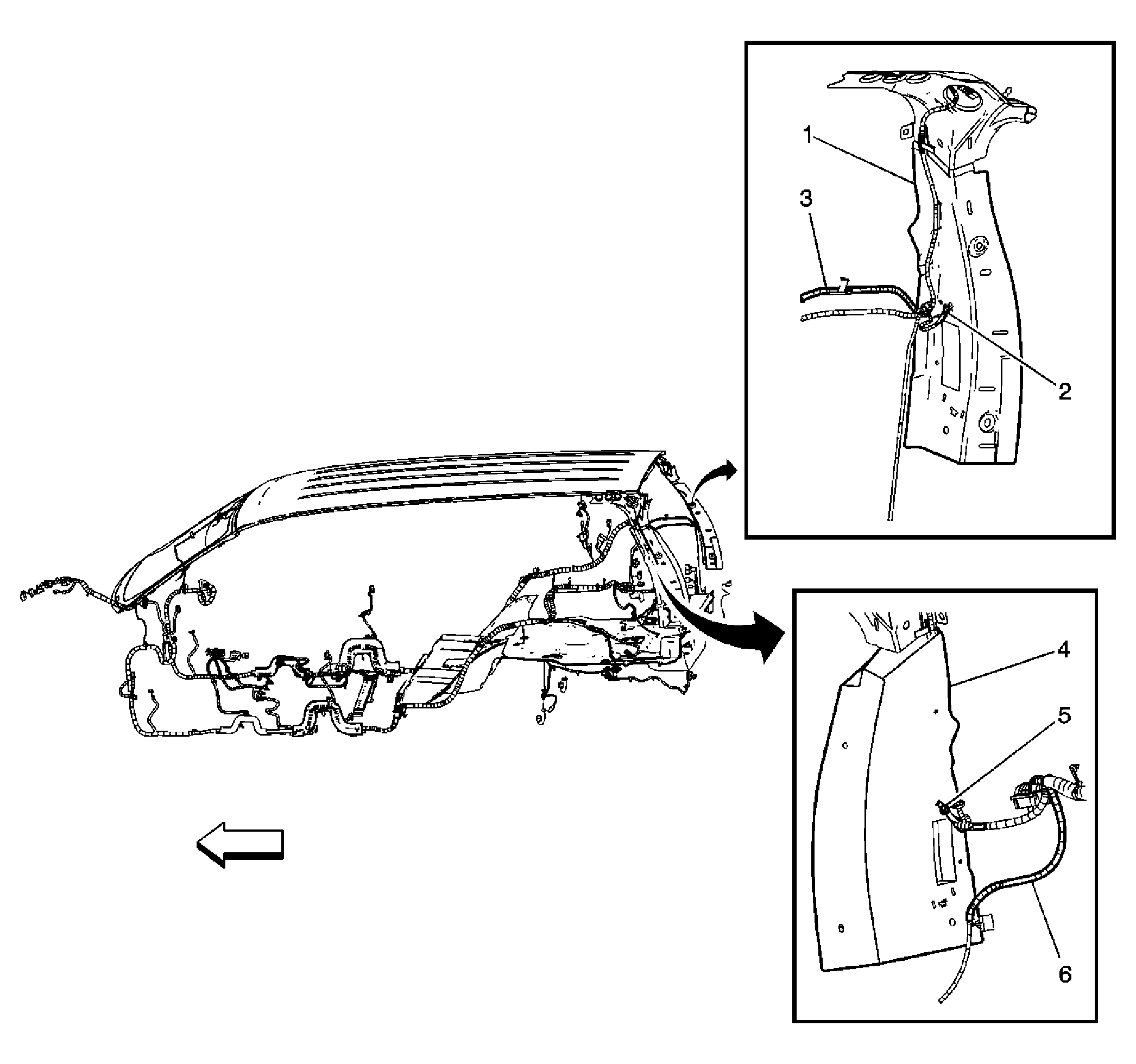

Fig 12: Rear D Pillars Component Views
GM1388273Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 D - Pillar - RR
2 G401
3 Body Harness
4 D - Pillar - LR
5 G402
6 Body Harness
