Interior Lights Schematics

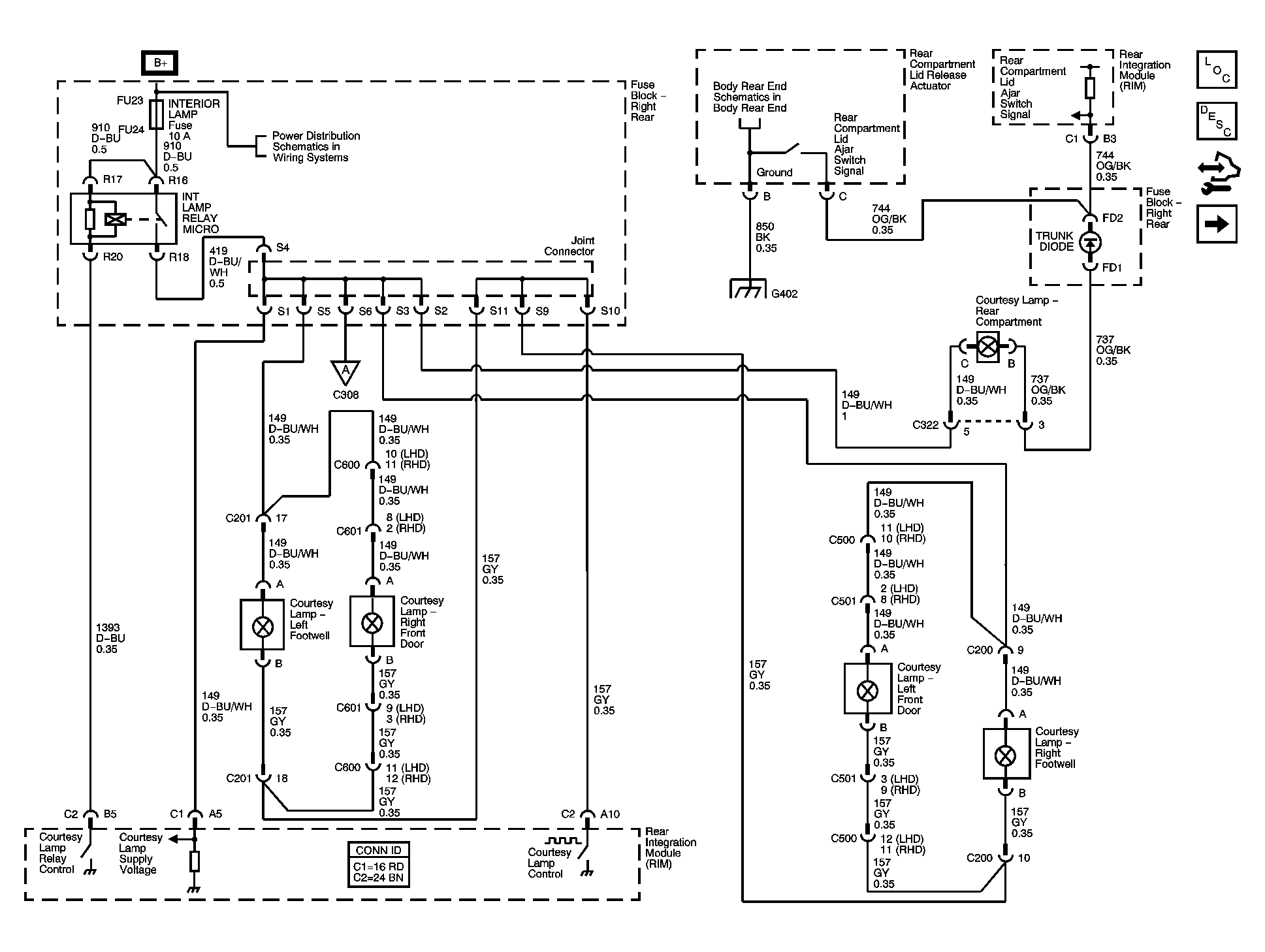

Fig 1: Courtesy Lamps

GM1470875

Courtesy of GENERAL MOTORS CORP.

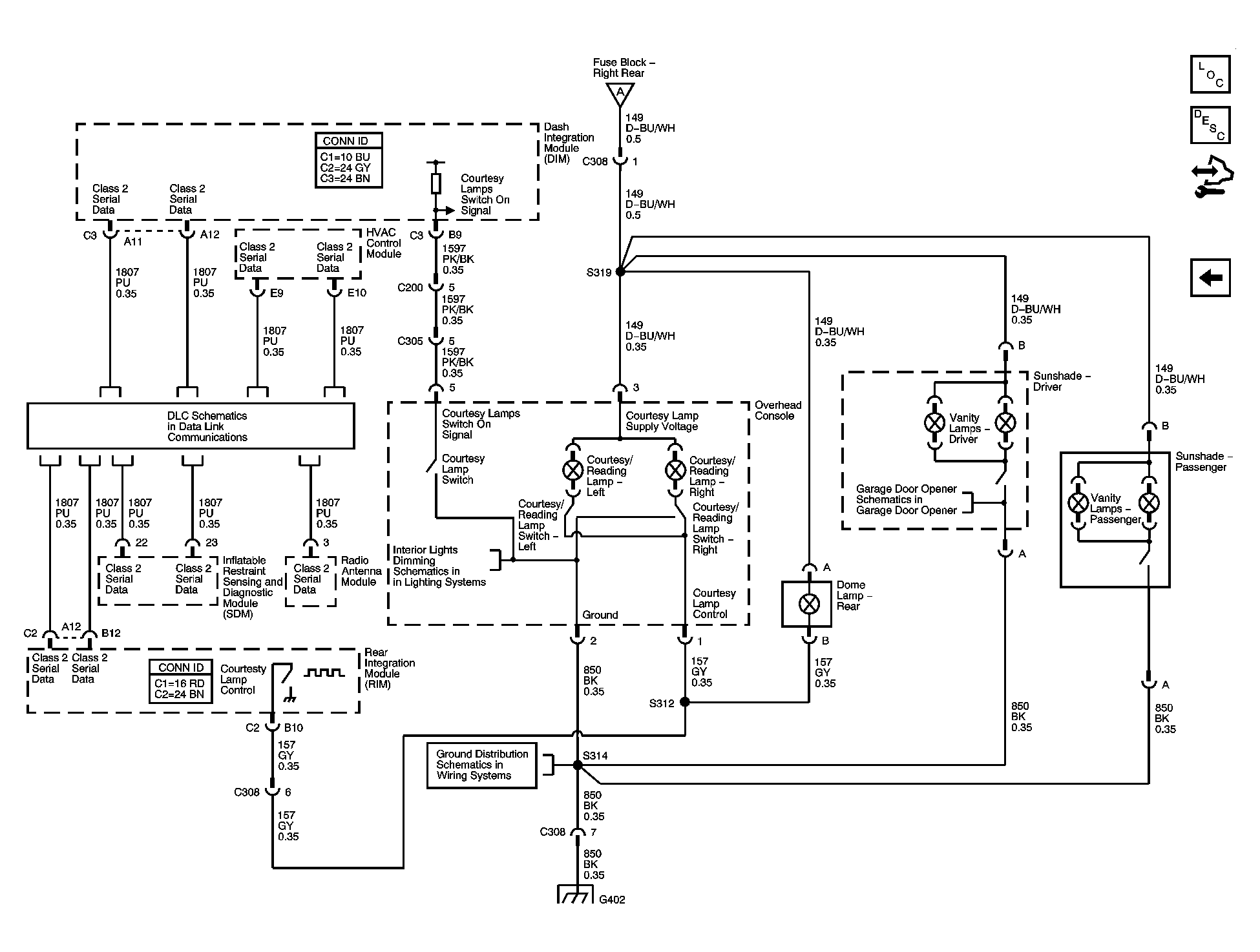

Fig 2: Overhead Courtesy Lamps, Dome Lamp, and Vanity Lamps

GM1470877

Courtesy of GENERAL MOTORS CORP.
