Headlights/Daytime Running Lights (DRL) Schematics

Fig 1: Headlamp Controls

Courtesy of GENERAL MOTORS CORP.

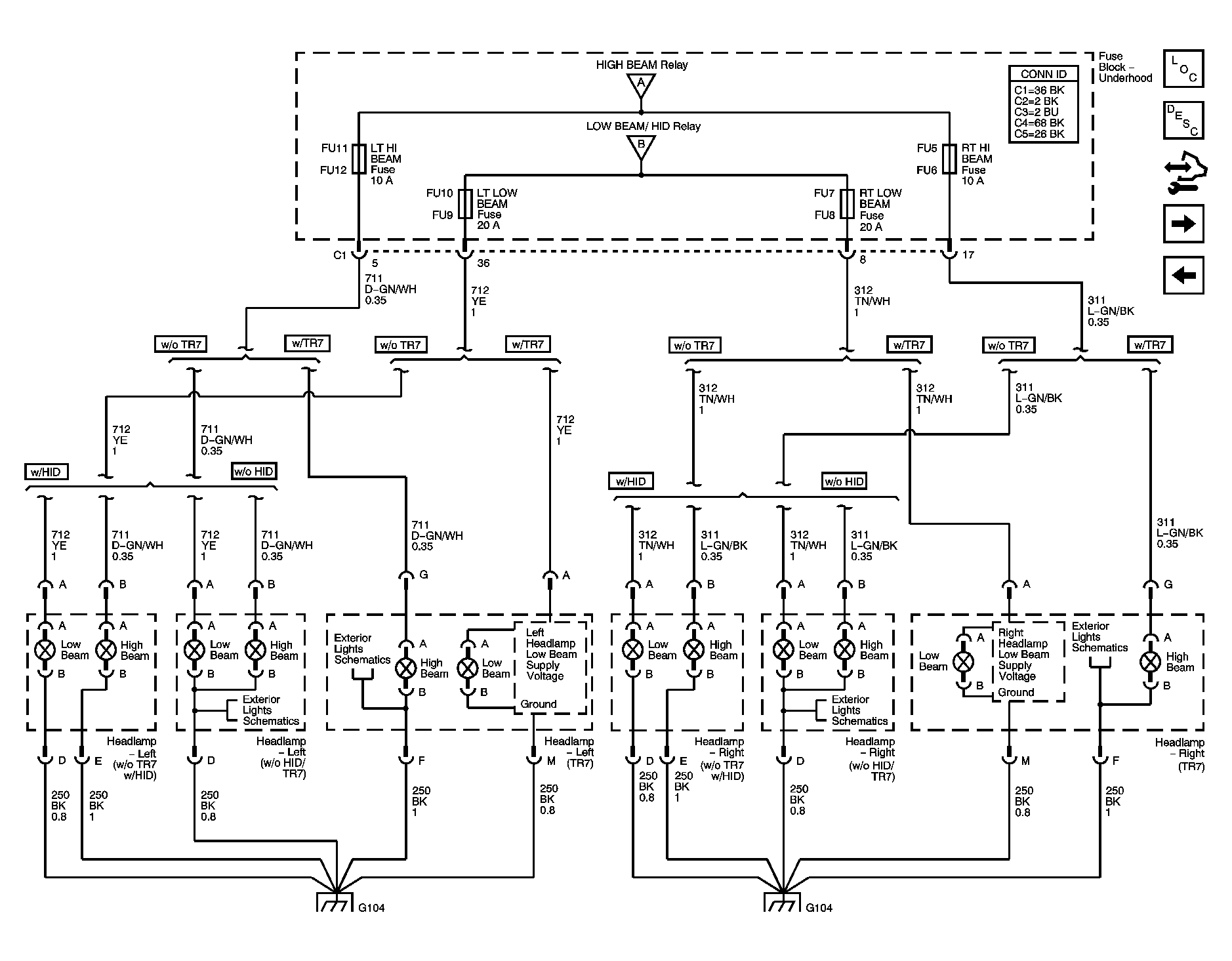

Fig 2: Headlamps

Courtesy of GENERAL MOTORS CORP.

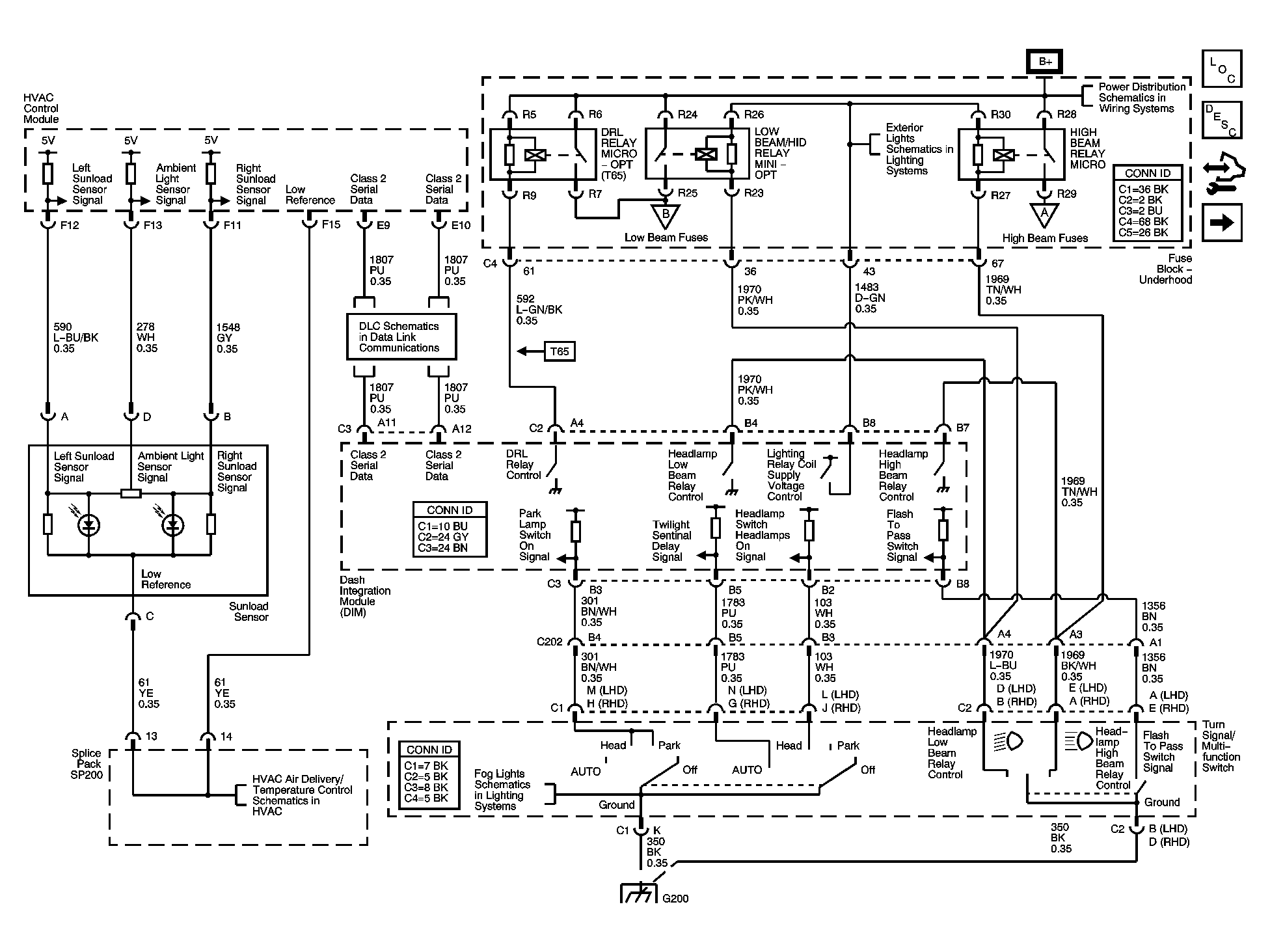

Fig 3: Daytime Running Lamps (DRL) - Export w/T65

Courtesy of GENERAL MOTORS CORP.

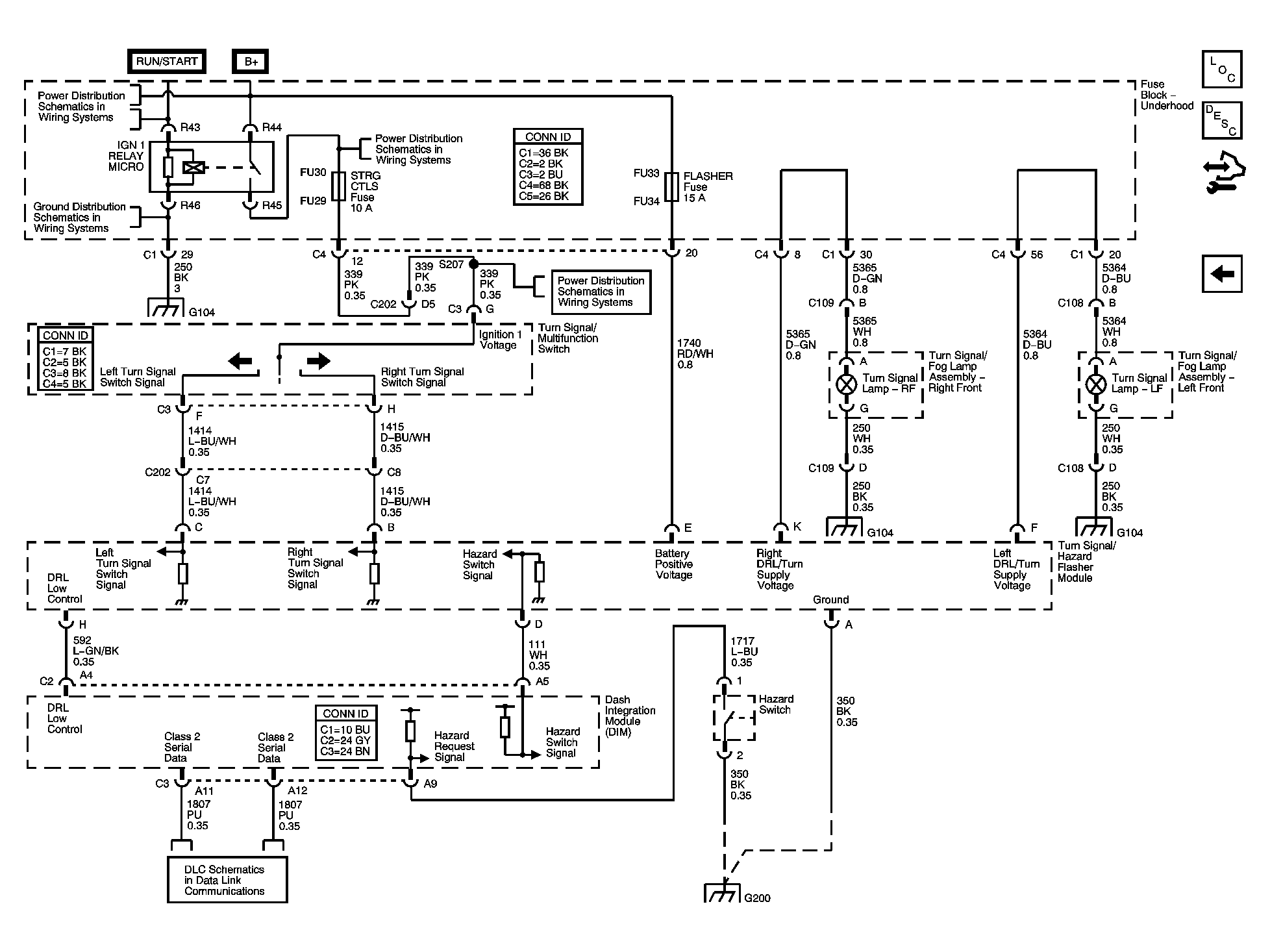

Fig 4: Daytime Running Lamps (DRL) - Domestic

Courtesy of GENERAL MOTORS CORP.
