Exterior Lights Schematics

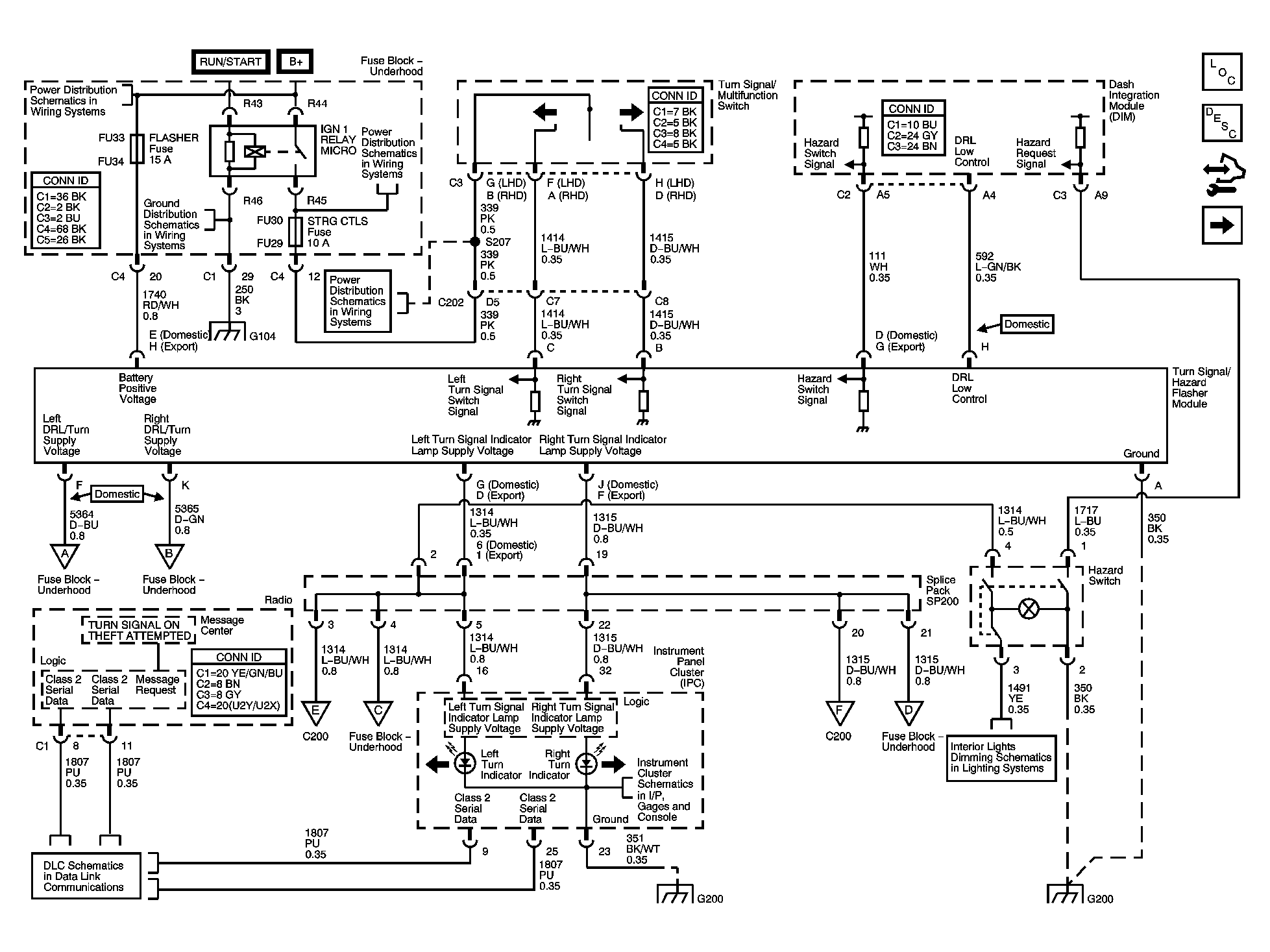

Fig 1: Turn Signal/Hazard Flasher Module

Courtesy of GENERAL MOTORS CORP.

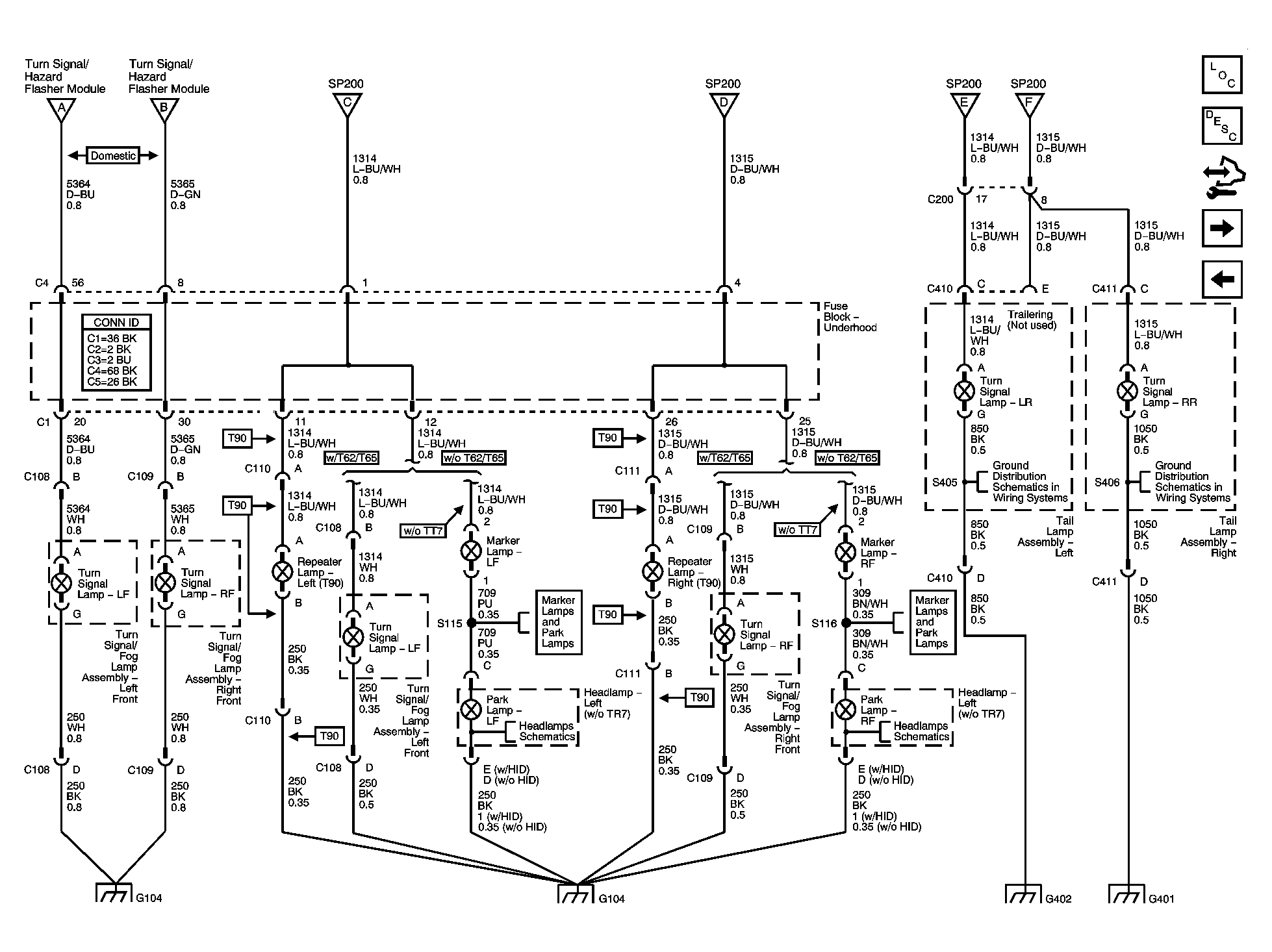

Fig 2: Turn Signal Lamps - Domestic and Export, Repeater Lamps - Export w/T9D

Courtesy of GENERAL MOTORS CORP.

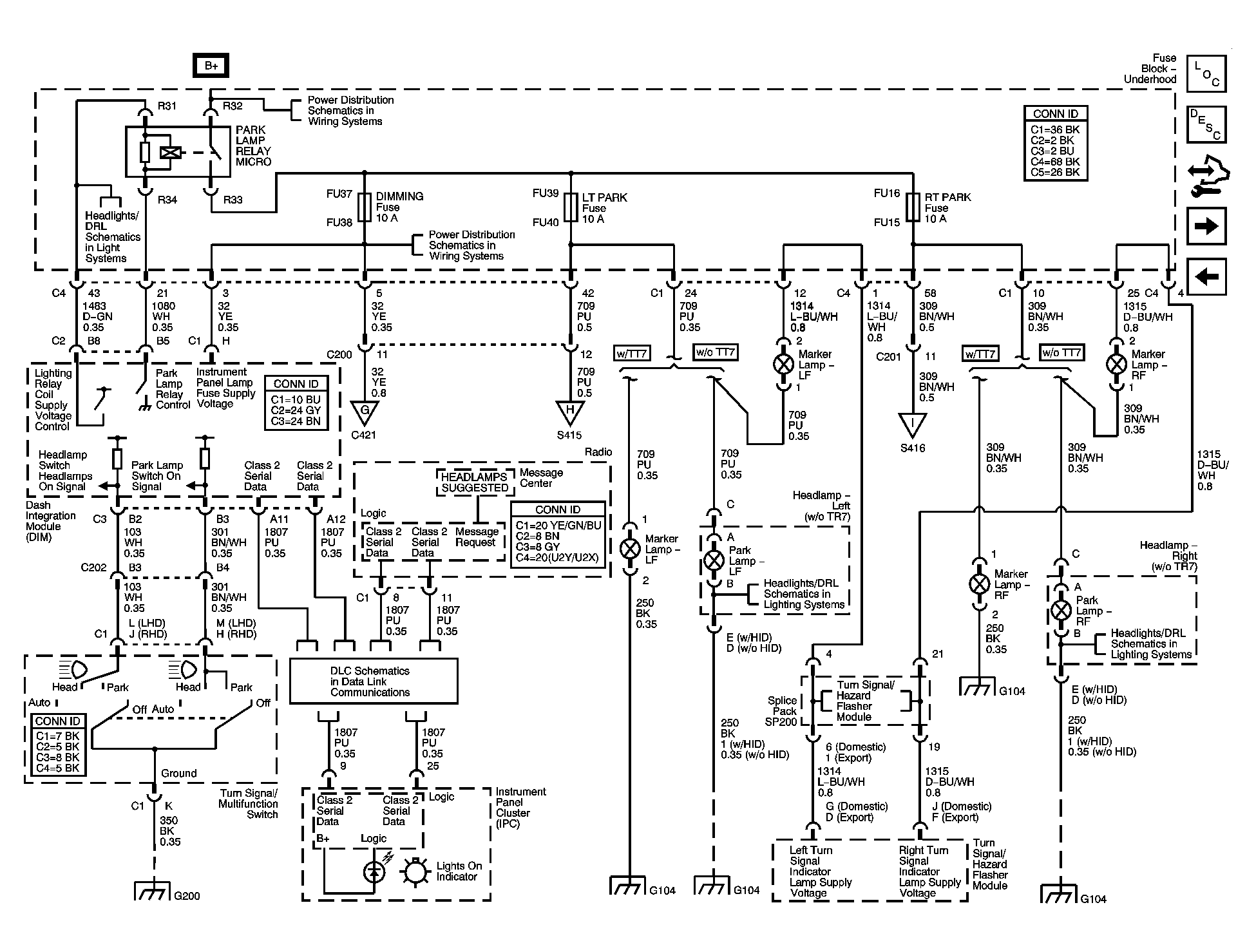

Fig 3: Front Marker Lamps (TT7) and Front Park Lamps (w/o TT7)

Courtesy of GENERAL MOTORS CORP.

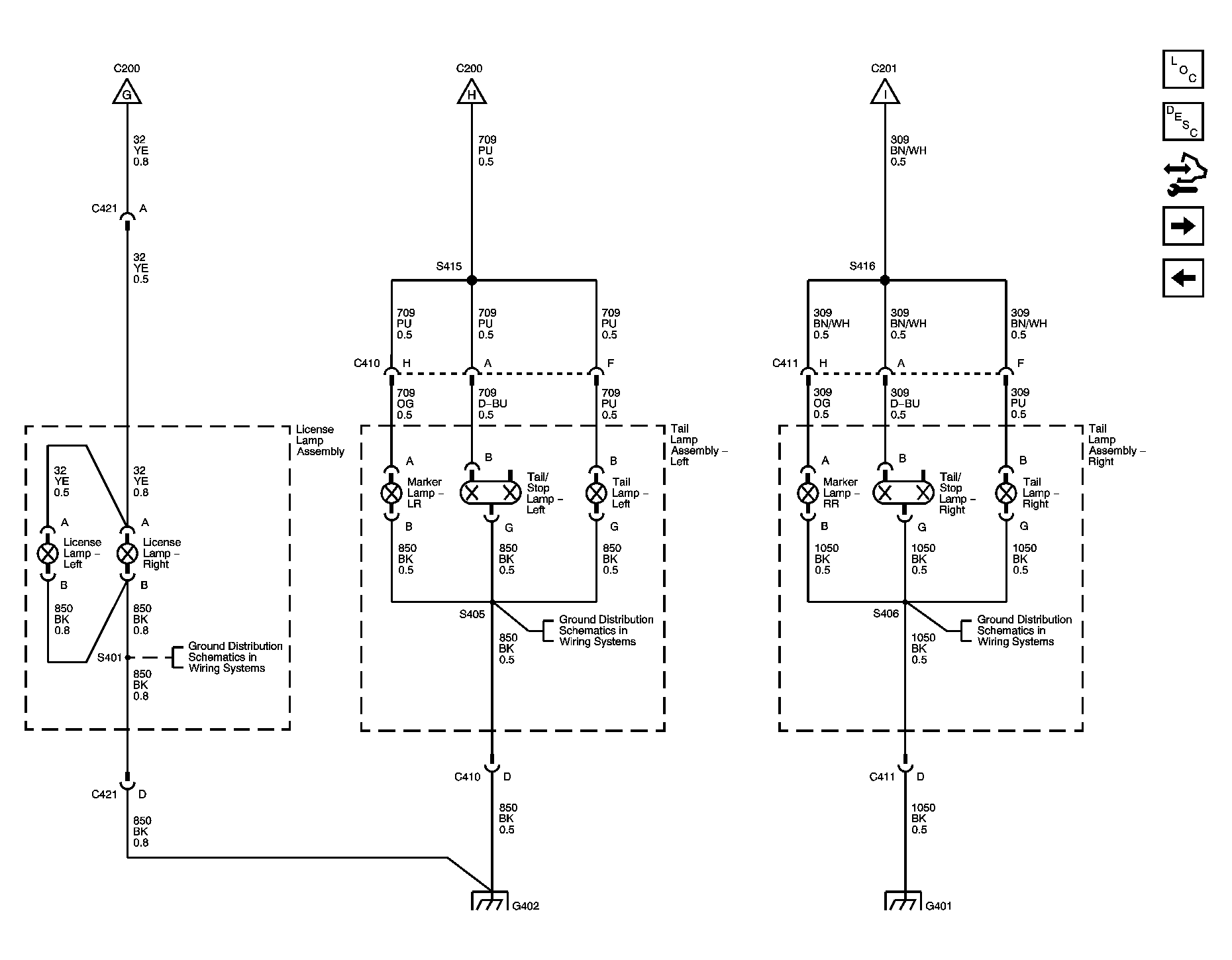

Fig 4: License Lamps, Rear Marker Lamps, and Tail Lamps

Courtesy of GENERAL MOTORS CORP.

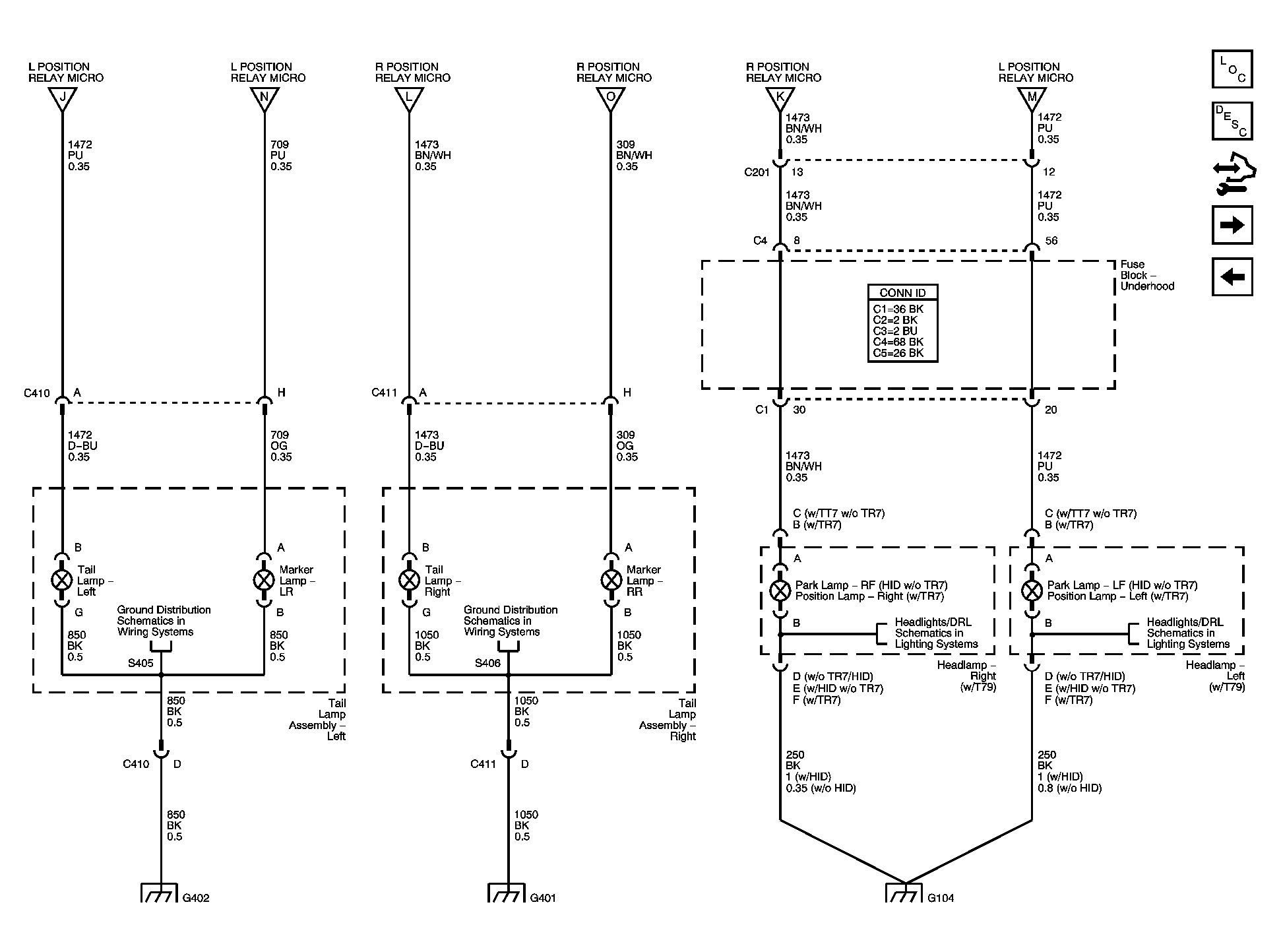

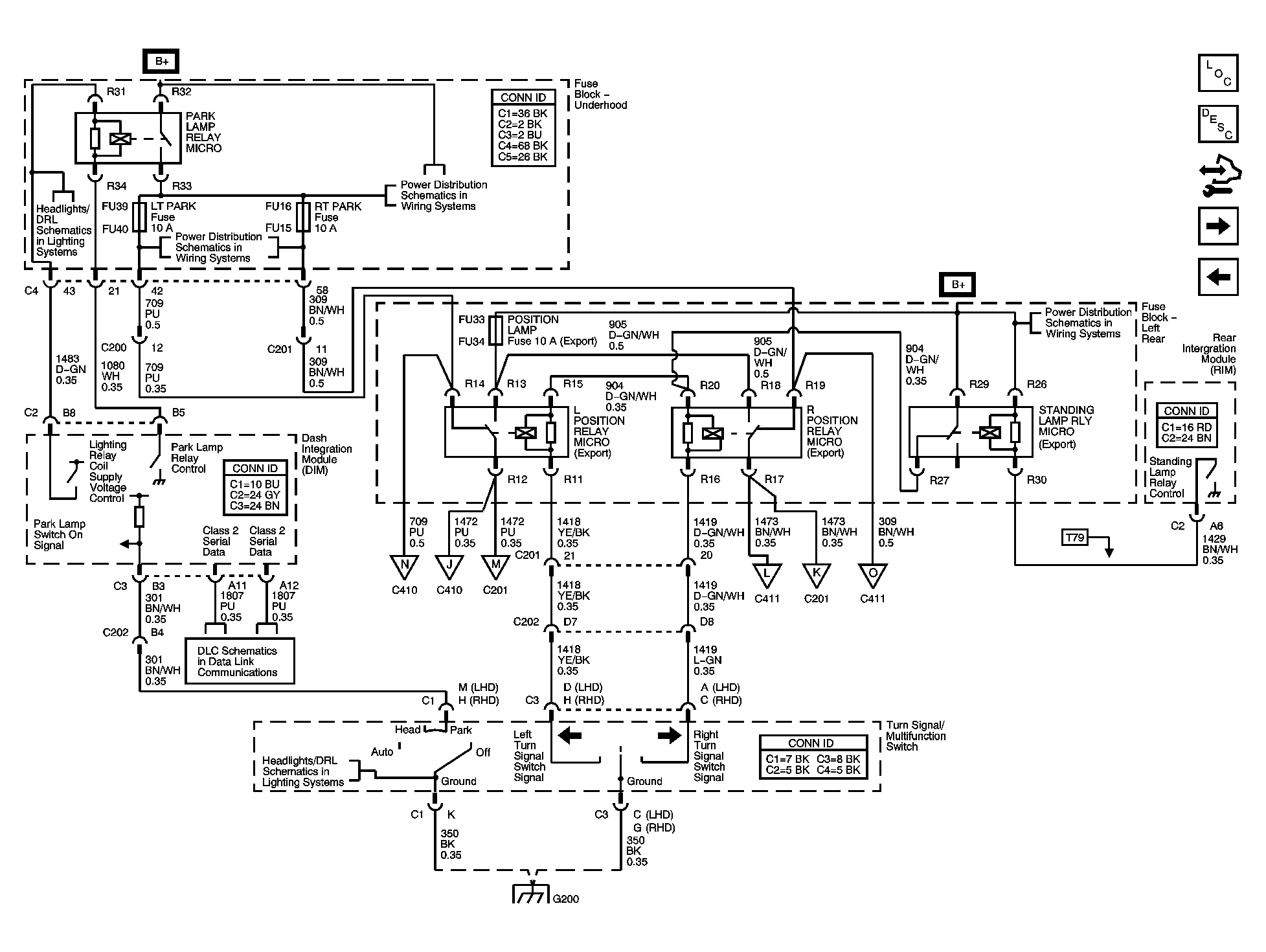

Fig 5: Position Lamp Controls - Export w/T79

Courtesy of GENERAL MOTORS CORP.

Fig 6: Position, Park, and Tail Lamps - Export

Courtesy of GENERAL MOTORS CORP.

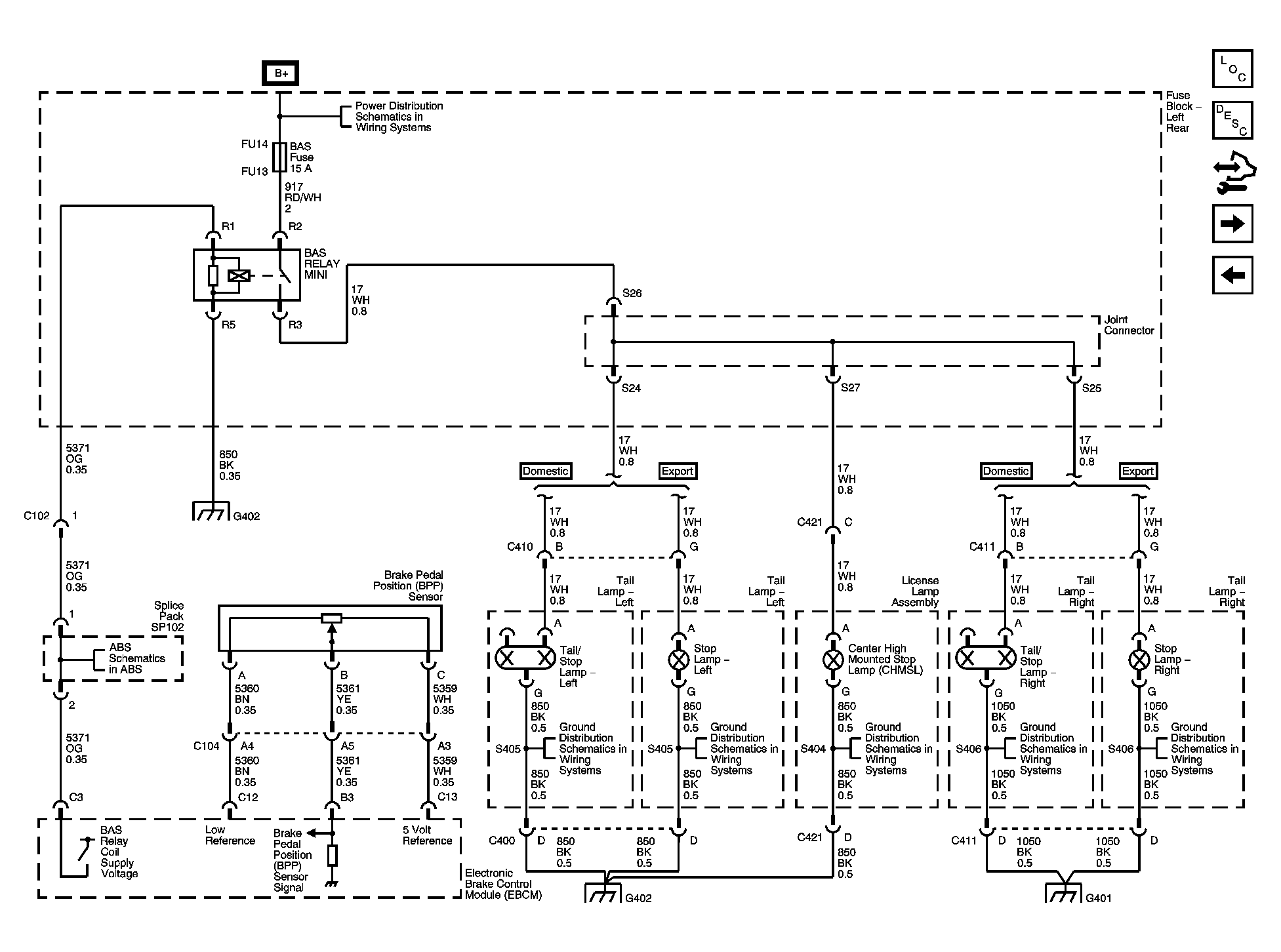

Fig 7: Stop Lamps, BPP Sensor, and BAS Fuse/Relay - Domestic and Export

Courtesy of GENERAL MOTORS CORP.

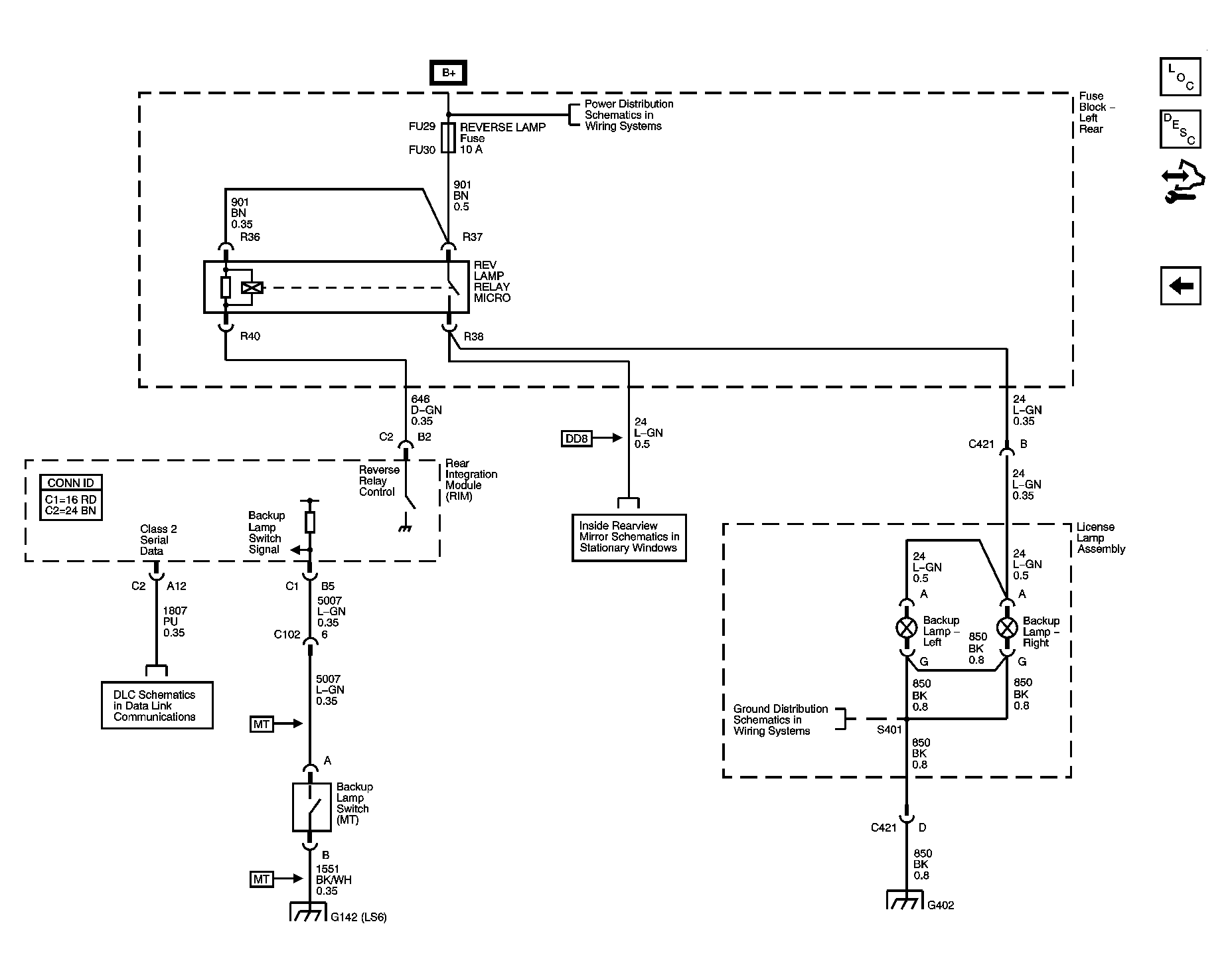

Fig 8: Backup Lamps

Courtesy of GENERAL MOTORS CORP.
