Radio/Audio System Schematics

Fig 1: Power, Ground, Serial Data, and Audio Signal Communication

Courtesy of GENERAL MOTORS CORP.

Fig 2: Radio Antenna Module and Antennas

Courtesy of GENERAL MOTORS CORP.

Fig 3: Digital Radio Reciever (U2Y/U2X/U2K/U2L)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Speakers (U66)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Speakers (U57)

Courtesy of GENERAL MOTORS CORP.

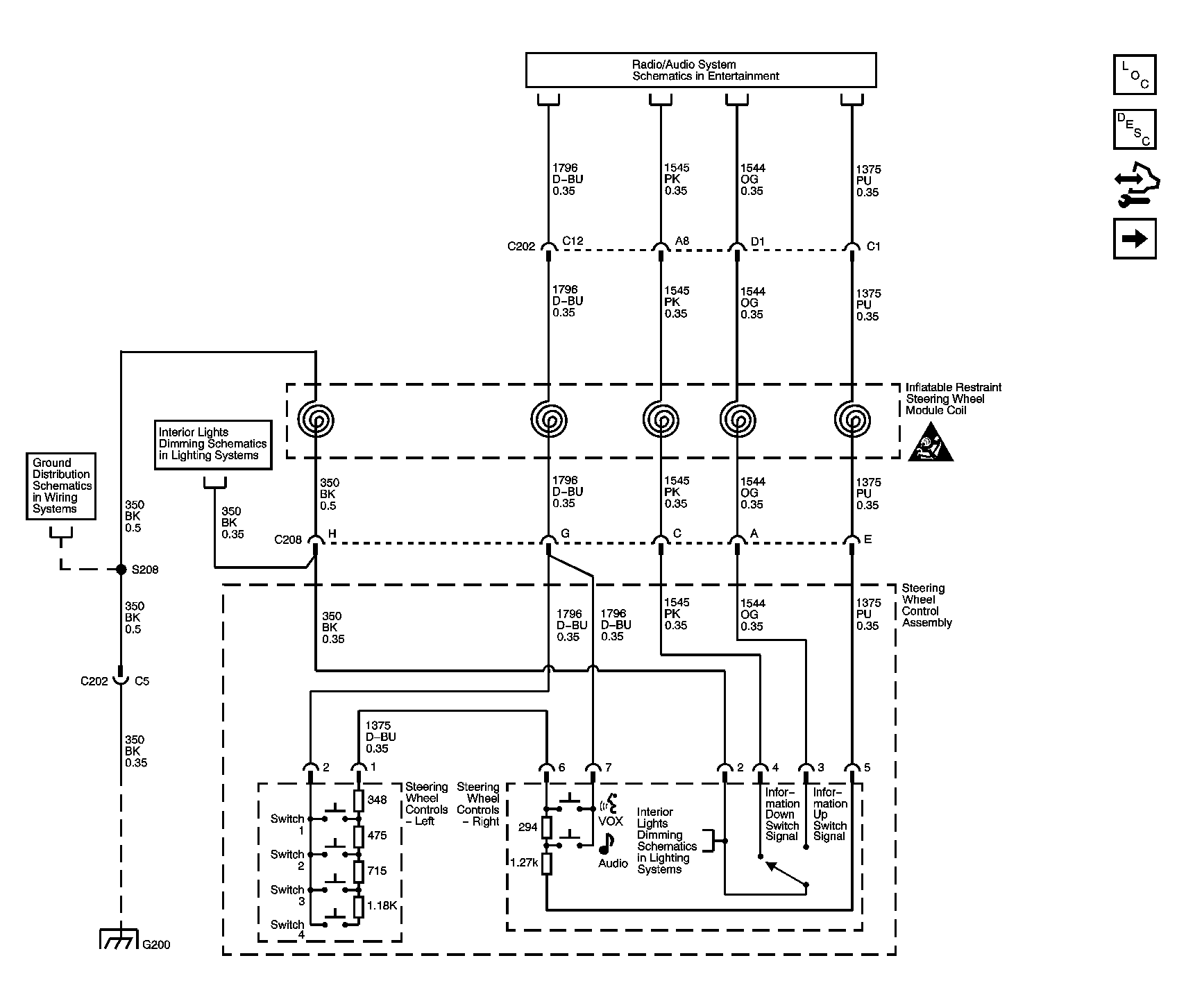

Fig 6: Redundant Steering Wheel Controls - 2.8L/3.6L (LP1/LY7)

Courtesy of GENERAL MOTORS CORP.

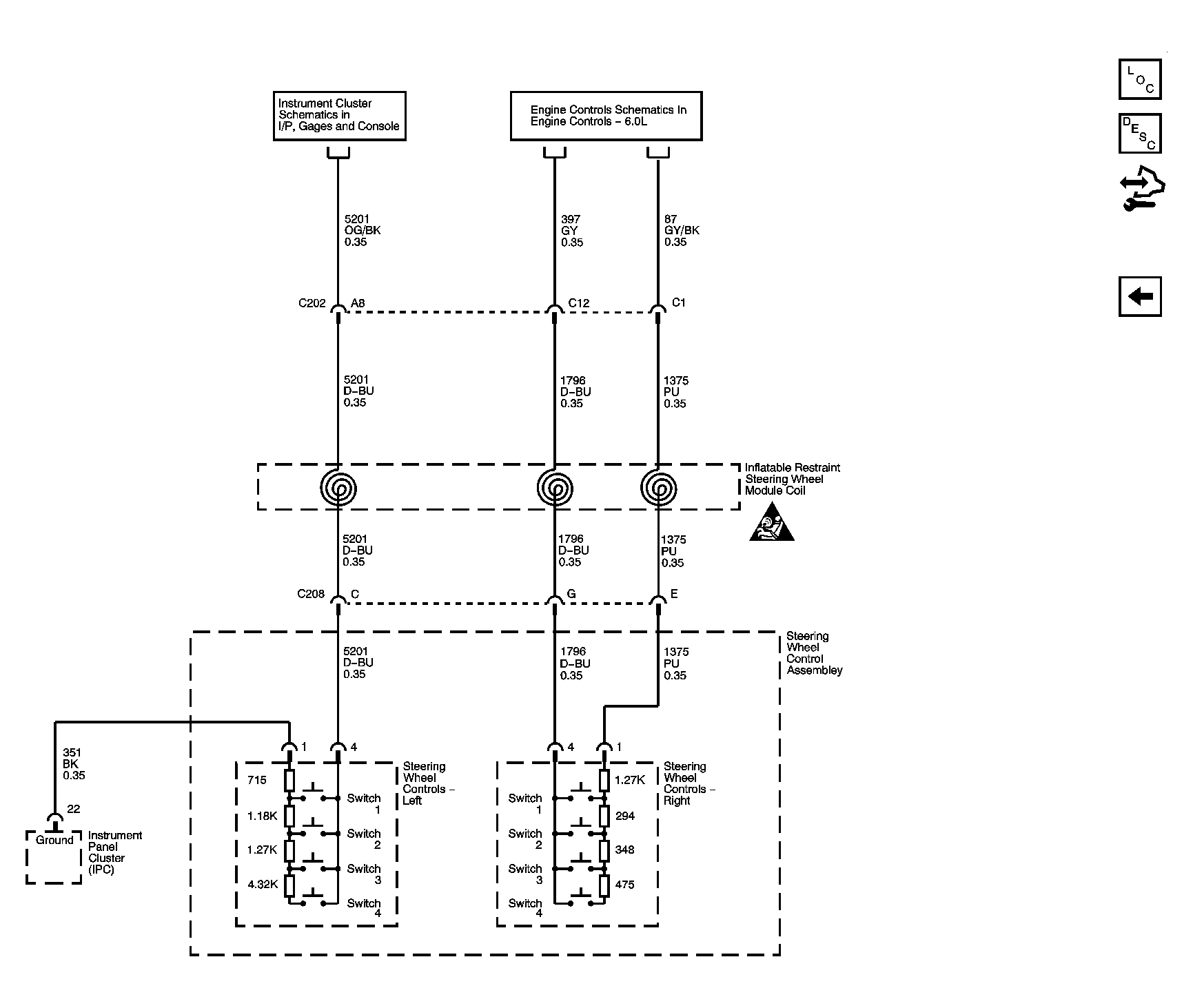

Fig 7: Redundant Steering Wheel Controls - 6.0L (LS2)

Courtesy of GENERAL MOTORS CORP.
