Instrument Cluster Schematics

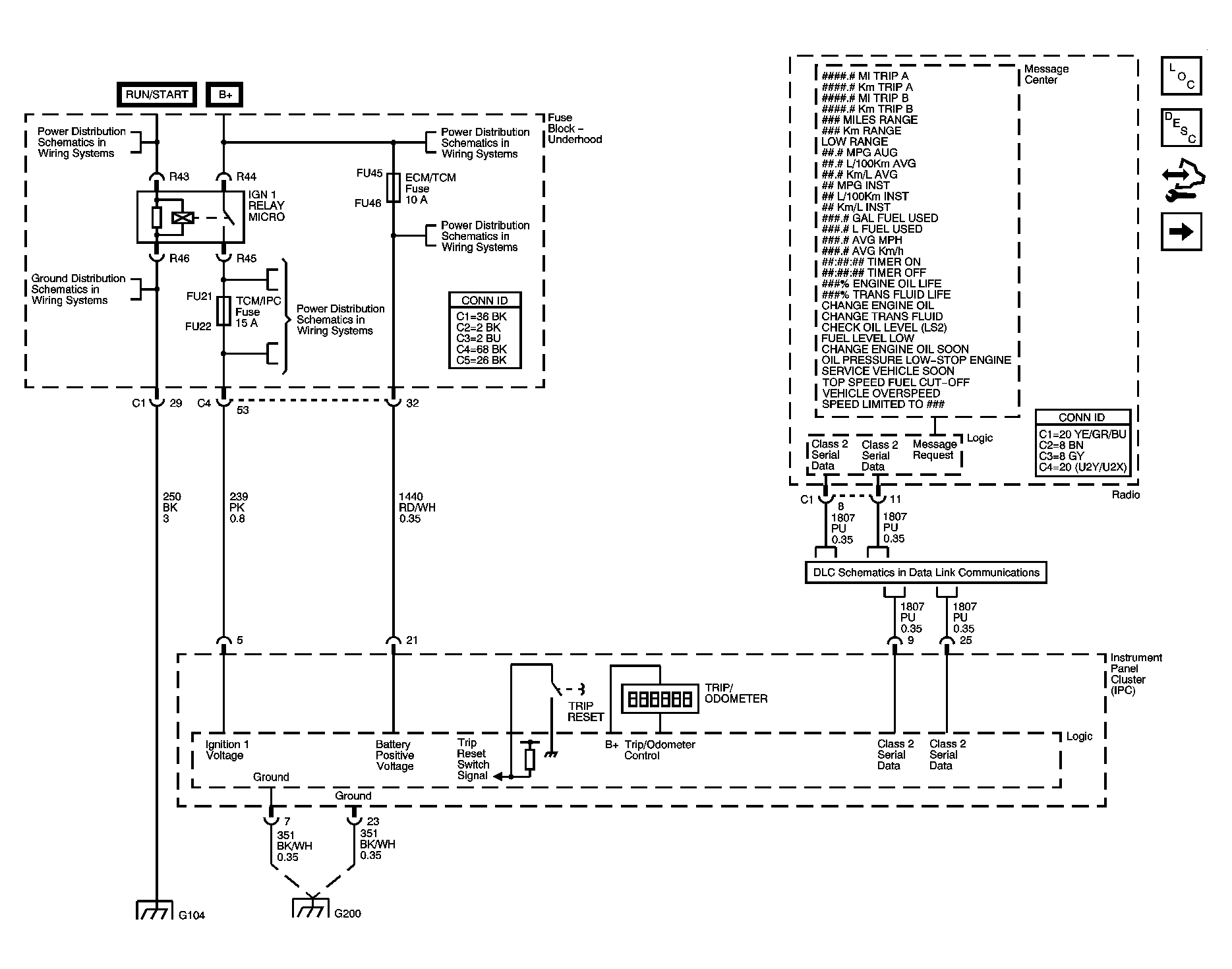

Fig 1: Power, Ground, Serial Data, Odometer, and DIC

Courtesy of GENERAL MOTORS CORP.

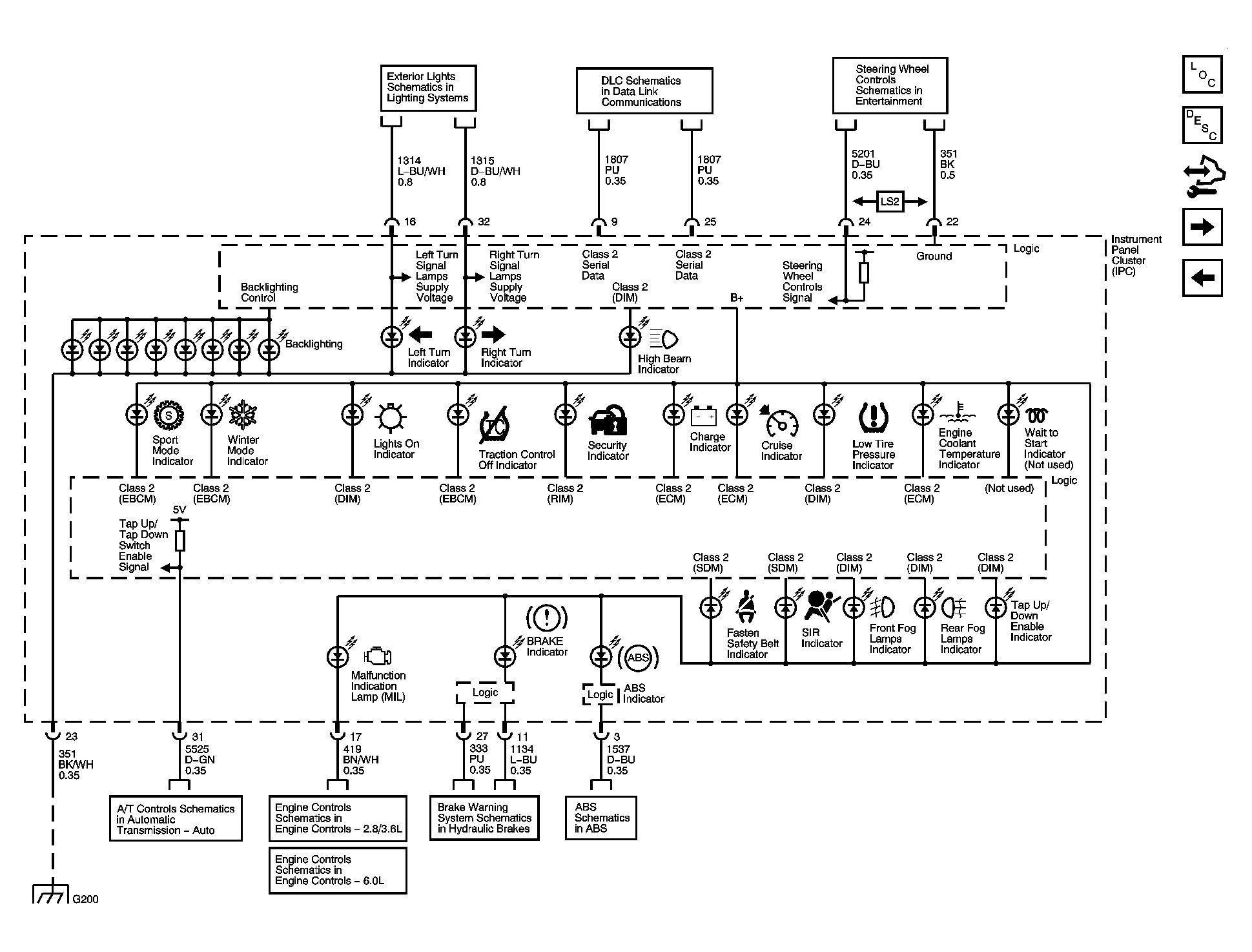

Fig 2: Indicators

Courtesy of GENERAL MOTORS CORP.

Fig 3: Electronic PRNDL (M82)

Courtesy of GENERAL MOTORS CORP.

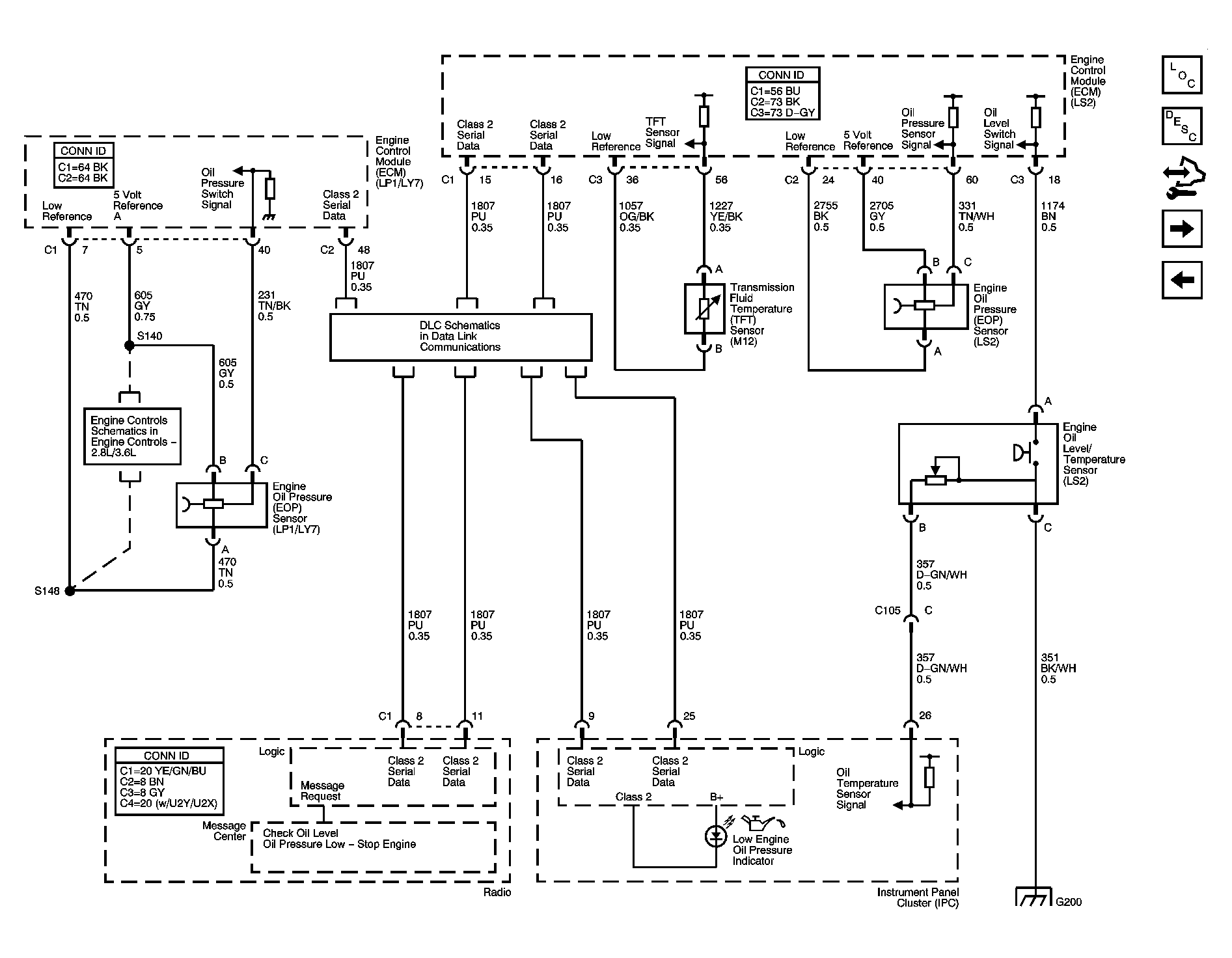

Fig 4: Engine Oil Pressure (EOP) Sensor, Engine Oil Level/Temperature Sensor, TFT, and Indicators

Courtesy of GENERAL MOTORS CORP.

Fig 5: Gages - 2.8L/3.6L (LP1/LY7)

Courtesy of GENERAL MOTORS CORP.

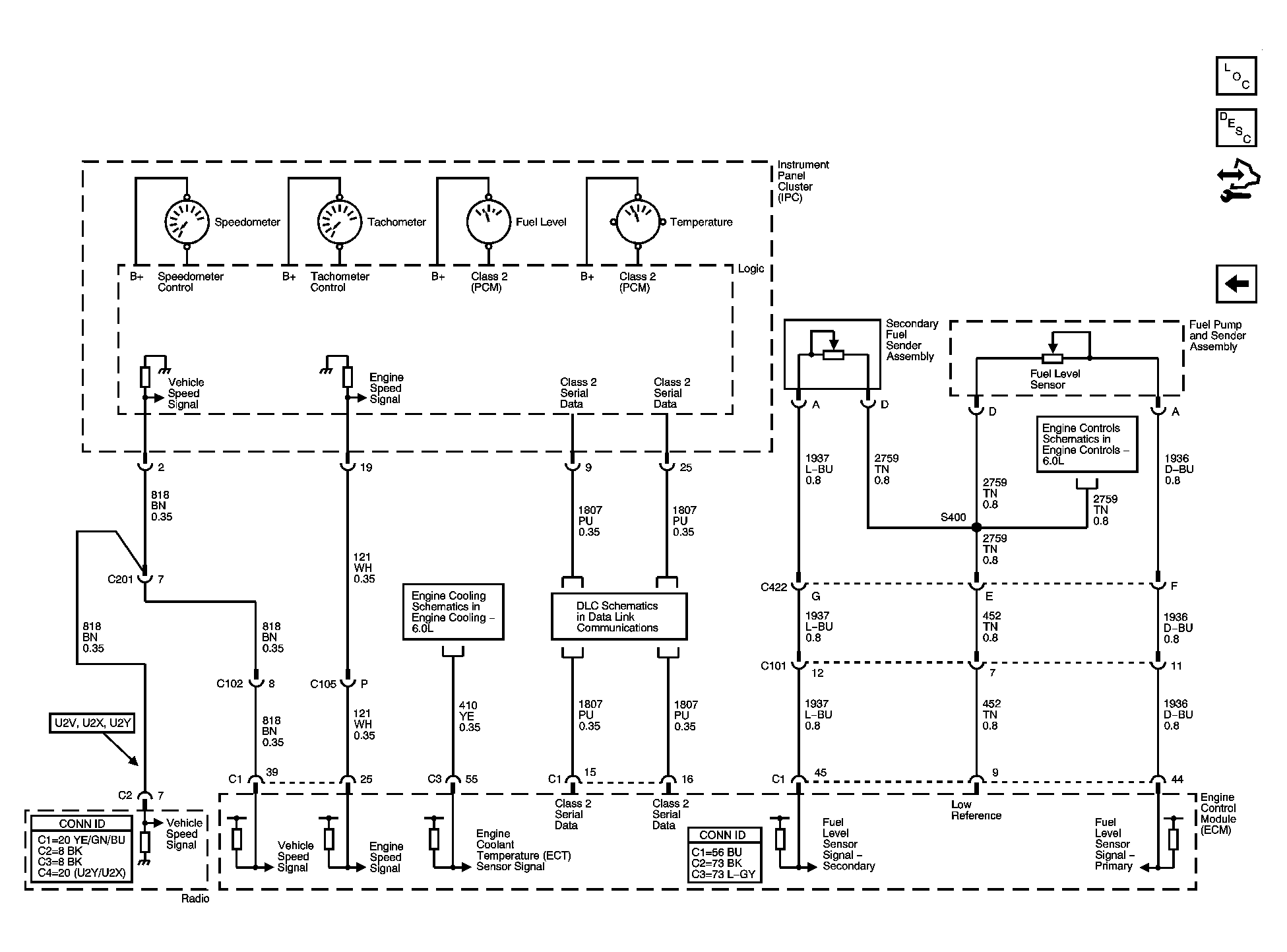

Fig 6: Gages - 6.0L (LS2)

Courtesy of GENERAL MOTORS CORP.
