Driver Information System Schematics

Fig 1: Driver Information Center (DIC) System
GM1471094Courtesy of GENERAL MOTORS CORP.

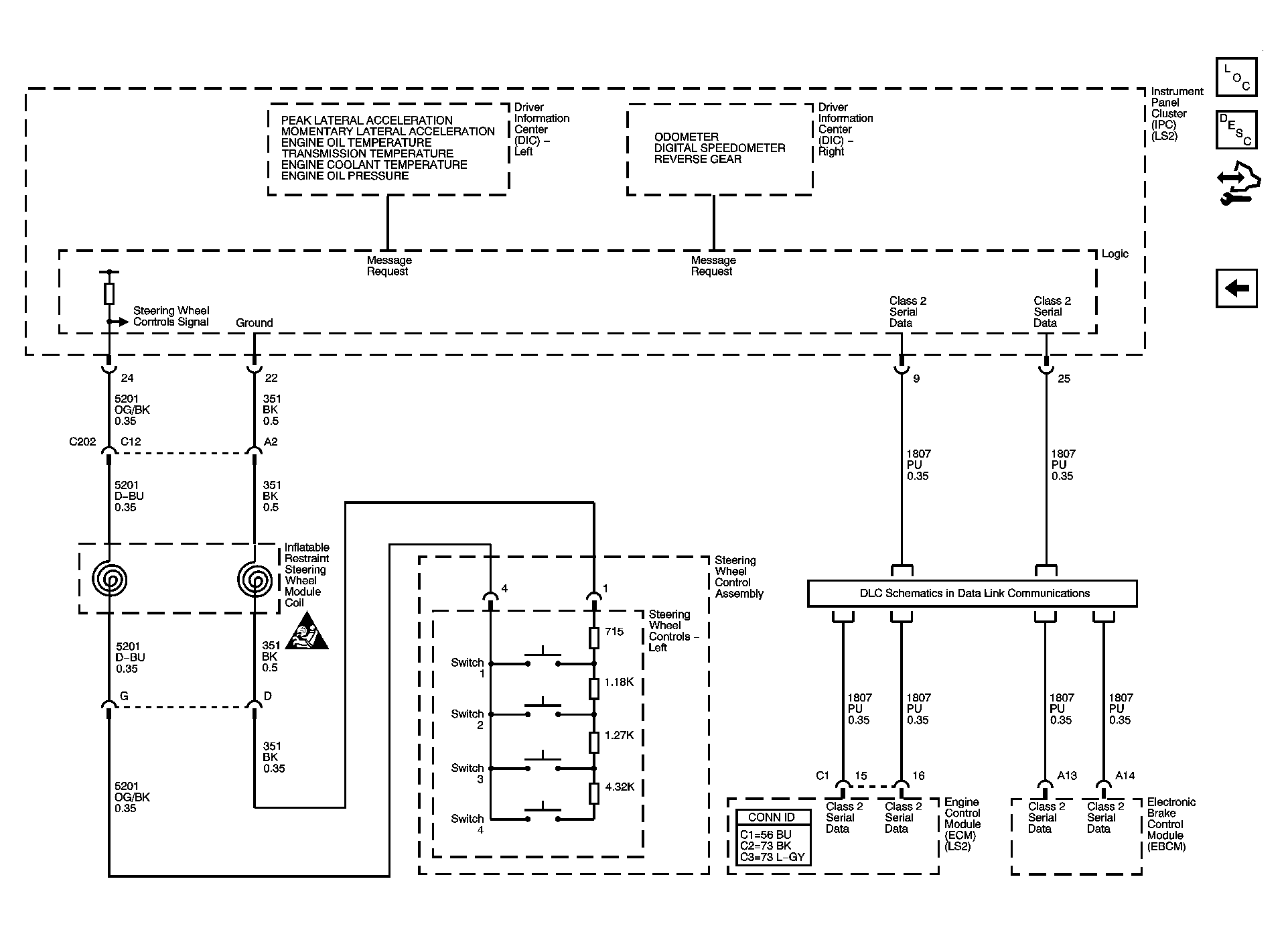

Fig 2: Driver Information Center (DIC) System - 6.0L (LS2)
GM1582850Courtesy of GENERAL MOTORS CORP.
