Torque Converter Assembly Installation

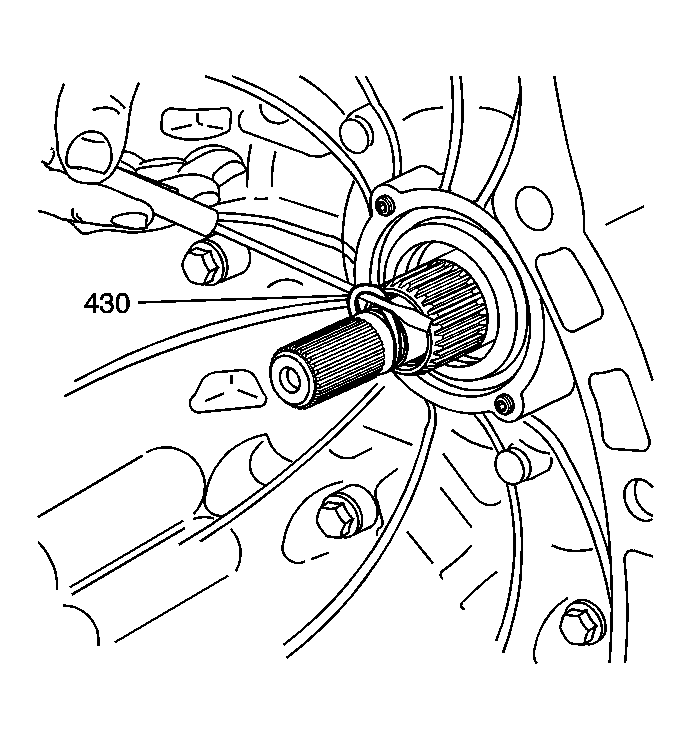

    Fig 1: Locating Turbine Shaft Seal
    GM801786Courtesy of GENERAL MOTORS CORP.
  1. Install the turbine shaft seal (430).
    2. Fig 2: View Of Torque Converter Assembly
    GM801785Courtesy of GENERAL MOTORS CORP.
  2. Install the torque converter assembly (1).
