Parking System Components Installation

Tools Required

J 44767  Seal Installer. See Special Tools .

    Fig 1: View Of Parking System Components
    GM801832Courtesy of GENERAL MOTORS CORP.
  1. Inspect the park system components for the following:
    • Worn park pawl actuator brackets (607, 608)
    • A damaged or bent park pawl actuator assembly (613)
    • A damaged manual shaft detent lever (600)
    • A damaged manual shaft shift switch assembly (602)
    • A worn or stripped manual shaft (606)
    • A worn or damaged park pawl shaft (610), park pawl spring (611), and park pawl (612)
    • A worn or damaged spacer (615), - some models.

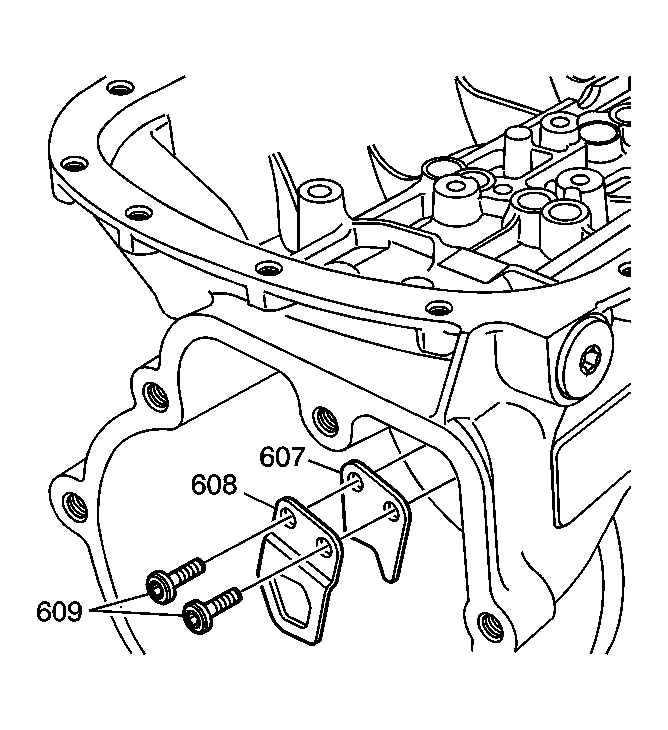

  2. Fig 2: Identifying Park Pawl Actuator Bracket & Bolts
    GM801824Courtesy of GENERAL MOTORS CORP.
  3. Install the park pawl actuator brackets (607, 608) onto the case.
  4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the bracket bolts (609).

    Tighten:  Tighten the bracket bolts to 22 N.m (16 lb ft).

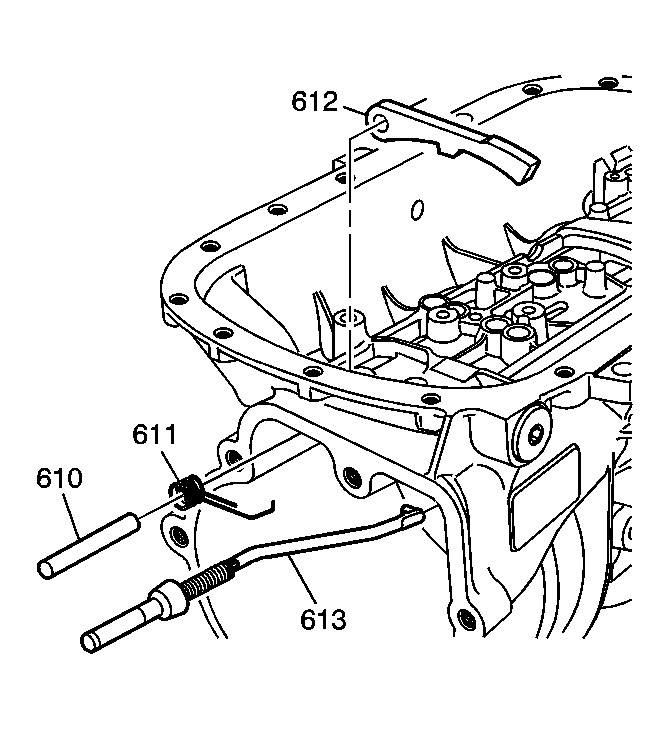

  6. Fig 3: Locating Parking Pawl Components
    GM801823Courtesy of GENERAL MOTORS CORP.
  7. Install the park pawl (612), the park pawl spring (611), and the park pawl shaft (610) into the case.
  8. Install the park pawl actuator (613) into the case.
  9. Fig 4: Identifying Park Pawl Actuator & Shift Switch Assembly
    GM952011Courtesy of GENERAL MOTORS CORP.
  10. Assemble the shift switch assembly (602) and spacer (615) - some models onto the detent lever (600).
  11. Assemble the park pawl actuator (613) into the detent lever (600).
  12. Install the manual shaft (606) into the case.
  13. Fig 5: Locating Manual Shaft Detent Lever Pin
    GM801836Courtesy of GENERAL MOTORS CORP.
  14. Align the groove for the new manual shaft pin (601) with the pin hole in the detent lever/shift switch assembly.
  15. Install the manual shaft pin (601) into the manual shift shaft (606).
  16. Fig 6: Installing Manual Shaft Seal With J 44767
    GM801837Courtesy of GENERAL MOTORS CORP.
  17. Install a NEW manual shaft seal (605) onto J 44767  . See Special Tools .
  18. Use a J 44767  to install the NEW manual shaft seal (605) into the case (604). See Special Tools .
