Input Speed Sensor Removal

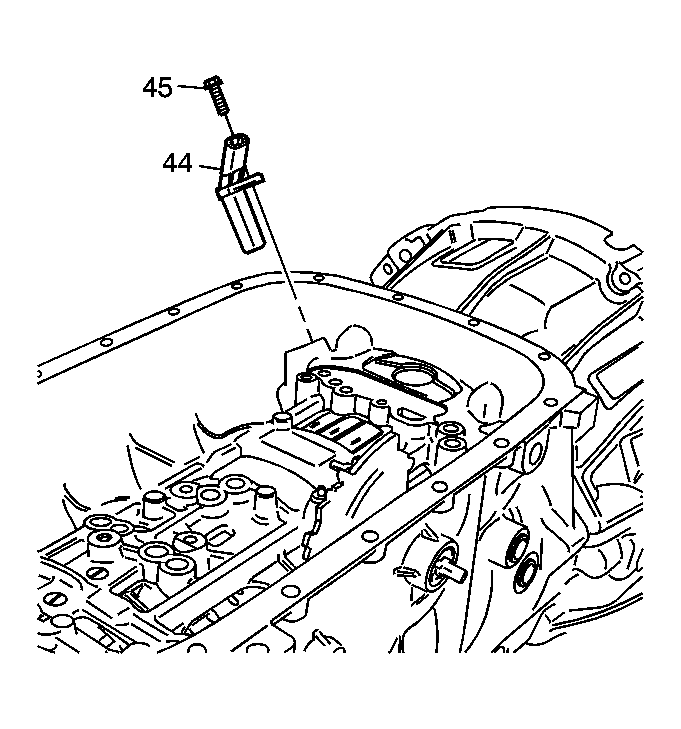

    Fig 1: Locating Input Speed Sensor
    GM801806Courtesy of GENERAL MOTORS CORP.
  1. Remove the input speed sensor bolt (45).
  2. Remove the input speed sensor (44) from the case (24).
