Control Valve Body Accumulator Assembly Installation

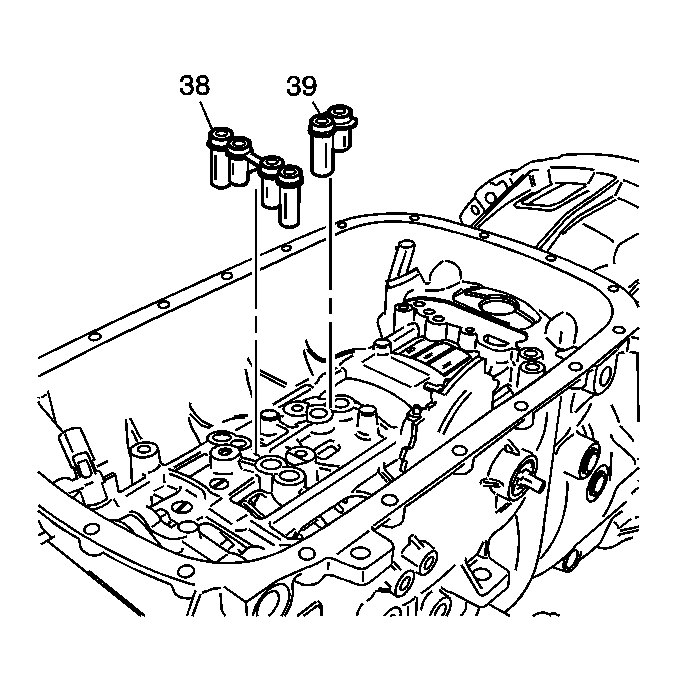

    Fig 1: Locating Overdrive Clutch & Center Support Fluid Passage Sleeves
    GM801804Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW overdrive clutch fluid passage sleeve (39) into the case (24).
  2. Install the NEW center support fluid passage sleeve (38) into the case (24).

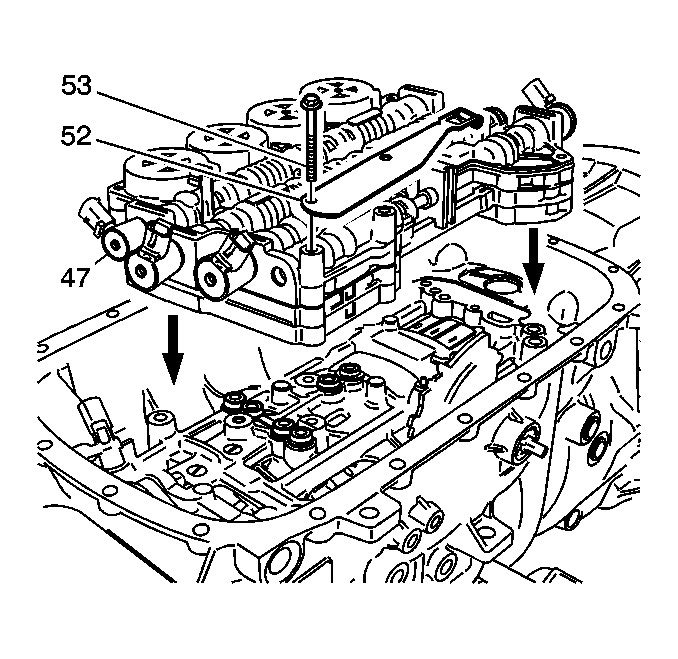

  3. Fig 2: View Of Control Valve Body Accumulator Assembly
    GM802258Courtesy of GENERAL MOTORS CORP.
  4. Install the control valve body accumulator assembly (47) onto the case (24).
  5. Install the detent lever spring (52) onto the case (24).
  6. Install the control valve body bolts (53) into the case (24) and hand tighten.
  7. Fig 3: Identifying Control Valve Body Accumulator Assembly Bolts
    GM802259Courtesy of GENERAL MOTORS CORP.
  8. Install the control valve body accumulator assembly bolts (49, 51) into the case (24) and hand tighten.
  9. Fig 4: Tightening Control Valve Body Assembly Bolts In Sequence
    GM802251Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  10. Tighten the control valve body accumulator bolts (49, 50, 51) in sequence.

    Tighten:  Tighten the control valve body accumulator bolts (49, 50, 51) to 11 N.m (8 lb ft).

  11. Fig 5: Installing Spacer Between Manual Shaft Detent Lever & Detent Assembly
    GM816745Courtesy of GENERAL MOTORS CORP.
  12. Install a 0.8 mm spacer (1) between the manual shaft detent lever (600) and the manual shaft detent assembly (52).
  13. Tighten the detent assembly bolts (53).

    Tighten:  Tighten the control valve body bolts (53) to 11 N.m (8 lb ft).

  14. Remove the spacer (1).
