Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission mount to the vehicle.

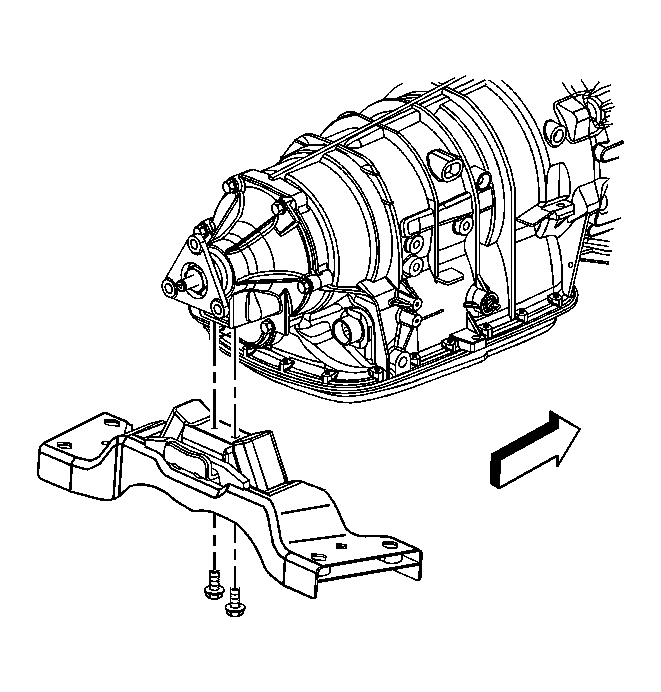

    2. Fig 1: View Of Transmission Mount - RWD
    GM888314Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the transmission to support mounting bolts.

    Tighten:  Tighten the bolts to 60 N.m (44 lb ft).

  3. Install the transmission mount to body mounting bolts.

    Tighten:  Tighten the bolts to 60 N.m (44 lb ft).

  4. Remove the transmission support.
  5. Install the exhaust system.
  6. Lower the vehicle.
