Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the front TOC lines.
  2. Connect the front TOC lines to the rear TOC lines.
  3. Install the LH front splash shield.
  4. Install the LH front splash shield retainers.

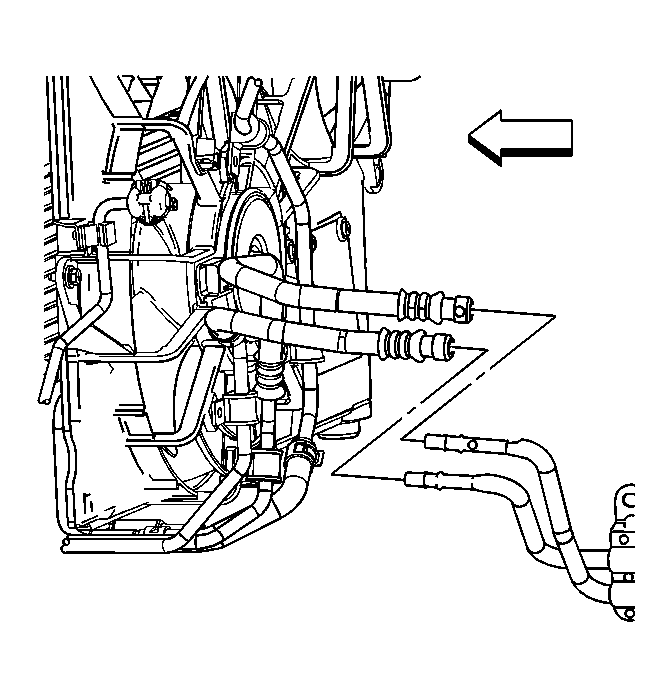

    5. Fig 1: View Of TOC Lines
    GM1351420Courtesy of GENERAL MOTORS CORP.
  5. Install the LH front wheel. Refer to Tire and Wheel Removal and Installation .

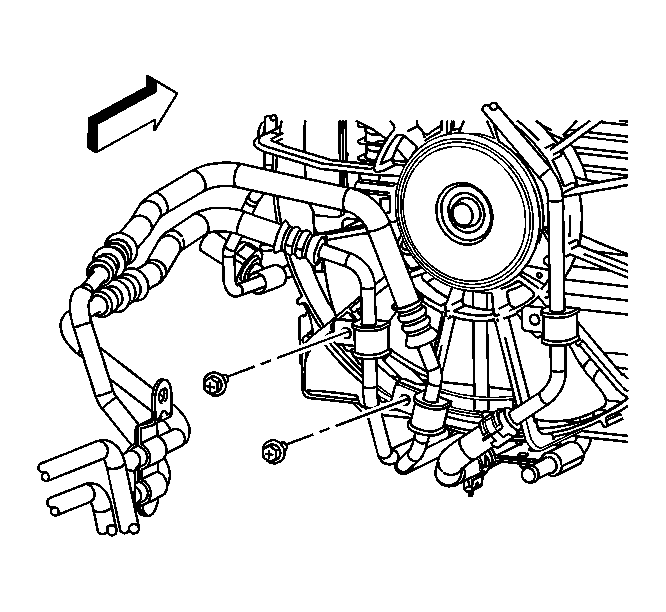

    6. Fig 2: View Of Transmission Oil Cooler Lines-To-Cooling Fan Shroud Retaining Bolts
    GM1351414Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to in Cautions and Notices.
  6. Install the bolts that secure the TOC to the cooling fan shroud.

    Tighten:  Tighten the bolts to 6.5 N.m (58 lb in).

    7. Fig 3: View Of TOC Retainer Clip
    GM1350216Courtesy of GENERAL MOTORS CORP.
  7. Connect the TOC line to the TOC retainer clip (1).
  8. Connect the TOC lines to the TOC.

    Tighten:  Tighten the fittings to 20 N.m (15 lb ft).

  9. Reposition and reinstall the condenser. Refer to Condenser Replacement (Heavy Duty Cooling) or Condenser Replacement (Standard Cooling) .
