Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Locating Bypass Valve Seals
    GM1373631Courtesy of GENERAL MOTORS CORP.
  1. Install NEW seals (1) onto the transmission bypass valve.

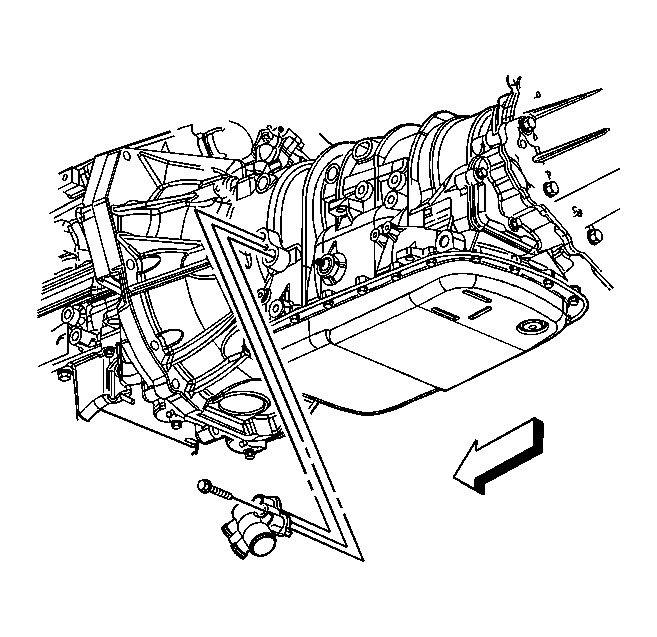

    2. Fig 2: View Of Bypass Valve
    GM1373627Courtesy of GENERAL MOTORS CORP.
  2. Install the bypass valve to the transmission.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bypass valve bolt or stud, depending on the application.

    Tighten:  Tighten the bolt or stud to 25 N.m (18 lb ft).

  4. Install the oxygen sensor wire harness bracket to the stud, if equipped.
    5. Fig 3: View Of Transmission Oil Cooler Lines
    GM1373637Courtesy of GENERAL MOTORS CORP.
  5. Install the oil cooler line bracket to the engine block.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

    6. Fig 4: View Of TOC Lines & Transmission
    GM1334984Courtesy of GENERAL MOTORS CORP.
  6. Install the transmission oil cooler lines to the bypass valve. Install the bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

  7. Remove the drain pan and lower the vehicle.
  8. Fill the transmission to the proper level and check for leaks. Refer to Transmission Fluid Checking Procedure .
