Installation Procedure

WARNING: This page is about a different variant/trim than selected.

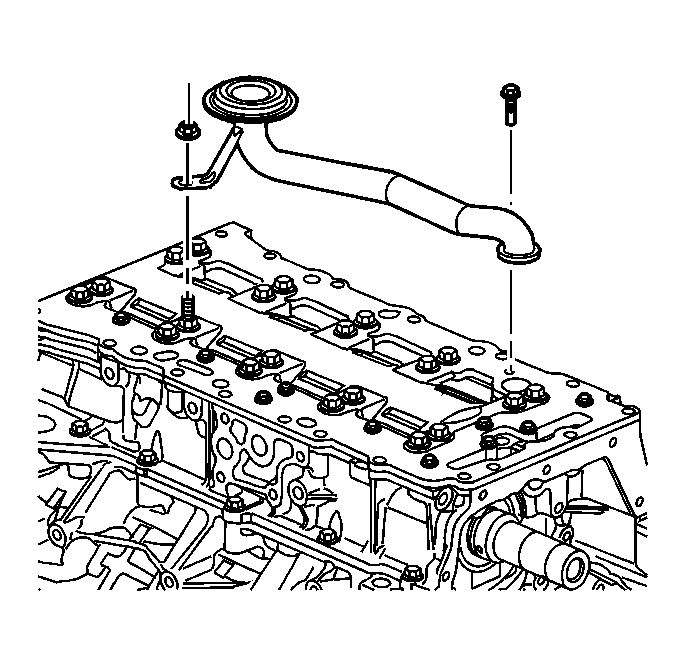

    Fig 1: View Of Oil Pump Pipe
    GM928634Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the silicone seal in the oil manifold plate.

    With a twisting motion, install the end of the oil pump pick-up tube.

    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the oil pump pick-up retaining bolt and nut.

    Tighten:

    • Tighten the oil pump pick-up tube nut to 24 N.m (18 lb ft).
    • Tighten the oil pump pick-up tube bolt to 10 N.m (89 lb in).

  3. Install the oil pan. Refer to Oil Pan Replacement .
