Ignition Module Removal - Left

WARNING: This page is about a different variant/trim than selected.

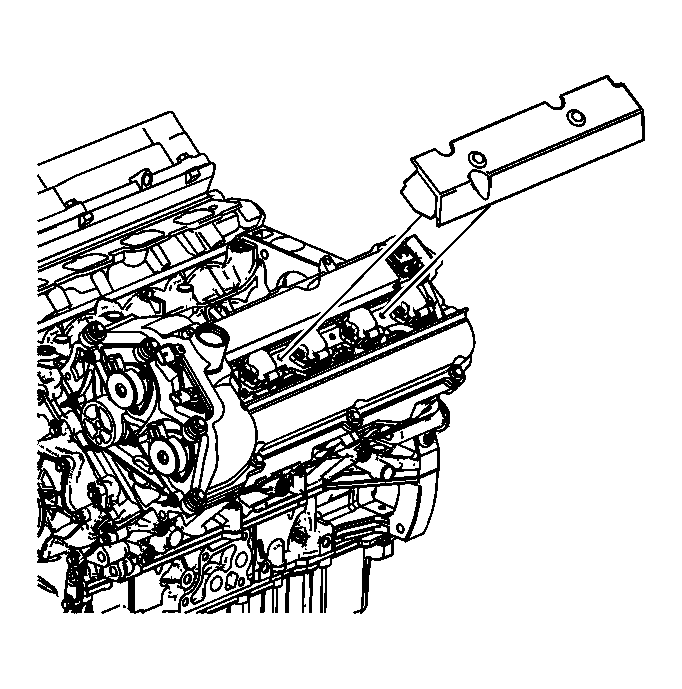

    Fig 1: View Of Left Ignition Coil Assembly Cover
    GM948143Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition coil assembly cover.
    2. Fig 2: View Of Left Ignition Coil Assembly, Bolts & Ball Studs
    GM928220Courtesy of GENERAL MOTORS CORP.
  2. Remove the ignition coil assembly bolts and ball studs.
  3. Carefully, remove the ignition coil assembly.

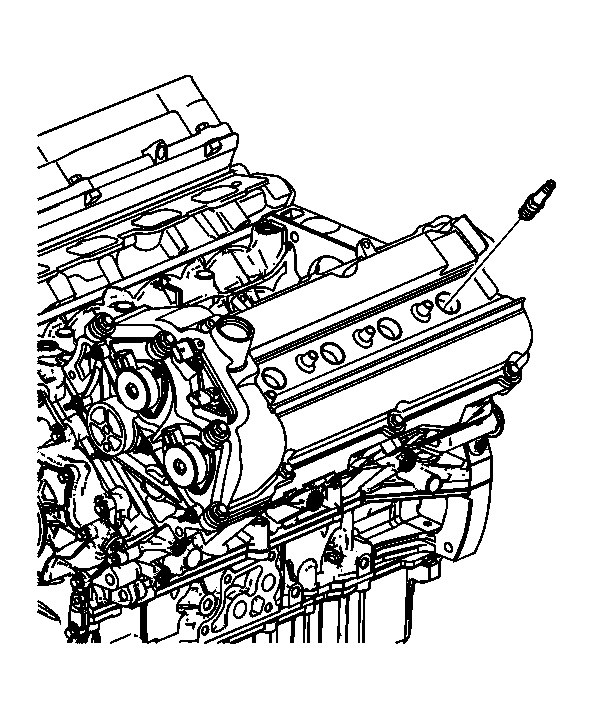

    4. Fig 3: View Of Left Spark Plugs
    GM928224Courtesy of GENERAL MOTORS CORP.
  4. Remove the spark plugs.
