Ground Distribution Schematics

Fig 1: G105, G106, G110, G306, G403 and G404 Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: G100 Schematics (LH2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: G101 Schematics

Courtesy of GENERAL MOTORS CORP.

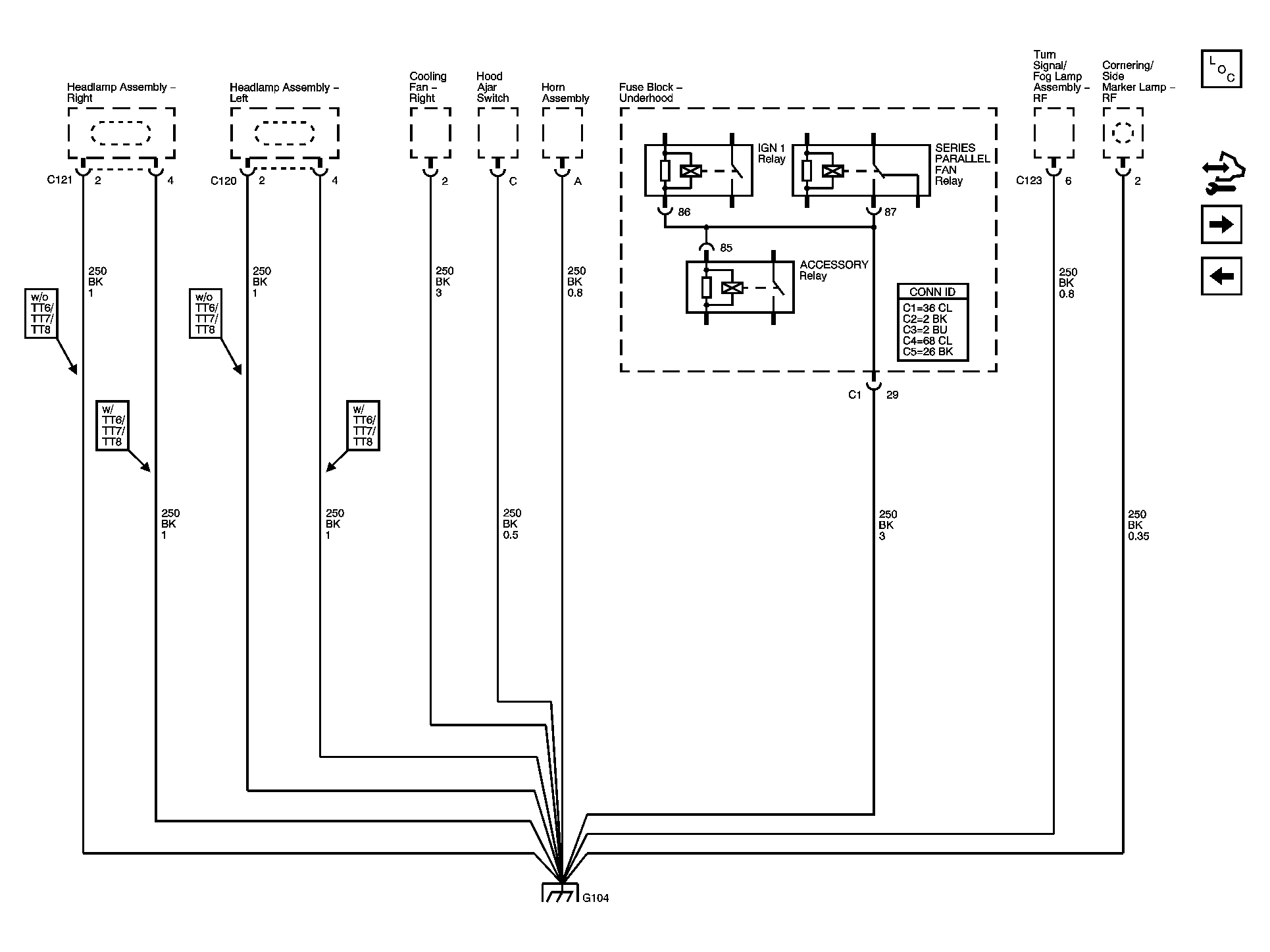

Fig 4: G104 Schematics 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 5: G104 Schematics 2 of 2

Courtesy of GENERAL MOTORS CORP.

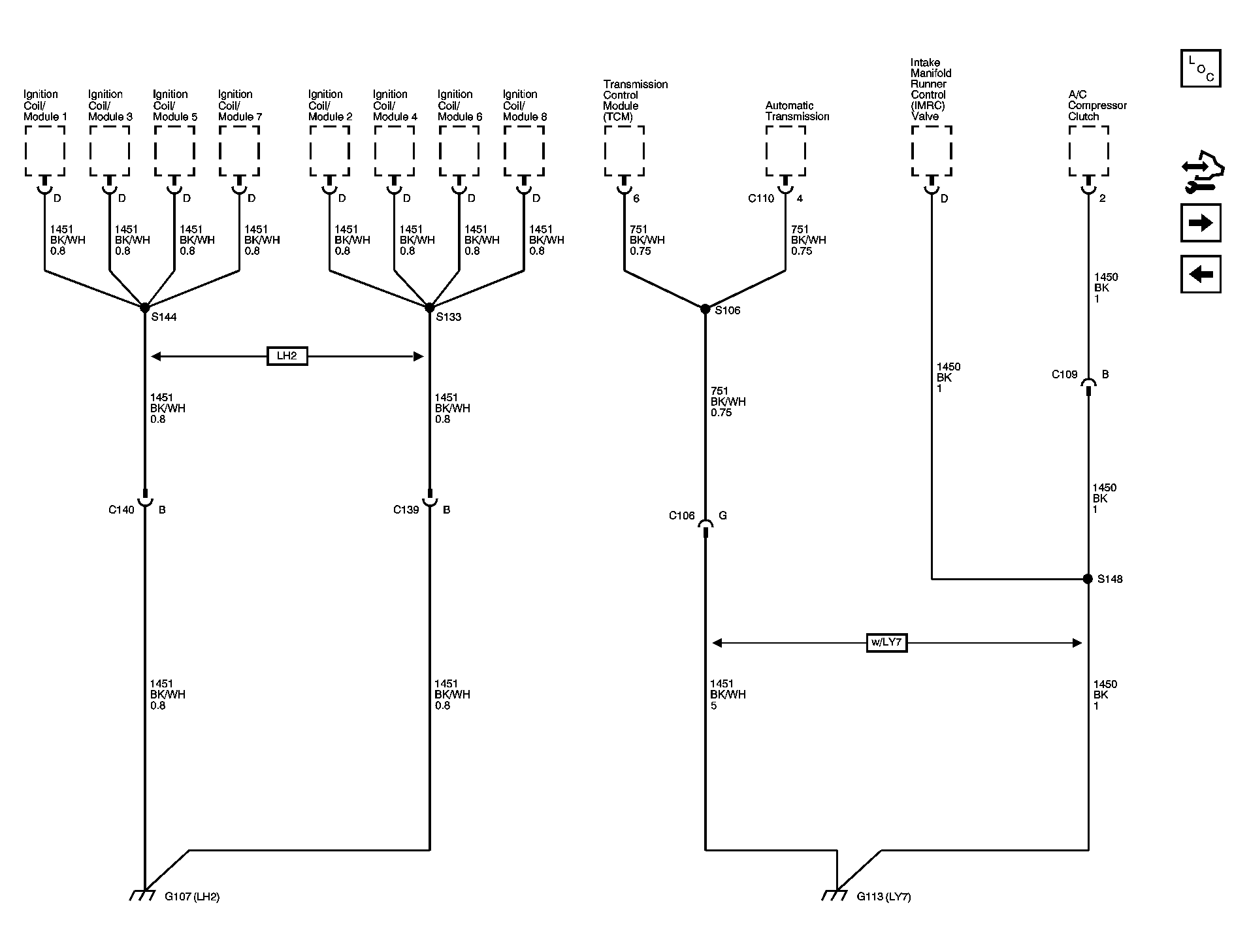

Fig 6: G107 (LH2), G113 (LY7) Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 7: G103 (LY7), G109 (LY7), G112 (LY7) Schematics

Courtesy of GENERAL MOTORS CORP.

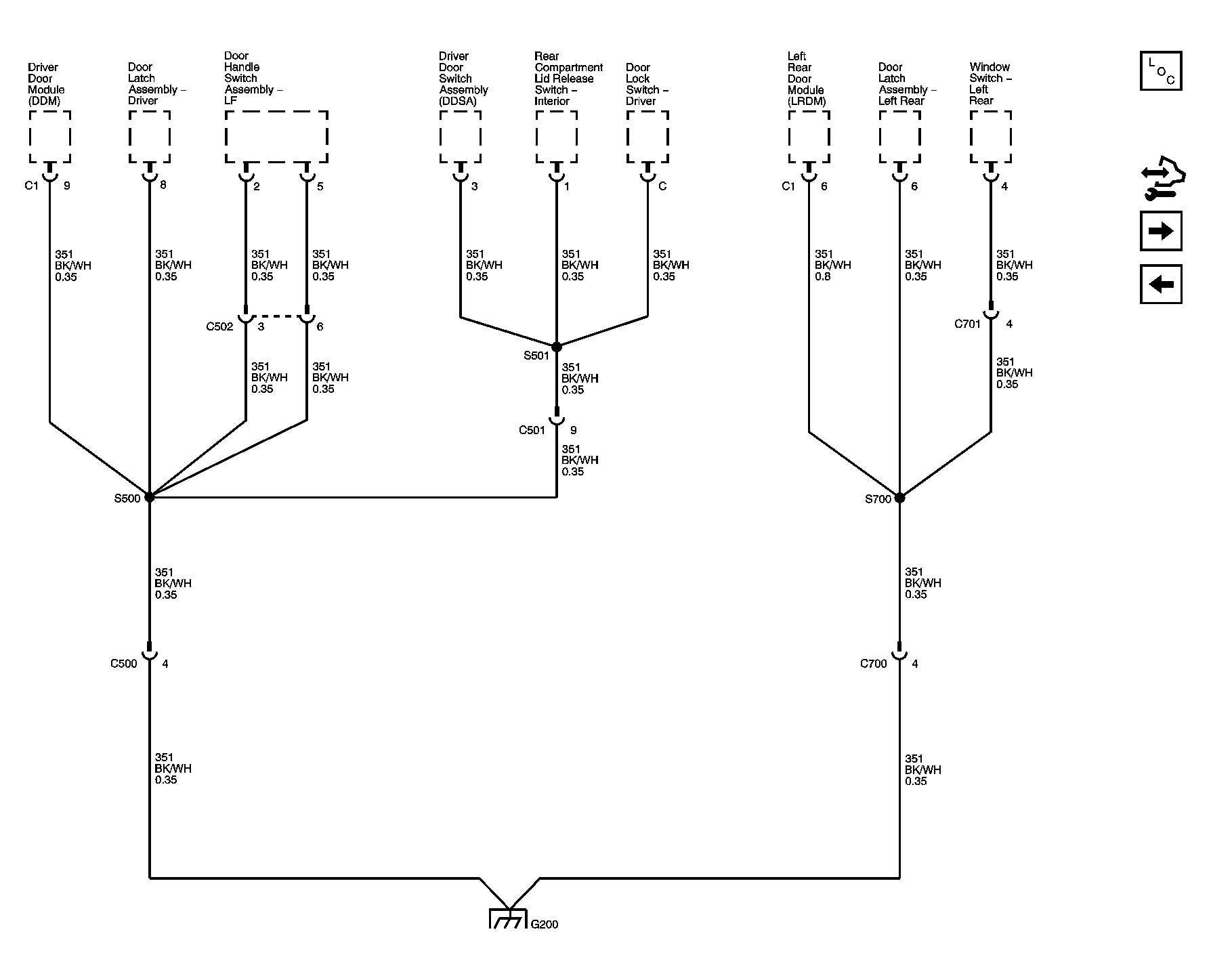

Fig 8: G200 Schematics 1 of 2

Courtesy of GENERAL MOTORS CORP.

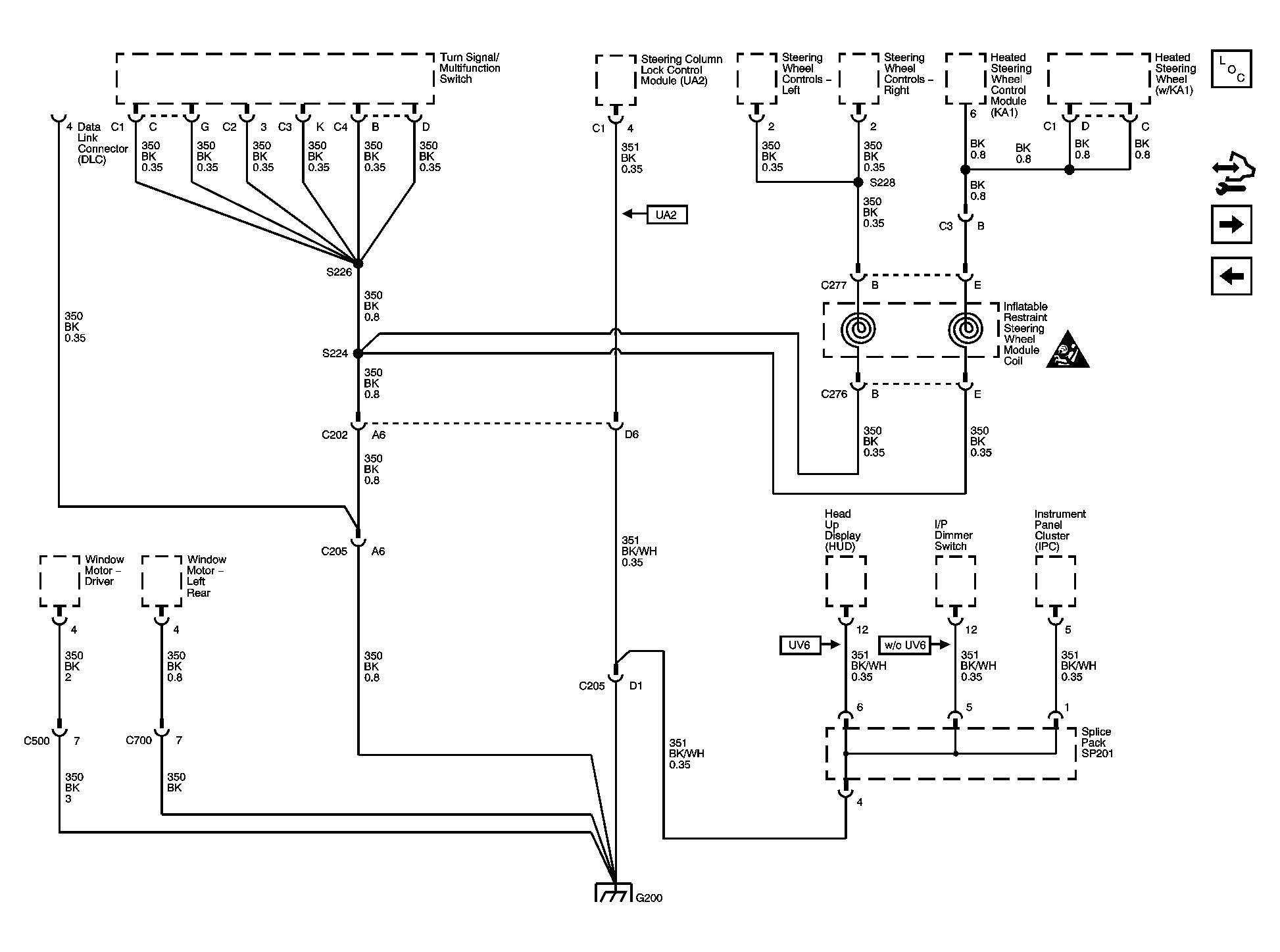

Fig 9: G200 Schematics 2 of 2

Courtesy of GENERAL MOTORS CORP.

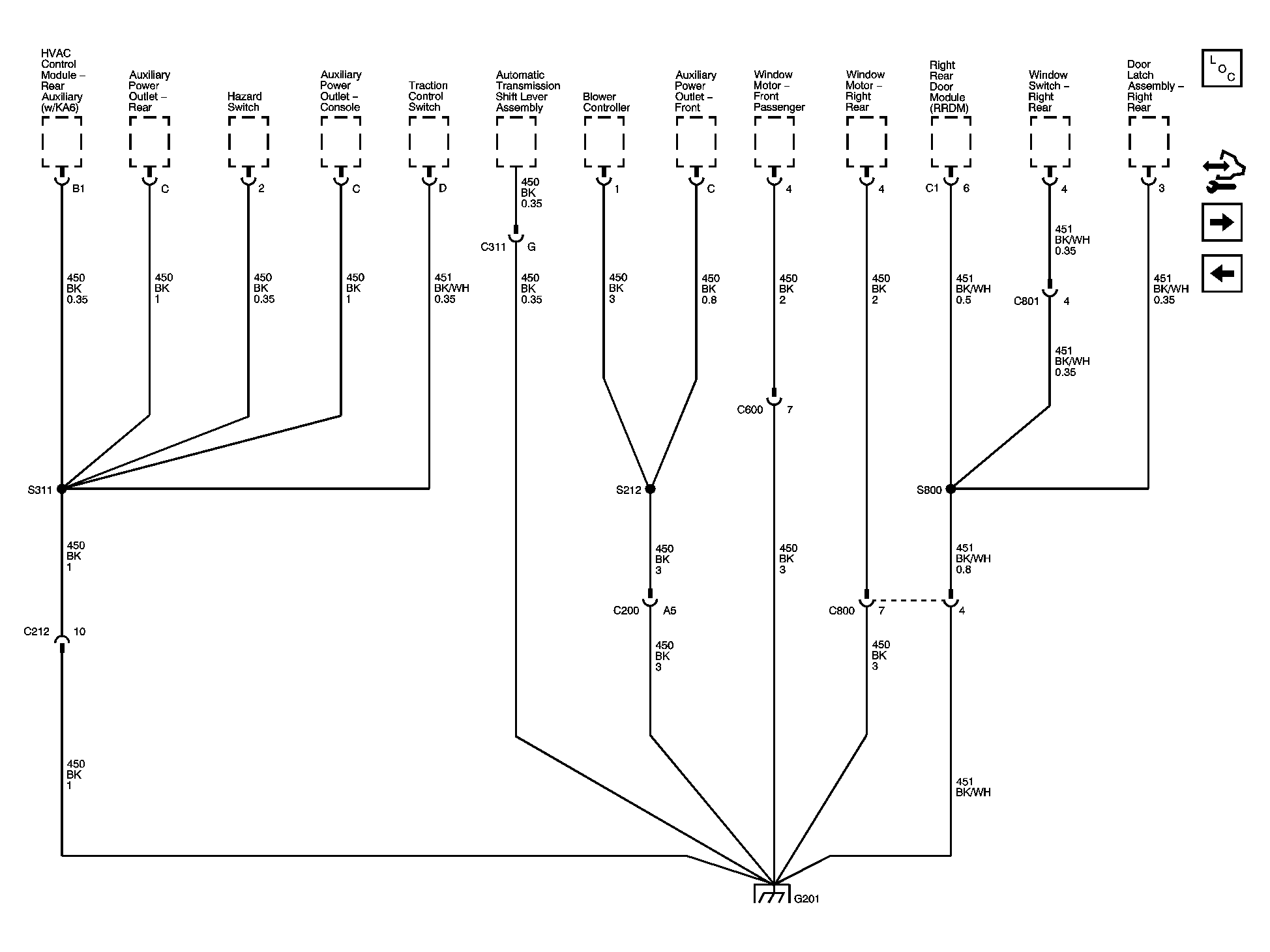

Fig 10: G201 Schematics 1 of 2

Courtesy of GENERAL MOTORS CORP.

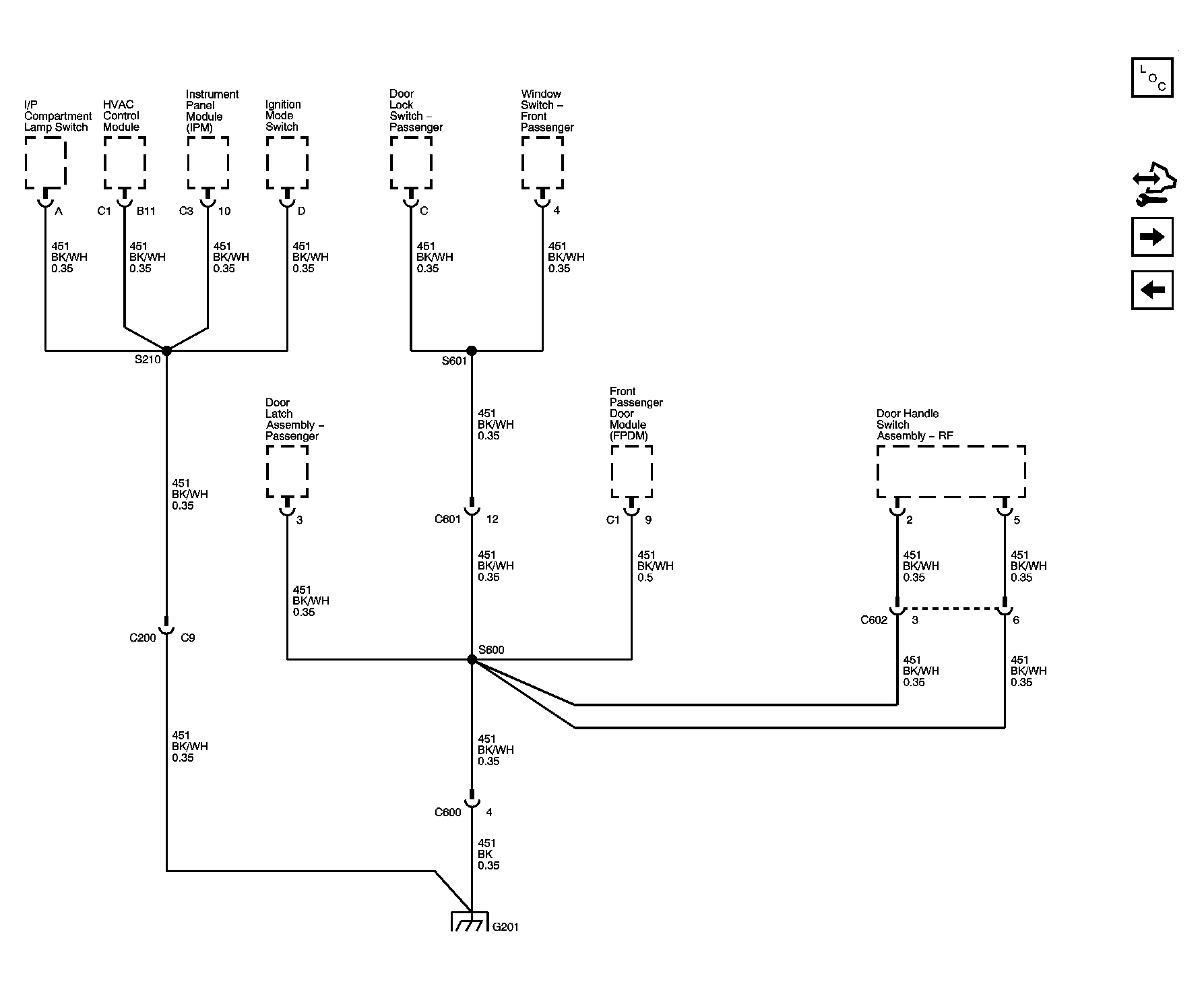

Fig 11: G201 Schematics 2 of 2

Courtesy of GENERAL MOTORS CORP.

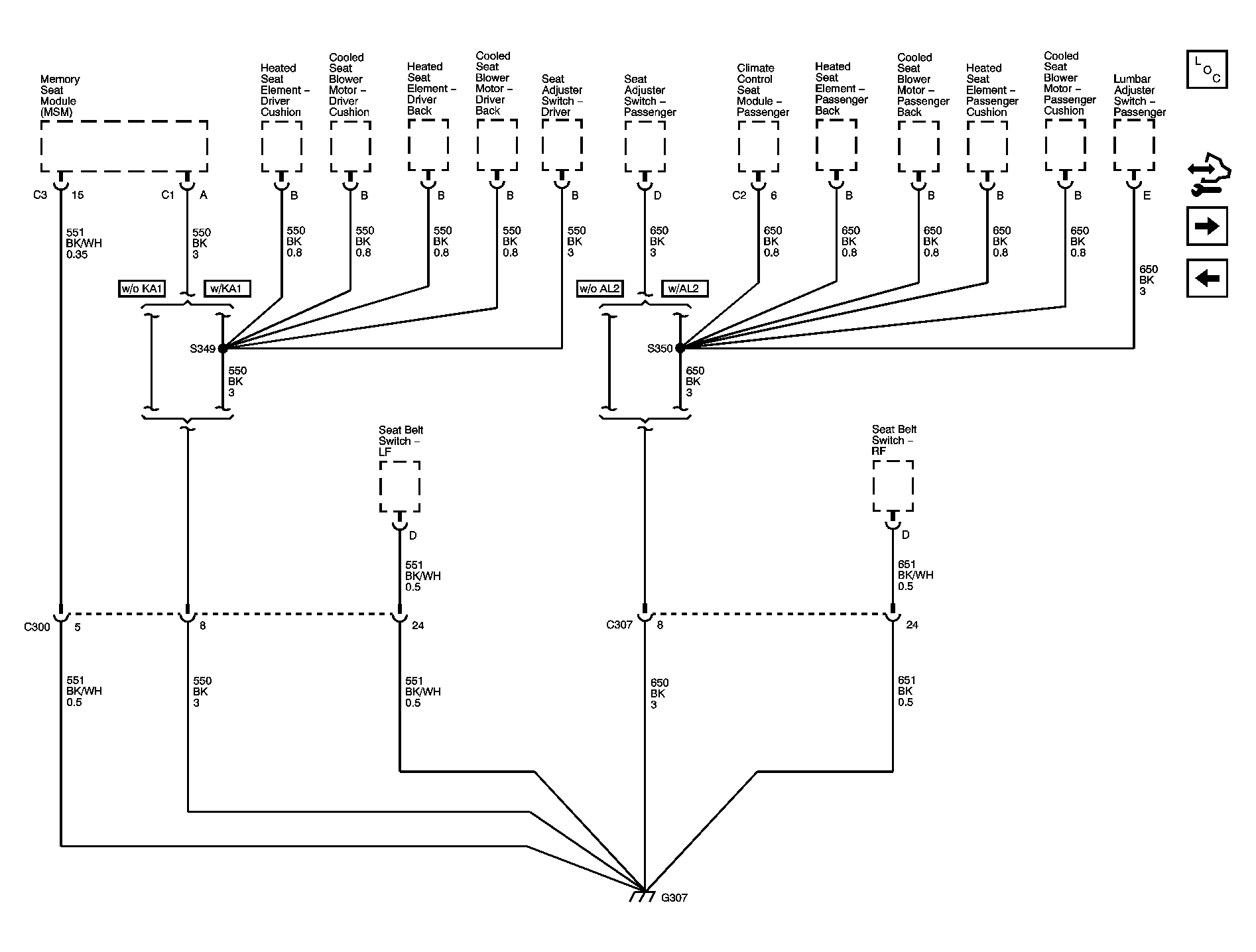

Fig 12: G307 Schematics (LHD)

Courtesy of GENERAL MOTORS CORP.

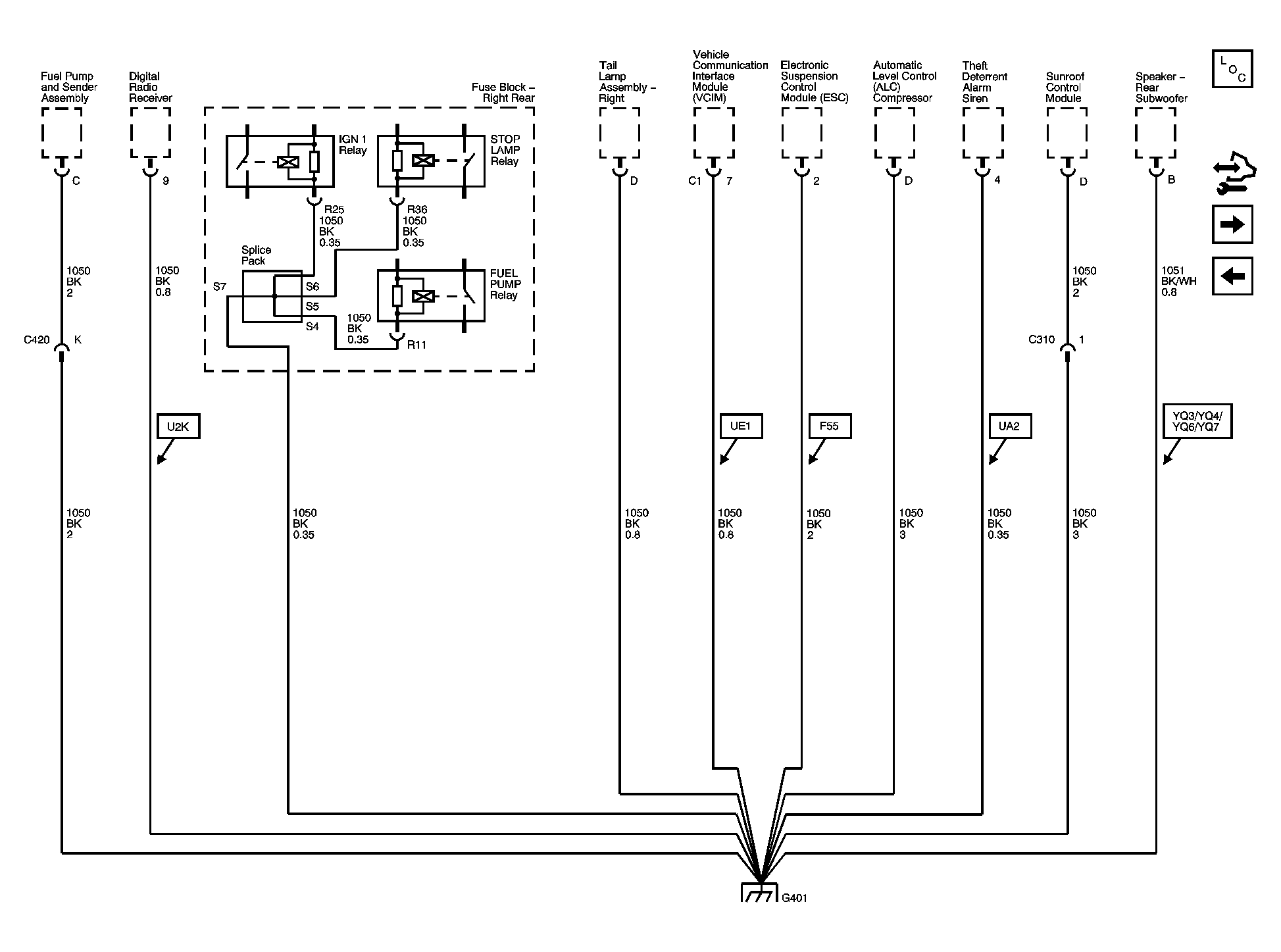

Fig 13: G401 Schematics 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 14: G401 Schematics 2 of 2

Courtesy of GENERAL MOTORS CORP.

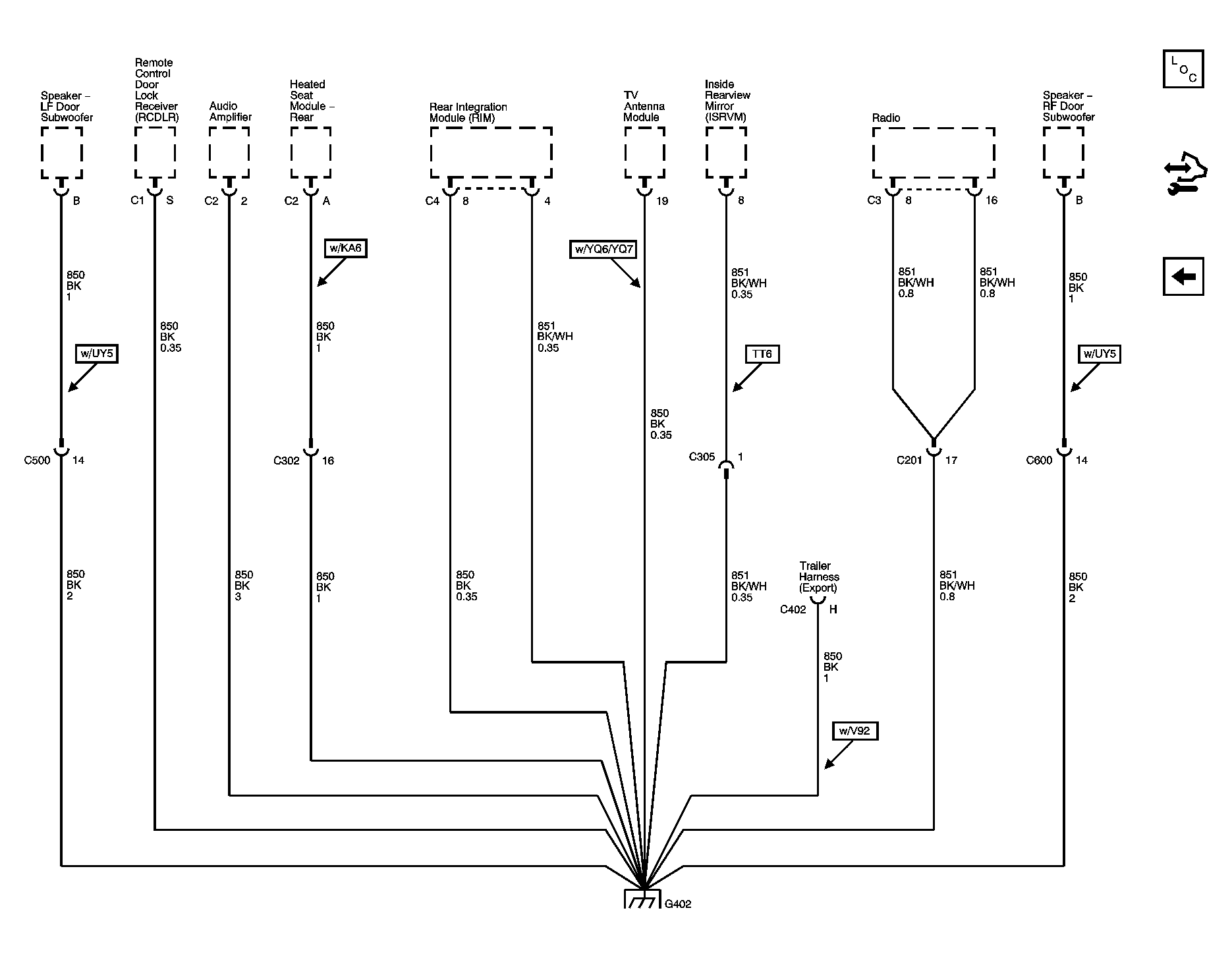

Fig 15: G402 Schematics 1 of 2

Courtesy of GENERAL MOTORS CORP.

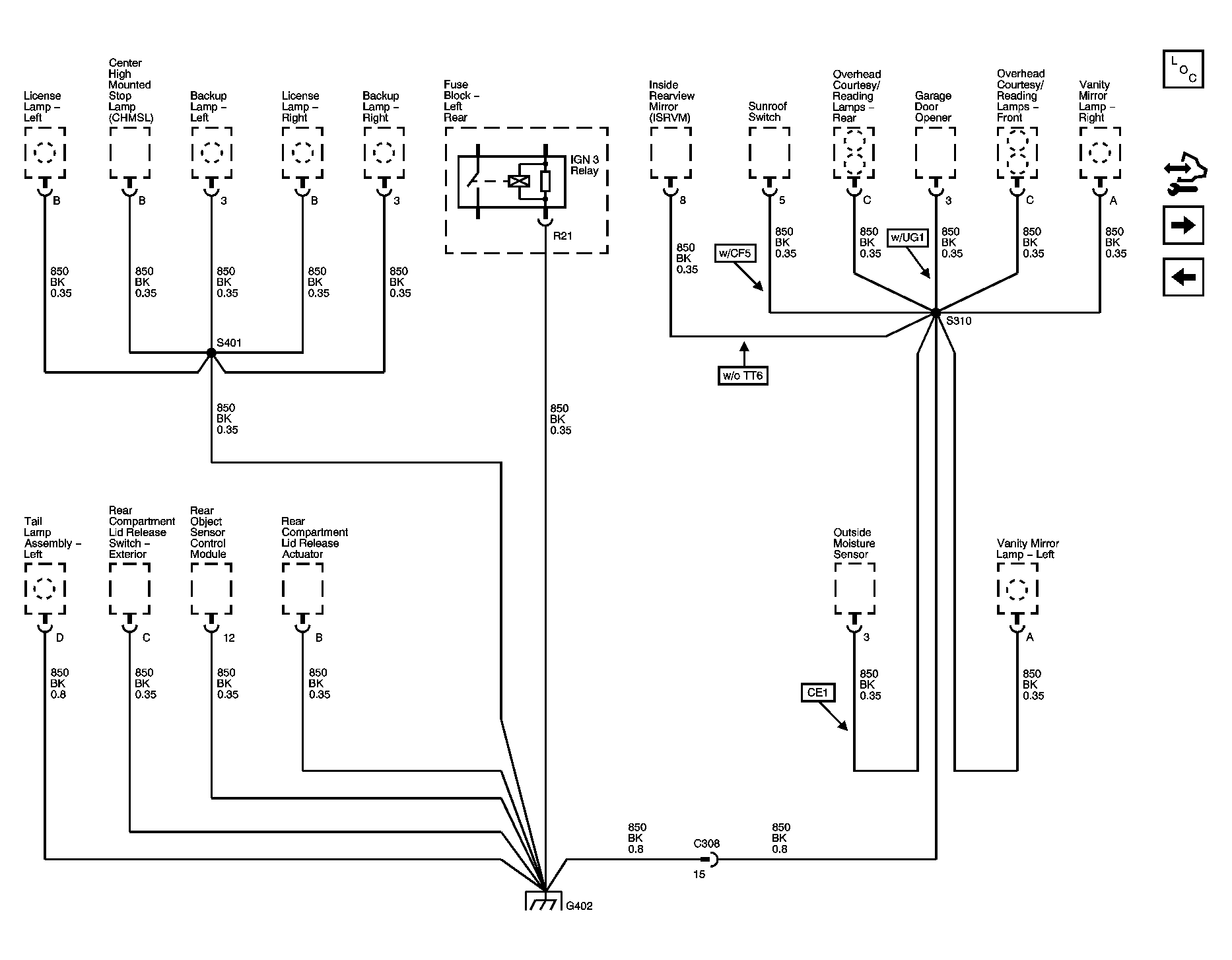

Fig 16: G402 Schematics 2 of 2

Courtesy of GENERAL MOTORS CORP.
