Fuse Block Connector End View - Left Rear Bottom View

Fig 1: Fuse Block - Left Rear Bottom View

Courtesy of GENERAL MOTORS CORP.

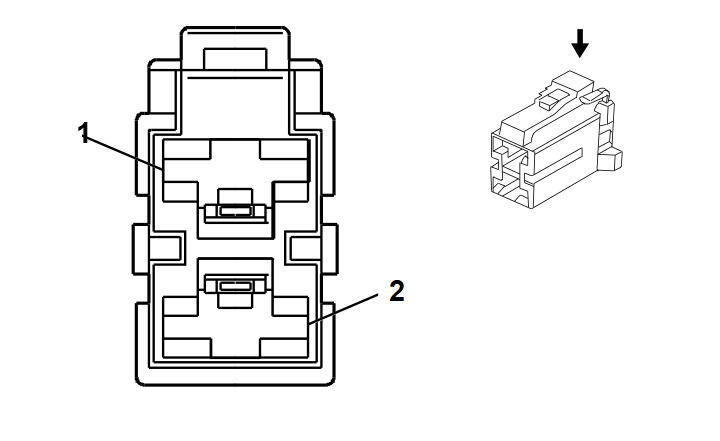

Fuse Block - Left Rear C1 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7123-4123-30 2-Way F L-Type (BK)
Pin	Wire Color	Circuit No.	Function
1	RD/BK	2	Battery Positive Voltage
2	RD/BK	2	Battery Positive Voltage

Fuse Block - Left Rear C2 Connector End View

Connector Part Information		7254-5568-30 ? Rear PDB Base Assembly
Pin	Wire Color	Circuit No.	Function
CB1	RD/WH	3740	Battery Positive Voltage
FL1	RD	1242	Battery Positive Voltage (W/YQ2)
FL1	RD	1242	Battery Positive Voltage (W/YQ3/YQ4/YQ6/YQ7)
FU11	RD/WH	640	Battery Positive Voltage
FU16	BN	341	Run Ignition 3 Voltage
FU24	RD/WH	2440	Battery Positive Voltage (W/YQ3/YQ4/YQ6/YQ7
FU26	RD/WH	2840	Battery Positive Voltage
FU3	RD/WH	3940	Battery Positive Voltage (w/o UA2)
FU32	RD/WH	940	Battery Positive Voltage
FU5	RD/WH	2340	Battery Positive Voltage (w/F55)
FU9	RD/BK	1342	Battery Positive Voltage (w/F55)
R10	YE	321	Automatic Level Control Relay Coil Control (w/F55)
R11	YE/BK	1418	Left Rear Turn Signal Switch Signal
R12	PU	1472	Left Park Lamp Relay Control
R16	D-GN/WH	1419	Right Rear Turn Signal Switch Signal
R17	BN/WH	1473	Right Park Lamp Supply Voltage
R21	BK	850	Ground
R25	OG	300	Run Ignition 3 Voltage
R30	BN/WH	1429	Standing Lamp Relay Control
R33	TN/WH	56	Trunk Release Motor Supply Voltage
R35	L-BU	1344	Trunk Release Relay Control
R40	D-GN	646	Reverse Relay Control
R8	D-GN	322	Automatic Level Control Compressor Motor Supply Voltage (w/F55)
S13	RD/WH	840	Battery Positive Voltage
S14	RD/WH	840	Battery Positive Voltage
S22	RD/WH	3640	Battery Positive Voltage
S25	L-GN	24	Backup Lamp Supply Voltage
S26	L-GN	24	Backup Lamp Supply Voltage
S27	L-GN	24	Backup Lamp Supply Voltage
S28	L-GN	24	Backup Lamp Supply Voltage
S3	BN	41	Run Ignition 3 Voltage
S5	BN	41	Run Ignition 3 Voltage (w/KB1/KA6)
S6	BN	41	Run Ignition 3 Voltage
S7	BN	41	Run Ignition 3 Voltage
