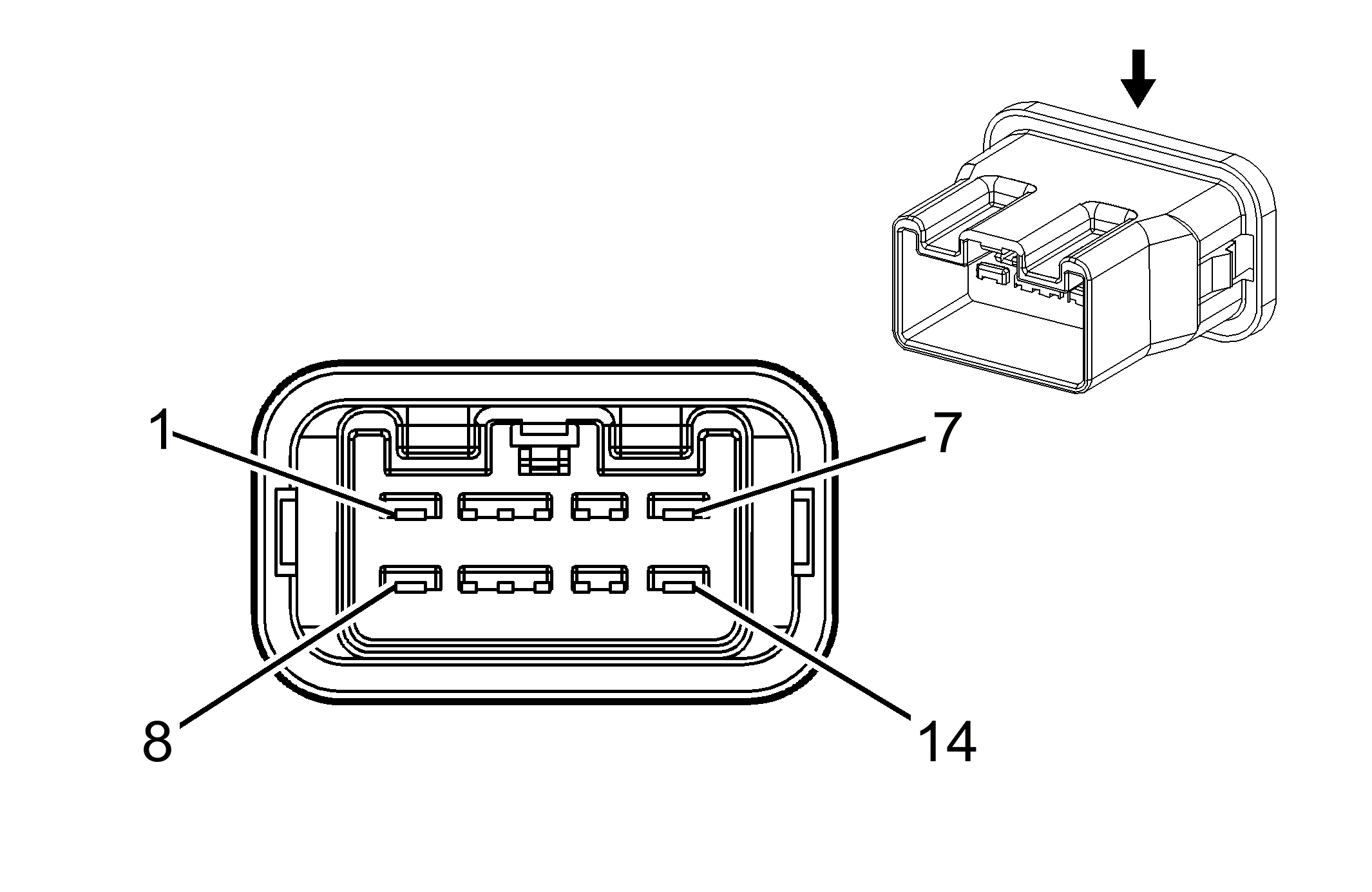

C700 Connector End View

C700 Body to LR Door Harness Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 7283-6447-40 Service: NS 14-Way F Hybrid (GY)		Connector Part Information		OEM: 7282-6385-40 NS 14-Way M Hybrid (GY)
Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:		Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	1040	Battery Positive Voltage	1	RD/WH	1040	Battery Positive Voltage
2	RD/WH	840	Battery Positive Voltage	2	RD/WH	840	Battery Positive Voltage
3	-	-	Not Used	3	-	-	Not Used
4	BK/WH	351	Ground	4	BK/WH	351	Signal Ground
5	WH	1959	Left Rear Midrange Speaker (-)	5	WH	1959	Left Rear Midrange Speaker (-)
6	TN	1859	Left Rear Midrange Speaker (+)	6	TN	1859	Left Rear Midrange Speaker (+)
7	BK	350	Ground	7	BK	350	Ground
8-10	-	-	Not Used	8-10	-	-	Not Used
11	D-BU/WH	149	Courtesy Lamp Supply Voltage	11	D-BU/WH	149	Courtesy Lamp Supply Voltage
12	GY	157	Interior Lamp Control	12	GY	157	Interior Lamp Control
13	D-GN	5060	Low Speed GMLAN Serial Data	13	D-GN	5060	Low Speed GMLAN Serial Data
14	-	-	Not Used	14	-	-	Not Used
