C502 Connector End View

C502 LF Door to LF Handle Jumper Connector End View

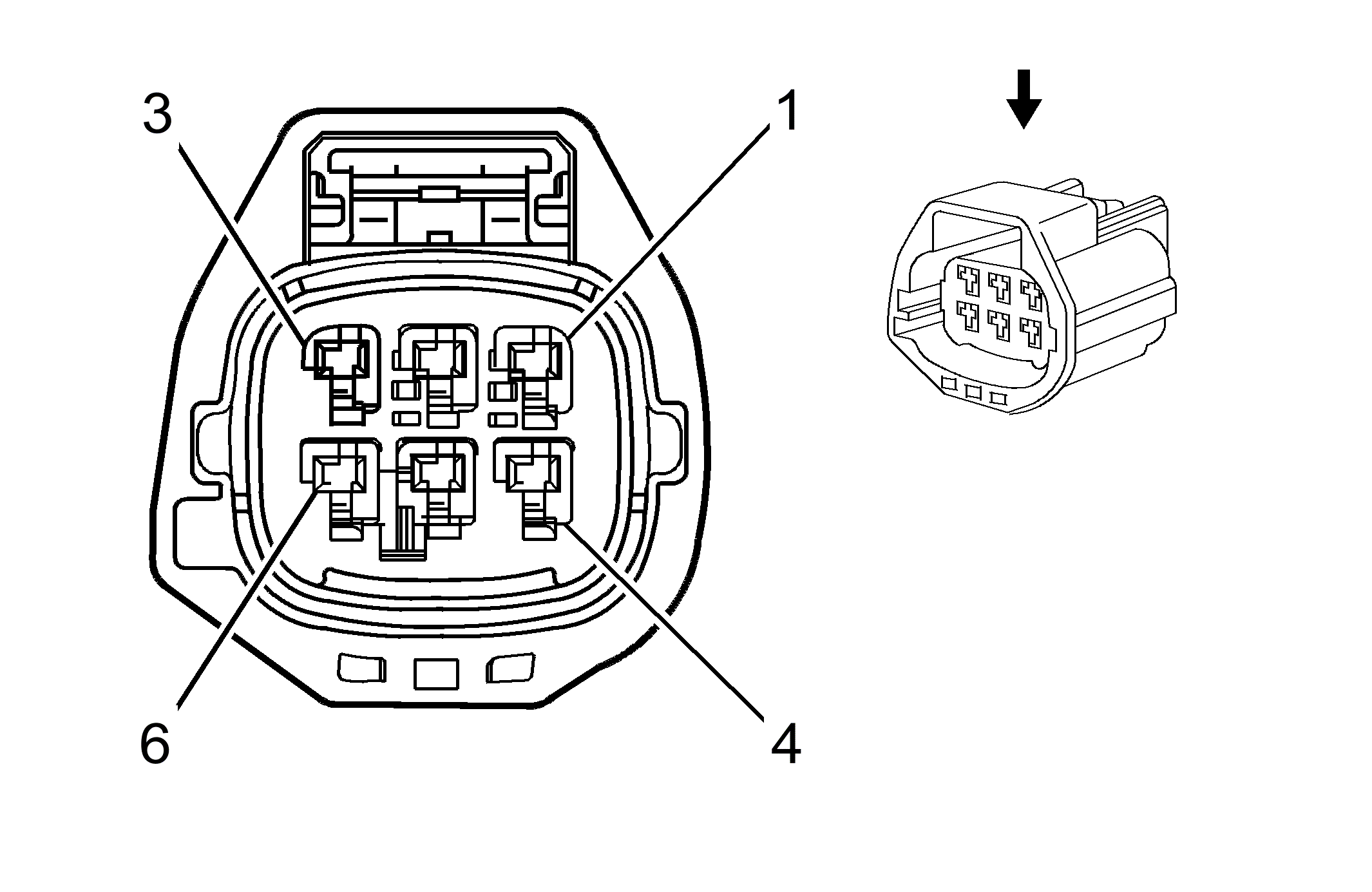

GM1413042Courtesy of GENERAL MOTORS CORP.

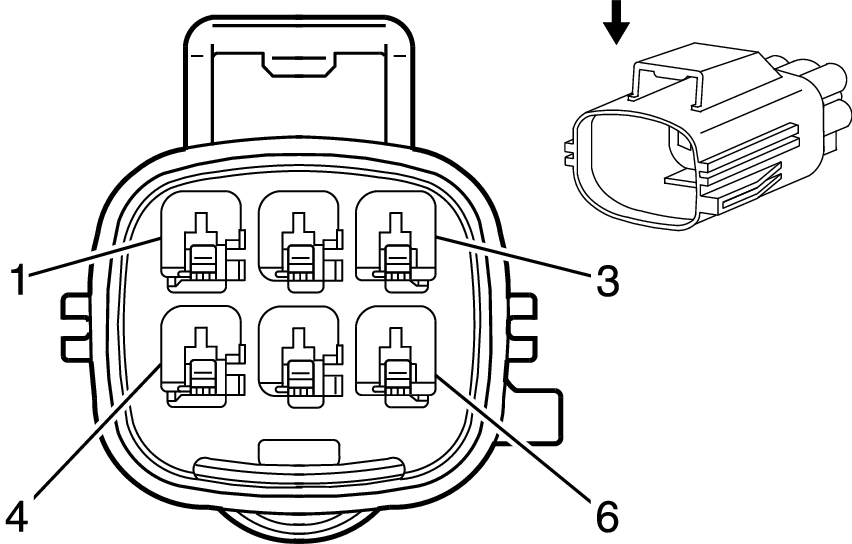

GM1413074Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5553-10
  • Service: NS
  • 6-Way F YESC 1.5 (D-GY)
 Connector Part Information
  • OEM: 7282-5553-10
  • NS
  • 6-Way M YESC 1.5 (D-GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
 Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PK 5709 Keyless Entry Antenna Signal (4) 1 PK 5709 Keyless Entry Antenna Signal (4)
2 PK/BK 5713 Keyless Entry Antenna Low Reference (4) 2 PK/BK 5713 Keyless Entry Antenna Low Reference (4)
3 BK/WH 351 Ground 3 BK/WH 351 Ground
4 BN 5881 Left Front Door Handle Switch Signal (3) 4 BN 5881 Left Front Door Handle Switch Signal (3)
5 D-BU 5882 Left Front Door Handle Switch Signal (2) 5 D-BU 5882 Left Front Door Handle Switch Signal (2)
6 BK/WH 351 Ground 6 BK/WH 351 Ground
