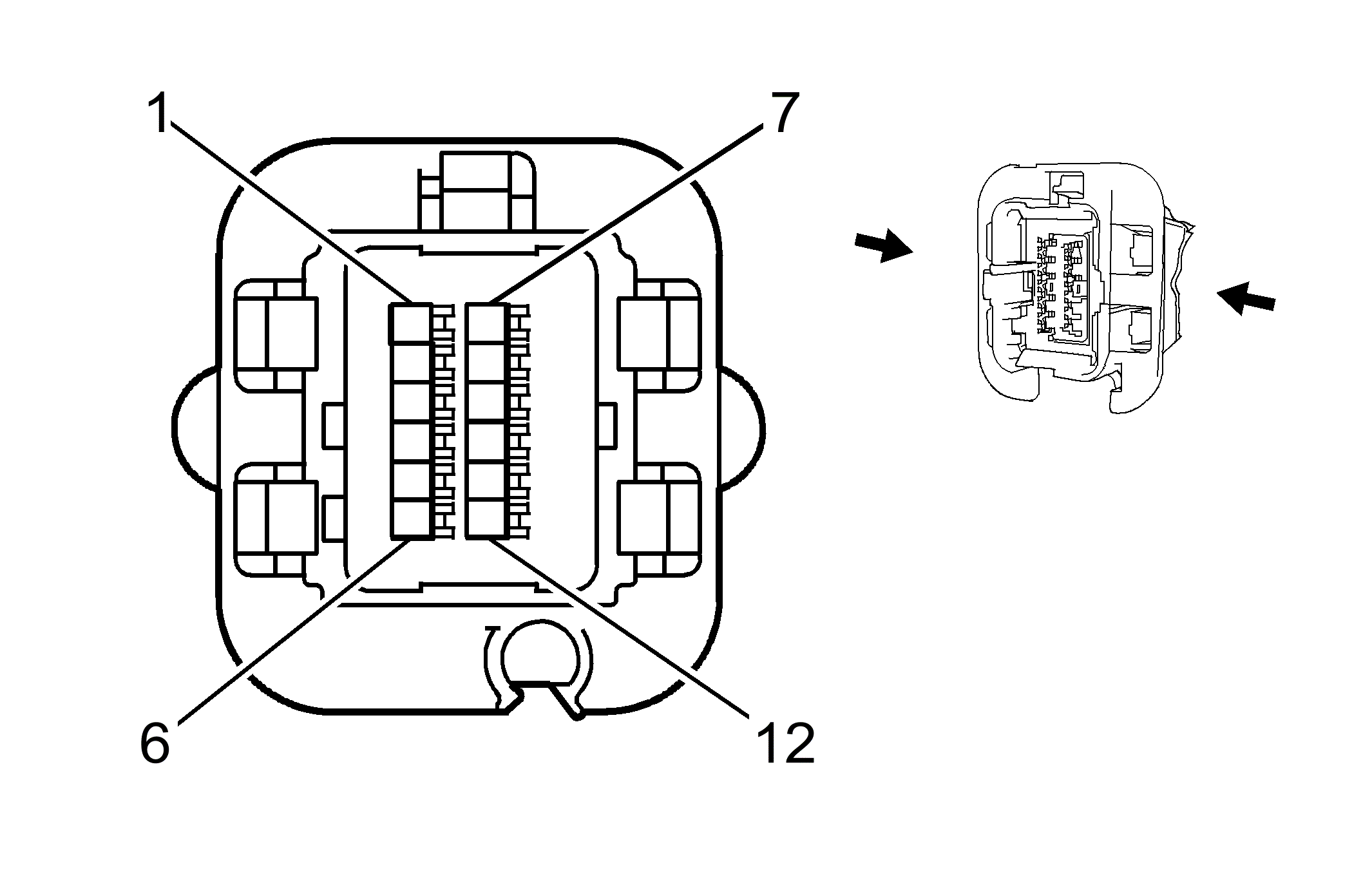

C501 Connector End View

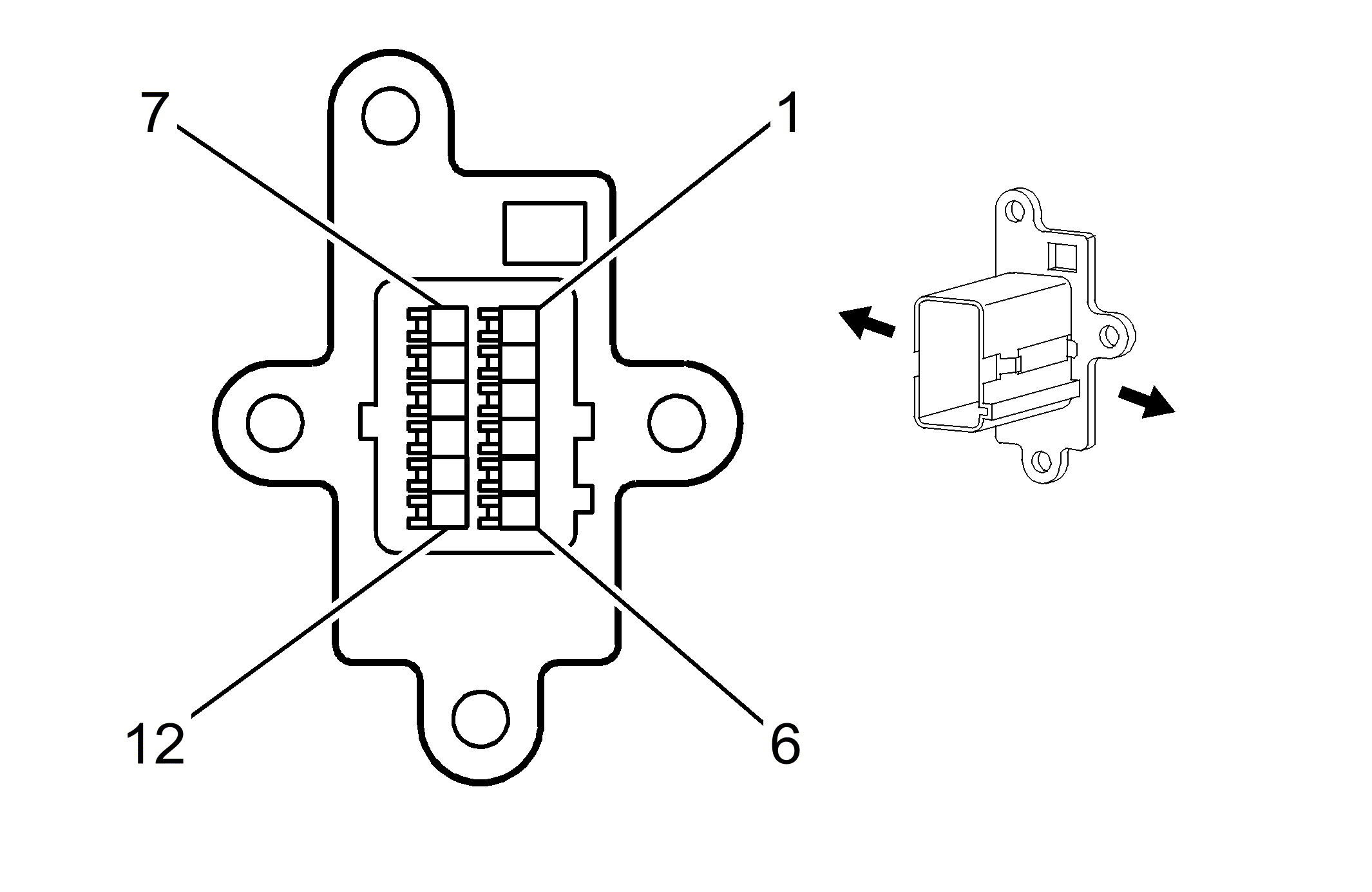

C501 LF Door to LF Door Trim Harness Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 7283-4848-30 Service: NS 12-Way F Dock and Lock (BK)		Connector Part Information		OEM: 7282-4848-30 NS 12-Way M Dock and Lock (BK)
Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:		Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	D-GN	5060	Low Speed GMLAN Serial Data	1	D-GN	5060	Low Speed GMLAN Serial Data
2	RD/WH	640	Battery Positive Voltage	2	RD/WH	640	Battery Positive Voltage
3	-	-	Not Used	3	-	-	Not Used
4	PU/WH	5754	Amplifier Powered Woofer Control (1)	4	PU/WH	5754	Amplifier Powered Woofer Control (1)
5	L-BU/WH	6576	Driver Door Courtesy Lamp Control Low	5	L-BU/WH	6576	Driver Door Courtesy Lamp Control Low
6	YE	1491	Backlight Lamp Control	6	YE	1491	Backlight Lamp Control
7	PK/BK	5968	Driver Door Lock Status Indicator Signal Ground	7	PK/BK	5968	Driver Door Lock Status Indicator Signal Ground
8	PU/WH	5965	Driver Door Lock Status Indicator Supply Voltage	8	PU/WH	5965	Driver Door Lock Status Indicator Supply Voltage
9	BK/WH	351	Signal Ground	9	BK/WH	351	Signal Ground
10-12	-	-	Not Used	10-12	-	-	Not Used
