C309 Connector End View

C309 Headliner to Sunroof Jumper Connector End View (w/CF5)

GM802496Courtesy of GENERAL MOTORS CORP.

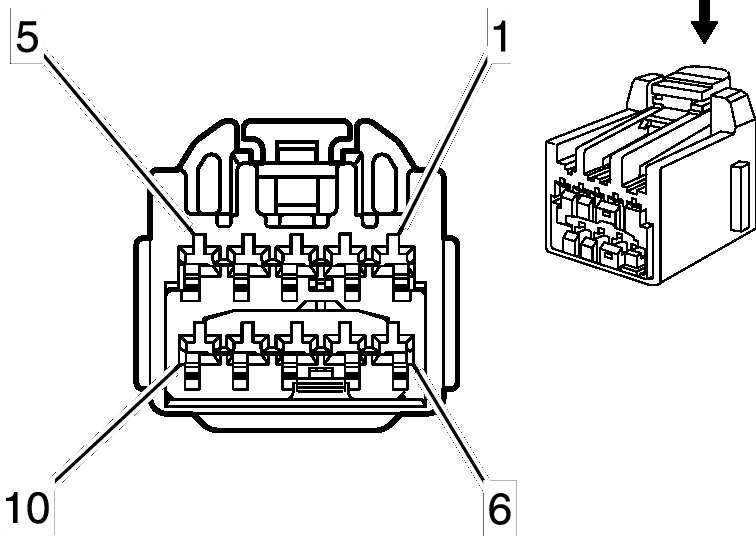

GM825441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7282-5533-40
  • Service: NS
  • 10-Way M YESC 1.5 (L-GY)
 Connector Part Information
  • OEM: 7283-6456-90
  • NS
  • 10-Way F YESC 1.5 (L-GY)
Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
 Terminal Part Information
  • Terminal:
  • Terminal Seal:
  • Release Tool:
  • Core Crimp:
  • Insulation Crimp:
  • Test Probe:
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 - - Not Used 1 - - Not Used
2 L-BU 5027 Sunroof Switch Data (1) 2 L-BU 5027 Sunroof Switch Data (1)
3 BN 5028 Sunroof Switch Data (2) 3 BN 5028 Sunroof Switch Data (2)
4 OG 5029 Sunroof Switch Data (3) 4 OG 5029 Sunroof Switch Data (3)
5 PK 5031 Sunroof Switch Data (5) 5 PK 5031 Sunroof Switch Data (5)
6 PU 5032 Sunroof Switch Data (6) 6 PU 5032 Sunroof Switch Data (6)
7 TN 5030 Sunroof Switch Data (4) 7 TN 5030 Sunroof Switch Data (4)
8 - - - 8 RD/WH - Not Used
9 - - - 9 BU/WH - Not Used
10 - - - 10 GN/WH - Not Used
