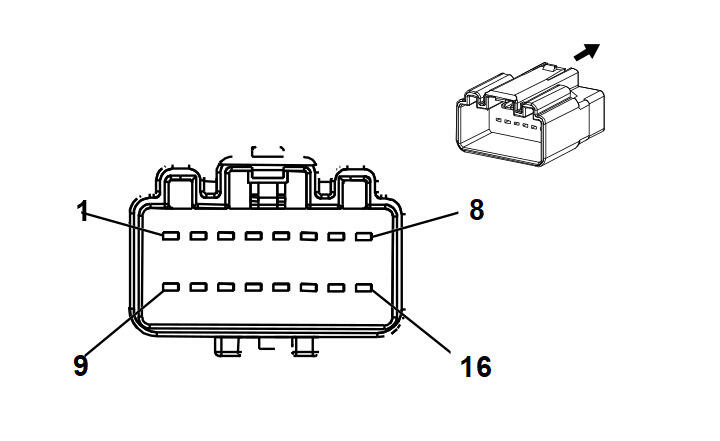

C308 Connector End View

C308 Body to Headliner Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 7282-6456-90 Service: NS 16-Way M YESC (BU)		Connector Part Information		OEM: 7283-6456-90 NS 16-Way F YESC (BU)
Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:		Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	YE/BK	2516	Keypad Green LED (w/UE1)	1	YE/BK	2516	Keypad Green LED (w/UE1)
2	D-GN/WH	2514	Keypad Signal (w/UE1)	2	D-GN/WH	2514	Keypad Signal (w/UE1)
3	L-GN/BK	2515	Keypad Supply Voltage (w/UE1)	3	L-GN/BK	2515	Keypad Supply Voltage (w/UE1)
4	BN/WH	2517	Keypad Red LED (w/UE1)	4	BN/WH	2517	Keypad Red LED (w/UE1)
5	GY	655	Cellular Telephone Microphone Signal	5	GY	655	Cellular Telephone Microphone Signal
6	BARE	1782	Drain Wire	6	BARE	1782	Drain Wire
7	D-BU/WH	149	Courtesy Lamp Supply Voltage	7	D-BU/WH	149	Courtesy Lamp Supply Voltage
8	GY	157	Interior Lamp Control	8	GY	157	Interior Lamp Control
9	L-GN/BK	5711	Keyless Entry Antenna Low Reference (2)	9	L-GN/BK	5711	Keyless Entry Antenna Low Reference (2)
10	L-GN	5707	Keyless Entry Antenna Signal (2)	10	L-GN	5707	Keyless Entry Antenna Signal (2)
11	PK	1691	Automatic Day/Night Mirror Low Reference	11	PK	1691	Automatic Day/Night Mirror Low Reference
12	GY	1690	Automatic Day/Night Mirror Signal	12	GY	1690	Automatic Day/Night Mirror Signal
13	PK	1339	Run/Crank Ignition 1 Voltage	13	PK	1339	Run/Crank Ignition 1 Voltage
14	L-GN	24	Backup Lamp Supply Voltage	14	L-GN	24	Backup Lamp Supply Voltage
15	BK	850	Ground	15	BK	850	Ground
16	BN	253	Trunk Release Relay Control (w/UG1)	16	BN	253	Trunk Release Relay Control (w/UG1)
