C307 Connector End View

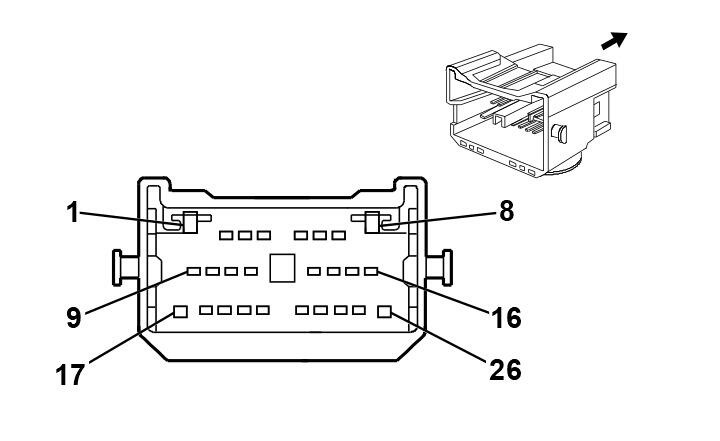

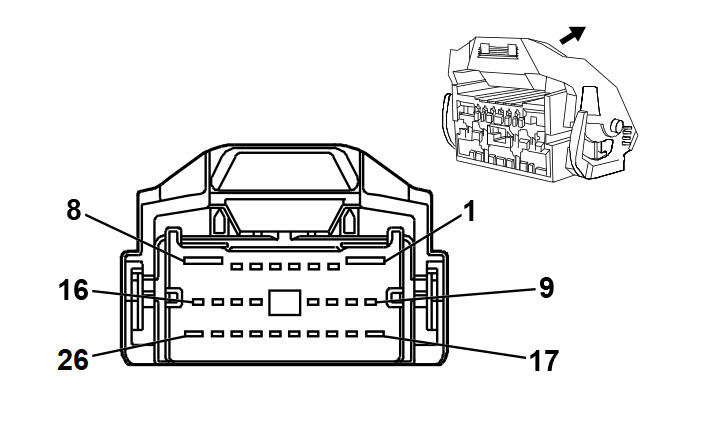

C307 Body to Front Passenger Seat Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 7283-6376-30 Service: NS 26-Way F YESC Hybrid (BK)		Connector Part Information		OEM: 7282-6376-30 NS 26-Way M YESC Hybrid (GY)
Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:		Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	3740	Battery Positive Voltage	1	RD/WH	3740	Battery Positive Voltage
2	GY	791	PWM Serial Data (w/KA1/KB6)	2	GY	791	PWM Serial Data (w/KA1/KB6)
3	BN	41	Run Ignition 3 Voltage (w/KA1/KB6)	3	BN	41	Run Ignition 3 Voltage (w/KA1/KB6)
4	RD/WH	2540	Battery Positive Voltage (w/KA1/KB6)	4	RD/WH	2540	Battery Positive Voltage (w/KA1/KB6)
5-7	-	-	Not Used	5-7	-	-	Not Used
8	BK	650	Ground	8	BK	650	Ground
9	PK	5017	Driver Seat Belt Switch Low Reference	9	PK	5017	Driver Seat Belt Switch Low Reference
10	OG	5919	Driver Seat Fan Speed Control (w/KB6)	10	OG	5919	Driver Seat Fan Speed Control (w/KB6)
11	-	-	Not Used	11	-	-	Not Used
12	BK/WH	5611	Passenger Seat Belt Tension Sensor Signal	12	PU	5611	Passenger Seat Belt Tension Sensor Signal
13	PK	2077	Driver Heated Seat Element Supply Voltage (w/KA1/KB6)	13	PK	2077	Driver Heated Seat Element Supply Voltage (w/KA1/KB6)
14-15	-	-	Not Used	14-15	-	-	Not Used
16	TN/WH	238	Driver Seat Belt Switch Signal	16	TN/WH	238	Driver Seat Belt Switch Signal
17	-	-	Not Used	17	-	-	Not Used
18	YE	5759	Right Front Seat Left Speaker (+) (w/YQ3/YQ4/YQ6/YQ7)	18	YE	5759	Right Front Seat Left Speaker (+) (w/YQ3/YQ4/YQ6/YQ7)
19	YE/BK	5769	Right Front Seat Left Speaker (-) (w/YQ3/YQ4/YQ6/YQ7)	19	YE/BK	5769	Right Front Seat Left Speaker (-) (w/YQ3/YQ4/YQ6/YQ7)
20	L-GN	5760	Right Front Seat Right Speaker (+) (w/YQ3/YQ4/YQ6/YQ7)	20	L-GN	5760	Right Front Seat Right Speaker (+) (w/YQ3/YQ4/YQ6/YQ7)
21	L-GN/BK	5770	Right Front Seat Right Speaker (-) (w/YQ3/YQ4/YQ6/YQ7)	21	L-GN/BK	5770	Right Front Seat Right Speaker (-) (w/YQ3/YQ4/YQ6/YQ7)
22	WH	790	PWM Serial Data (w/KA1/KB6)	22	WH	790	PWM Serial Data (w/KA1/KB6)
23	-	-	Not Used	23	-	-	Not Used
24	BK/WH	651	Ground	24	BK/WH	651	Ground
25	YE/BK	2079	Driver Heated Seat NTC Signal (w/KA1/KB6)	25	YE/BK	2079	Driver Heated Seat NTC Signal (w/KA1/KB6)
26	YE	2080	Driver Heated Seat NTC Low Reference (w/KA1/KB6)	26	YE	2080	Driver Heated Seat NTC Low Reference (w/KA1/KB6)
