C302 Connector End View

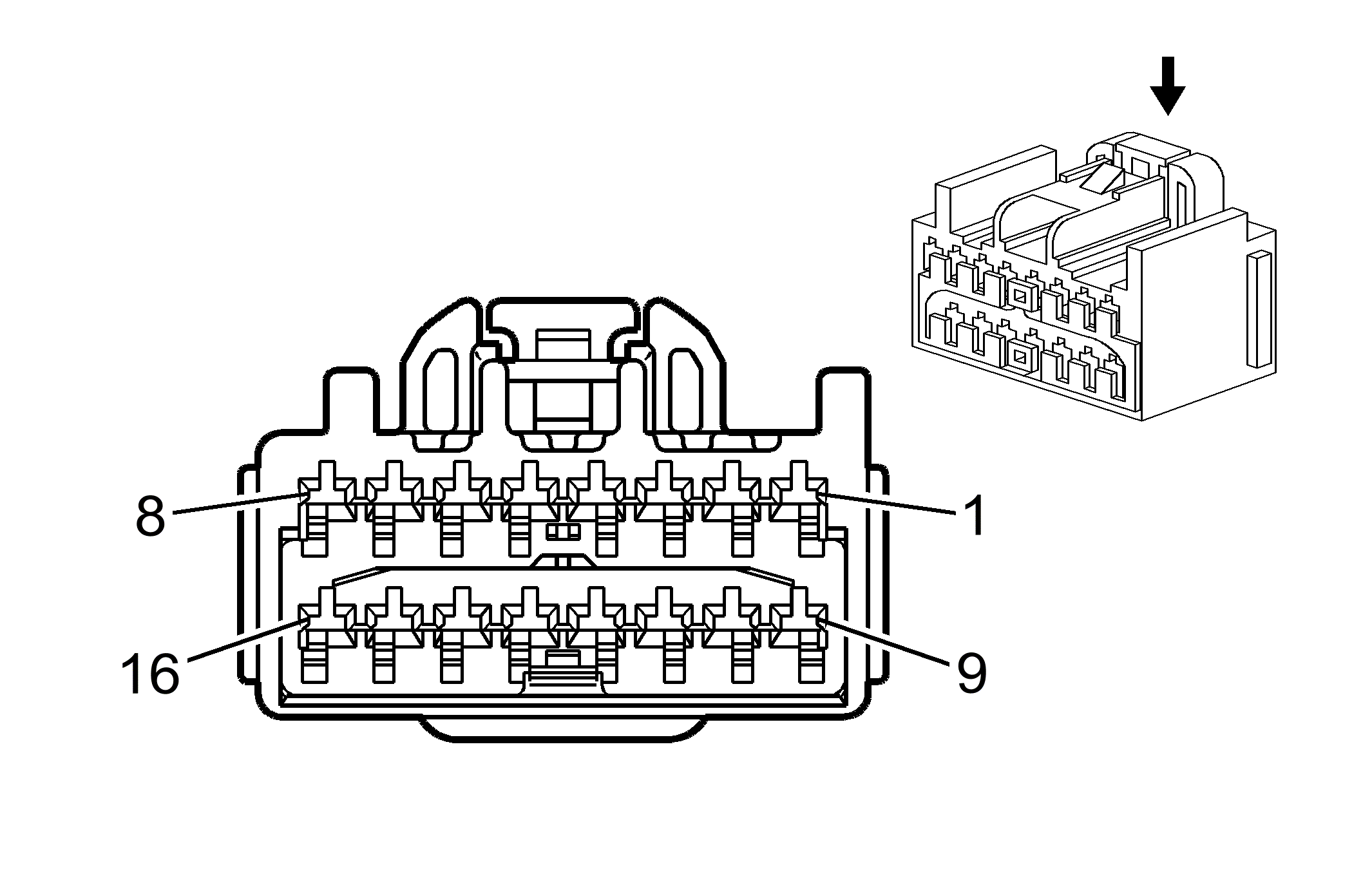

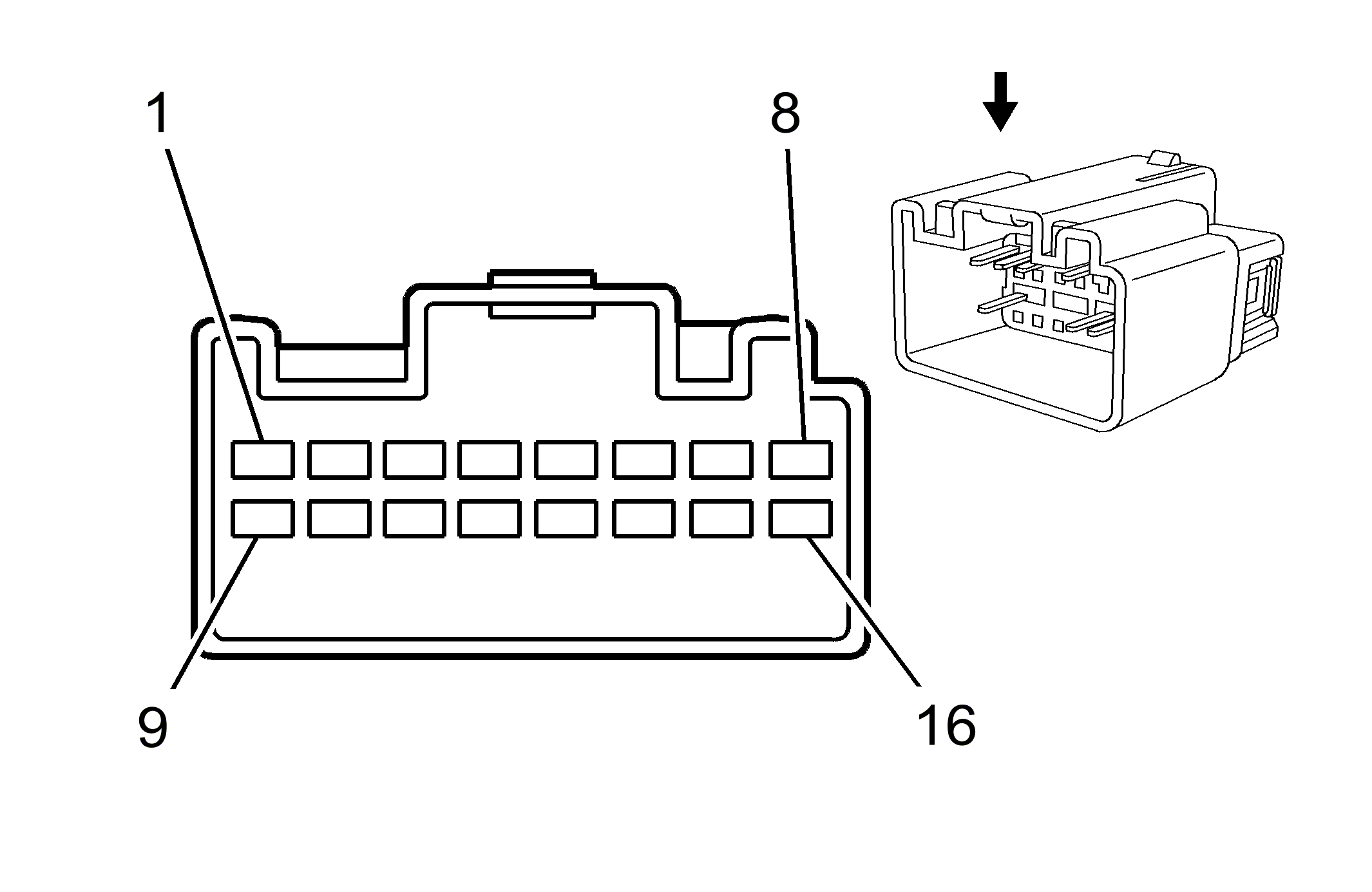

C302 Body to Rear Seat Harness Connector End View (w/KA6)

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 7283-5536-40 Service: NS 16-Way F YESC/USCAR Class 3 (GY)		Connector Part Information		OEM: 7282-5536-40 NS 16-Way M YESC/USCAR Class 3 (L-GY)
Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:		Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used	1	-	-	Not Used
2	BN	1634	Right Rear Heated Seat Switch Signal	2	BN	1634	Right Rear Heated Seat Switch Signal
3	-	-	Not Used	3	-	-	Not Used
4	BN	1637	Left Rear Heated Seat Switch Signal	4	BN	1637	Left Rear Heated Seat Switch Signal
5	BN	341	Run Ignition 3 Voltage	5	BN	341	Run Ignition 3 Voltage
6	-	-	Not Used	6	-	-	Not Used
7	TN/WH	1638	Left Rear Heated Seat High Indicator Control	7	TN/WH	1638	Left Rear Heated Seat High Indicator Control
8	BN/WH	6585	Left Rear Heated Seat Medium Indicator Control	8	BN/WH	6585	Left Rear Heated Seat Medium Indicator Control
9	PK	1631	Left Rear Heated Seat Low Indicator Control	9	PK	1631	Left Rear Heated Seat Low Indicator Control
10	YE	182	Heated Seat Control Module Enable Signal	10	YE	182	Heated Seat Control Module Enable Signal
11	-	-	Not Used	11	-	-	Not Used
12	TN/WH	1635	Right Rear Heated Seat High Indicator Control	12	TN/WH	1635	Right Rear Heated Seat High Indicator Control
13	D-BU/WH	6586	Right Rear Heated Seat Medium Indicator Control	13	D-BU/WH	6586	Right Rear Heated Seat Medium Indicator Control
14	PK	1636	Right Rear Heated Seat Low Indicator Control	14	PK	1636	Right Rear Heated Seat Low Indicator Control
15	-	-	Not Used	15	-	-	Not Used
16	BK	850	Ground	16	BK	850	Ground
