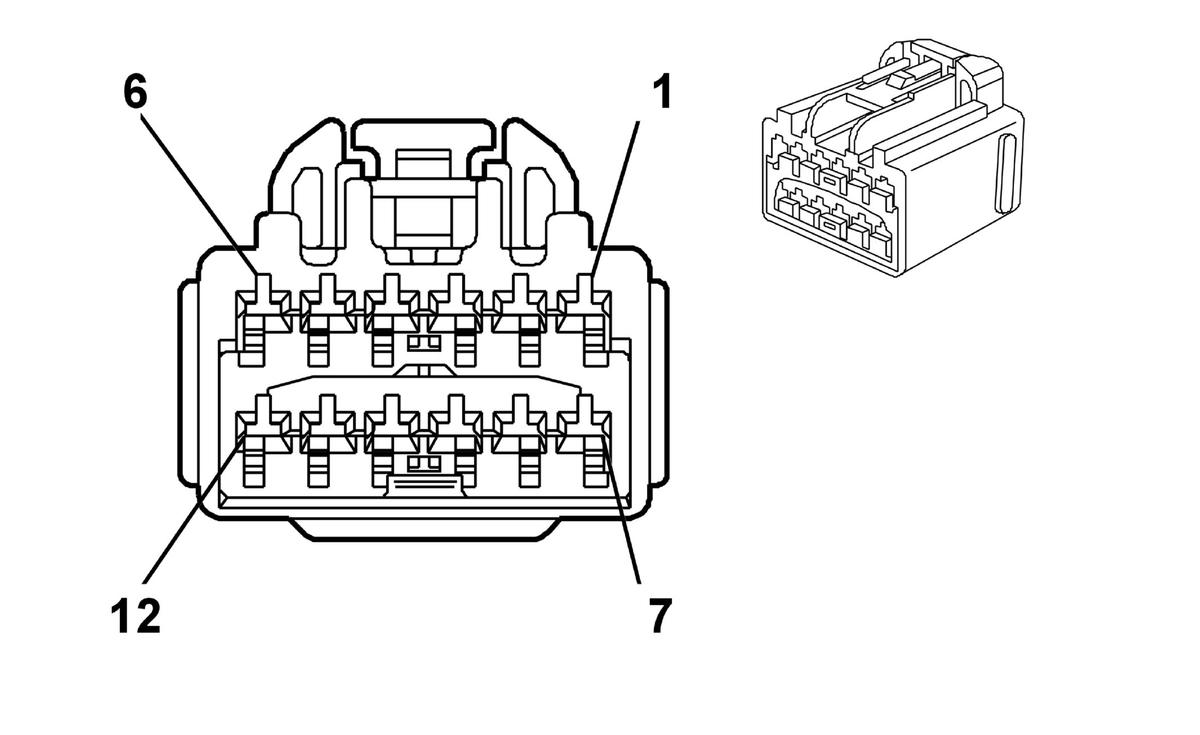

C212 Connector End View

C212 Body to Console Harness Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 7282-3442-40 Service: NS 12-Way M YESC (GY)		Connector Part Information		OEM: 7283-5540-40 NS 12-Way F YESC 1.5 Series (GY)
Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:		Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	OG	5756	Center Console Speaker (+) (w/YQ3/YQ4/YQ6/YQ7)	1	OG	5756	Center Console Speaker (+) (w/YQ3/YQ4/YQ6/YQ7)
2	PU/WH	5715	Keyless Entry Active Antenna Supply Voltage	2	PU/WH	5715	Keyless Entry Active Antenna Supply Voltage
3	YE	1491	Backlight Lamp Control	3	YE	1491	Backlight Lamp Control
4	OG/BK	5718	Keyless Entry Active Antenna Low Reference	4	OG/BK	5718	Keyless Entry Active Antenna Low Reference
5	GY	5717	Keyless Entry Active Antenna Data Signal	5	GY	5717	Keyless Entry Active Antenna Data Signal
6	L-BU	5716	Keyless Entry Active Antenna Clock Signal	6	L-BU	5716	Keyless Entry Active Antenna Clock Signal
7	OG/BK	5766	Console Center Speaker (-) (w/YQ3/YQ4/YQ6/YQ7)	7	OG/BK	5766	Console Center Speaker (-) (w/YQ3/YQ4/YQ6/YQ7)
8	YE	18	Left Rear Stop/Turn Lamp Supply Voltage	8	YE	18	Left Rear Stop/Turn Lamp Supply Voltage
9	TN	219	Keyless Entry Antenna Low Reference (1)	9	TN	219	Keyless Entry Antenna Low Reference (1)
10	BK	450	Ground	10	BK	450	Ground
11	PU	218	Keyless Entry Antenna Signal (1)	11	PU	218	Keyless Entry Antenna Signal (1)
12	WH	111	Hazard Switch Signal	12	WH	111	Hazard Switch Signal
