Lock Assembly, Inside Handle Cable Assembly Replacement - Front Door (UA2)

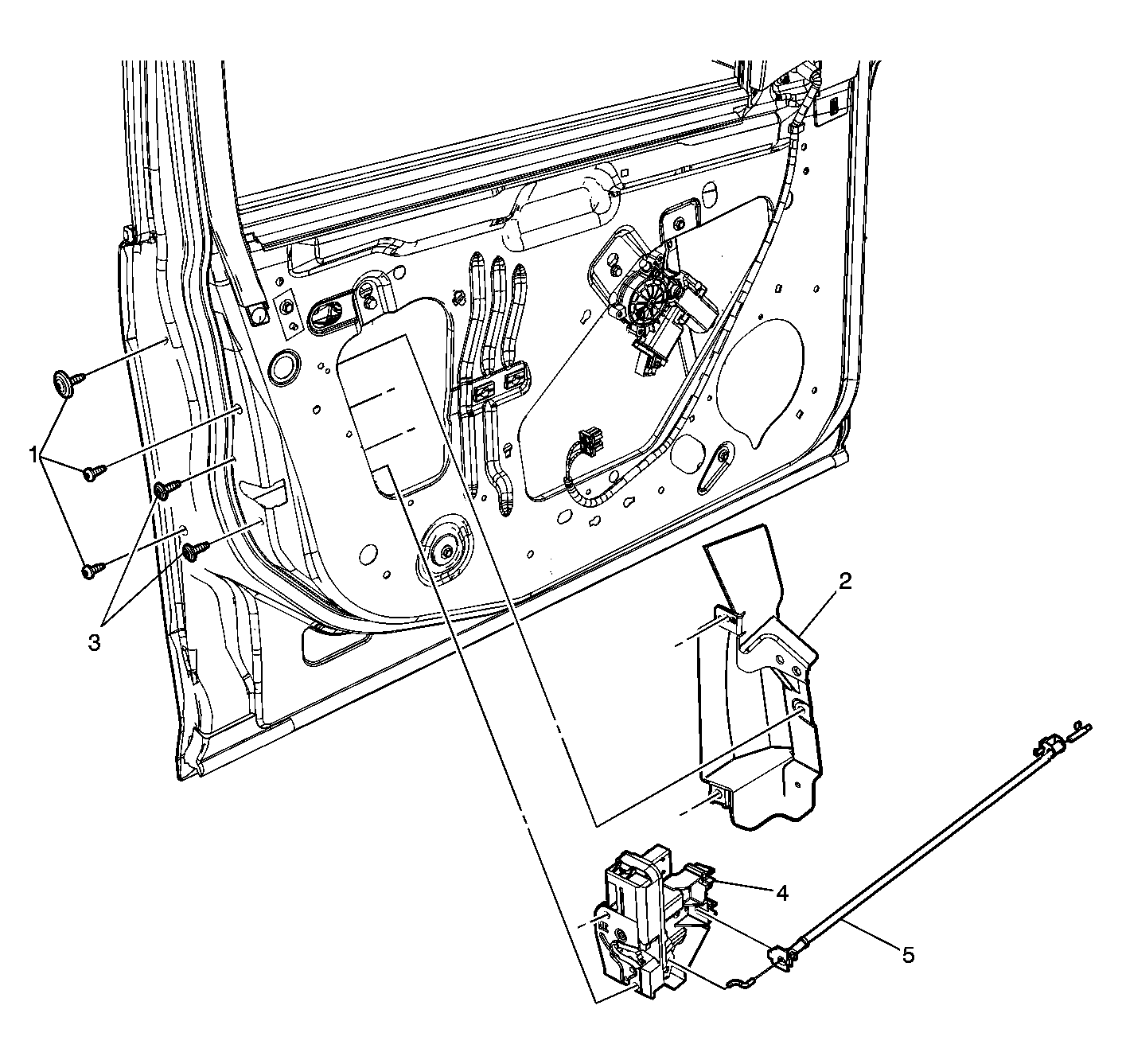

Fig 1: View Of Front Door Inside Handle Cable & Lock Assembly (UA2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Front Side Door Lock Cover Assembly Replacement Preliminary Procedures Remove the front side door trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the front side door water deflector. Refer to Water Deflector, Check Link Replacement - Front Door .
1	Screw, Front Side Door Lock Cover (Qty: 3) Tighten: 5 N.m (44 lb in)
2	Cover Assembly, Front Side Door Lock
Front Side Door Lock Assembly Replacement Preliminary Procedures Remove the front side door trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the front side door water deflector. Refer to Water Deflector, Check Link Replacement - Front Door .
1	Screw, Front Side Door Lock Cover (Qty: 3) Tighten: 5 N.m (44 lb in)
2	Cover Assembly, Front Side Door Lock
3	Screw, Front Side Door Lock (Qty: 2) Tighten: 9 N.m (80 lb in)
4	Lock Assembly, Front Side Door Tip: Raise the window to the full up position. The following items will need to be disconnected for removal and reconnected for installation: Lock cylinder rod Outside handle lock rod by opening the clip Lock assembly electrical connector Remove the lock assembly from the door with the inside handle cable assembly attached.
Front Side Door Inside Handle Cable Assembly Replacement Preliminary Procedures Remove the front side door trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the front side door water deflector. Refer to Water Deflector, Check Link Replacement - Front Door .
1	Screw, Front Side Door Lock Cover (Qty: 3) Tighten: 5 N.m (44 lb in)
2	Cover Assembly, Front Side Door Lock
3	Screw, Front Side Door Lock (Qty: 2) Tighten: 9 N.m (80 lb in)
4	Lock Assembly, Front Side Door Tip: Raise the window to the full up position. The following items will need to be disconnected for removal and reconnected for installation: Lock cylinder rod Outside handle lock rod by opening the clip Lock assembly electrical connector Remove the lock assembly from the door with the inside handle cable assembly attached.
5	Cable Assembly, Front Side Door Inside Handle
