Interior Lights Schematics

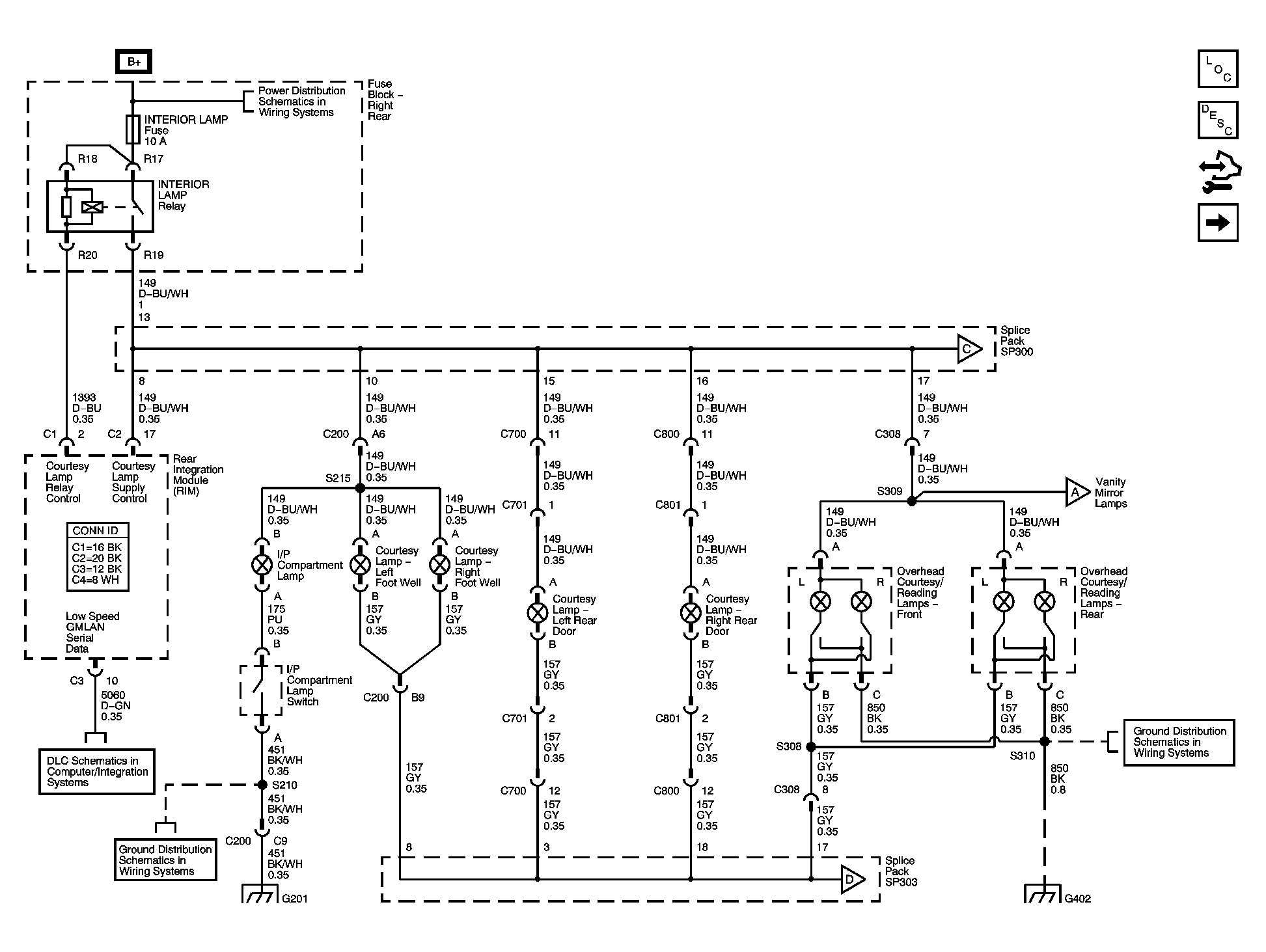

Fig 1: Courtesy Lamps Schematics
GM1415643Courtesy of GENERAL MOTORS CORP.
Fig 2: Vanity Mirror and Rear Compartment Lamps Schematics
GM1415645Courtesy of GENERAL MOTORS CORP.

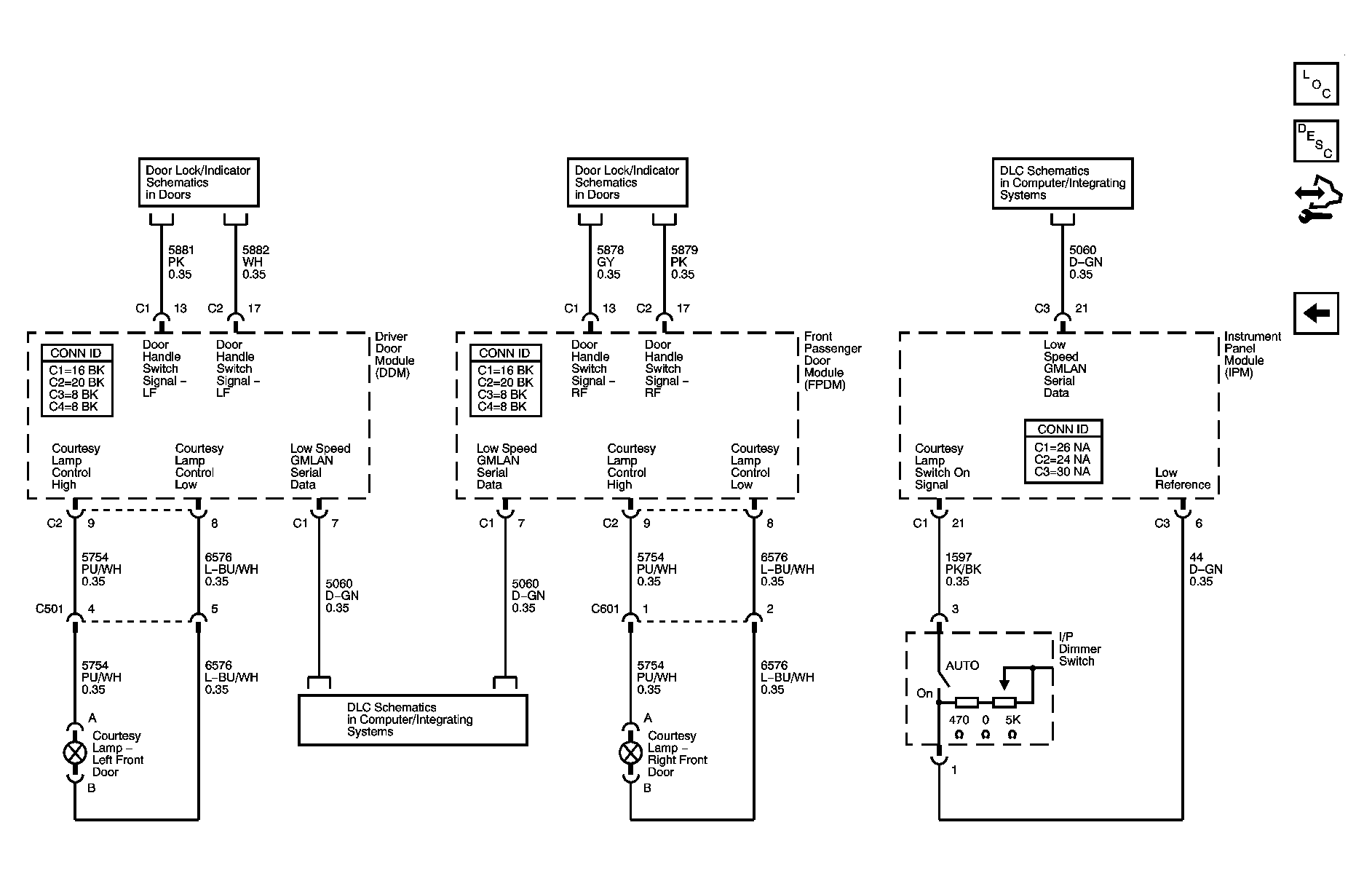

Fig 3: Front Door Puddle Lamps, DIC/Dimmer Switch Schematics
GM1415647Courtesy of GENERAL MOTORS CORP.
