Headlights/Daytime Running Lights (DRL) Schematics

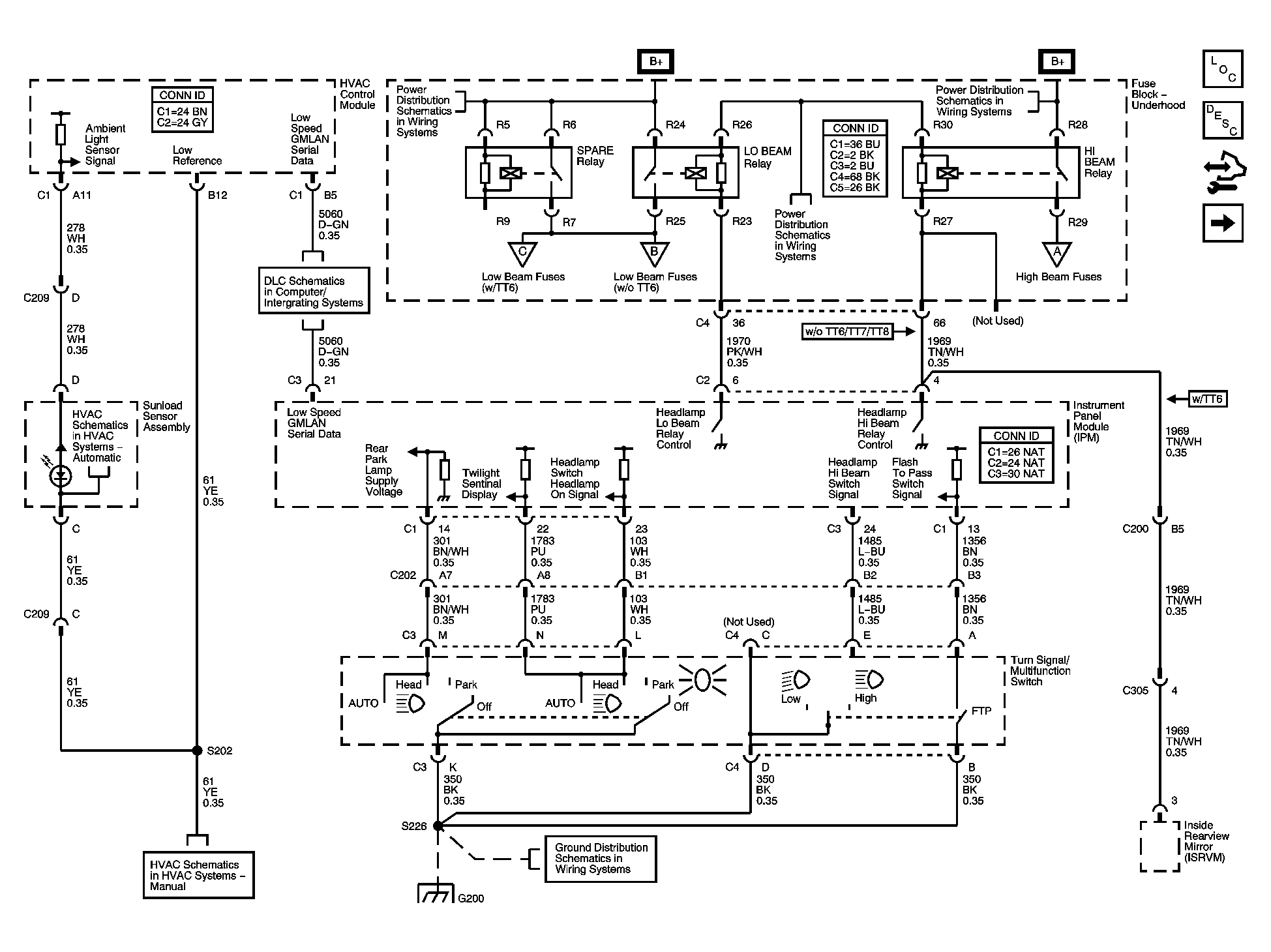

Fig 1: Headlamp Switch, Ambient Light Sensor, DLC Schematics
GM1415639Courtesy of GENERAL MOTORS CORP.

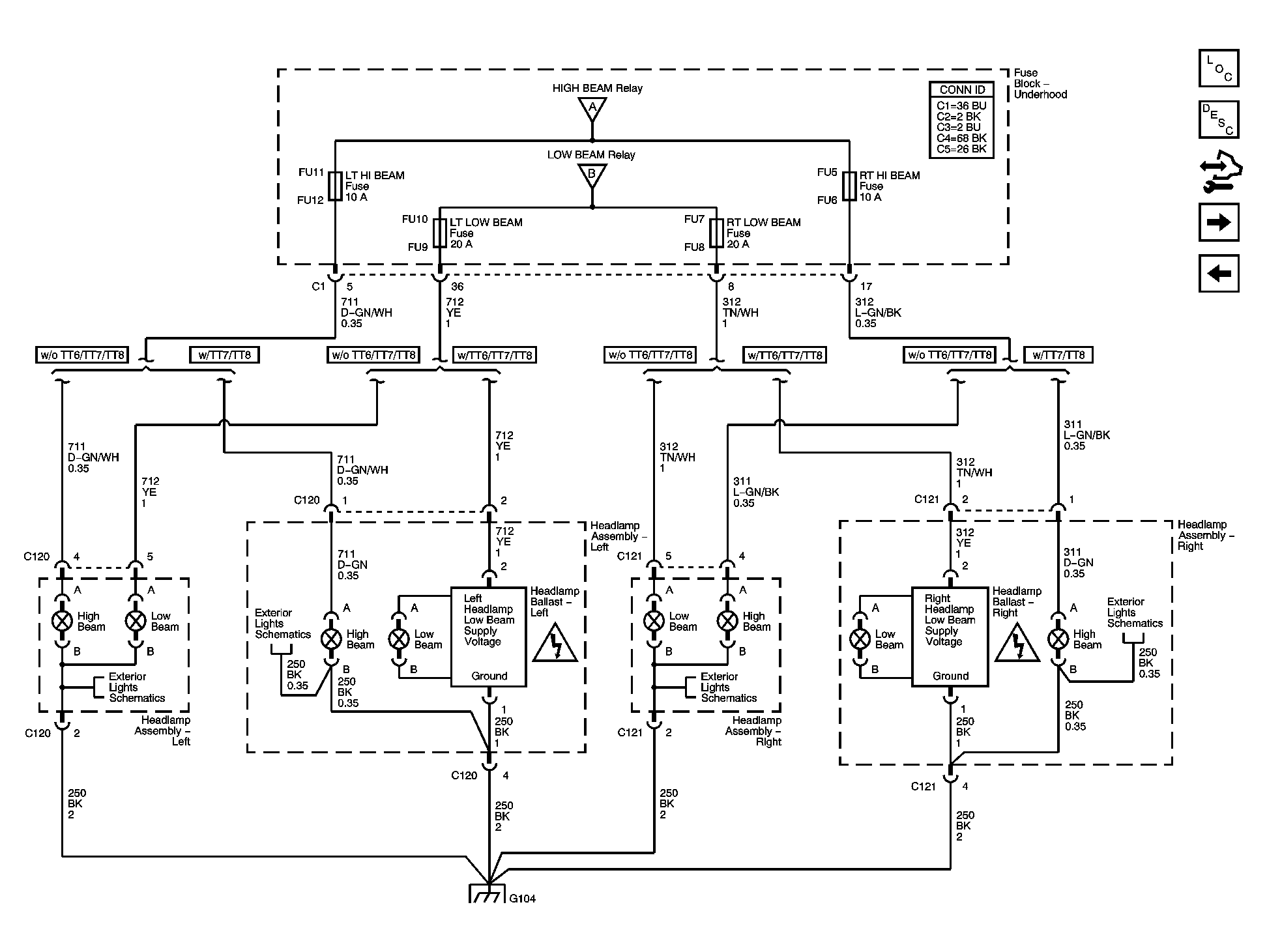

Fig 2: Power, Ground, Headlamps Schematics w/TT7/TT8 and w/o TT7/TT8
GM1415640Courtesy of GENERAL MOTORS CORP.

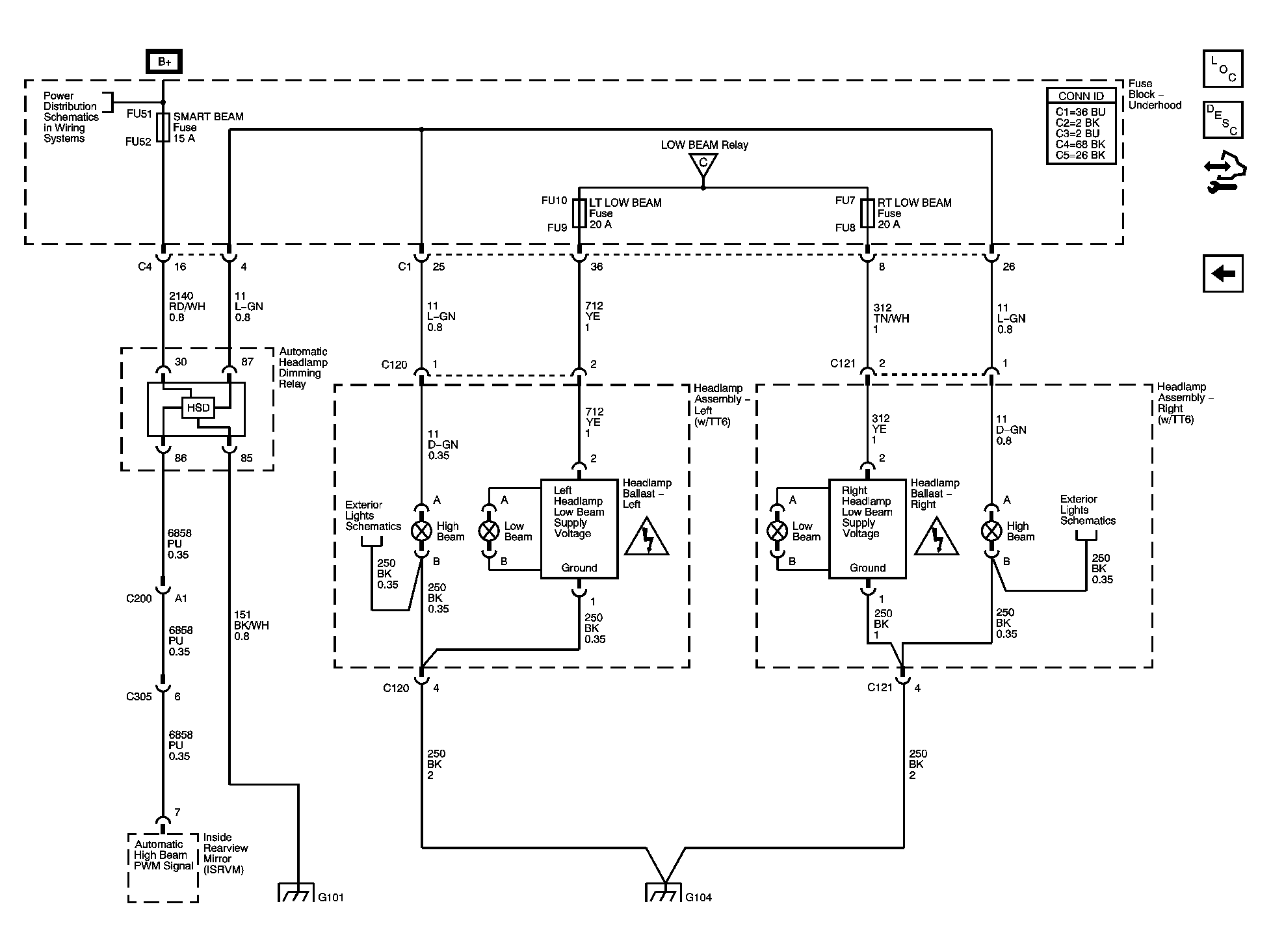

Fig 3: Automatic Headlamp Dimming Relay Schematics w/TT6, Headlamps w/TT6
GM1415642Courtesy of GENERAL MOTORS CORP.
