Exterior Lights Schematics

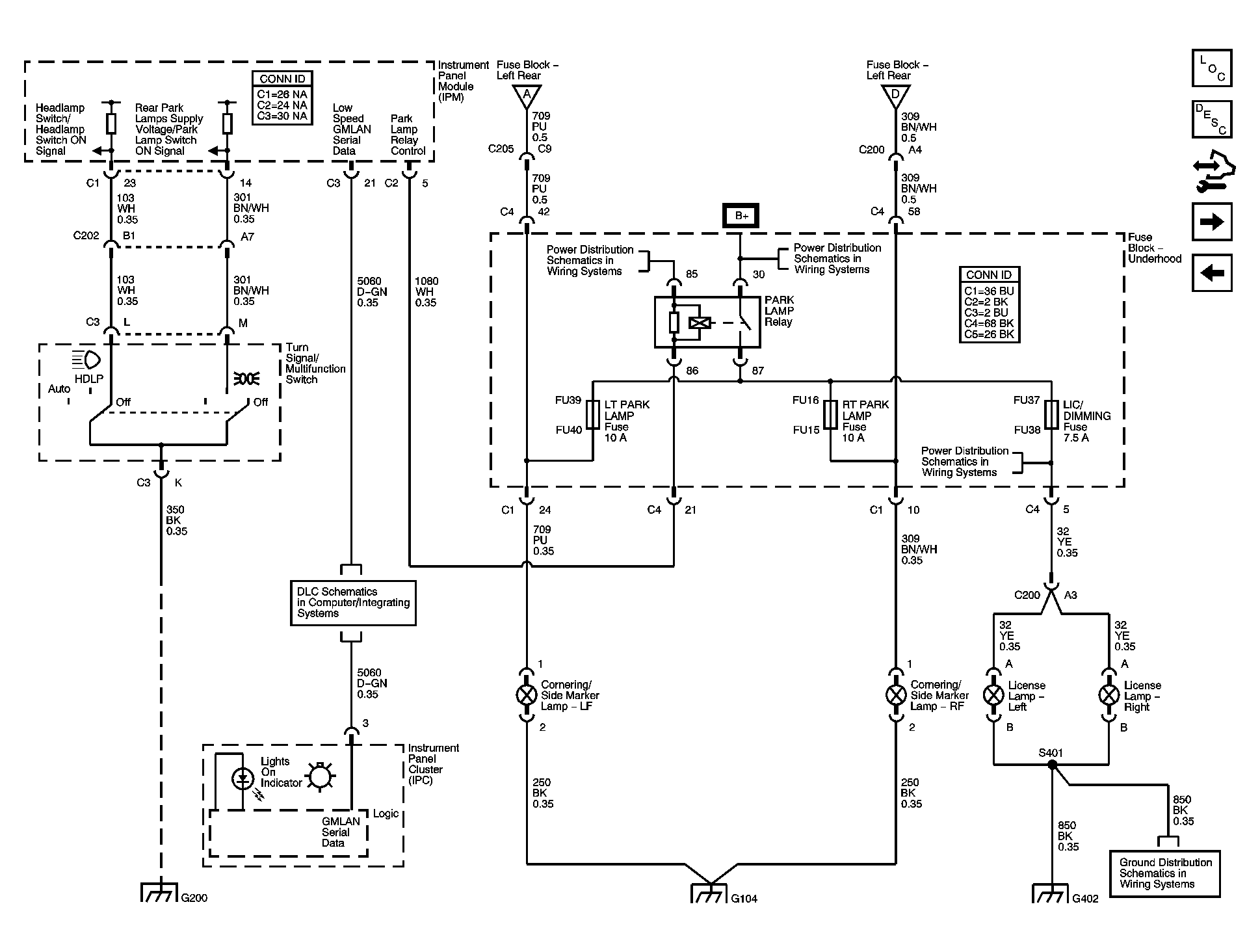

Fig 1: Park Lamp Relay, Switch, and Instrument Cluster Schematics - Domestic

Courtesy of GENERAL MOTORS CORP.

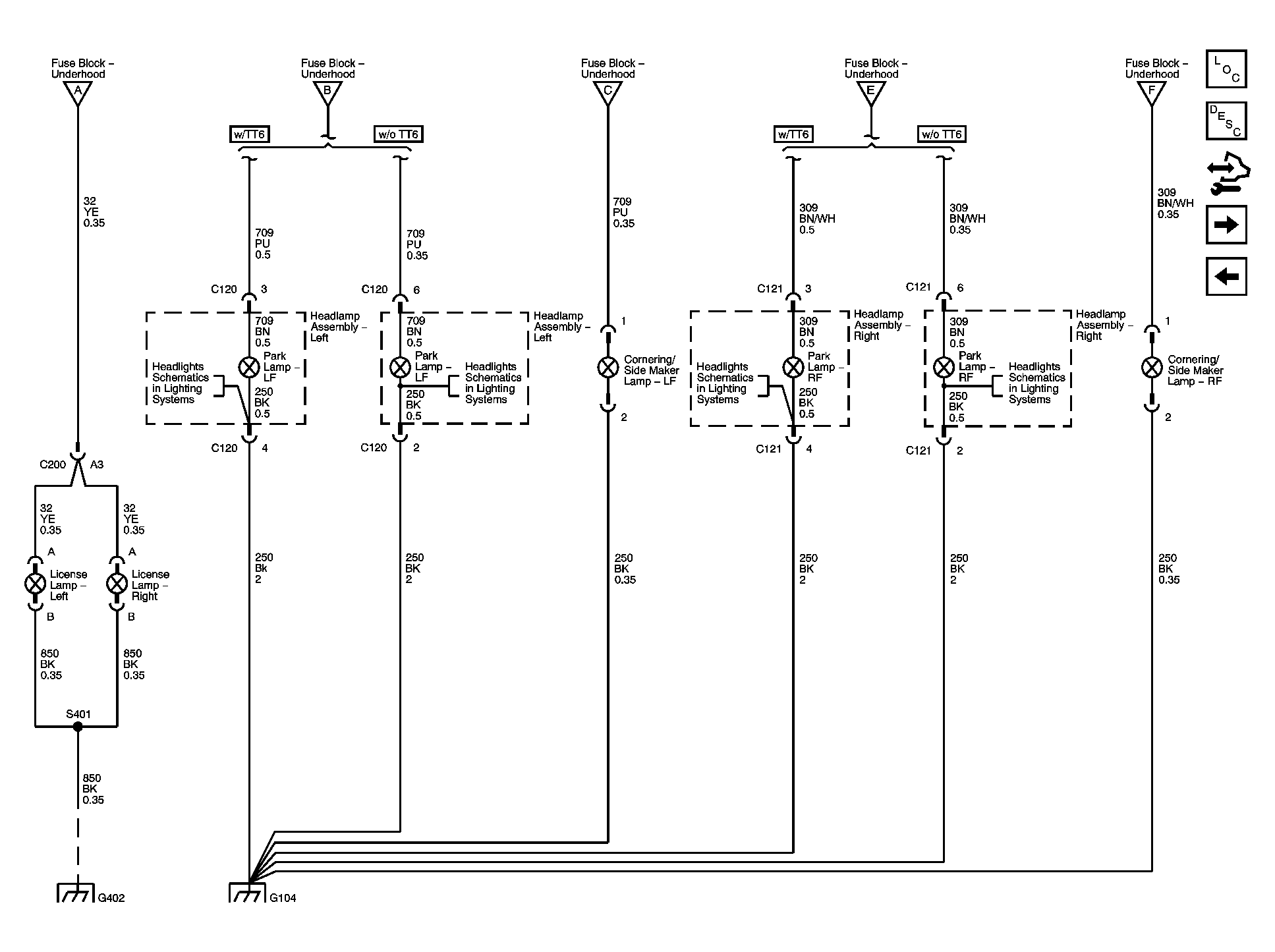

Fig 2: License, Park, and Side Marker Lamps Schematics - Domestic

Courtesy of GENERAL MOTORS CORP.

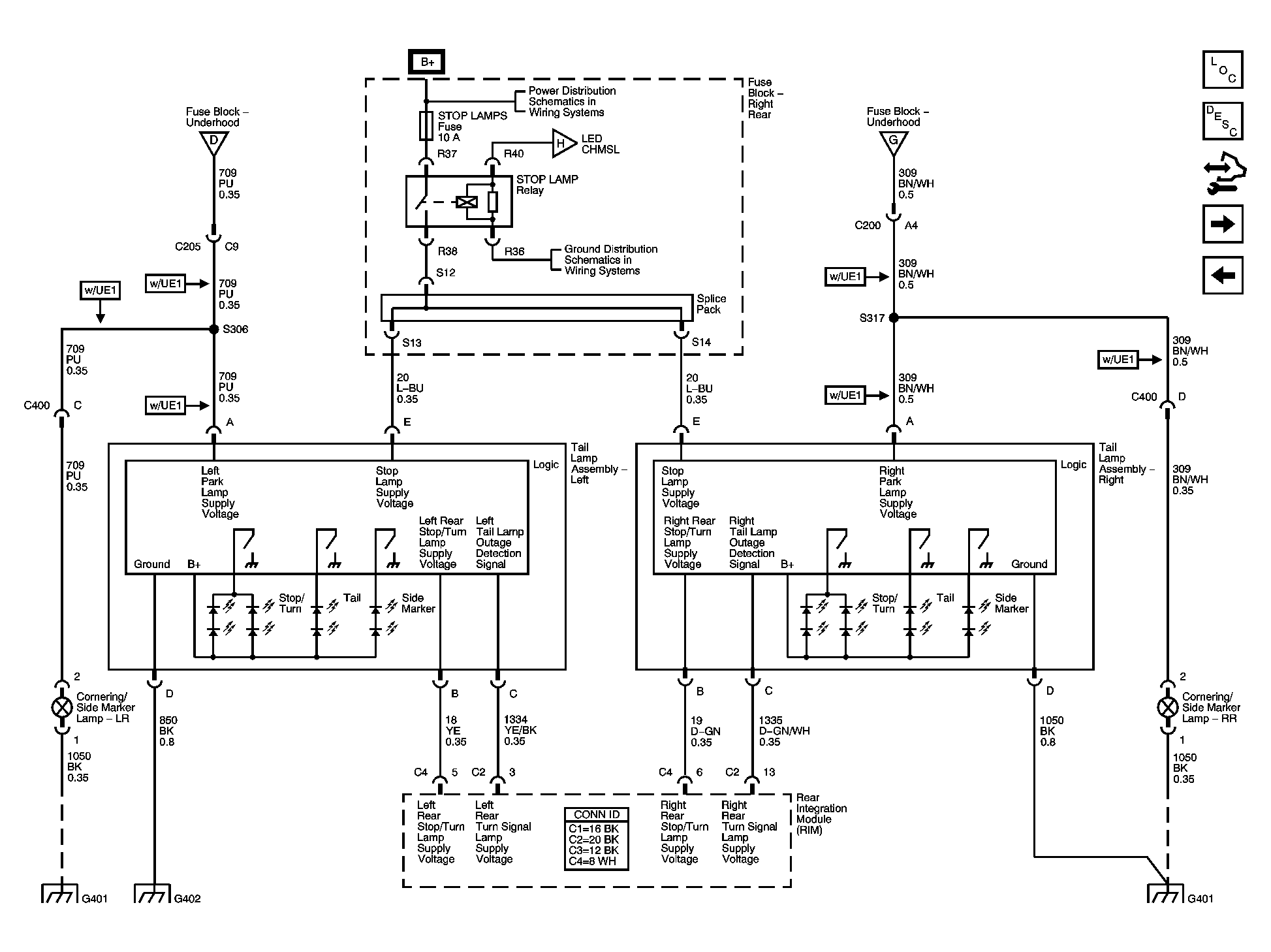

Fig 3: Tail Lamps Schematics - Domestic

Courtesy of GENERAL MOTORS CORP.

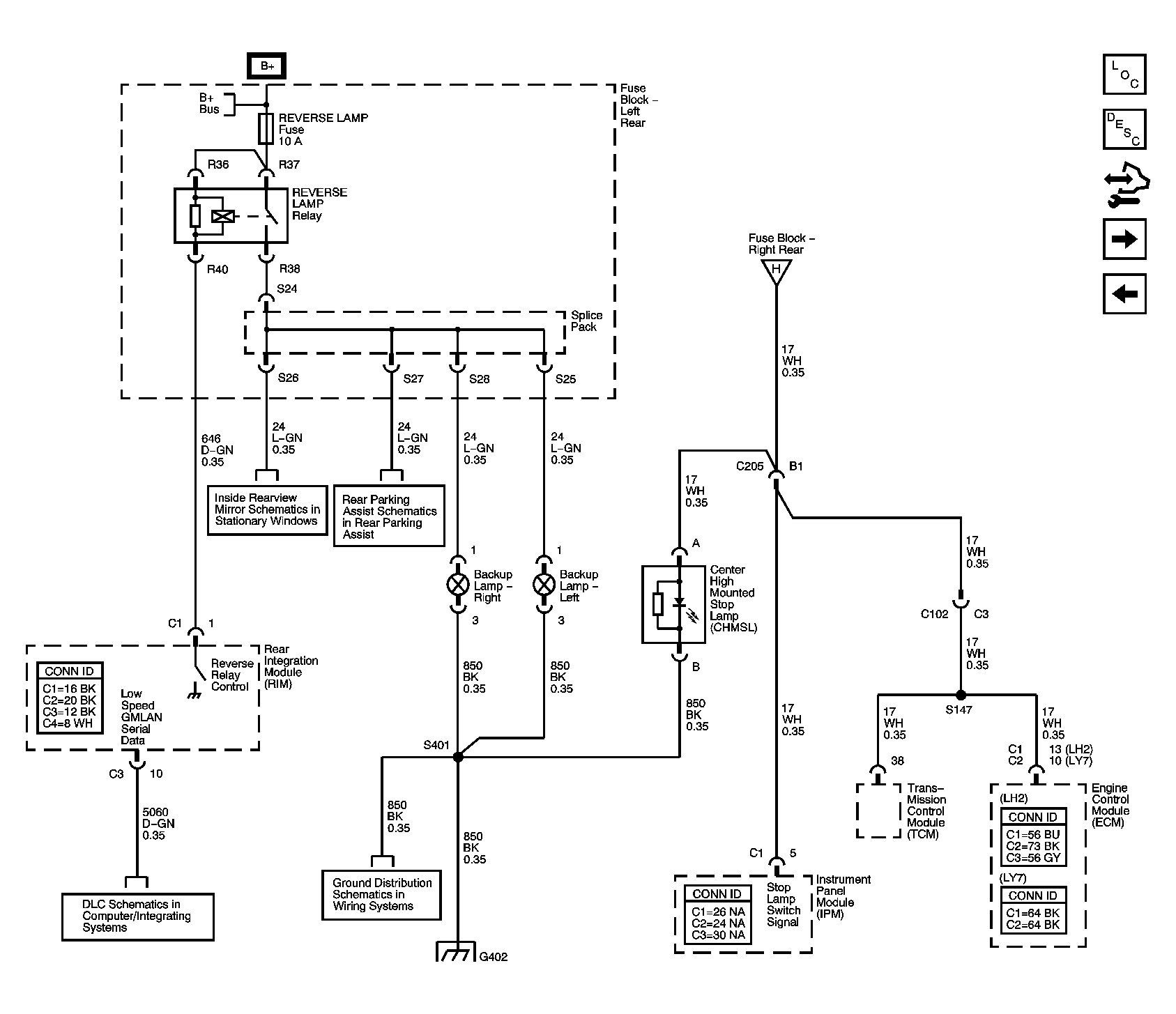

Fig 4: Backup Lamps, CHMSL Schematics - Domestic, Export

Courtesy of GENERAL MOTORS CORP.

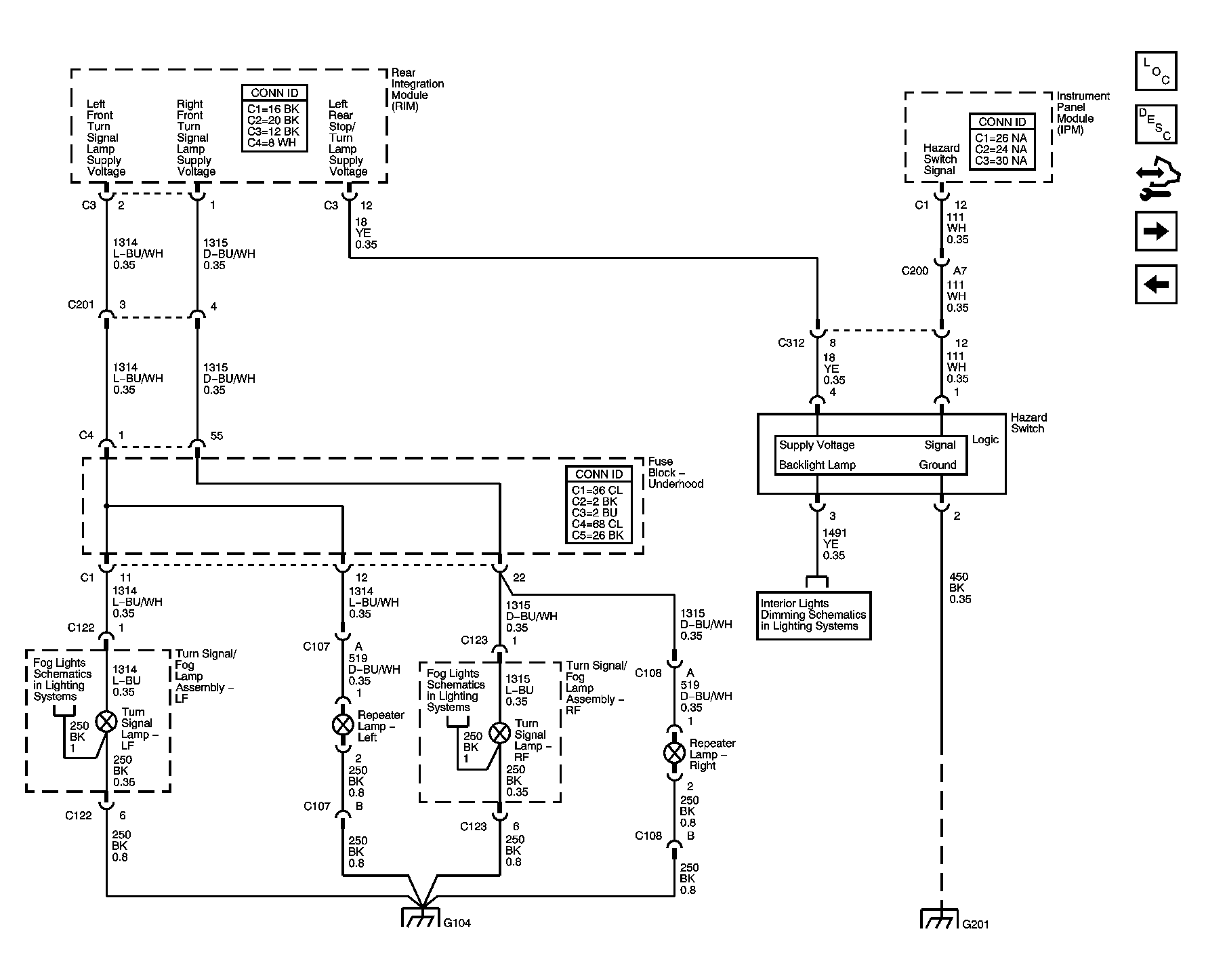

Fig 5: Front Turn Signal and Repeater Lamps, Hazard Switch Schematics - Domestic, Export

Courtesy of GENERAL MOTORS CORP.

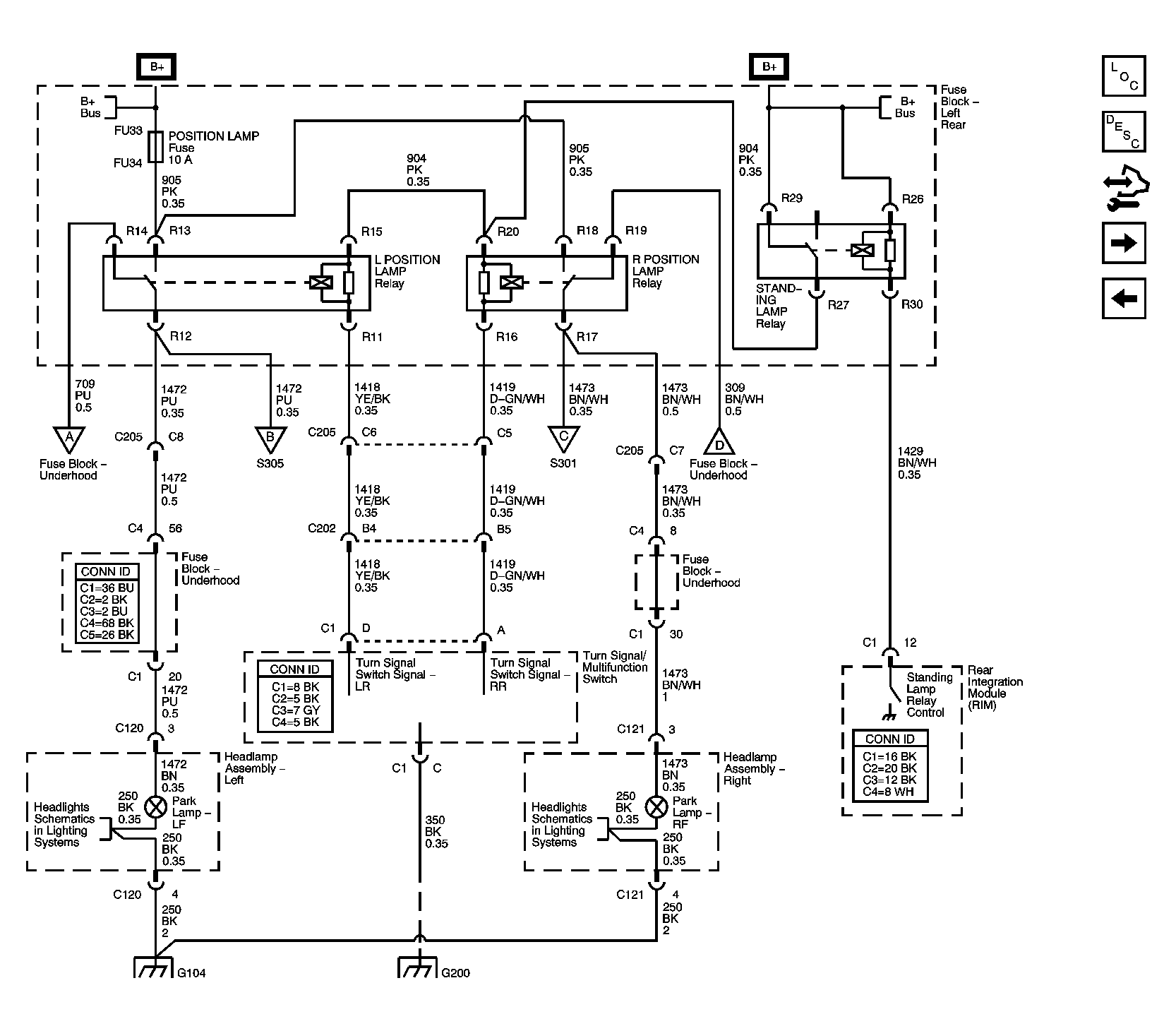

Fig 6: Front Park Lamps, Rear Turn Signal SW Signal, LT, RT Position and Standing Lamp Relays Schematics - Export

Courtesy of GENERAL MOTORS CORP.

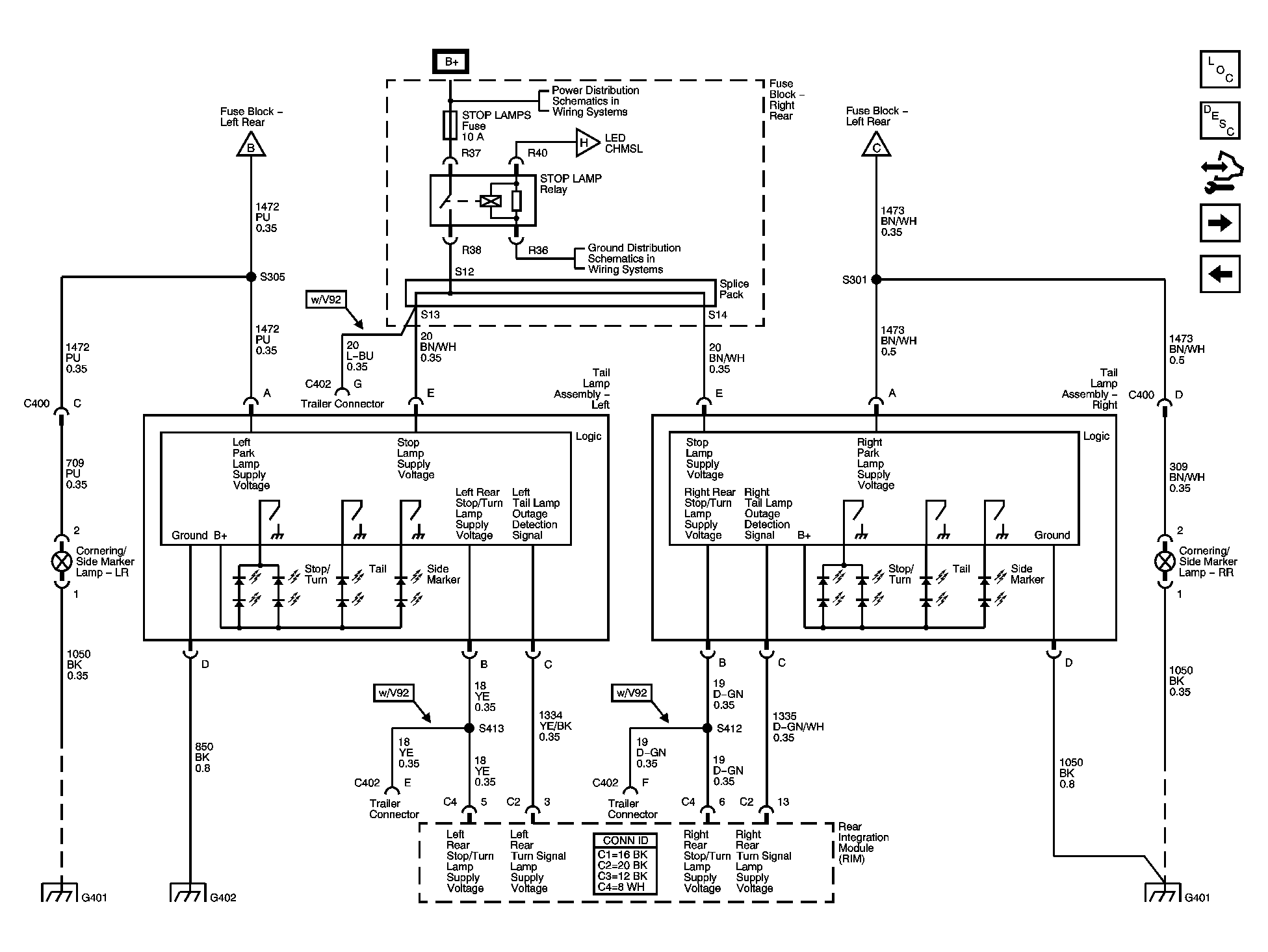

Fig 7: Tail Lamps Schematics - Export

Courtesy of GENERAL MOTORS CORP.

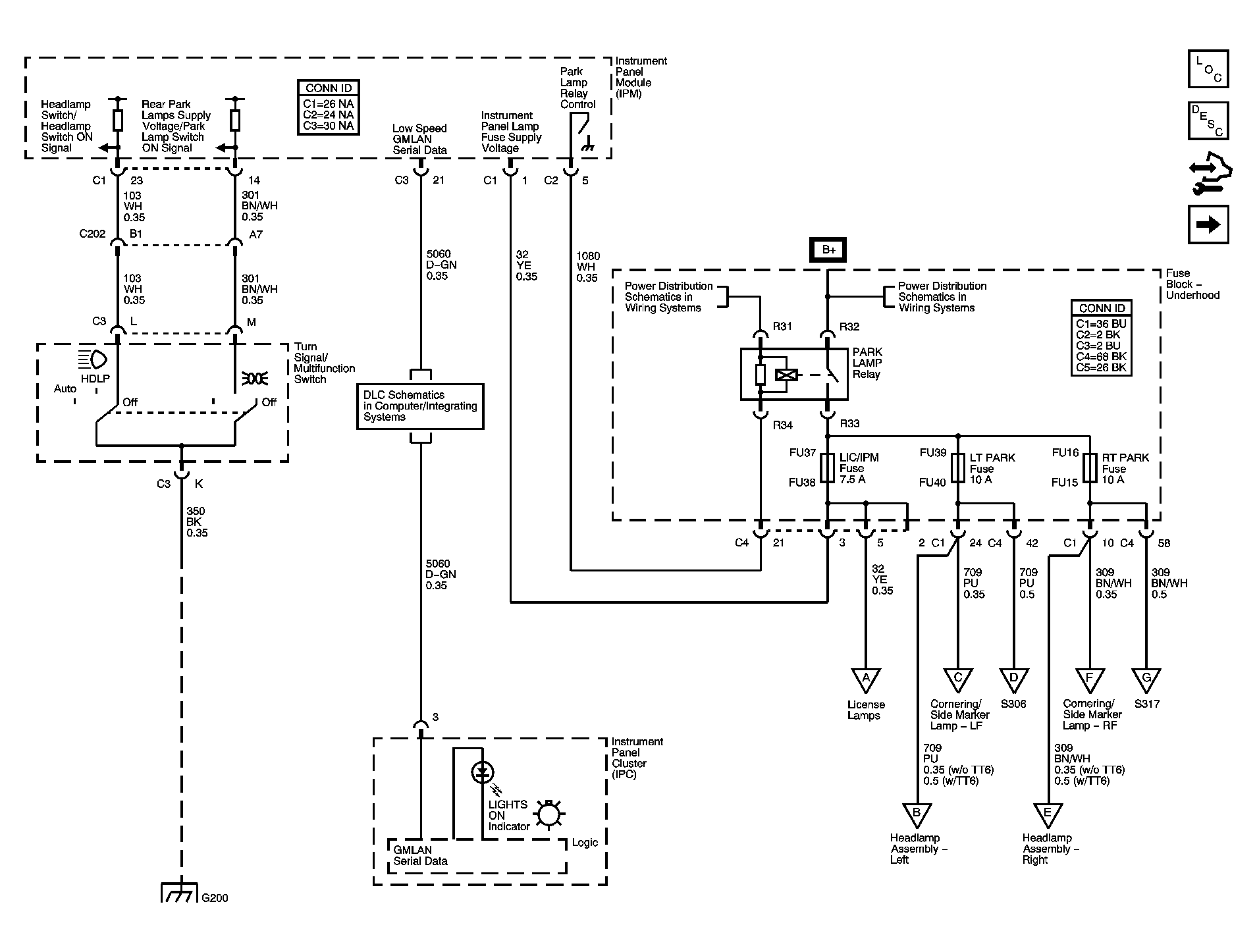

Fig 8: Park Lamp Relay, Switch, and Instrument Cluster Schematics - Export

Courtesy of GENERAL MOTORS CORP.

Fig 9: Front Turn Signal Switch Signals, Brake Pedal Position Sensor Schematics - Domestic, Export

Courtesy of GENERAL MOTORS CORP.
